USB Type-C 24 Pin Male to Female PCB Adapter – USB 3.1

USB Type-C 24-Pin Male to Female PCB Test Adapter Board

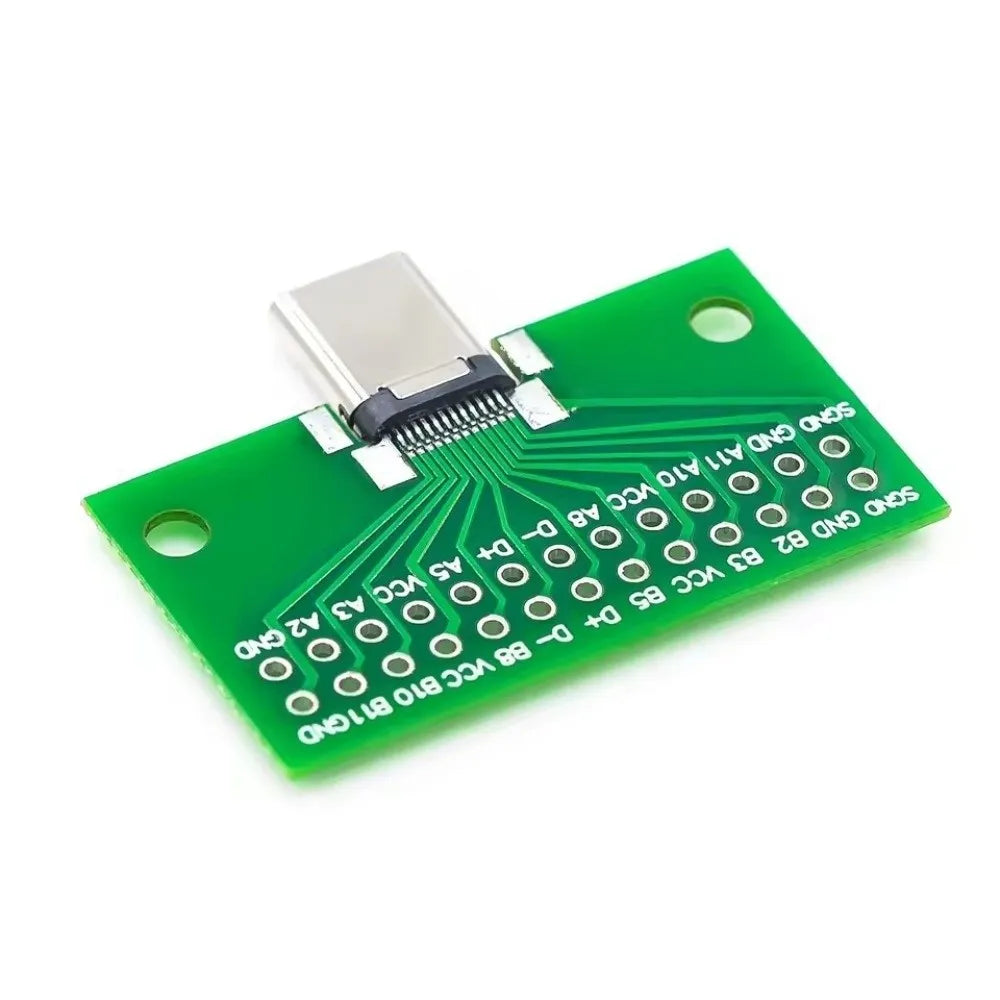

This compact USB Type-C 24-Pin Male to Female PCB Adapter Board is an essential component for electronics prototyping, testing, and DIY wire harness projects. Designed for USB 3.1 compatibility, it features a 2.54mm pitch breakout layout that exposes all 24 pins of the Type-C connector, making it easy to probe, solder, or connect individual wires for development and testing purposes.

Key Features

• Full 24-Pin Breakout: Exposes every pin of the USB Type-C connector for complete access during prototyping and testing.
• USB 3.1 Compatible: Supports high-speed data transfer standards for modern devices and development boards.
• 2.54mm Pitch Headers: Standard spacing makes it compatible with breadboards, Dupont wires, and most DIY electronics setups.

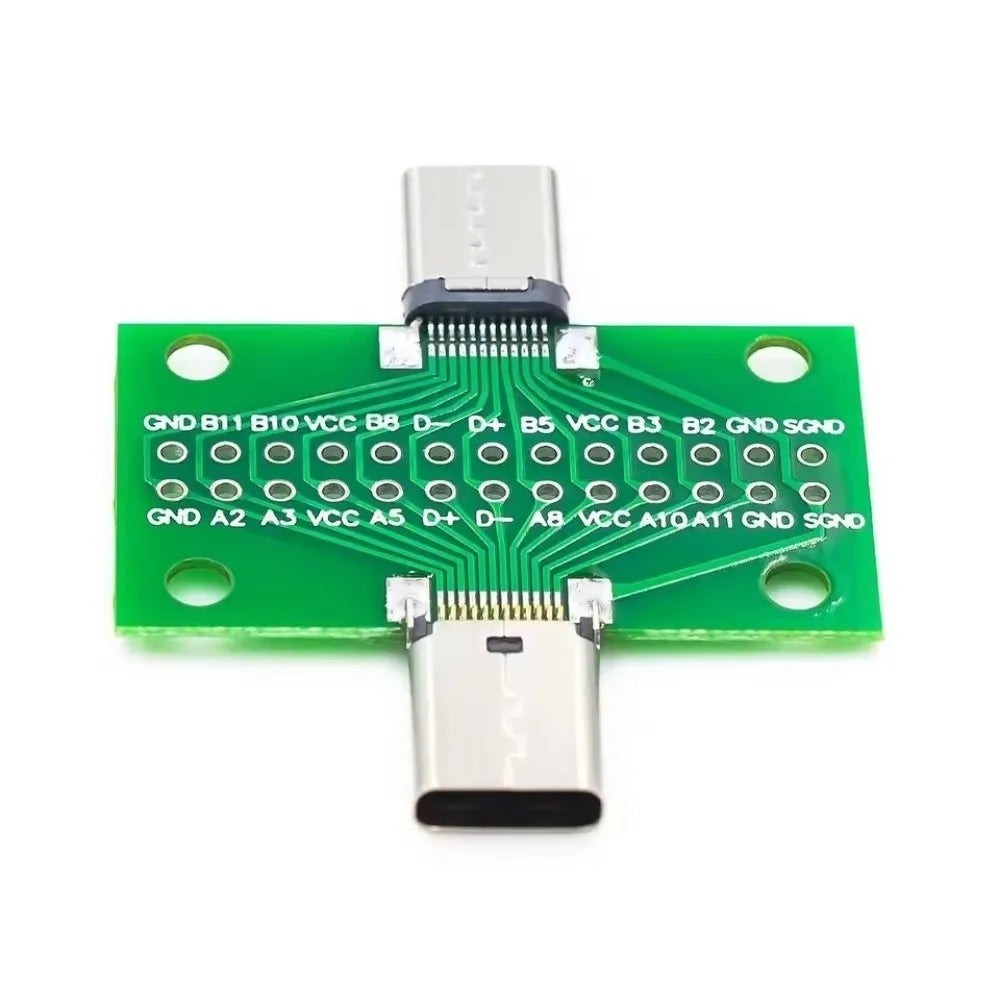

• Male to Female Design: One side accepts a USB Type-C plug; the other provides a female connector — ideal for pass-through testing and cable fabrication.
• Compact PCB Form Factor: Measures approximately 36 × 20 mm (1.42 × 0.79 in) — small enough to fit into any project enclosure or test bench.
• Durable PCB Material: Built on a quality printed circuit board for reliable, stable connections.
• No Battery Required: Purely passive adapter — no power source or wireless functionality needed.

Specifications

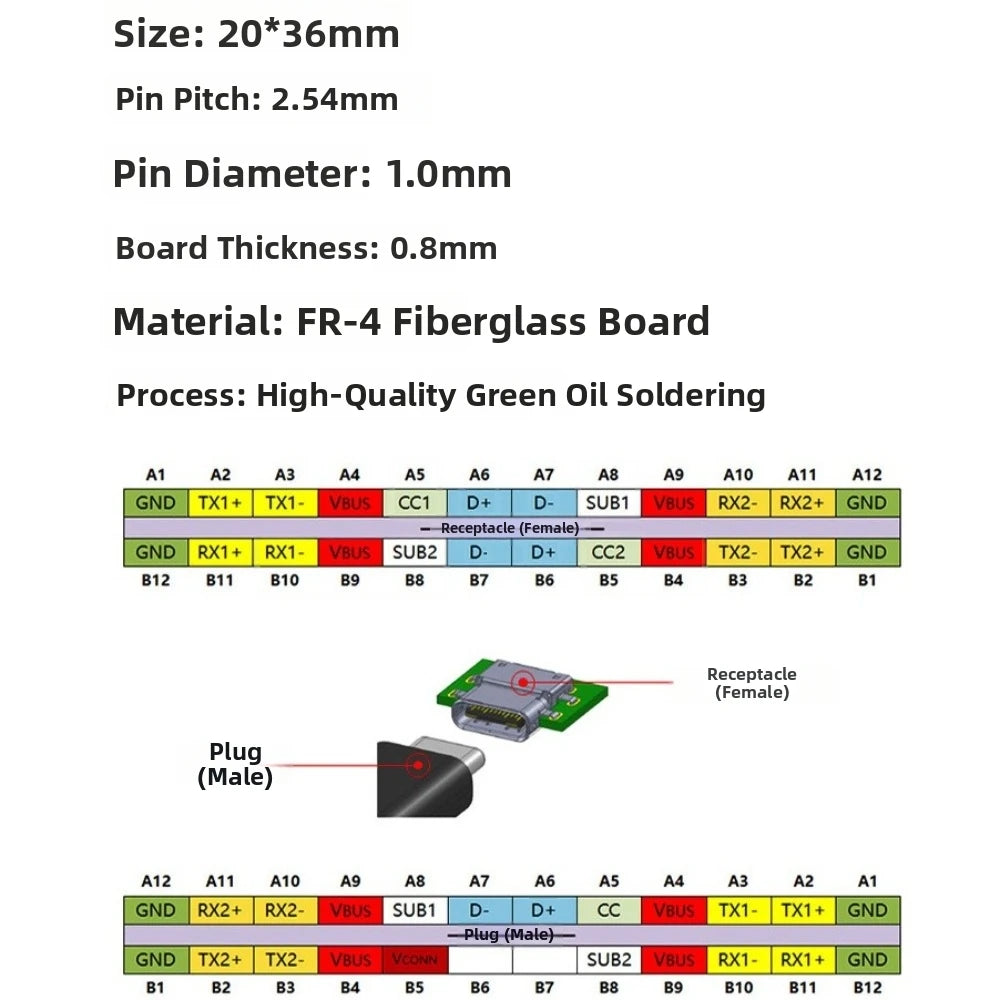

• Type: USB Type-C Male to Female PCB Adapter
• Pin Count: 24 Pins
• Pitch: 2.54mm
• USB Standard: USB 3.1
• Material: PCB
• Dimensions: Approx. 36 × 20 mm (1.42 × 0.79 in)
• Quantity: 1 pc
• Made in: Mainland China

What's in the Box?

• 1 × USB Type-C 24-Pin Male to Female PCB Test Adapter Board

Note: Due to lighting and monitor variations, colors may appear slightly different from the images. Please allow minor dimensional tolerances due to manual measurement.

Related Products You May Like

• 1PC 10g High Grade Silicon Grease Lubricant for O-Rings & Tubes – Great for maintaining connectors and cable assemblies.
• 1PC Mobile Data Cable Storage Box with Lid – Drawer Organizer – Keep your cables and adapters neatly organized.
• 1PC Large Capacity Battery Storage Organizer Box – Perfect companion for your electronics workbench.

Learn more: ENERGY STAR product efficiency guidance

Frequently Asked Questions

Q: What is the USB Type-C 24-Pin PCB Adapter Board used for?

A: This USB Type-C 24-pin PCB adapter board is used for electronics prototyping, wire harness fabrication, and connector testing. By breaking out all 24 pins of the USB Type-C interface at a 2.54mm pitch, it allows engineers, hobbyists, and developers to connect individual wires, measure signals, or route specific pins during USB 3.1 project development.

Q: Is this adapter compatible with standard breadboards and Dupont jumper wires?

A: Yes. The 2.54mm pitch header spacing is the standard used by most breadboards and Dupont-style jumper wires, making this USB Type-C test board fully compatible with common DIY electronics prototyping setups.

Q: Does this USB Type-C adapter support data transfer as well as power?

A: This is a passive breakout/test board that exposes all 24 pins of the USB Type-C connector, including data, power, and ground lines. Its use for data transfer or power routing depends on how you wire it in your specific project — it does not process or convert signals on its own.

Q: What are the dimensions of this PCB adapter?

A: The PCB adapter measures approximately 36 × 20 mm (1.42 × 0.79 inches), making it a very compact and lightweight component suitable for tight spaces in enclosures or on a test bench.
