TC Series Digital PID Temperature Controller Dual SSR Relay

TC Series Digital PID Temperature Controller with Dual SSR Relay Output

Take precise command of your thermal processes with the TC Series Digital PID Temperature Controller. Engineered for industrial and laboratory applications, this intelligent thermostat supports a wide range of thermocouple and RTD sensor inputs, delivering ±0.5%FS ±1°C accuracy. Whether you need rock-solid PID control or simple ON/OFF switching, this compact unit handles it all via an intuitive touch-switch interface.

Made in Mainland China.

Key Features

• High Accuracy: ±0.5%FS ±1°C for dependable, repeatable results
• Wide Voltage Input: AC 100–240V supply — works globally with 110V and 220V systems
• Versatile Sensor Compatibility: Accepts Thermocouple types K, J, R, S, B, E, N, T, W4Re/W26Re, PLII and RTD types Pt100 / JPt100
• Max Measurable Temperature: Up to 1372°C (default set to 400°C for K-type)
• Dual Output: Electromagnetic relay + SSR (Solid State Relay) output
• Control Modes: PID auto-tuning or ON/OFF switching — configurable to your process needs
• Clear Display: 8-segment, 4-digit digital readout with LED indicators for at-a-glance status
• Touch Switch Setting: Easy front-panel programming without tools
• Wide Operating Range: -20°C to 60°C operating temperature; 30–85% RH non-condensing humidity
• Low Power Consumption: Under 10VA

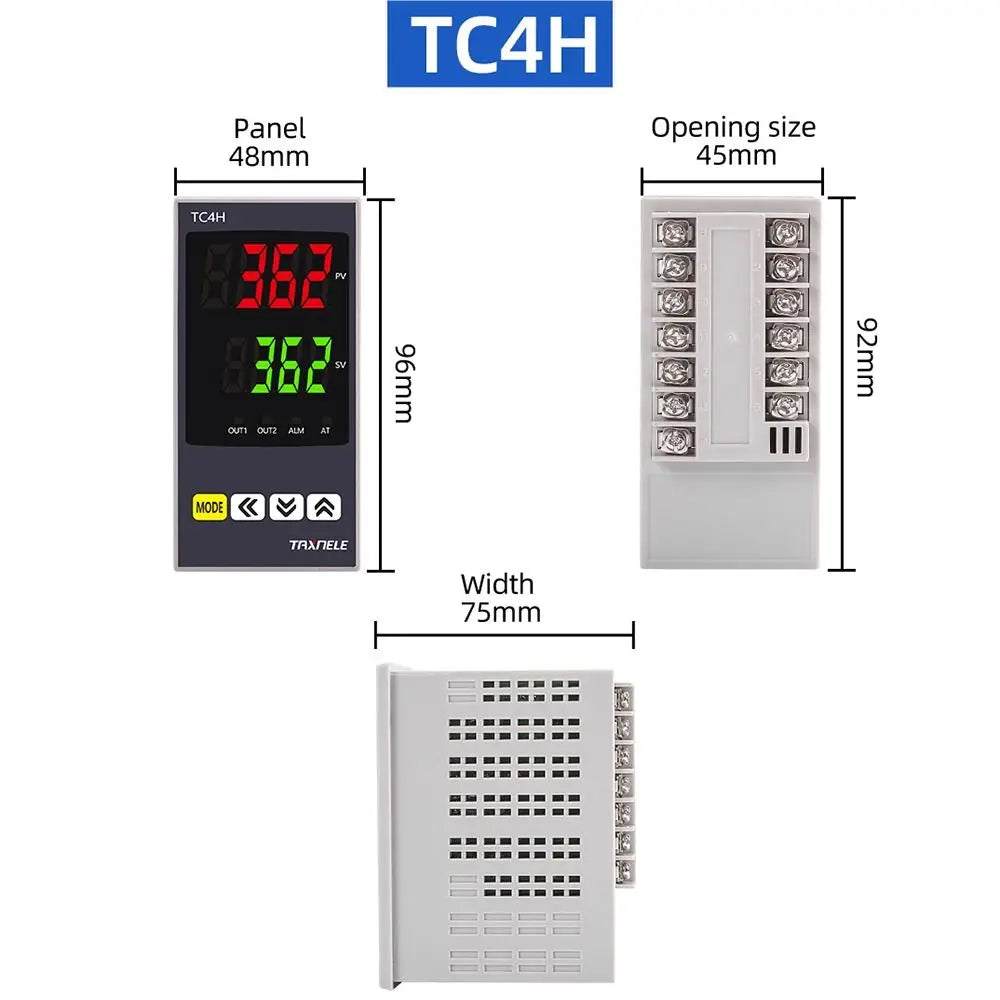

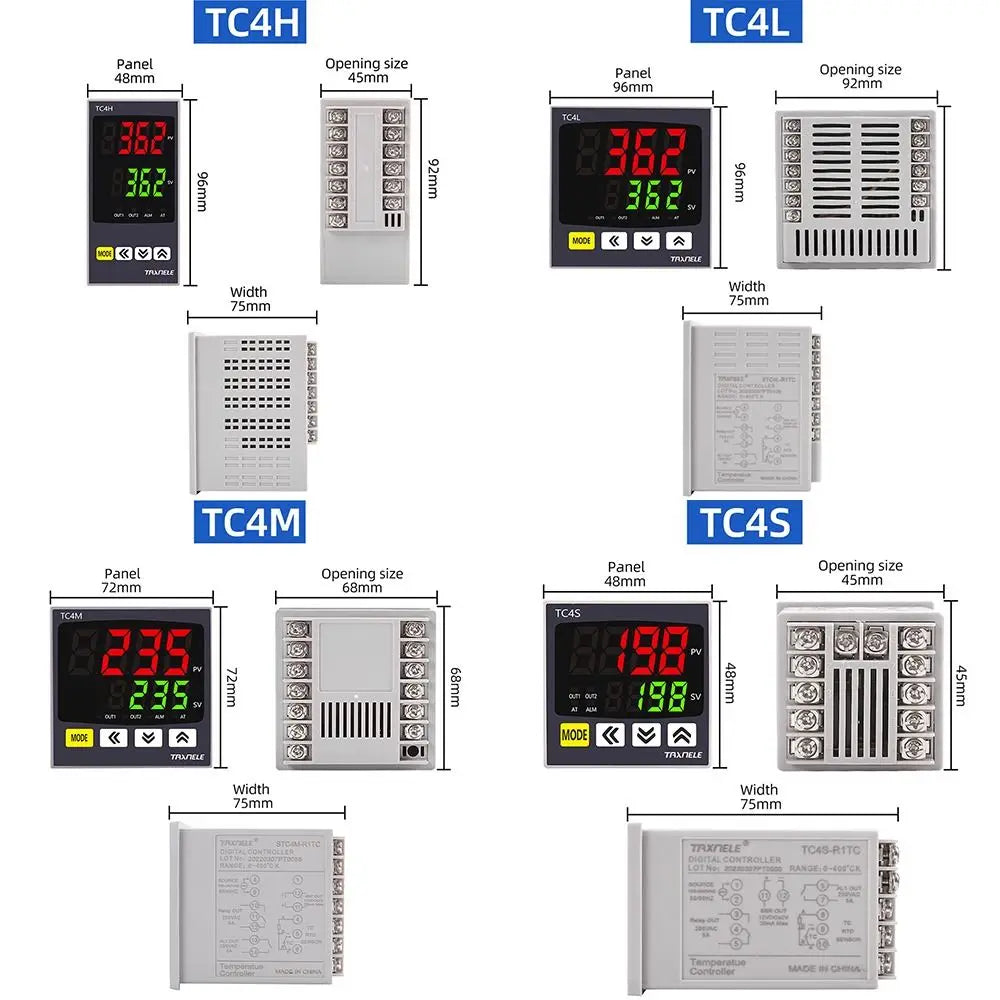

Model Dimensions

Technical Specifications

• Model Series: TC4S / TC4H / TC4M / TC4L
• Supply Voltage: AC 100–240V
• Power Consumption: <10VA
• Input Types: Thermocouple (K, J, R, S, B, E, N, T, W4Re/W26Re, PLII); RTD (Pt100, JPt100)
• Output Types: Electromagnetic Relay + SSR
• Control Method: PID / ON-OFF
• Display: 8-segment 4-digit + LED
• Setting: Touch switch
• Operating Temperature: -20°C to 60°C
• Operating Humidity: 30–85% RH (non-condensing)
• Battery: Not required / not included

What's in the Box

• 1 × Digital PID Temperature Controller (TC Series)

You May Also Like

• 1PC 10g High Grade Silicone Grease Lubricant for O-Rings & Seals
• 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking Tools
• 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes Repair Spanner

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What sensor types are compatible with the TC Series PID temperature controller?

A: The TC Series controller is compatible with a wide range of sensors. Thermocouple types supported include K, J, R, S, B, E, N, T, W4Re/W26Re, and PLII. It also works with RTD sensors Pt100 and JPt100, making it highly versatile for diverse industrial and lab temperature control applications.

Q: What is the difference between PID and ON/OFF control mode on this thermostat?

A: PID (Proportional-Integral-Derivative) control continuously calculates and adjusts the output to maintain the target temperature with minimal overshoot — ideal for precise process control. ON/OFF mode simply switches the output fully on or off when the temperature crosses the set point, which suits simpler applications where tight precision is less critical.

Q: Can this temperature controller be used with both 110V and 220V power supplies?

A: Yes. The TC Series PID digital thermostat accepts a supply voltage of AC 100–240V, making it fully compatible with both 110VAC and 220VAC electrical systems worldwide.

Q: Which model size should I choose for my panel installation?

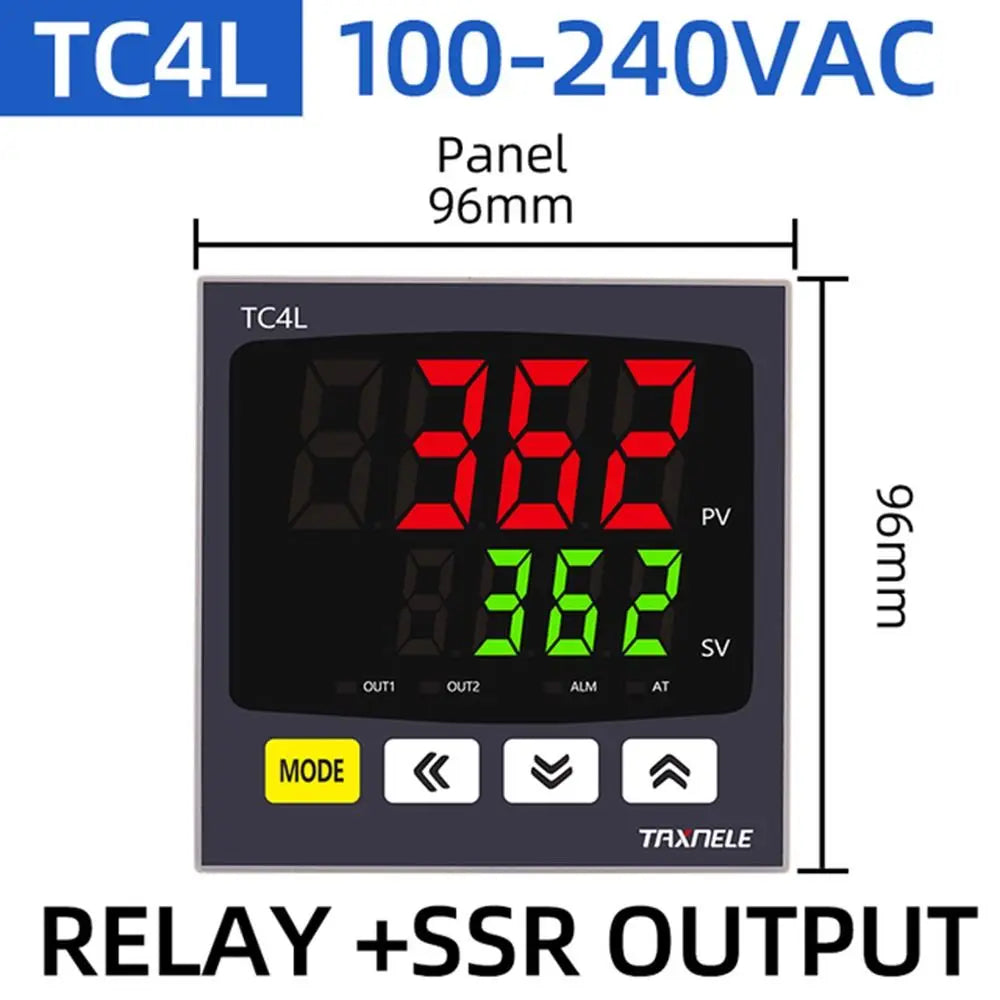

A: Choose based on your panel cutout dimensions: TC4S fits a 45×45mm cutout, TC4H fits 45×92mm, TC4M fits 68×68mm, and TC4L fits 92×92mm. All models share the same 75mm depth behind the panel.
