RS550 High-Speed DC Motor – Built for Power Tools
Upgrade or replace the motor in your cordless drill, screwdriver, or reciprocating saw with this robust RS550 Permanent Magnet DC Motor. Engineered for high-speed, high-torque performance across a wide voltage range (10.8 V – 25 V), this micro motor delivers consistent output whether you're working on a DIY project or a professional job site. Made in Mainland China.
Key Specifications
- Model Number: RS550
- Construction: Permanent Magnet
- Commutation: Brush
- Operating Voltage: 10.8 V – 25 V
- Output Power: 60 W
-
No-Load Speed (by voltage):
- 12 V → ~23,000 RPM
- 14.4 V → ~24,500 RPM
- 16.8 V → ~26,000 RPM
- 21 V → ~27,500 RPM
- No-Load Speed Range: 21,500 – 29,000 RPM
- No-Load Current (12 V): 1.3 A
- Protect Feature: Explosion-proof design

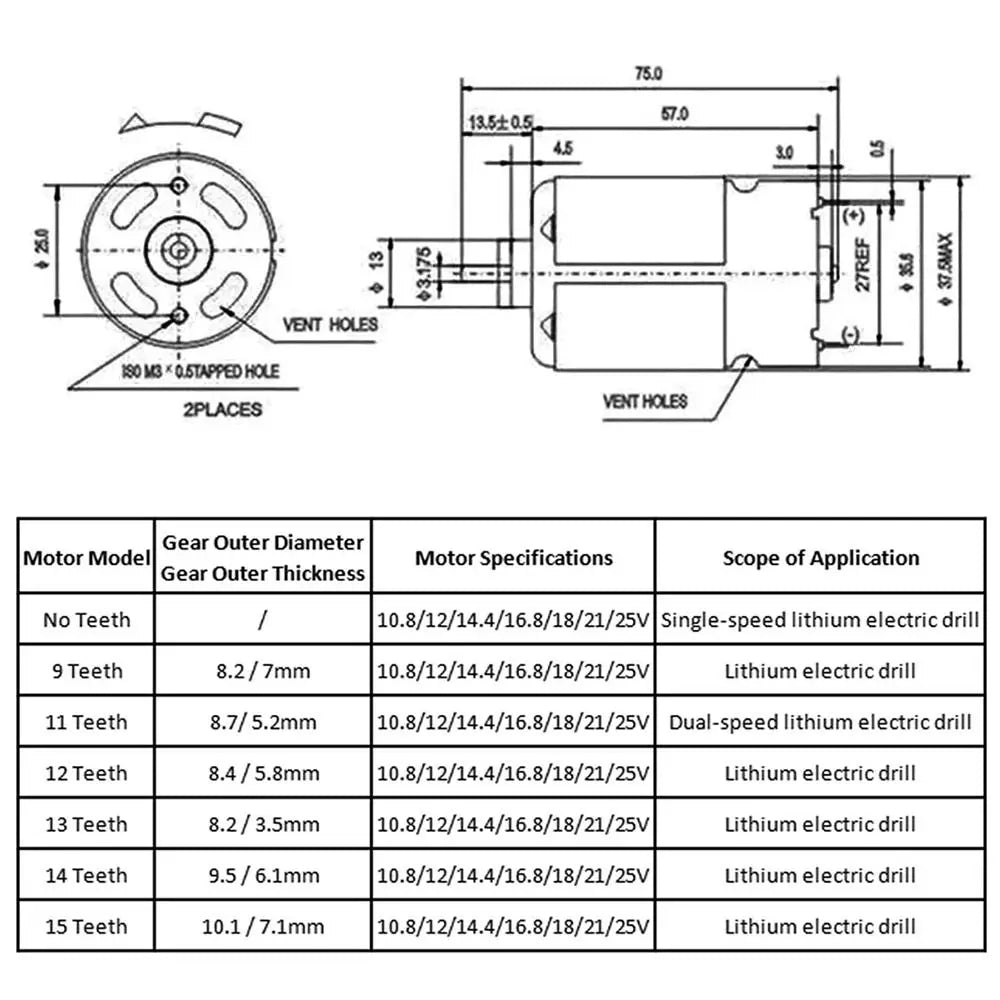

- Dimensions: 75 × 37 × 37 mm (2.95 × 1.46 × 1.46 in)

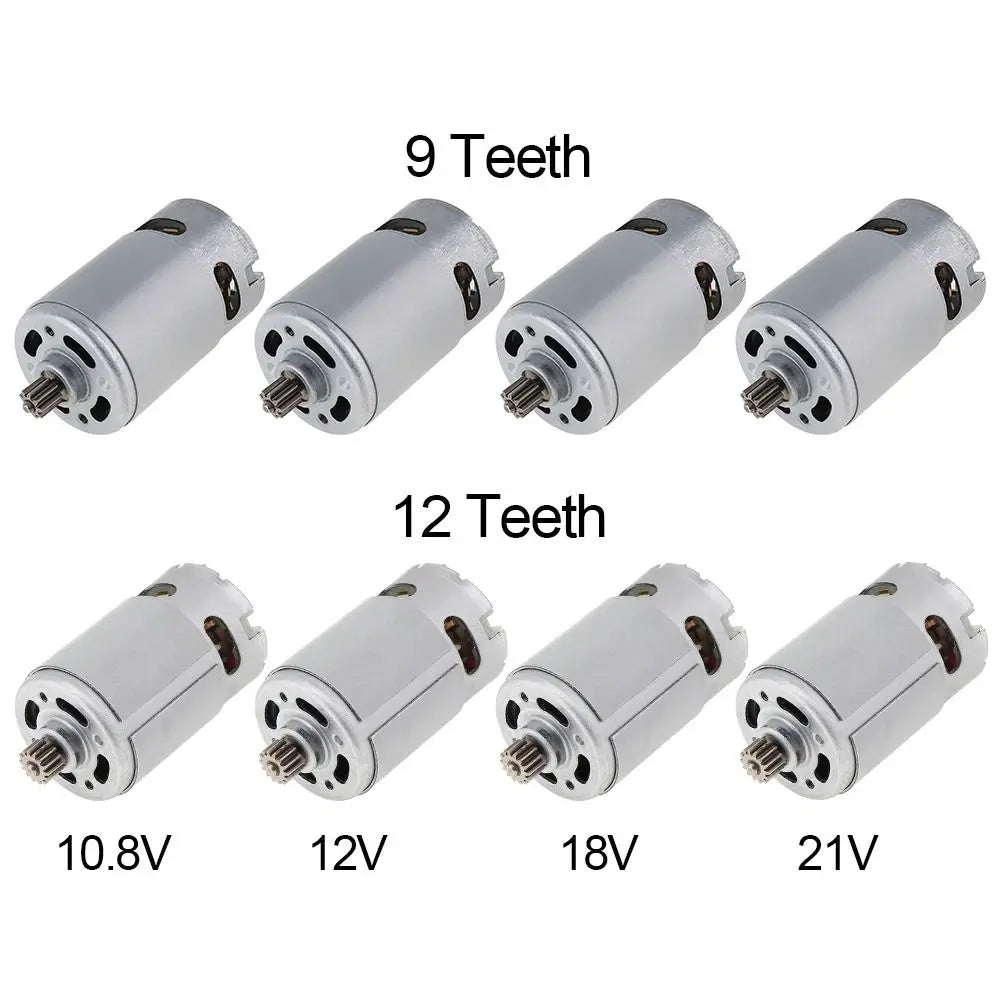

- Compatible Gear Options: 9-tooth or 12-tooth DC motor (select your variant)
Why Choose This Motor?
- 🔩 Front & Rear Double Ball Bearings – Smooth, low-friction rotation for extended service life
- 🔇 Low Noise Operation – Quieter than standard motors without sacrificing power
- ⚡ High Power Output – 60 W output with torque to handle demanding drilling and sawing tasks

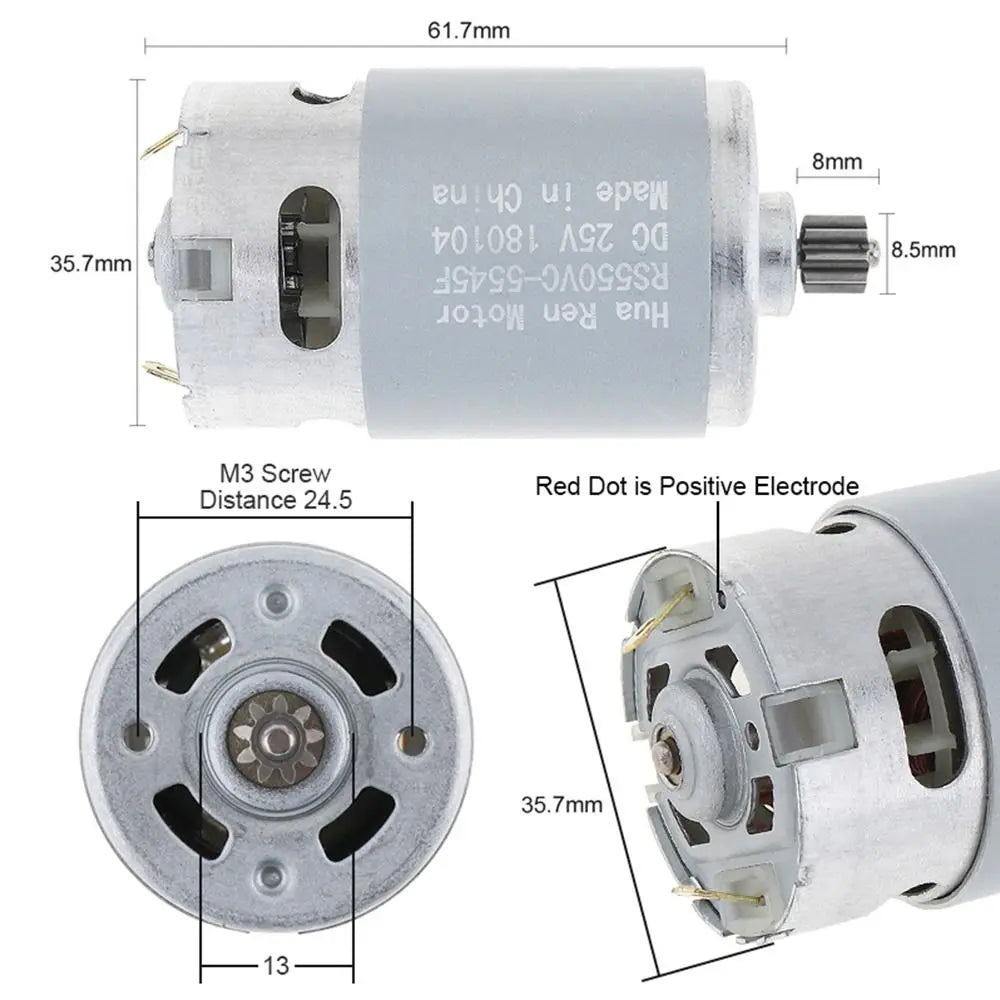

- 🔧 Easy Mounting – Front can be secured with 2 × M4 screws for a stable, rattle-free fit
- 🔋 Wide Voltage Compatibility – Works across 10.8 V, 12 V, 14.4 V, 16.8 V, 18 V, 21 V, and 25 V lithium battery platforms
Compatible Applications
This motor is designed as a direct replacement or upgrade component for:
- Cordless electric drills
- Electric screwdrivers
- Reciprocating saws
- DIY power tool repairs and builds
Package Contents

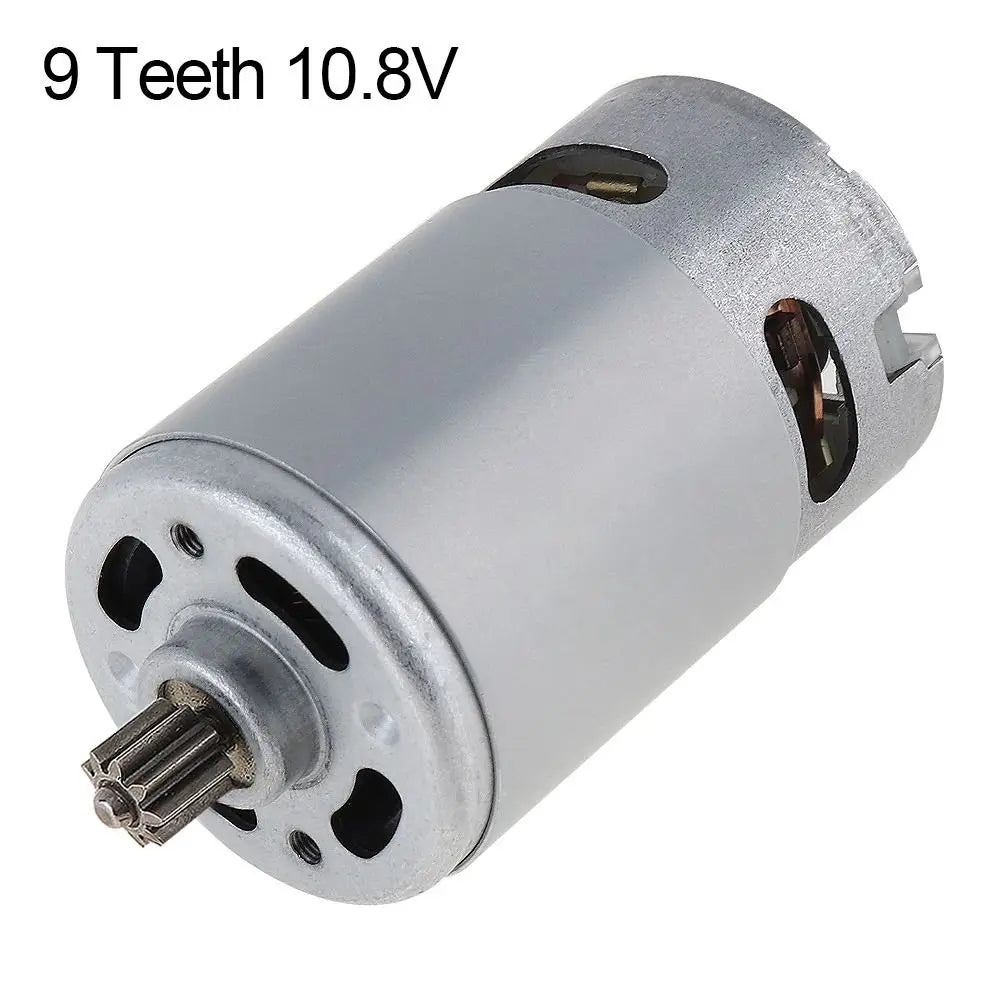

- 1 × RS550 DC Motor (9-tooth or 12-tooth, as selected)
Related Products You May Like
- 1PC 10g High-Grade Silicone Grease Lubricant – Great for Motor Bearings & O-Rings
- 3PCS Silicone Sealant Scraper Set – Multi-Functional Tool Kit
- 1PC Multi-Use Faucet Bubbler Wrenches – Handy Repair Spanner
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What power tools is the RS550 DC Motor compatible with?
A: The RS550 DC motor is compatible with most cordless electric drills, electric screwdrivers, and reciprocating saws that use a standard RS550-size motor. It supports voltage platforms ranging from 10.8 V to 25 V, making it suitable for a wide range of lithium-battery-powered tools.

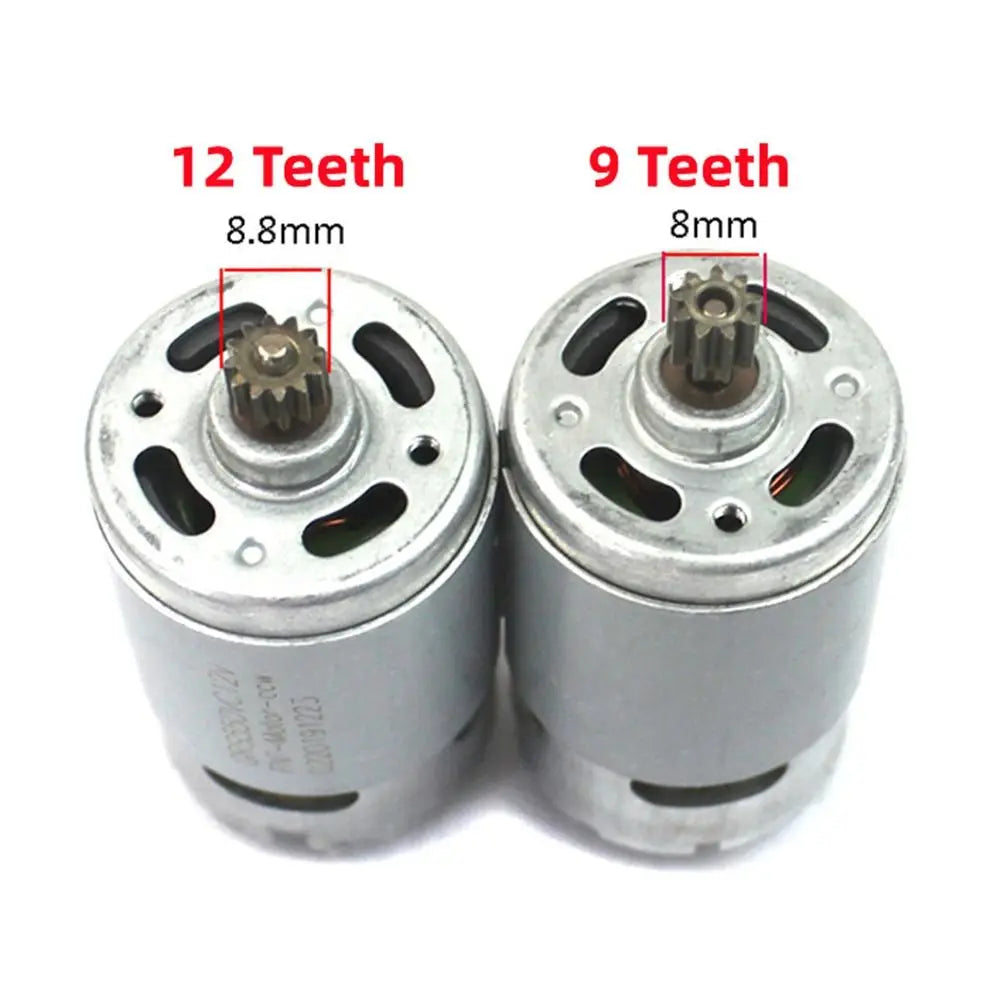

Q: What is the difference between the 9-tooth and 12-tooth motor variants?
A: The tooth count refers to the gear pinion attached to the motor shaft. The 9-tooth and 12-tooth options affect gear ratio and torque delivery. Choose the variant that matches your existing tool's gear specification for a correct fit.
Q: How is the RS550 motor mounted inside the tool?
A: The motor features a front mounting plate that can be secured with two M4 screws, ensuring a stable and vibration-free installation. Both the front and rear are supported by double ball bearings for smooth, long-lasting performance.
Q: What is the maximum no-load speed of this motor?
A: At higher voltages (up to 25 V), the RS550 motor can reach up to approximately 29,000 RPM under no-load conditions. At 12 V it runs at around 23,000 RPM, scaling up with voltage.
