Nickel Plated Linear Ball Bearings – LM3UU to LM20UU
Upgrade your 3D printer, CNC machine, or precision automation equipment with these high-quality nickel plated linear ball bearings. Engineered from chrome steel with a nylon cage and a smooth nickel-plated finish, these bearings deliver quiet, precise, and long-lasting linear motion performance.
Made in Mainland China.
Key Features
- High Precision & Low Noise: Nylon ball cage keeps balls uniformly spaced for ultra-smooth, quiet operation even at high speeds.
- Long Service Life: Chrome steel construction with nickel plating resists wear and corrosion for extended durability.
- Versatile Sizing: Available in 10 sizes to fit a wide range of shaft diameters — from LM3UU (3mm) all the way to LM20UU (20mm).
- High Load Capacity: Static load capacity (Cor): 1570N | Dynamic load capacity (Cr): 813N.
- Wide Application: Ideal for 3D printers, CNC equipment, robotic arms, office automation, precision measuring instruments, and other linear motion devices.
Specifications

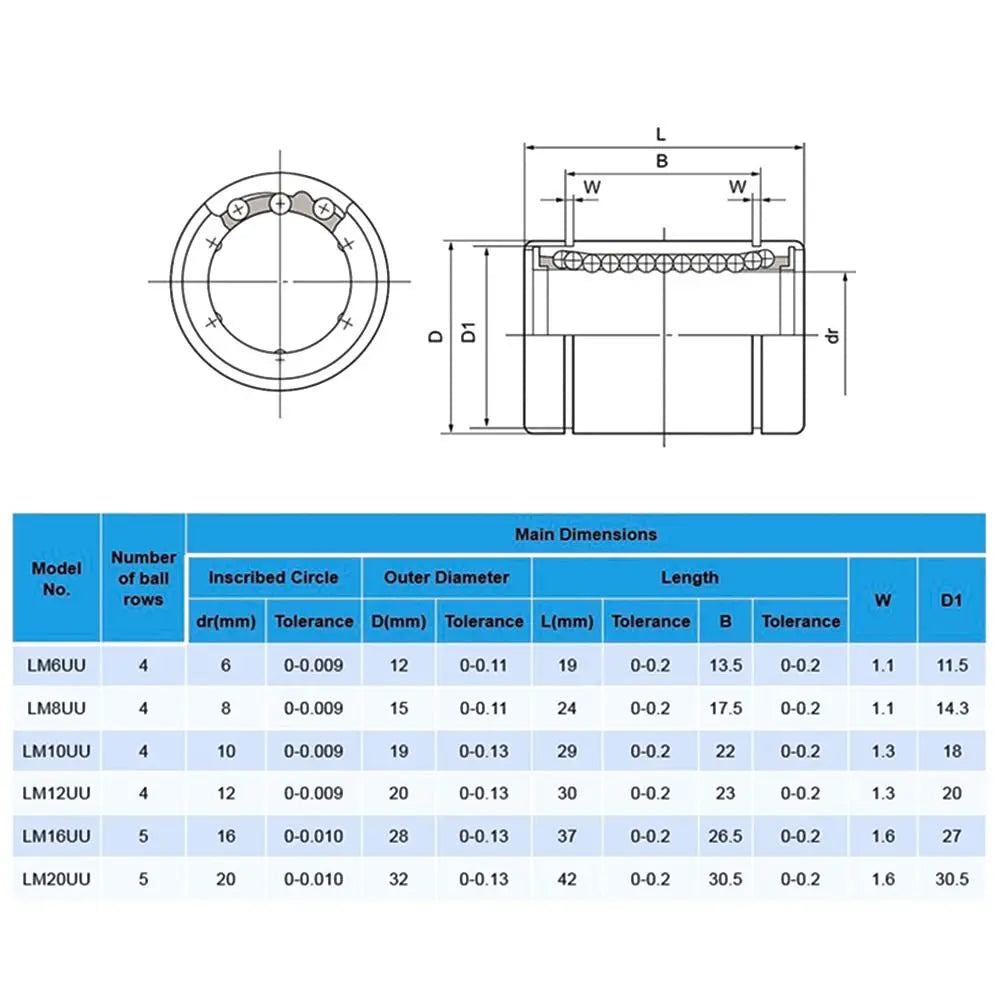

| Model | Shaft Ø (mm) | Outer Ø (mm) | Length (mm) |
|---|---|---|---|
| LM3UU | 3 | 7 | 10 |
| LM4UU | 4 | 8 | 12 |
| LM5UU | 5 | 10 | 15 |
| LM6UU | 6 | 12 | 19 |
| LM8UU | 8 | 15 | 24 |
| LM10UU | 10 | 19 | 29 |
| LM12UU | 12 | 21 | 30 |
| LM13UU | 13 | 23 | 32 |
| LM16UU | 16 | 28 | 37 |
| LM20UU | 20 | 32 | 42 |
Material & Construction
- Housing Material: Chrome Steel
- Finish: Nickel Plated
- Cage Material: Nylon
- Quantity: 1 Piece per order
Package Includes
- 1 × Linear Ball Bearing (model of your choice)
You May Also Like
- 1PC 10g High Grade Silicone Grease Lubricant for O-Rings & Moving Parts
- 3PCS Silicone Sealant Scraper Set – Multi-Functional Tool Kit
- 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes Repair Spanner
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Which 3D printer models are these linear ball bearings compatible with?
A: These nickel plated linear ball bearings are compatible with most popular 3D printer platforms that use standard LM_UU series shafts, including Prusa-style, Anet, and many CoreXY designs. The most commonly used size for 3D printers is LM8UU (8mm shaft). Always verify your printer's shaft diameter before ordering.
Q: What is the difference between the various LM_UU sizes?
A: Each model number refers to the inner shaft diameter the bearing is designed to fit. For example, LM3UU fits a 3mm shaft, LM8UU fits an 8mm shaft, and LM20UU fits a 20mm shaft. Refer to the specifications table above to match the correct bearing to your shaft diameter and housing dimensions.
Q: Do these linear bearings require lubrication?
A: Yes, for optimal performance and longevity it is recommended to apply a light machine grease or oil to the bearing before installation and periodically during use. This helps maintain smooth operation and extends the service life of the bearing.
Q: Are the dimensions accurate for CNC and precision applications?
A: These bearings are manufactured to standard LM_UU dimensional tolerances, making them suitable for precision linear motion applications including CNC machines, robotic arms, and measuring instruments. Please allow for minor manufacturing tolerances as noted. 1cm = 0.39 inches.
