ZOOM HB775E Hydraulic Disc Brake Set 2-Piston MTB E-Bike BMX

$166.58 $199.81

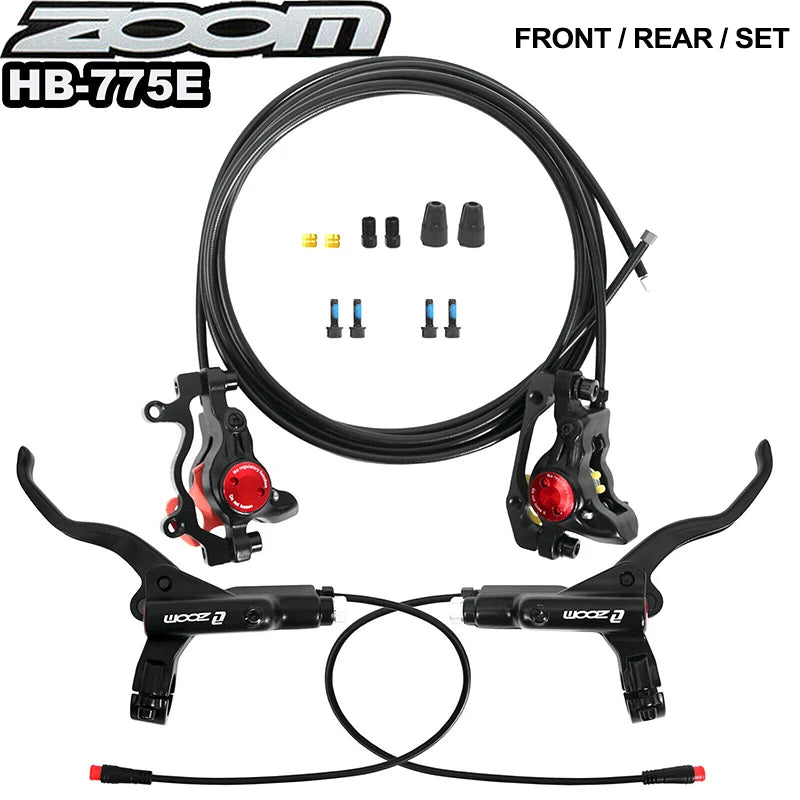

ZOOM HB775E Hydraulic Disc Brake Set – Precision Stopping Power for MTB, E-Bike, BMX & Scooter

Upgrade your ride with the ZOOM HB775E Hydraulic Disc Brake Set — a professional-grade, oil-pressure braking system engineered for mountain bikes, e-bikes, folding bikes, BMX cycles, and electric scooters. With a 2-piston integrated molding oil cylinder and mineral oil pre-filled brake levers, this set delivers consistent, responsive braking performance across all terrain types.

Key Features

Model: HB775E
Braking System: Hydraulic Disc Brake (Mineral Oil)

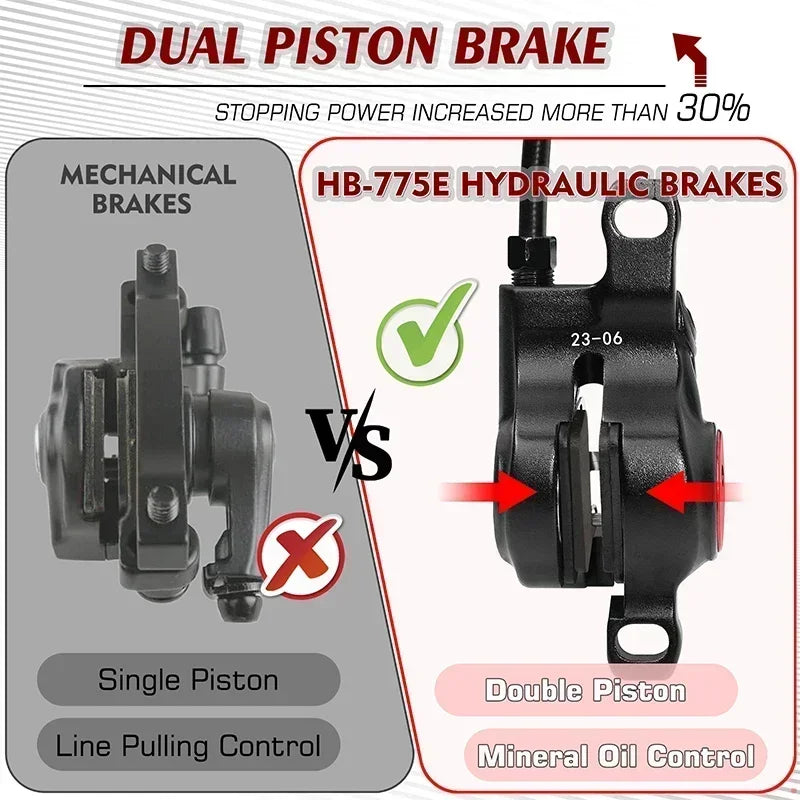

Pistons: 2-Piston design per caliper
Compatible Rotors: 160mm & 180mm rotors
Adapter Specification: F160-R140 / F180-R160 OR IS-A 180mm
Tubing Length: Front = 1100mm | Rear = 1850mm
Weight: 740g (rotor not included)
Construction: Integrated molding oil cylinder for a leak-resistant, durable build
Compatible With: MTB, E-Bike, Scooter, Folding Bike, BMX Cycle
SKU Options: Available as Front only, Rear only, or Front + Rear set

Why Choose ZOOM Hydraulic Disc Brakes?

ZOOM's hydraulic disc brake system uses sealed oil-pressure lines for smooth, modulated braking that mechanical brakes simply can't match. The integrated molding oil cylinder reduces the risk of leaks, while the pre-filled mineral oil lines mean the brake levers are ready to install right out of the box — saving you setup time.

⚠️ Important Installation Notes

Please read before installing:

Do NOT press the brake lever before or during installation. Doing so may cause oil leakage, which would require the system to be refilled with mineral oil. Only press the lever once the brake is fully installed — the oil will then flow from the lever through the oil pipe into the caliper.
Do NOT remove the mold block (brake pad protection block) inside the caliper before the brake is fully installed. Removing it prematurely can cause the piston to shift, potentially resulting in oil leakage or the brake piston failing to rebound correctly.

SKU Note: This listing includes three SKU configurations — Front Only, Rear Only, and Front + Rear. Please verify your selected SKU before ordering to ensure you receive the correct configuration.

Made in Mainland China.

Compatible Bike Types

Mountain Bikes (MTB / Hardtail / Full Suspension)
Electric Bikes (E-Bikes)
Electric Scooters
Folding Bikes
BMX Cycles

Frequently Asked Questions

Q: Is the ZOOM HB775E hydraulic disc brake set compatible with my e-bike or scooter?

A: Yes! The ZOOM HB775E hydraulic disc brake set is designed for a wide range of bikes including mountain bikes, e-bikes, electric scooters, folding bikes, and BMX cycles. It supports 160mm and 180mm rotors with standard IS and post-mount adapter compatibility (F160-R140 / F180-R160 or IS-A 180mm).

Q: Does this hydraulic brake set come pre-filled with oil?

A: Yes — the brake levers come pre-filled with mineral oil. Simply follow the installation instructions carefully: do not press the lever before the system is fully installed, and do not remove the caliper's mold block prematurely. Once installed, pressing the lever sends oil through the hydraulic line into the caliper.

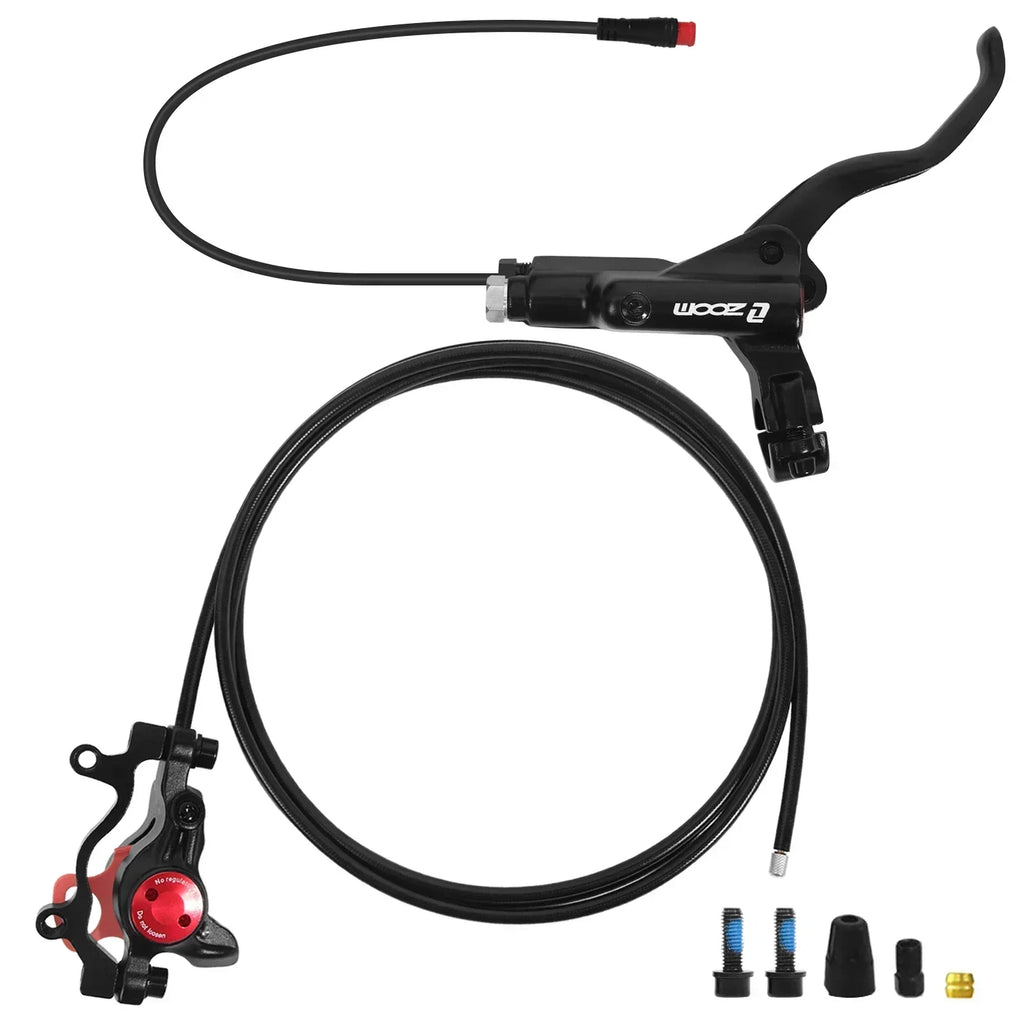

Q: What is included in the ZOOM hydraulic brake set — front, rear, or both?

A: This listing offers three SKU configurations: Front brake only (1100mm hose), Rear brake only (1850mm hose), or a complete Front + Rear set. Please confirm your selected SKU at checkout to ensure you receive the correct configuration for your build.

Q: What is the weight of the ZOOM HB775E brake set?

A: The brake set weighs approximately 740g without the rotor. Rotors are not included and must be purchased separately if needed.
