30-80°C Water Heater Push Thermostat Temperature Controller Switch

$27.52 $33.01

Water Heater Plug-In Push Thermostat Temperature Controller Switch (30–80°C)

Keep your electric water heater running safely and efficiently with this precision plug-in push thermostat. Designed as a direct-fit replacement for Ariston and compatible household water heaters, this temperature controller automatically regulates heating cycles — switching on when water cools below your set point and cutting off once it reaches the target temperature. The result is consistent, energy-conscious hot water without manual intervention.

How It Works

The controller integrates a complete temperature control system comprising a power supply circuit, leakage protection circuit, temperature control circuit, water level indication, and anti-dry circuit. Once installed and the circuit is connected, the thermostat activates automatically. When the water temperature reaches the preset level (anywhere from 30°C to 80°C), it disconnects and stops heating — resuming only when the temperature drops again. An overtemperature protection feature triggers at 95°C (±5°C) for an added layer of safety.

Key Specifications

Rated Power: 16A / 250V AC
Temperature Control Range: 30–80°C
Overtemperature Protection: 95°C ±5°C
Electric Strength: AC 50Hz, 1800V (No Breakdown)
Insulation Resistance: 500 MΩ or Higher
Reed Switch Service Life: 100,000 Operations
Bimetallic Strip Action Life: 1,000 Operations

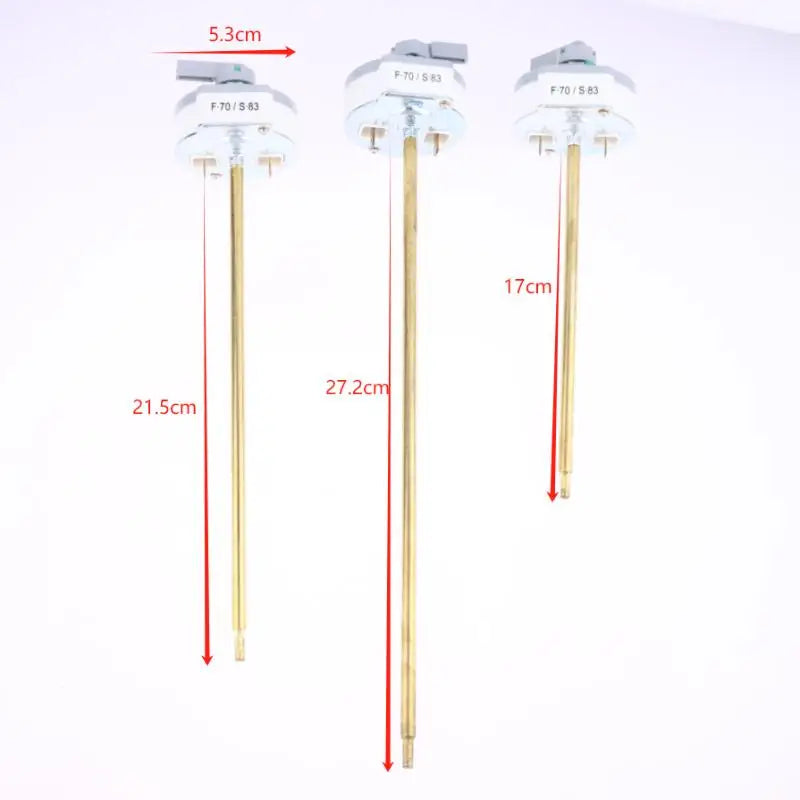

Connection Socket Diameter: 4 ±0.1 mm
Straight Rod Diameter: Φ6 ±0.1 mm
Material: Metal + Brass
Package Contents: 1× Temperature Control Switch (accessories shown in demo pictures are NOT included)

Why Choose This Thermostat?

✅ Automatic on/off cycling for consistent water temperature
✅ Built-in overtemperature protection for added safety
✅ High insulation resistance for reliable electrical safety
✅ Durable metal and brass construction for long service life
✅ Plug-in, push-fit installation — no specialist tools required

Made in Mainland China.

Note: Please allow 2–3% dimensional variance due to manual measurement. Actual product colour may differ slightly from images due to monitor calibration differences.

Frequently Asked Questions

Q: What temperature range does this water heater thermostat controller support?

A: This plug-in push thermostat supports an adjustable temperature control range of 30°C to 80°C, making it suitable for a wide variety of domestic hot water heating needs. The overtemperature protection circuit activates at approximately 95°C (±5°C) as a safety cut-off.

Q: Is this thermostat compatible with my Ariston water heater?

A: This temperature controller switch is designed for compatibility with Ariston-style household electric water heaters using a 4mm connection socket and Φ6mm straight rod. Always verify your existing thermostat's physical dimensions and electrical ratings (16A / 250V AC) match before installation.

Q: Are accessories shown in the product images included in the package?

A: No — the package contains only the Temperature Control Switch (1 piece). Any additional components or accessories depicted in demonstration images are for illustrative purposes only and are not included.

Q: What is the service life of this thermostat switch?

A: The reed switch is rated for up to 100,000 operations, while the bimetallic strip is rated for 1,000 actions, ensuring dependable long-term performance in daily household use.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
