TC4-1T SMD RF Balun Transformer 50Ω 0.5–300MHz 1:4 | 2/5 Pcs
TC4-1T SMD RF Balun Transformer 50Ω 0.5–300MHz 1:4 | 2/5 Pcs
TC4-1T SMD RF Signal Balun Transformer – 50Ω, 0.5–300MHz, 1:4 Impedance Ratio
Upgrade your RF circuit designs with the TC4-1T SMD RF Balun Transformer. Featuring a wide operating frequency range of 0.5 to 300 MHz and a precise 1:4 flux-coupled impedance transformation (50Ω), this surface-mount component delivers excellent balanced-to-unbalanced signal conversion with minimal loss. Available in convenient packs of 2 or 5 pieces.
Key Features
- Wide Frequency Range: 0.5–300 MHz — suitable for a broad range of RF applications
- 1:4 Impedance Ratio: CT flux-coupled design for accurate balanced-to-unbalanced (balun) conversion at 50Ω
- Low Return Loss: Ensures efficient signal transmission with minimal reflections
- Compact SMD Package: Tiny 5×4×3mm footprint with plastic base and leads for easy PCB integration
- Reliable Operating Range: Functions between -20°C and +85°C for stable performance across environments
- Low Power Design: RF power rating of 0.25W; DC current 30mA — ideal for low-power RF stages
- New & High Quality: Precision-manufactured for consistent impedance matching and repeatable results
Specifications
| Model | TC4-1T |
| Type | SMD RF Balun Transformer |
| Frequency Range | 0.5–300 MHz |
| Impedance | 50Ω |
| Turns Ratio | 1:4 (CT Flux Coupled) |
| RF Power | 0.25W |
| DC Current | 30mA |
| Operating Temperature | -20°C to +85°C |

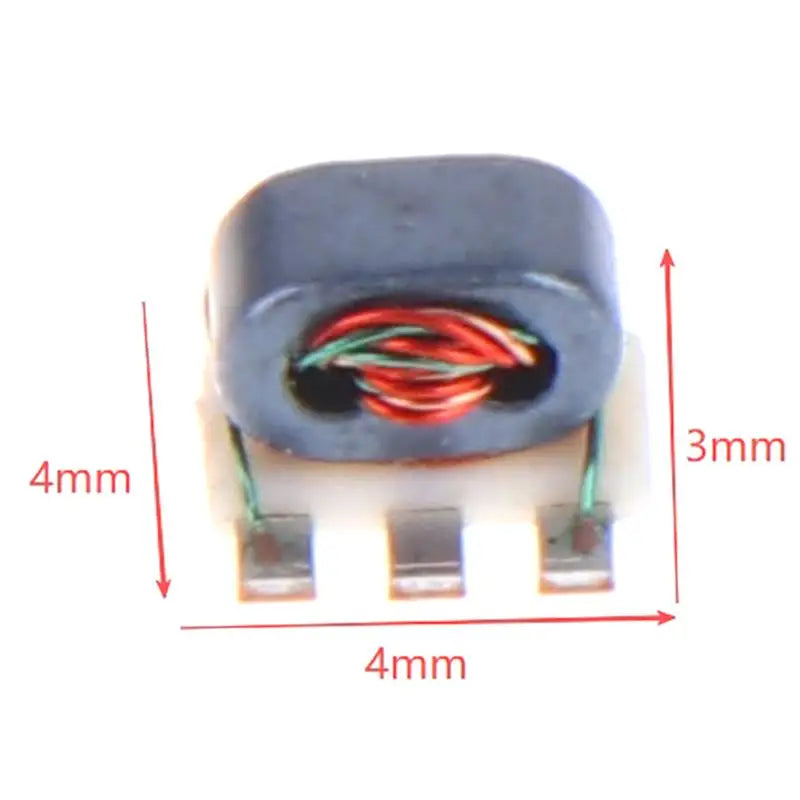

| Package Size | 5 × 4 × 3 mm |

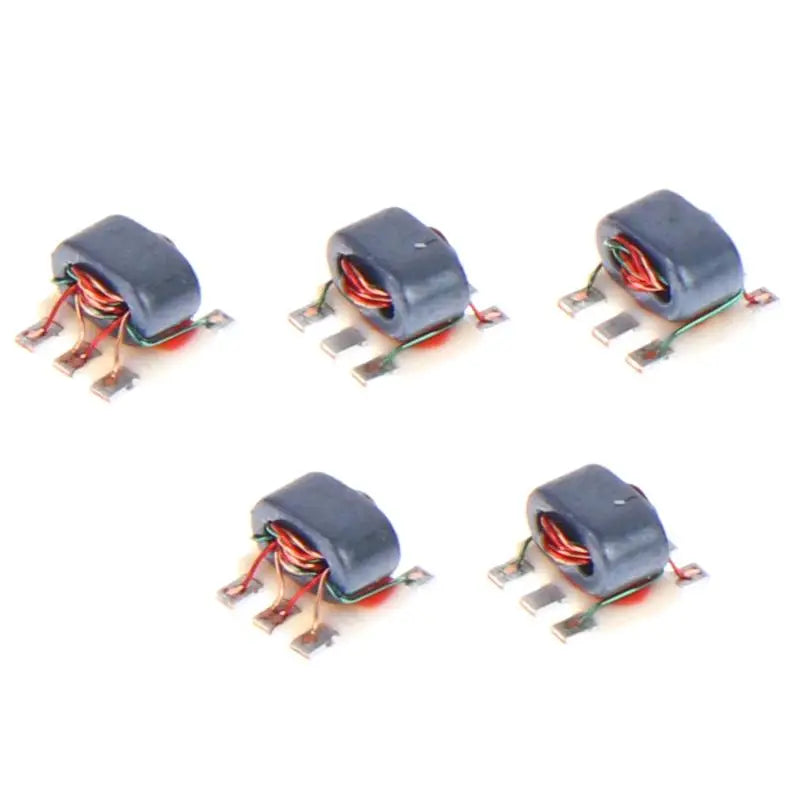

| Package Quantity | 2 or 5 Pieces |
| Battery Included | No |
| Country of Origin | Made in China |
Ideal Applications
- Amateur radio (ham radio) transceivers and antenna matching networks
- SDR (Software Defined Radio) front-end circuits
- RF amplifier input/output balancing stages
- PCB-level signal conditioning and impedance transformation
- Communications equipment and RF test setups
