Toorise Shelf Pin Jig – Precise 1/4" Cabinet Drilling Template
Take the guesswork out of shelf installation with the Toorise Shelf Pin Jig — a premium aluminum alloy drilling guide designed for woodworkers, DIY enthusiasts, and home improvement pros. With 32mm hole spacing and 7 hardened drill guides, this jig delivers clean, accurate 1/4-inch shelf pin holes every time, saving you time and effort on every project.
Made in Mainland China.
Key Features

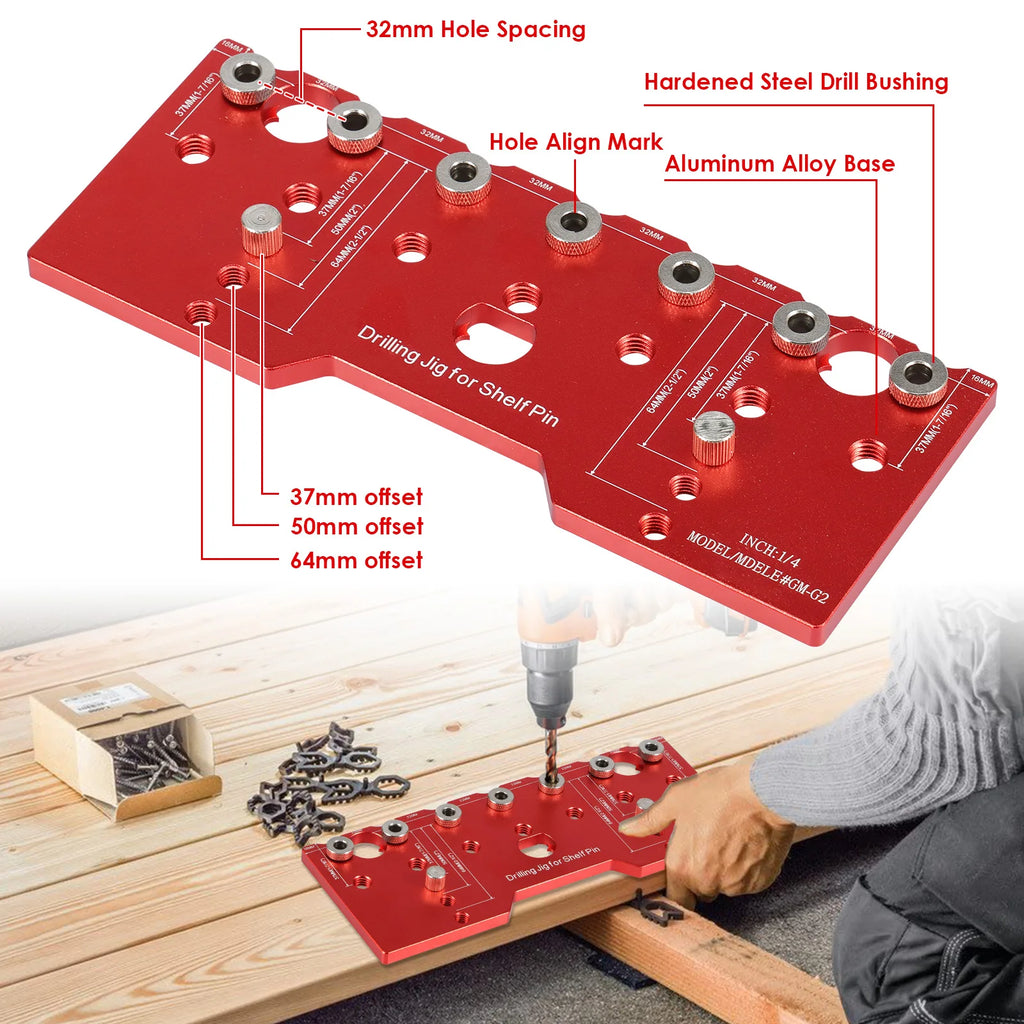

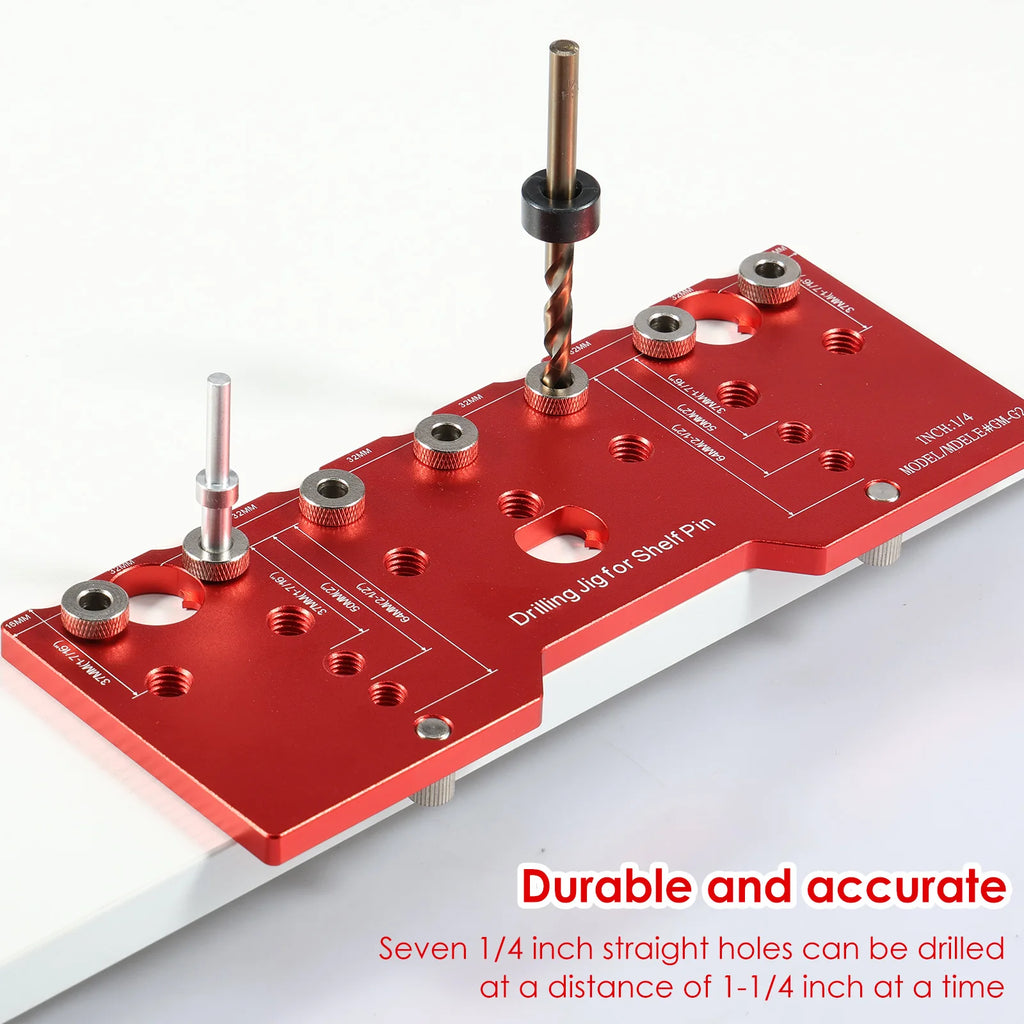

- Precise Drilling Performance: Drill 7 straight 1/4-inch holes at a consistent 1-1/4 inch spacing in a single pass — perfect for shelf construction and cabinet builds.
- 32mm Hole Spacing: Accurate 32mm spacing ensures shelf pins are perfectly aligned every time, delivering professional-quality results with minimal effort.

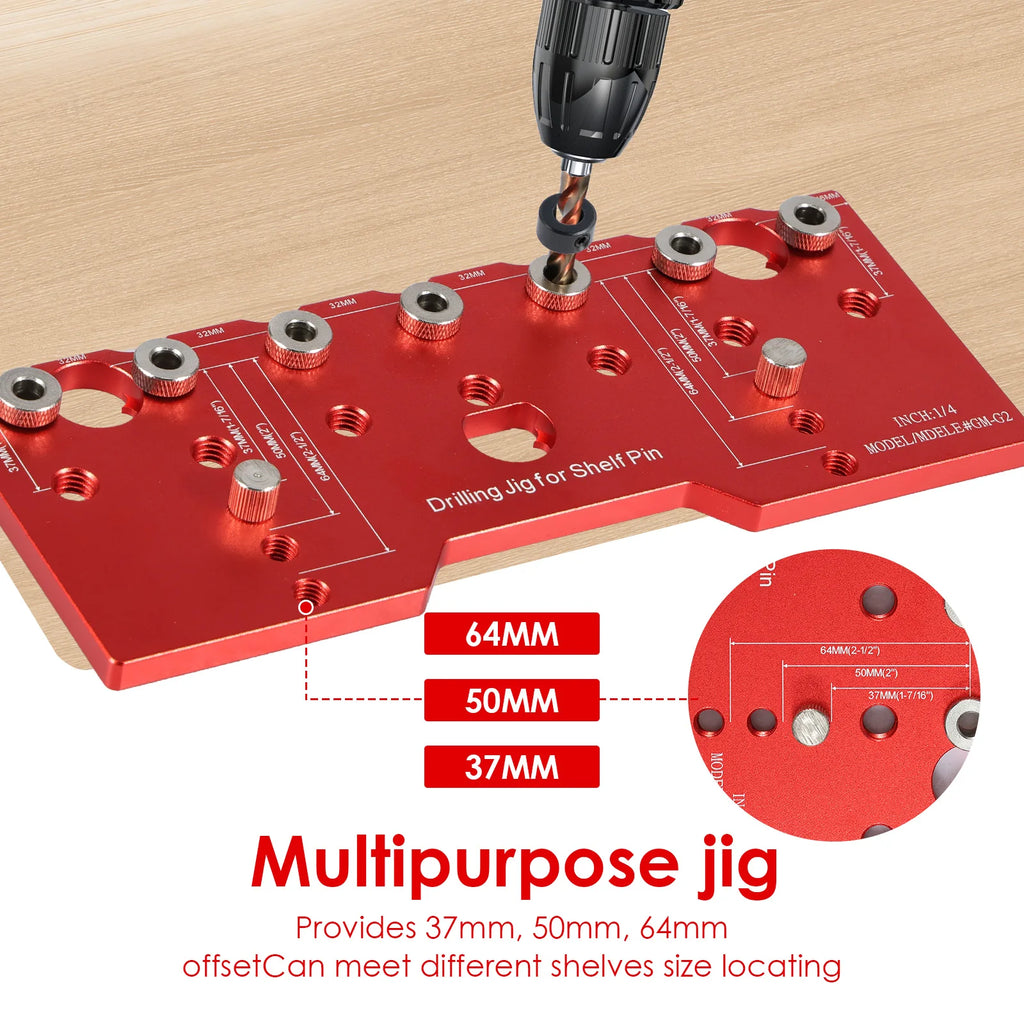

- Three Edge Distance Options: Choose from 37mm, 50mm, or 64mm edge distances to accommodate a wide range of shelf pin and cabinet configurations.
- Premium Aluminum Alloy Construction: Built from high-quality, durable aluminum alloy with 7 hardened steel drill guides for long-lasting, accurate performance.
- Expandable & Versatile: Combine two or more jigs together to drill multiple holes simultaneously, ideal for longer boards and larger cabinet projects.

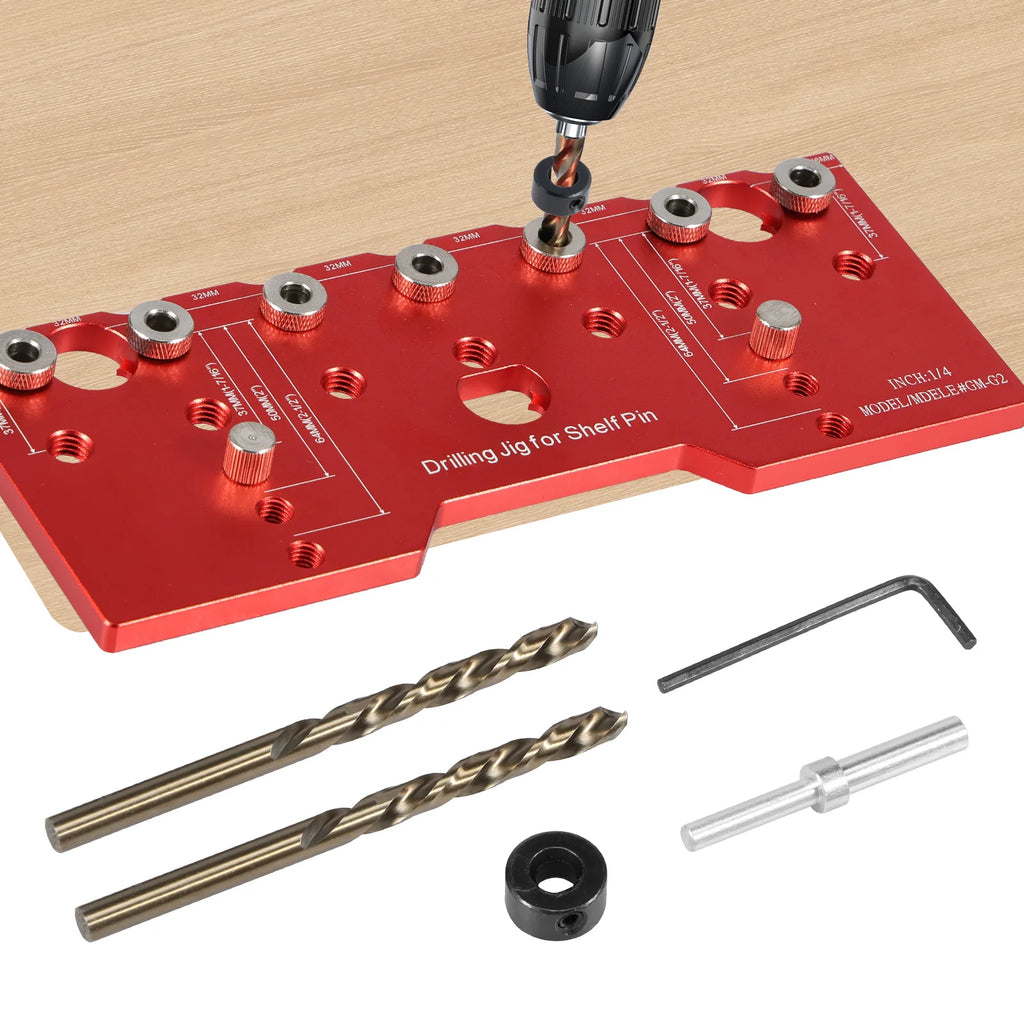

- Complete Kit Included: Comes with everything you need — 1× Shelf Pin Jig, 2× Drill Bits, 1× Limiting Ring, 1× Wrench, and 1× Limiting Rod.
Specifications
| Product Name | Shelf Pin Jig |
| Material | Aluminum Alloy |

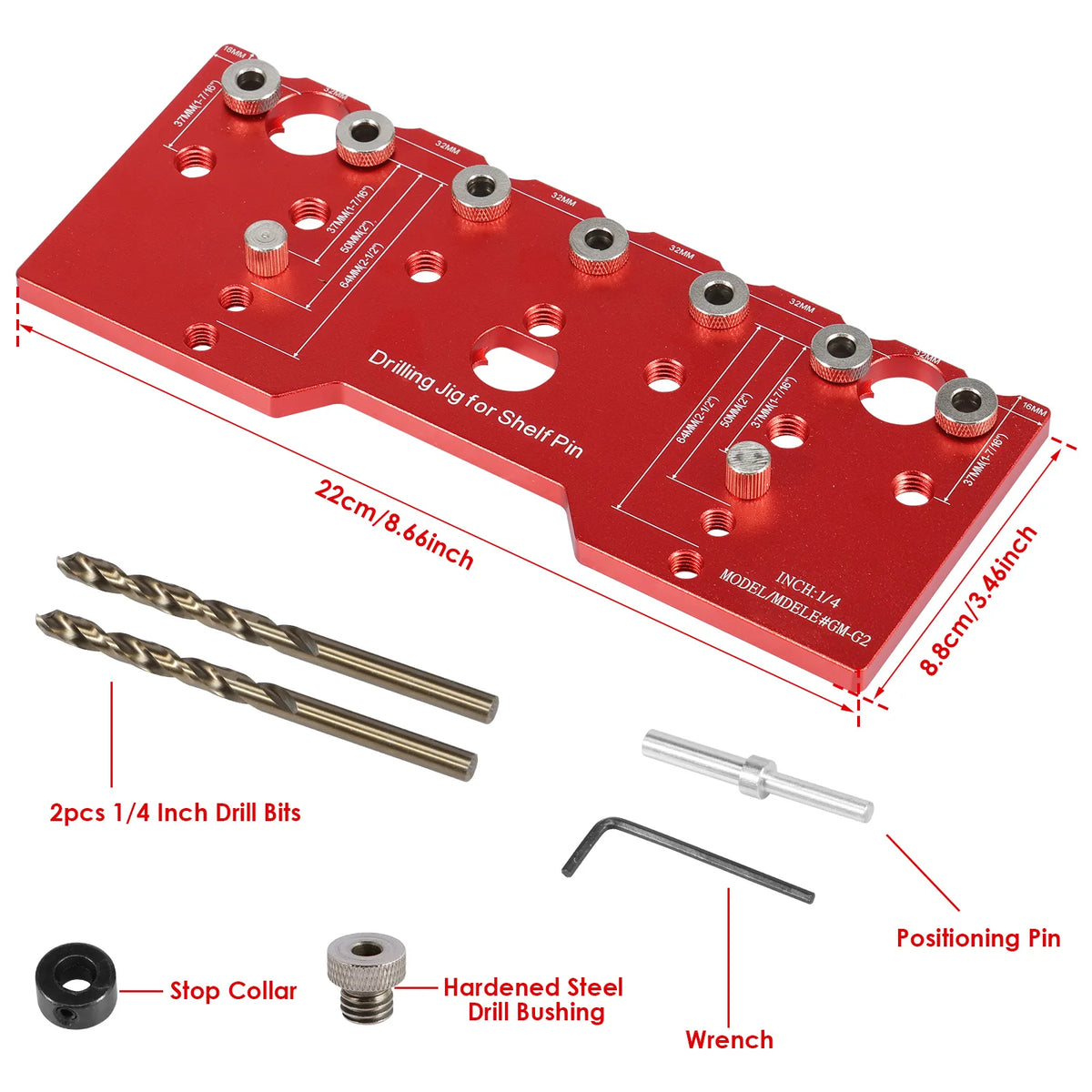

| Size | 22 × 8.8 cm |
| Color | Red |
| Hole Size | 1/4 inch (6.35mm) |
| Hole Spacing | 32mm |
| Edge Distance Options | 37mm / 50mm / 64mm |
| Number of Drill Guides | 7 Hardened Guides |
| Brand | Toorise |

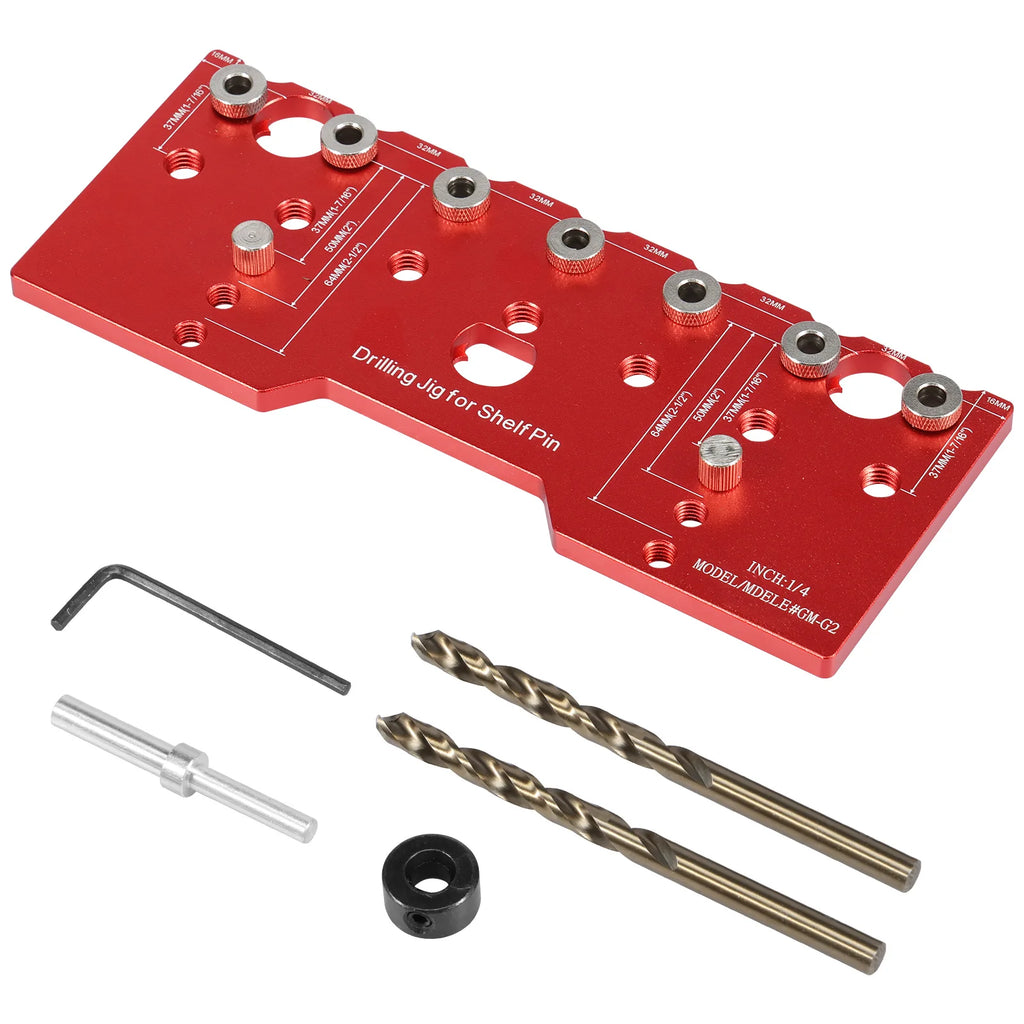

What's in the Box
- 1× Shelf Pin Jig
- 2× Drill Bits
- 1× Limiting Ring
- 1× Wrench
- 1× Limiting Rod
Perfect For

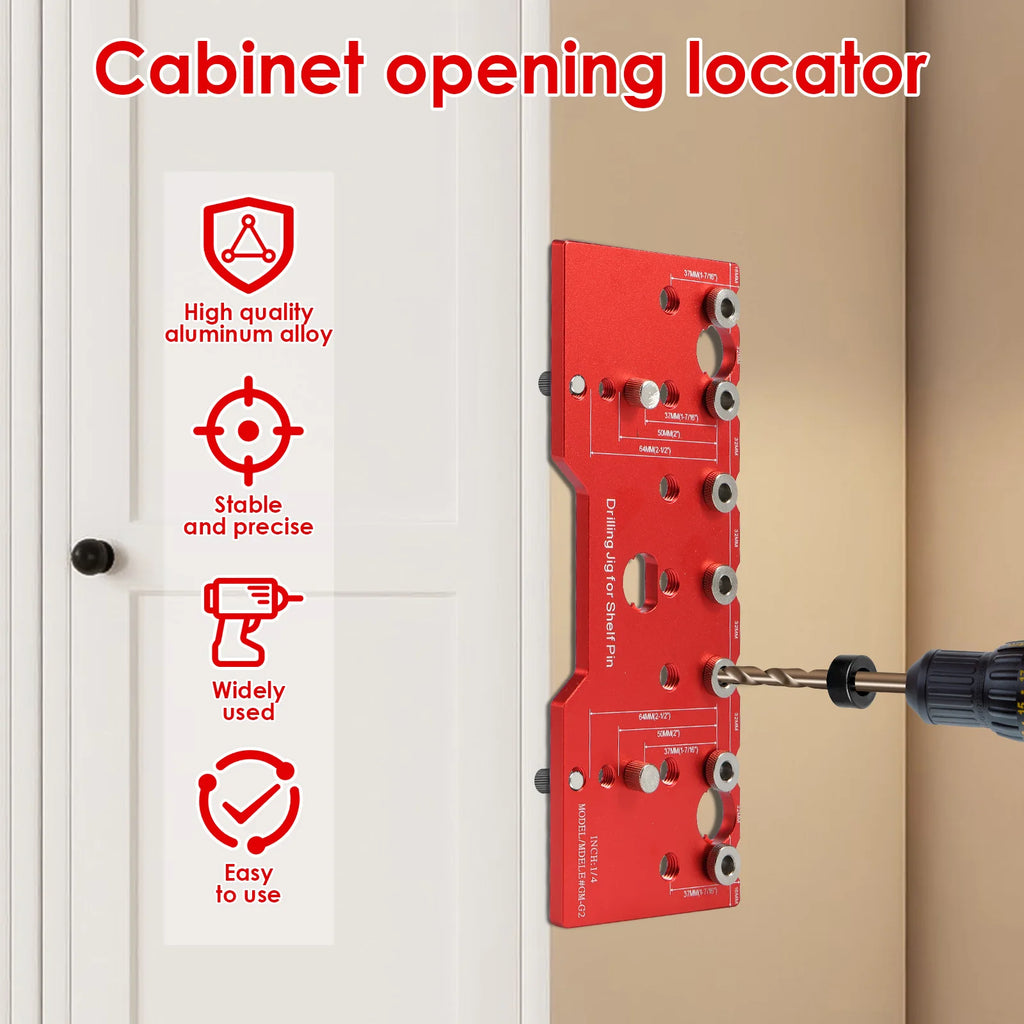

- Cabinet shelf pin installation
- Custom bookshelf and cabinet builds
- DIY home improvement and furniture projects
- Woodworking workshops and professional cabinetry
Related Products You May Like
- 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking & Grout Finishing Tools
- 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes Sink Repair Spanner
- 4PCS Self-Adhesive Multi-Purpose Cabinet & Door Handles
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What size holes does the shelf pin jig drill?
A: The Toorise Shelf Pin Jig is designed to drill precise 1/4-inch (6.35mm) diameter holes, which is the standard size for most shelf pins used in cabinets and bookshelves.
Q: Can I use this jig for larger cabinet projects?
A: Yes! You can combine two or more shelf pin jigs end-to-end to drill multiple holes simultaneously, making it ideal for longer boards or larger cabinet and furniture builds.
Q: What edge distance options does the jig support?
A: The jig provides three adjustable edge distances — 37mm, 50mm, and 64mm — allowing you to customize the placement of shelf pin holes to suit a wide range of cabinet styles and designs.
Q: Is this jig suitable for beginners?
A: Absolutely. The shelf pin drill guide is straightforward to set up and use, making it a great choice for both experienced woodworkers and first-time DIYers looking to build or modify shelving units at home.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
