RS26 Rotary Band Selector Switch 1-4 Pole 3-12 Position PCB Mount

RS26 Rotary Band Selector Switch — Multi-Pole, Multi-Position Circuit Control

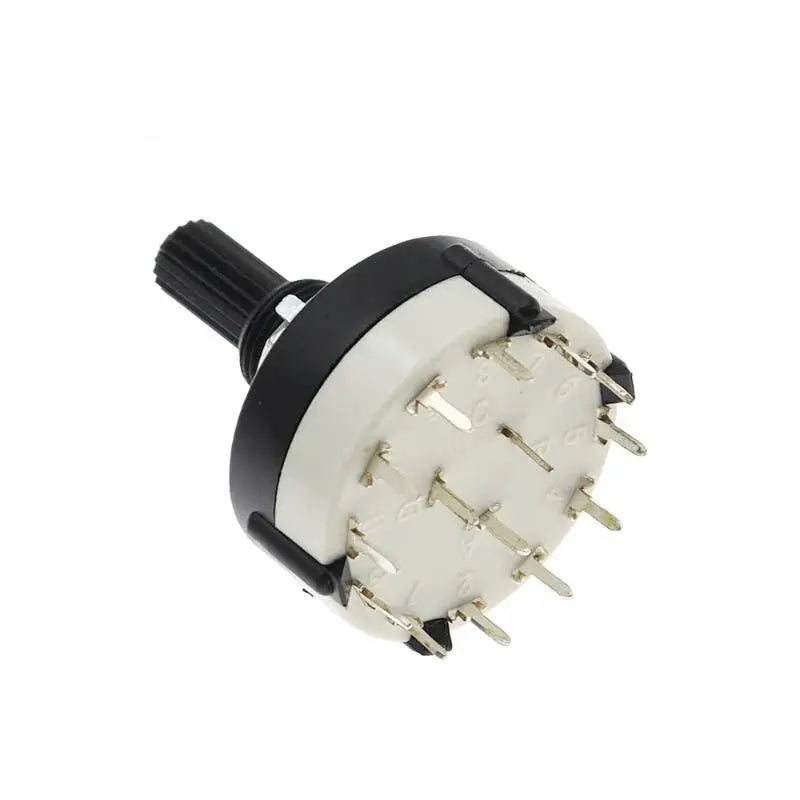

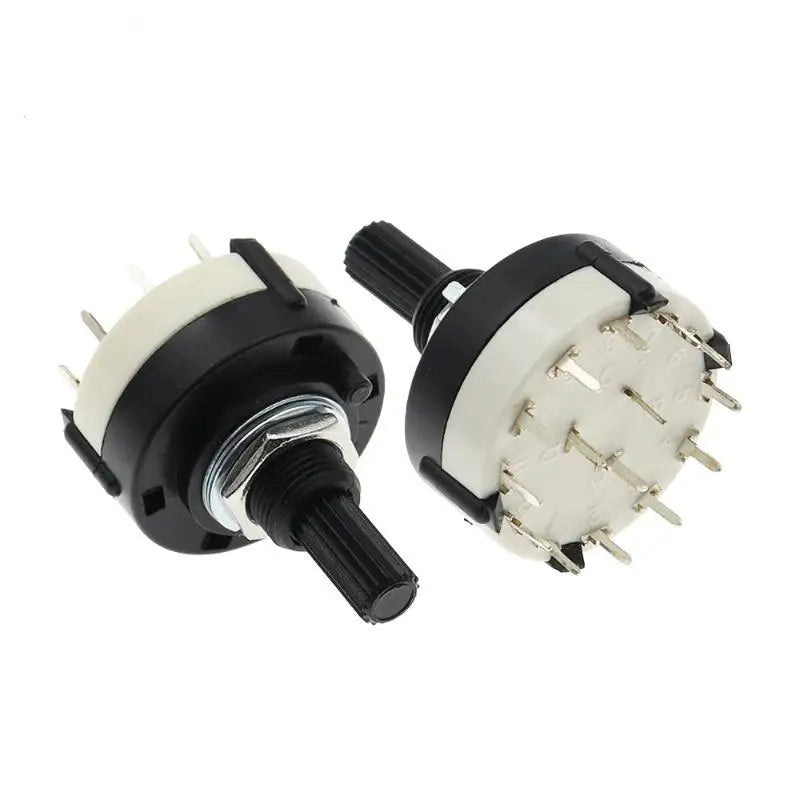

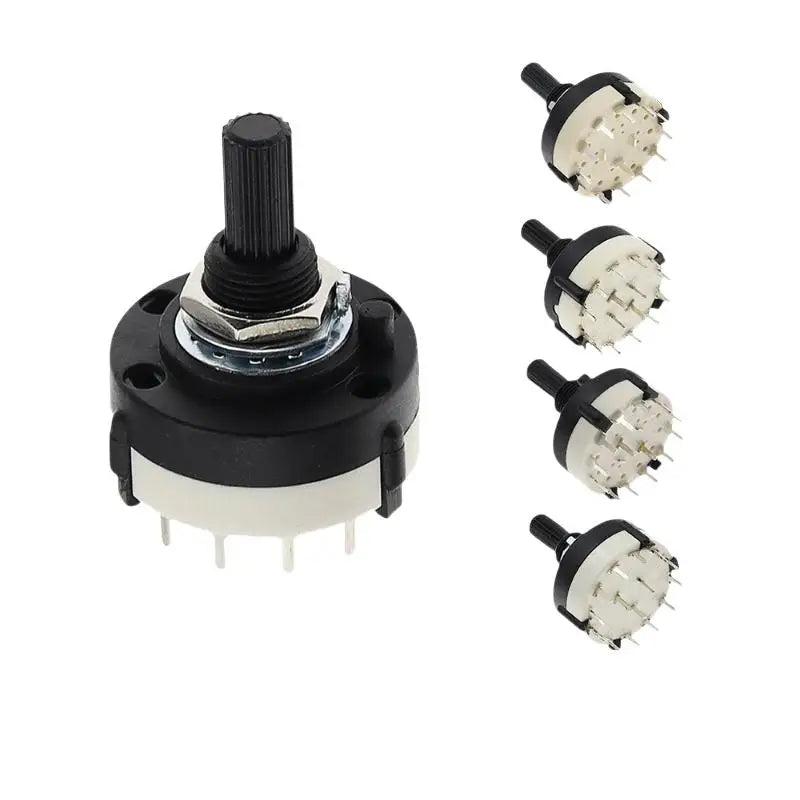

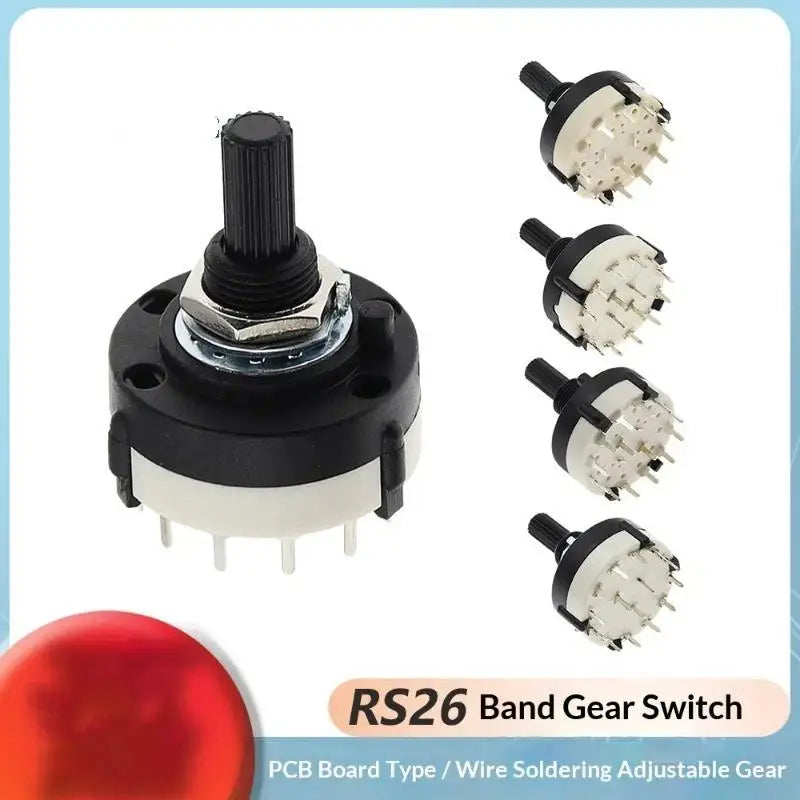

The RS26 Rotary Band Selector Switch is a precision-engineered electronic component designed for reliable multi-position circuit control. Available in 1, 2, 3, or 4 pole configurations with 3, 4, 6, or 12 selectable band positions, this single-deck rotary switch is ideal for PCB mounting, audio equipment, industrial control panels, and DIY electronics projects. Made in Mainland China.

Key Features

• High-Purity Brass Contacts: Internal brass conductive contacts minimize current loss and contact resistance during gear switching, delivering stable, low-interference signal transmission across all connected electronic devices.
• Flame-Retardant PC Housing: The high-temperature resistant, flame-retardant polycarbonate shell provides excellent electrical insulation, corrosion resistance, and oxidation protection — safe for use in humid or elevated-temperature environments.

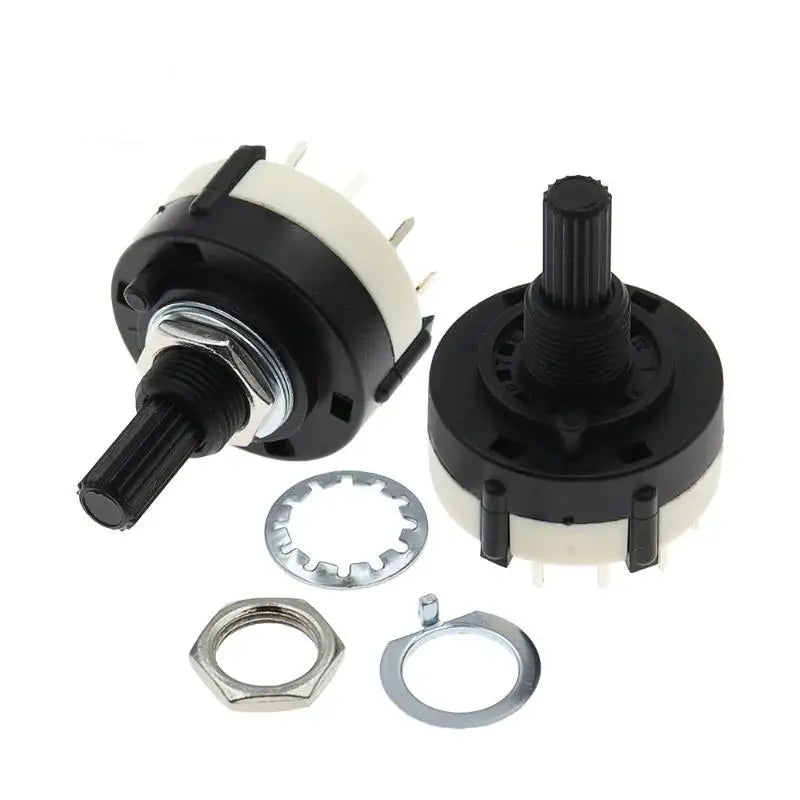

• Secure Installation Structure: Zinc-plated iron mounting nut and reinforced fixed base fit standard panel cutouts tightly, preventing loosening from long-term vibration. Compatible with both PCB boards and equipment panels.
• Precise, Non-Slip Operation: Textured, non-slip insulated plastic rotary shaft allows smooth and accurate gear adjustment with minimal effort — switch circuit modes quickly and confidently every time.
• Extended Service Life: Wear-resistant brass contact points and reinforced rotating mechanism support over 10,000 repeated switching operations without contact failure, reducing replacement frequency and long-term costs.

Specifications

Applications

• PCB circuit control and prototyping
• Audio equipment gear adjustment
• Industrial control device switching
• Instrument panel control
• DIY electronics modification and repair projects

Important Notes

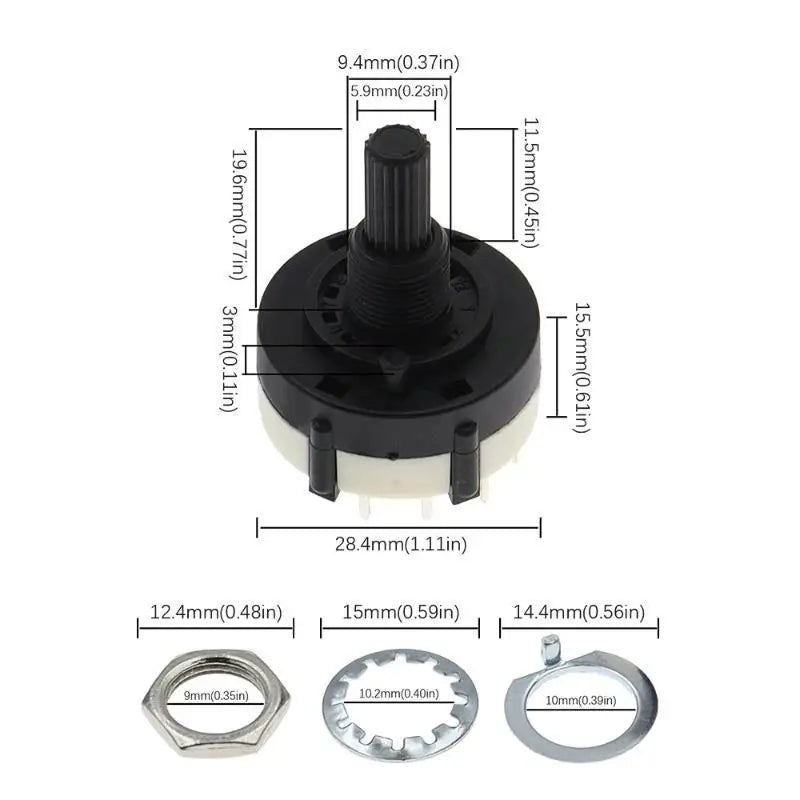

• Photos are for reference only and may not reflect actual size; refer to the specifications above for details.
• Minor measurement differences may occur due to manual measurement methods.
• Colors may vary slightly depending on monitor settings.

Related Products You May Like

• 1PC 10g High Grade Silicone Grease Lubricant for O-Rings & Components
• 1PC Large Capacity Battery Storage Organizer Box
• 1PC Mobile Data Cable Storage Box with Lid

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What pole and position configurations are available for the RS26 rotary band selector switch?

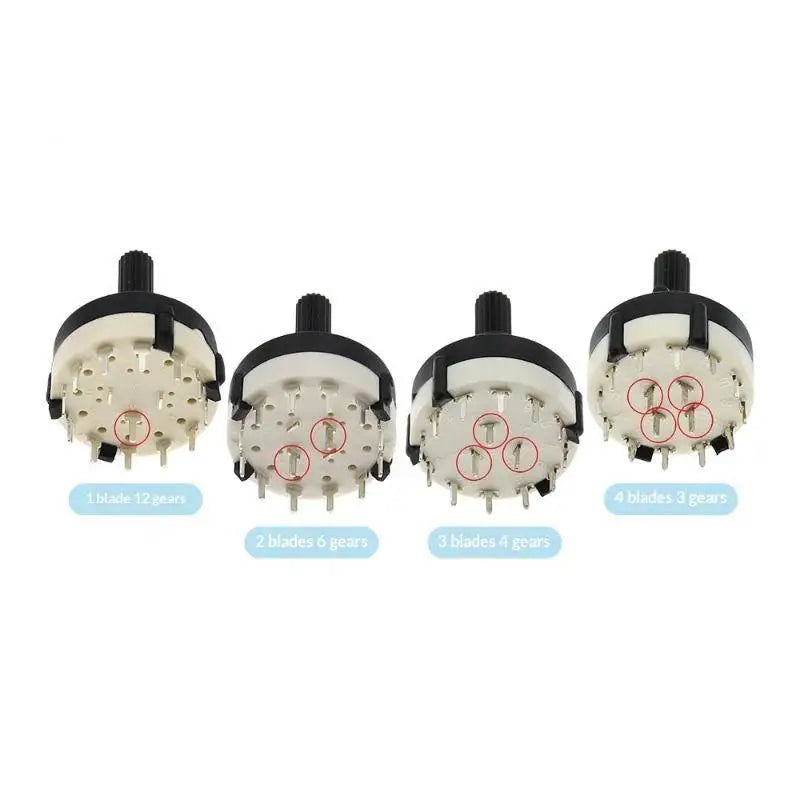

A: The RS26 rotary switch is available in 1, 2, 3, or 4 pole configurations with selectable band positions of 3, 4, 6, or 12 positions, making it highly versatile for a wide range of PCB and panel-mount circuit control applications.

Q: Is the RS26 rotary switch suitable for PCB soldering and panel mounting?

A: Yes. The RS26 is designed for both PCB mounting (via soldering wiring) and standard panel cutout installation. Its zinc-plated iron mounting nut and reinforced base ensure a secure, vibration-resistant fit on circuit boards and equipment panels alike.

Q: How durable are the contacts on the RS26 rotary band selector switch?

A: The RS26 features wear-resistant high-purity brass contact points engineered to support over 10,000 repeated switching operations without contact failure, making it a long-lasting and cost-effective solution for both professional and DIY electronics projects.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
