RJ45 Female to Screw Terminal Adapter for CCTV DVR
RJ45 Female to Screw Terminal Adapter for CCTV DVR

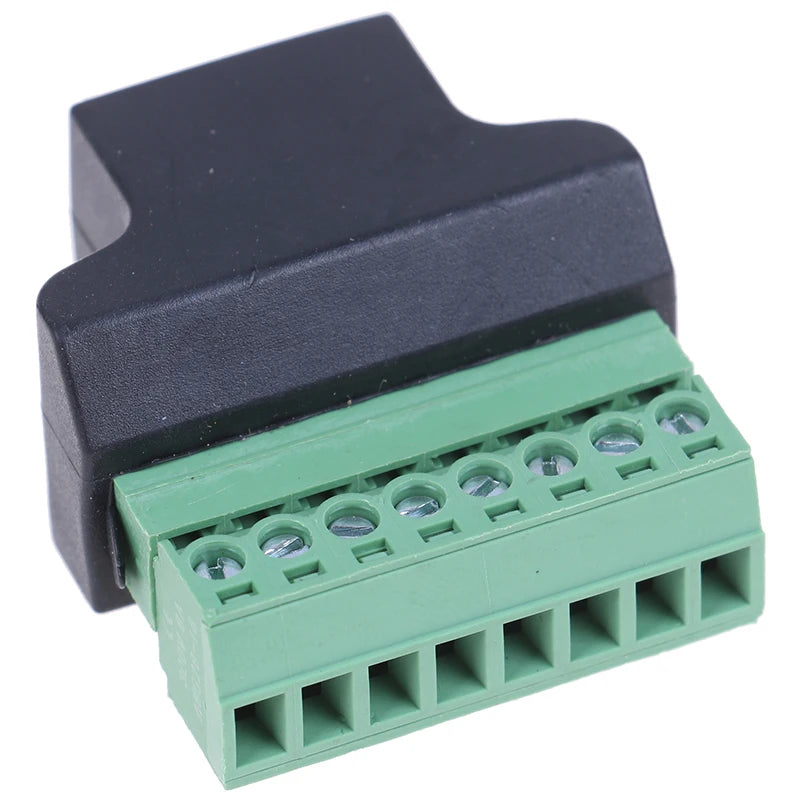

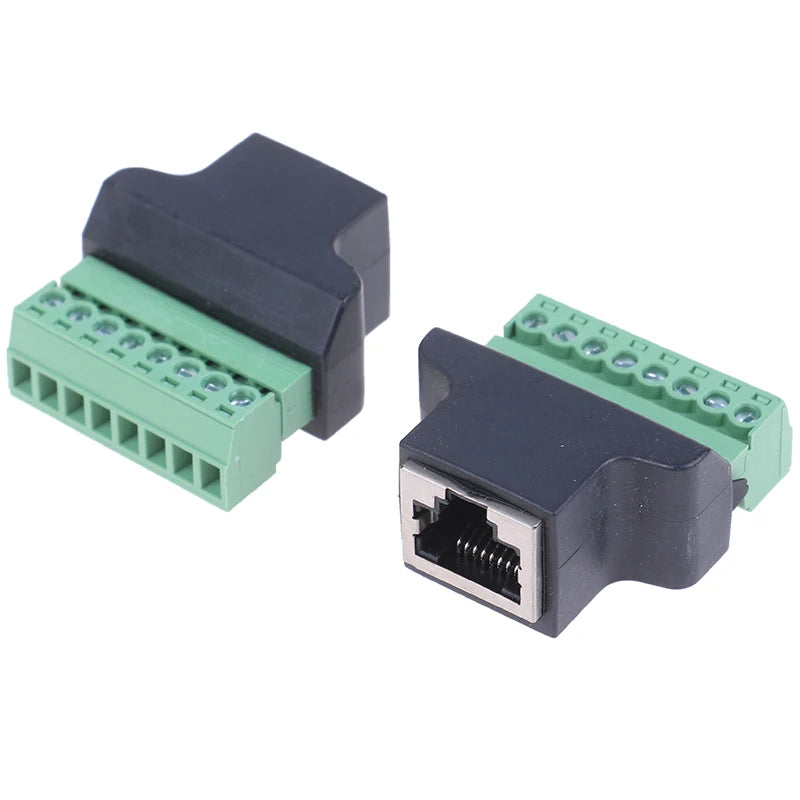

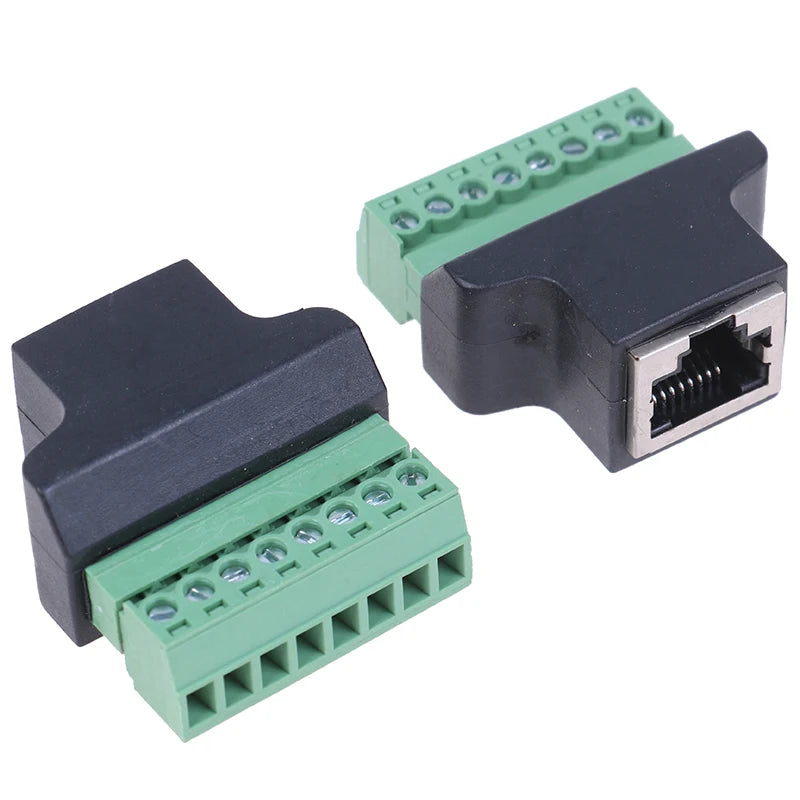

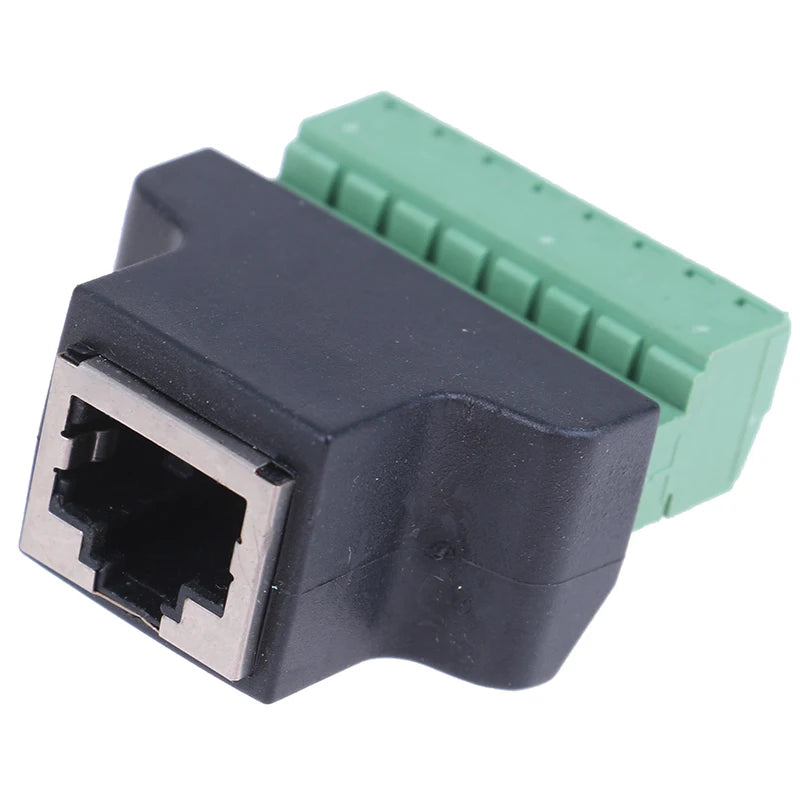

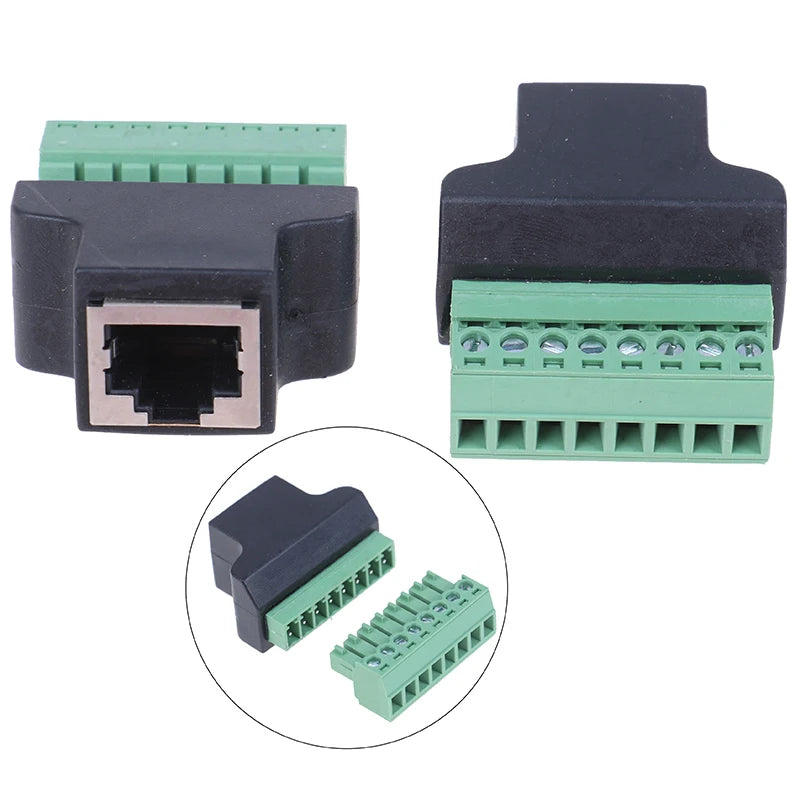

RJ45 Female to 8-Pin Screw Terminal Converter Adapter
Simplify your CCTV and DVR wiring installations with this compact and durable RJ45 Female to Screw Terminal Adapter. Designed for professionals and DIY enthusiasts alike, this converter makes it easy to connect UTP network cables directly to screw terminal blocks — no soldering required. Compatible with hubs that feature RJ45 video ports, it delivers a clean, secure, and reliable connection every time.
Key Features
- EIA/TIA 568B Wiring Standard: Wired in full compliance with the industry-standard 568B structured cabling specification for consistent, predictable performance.

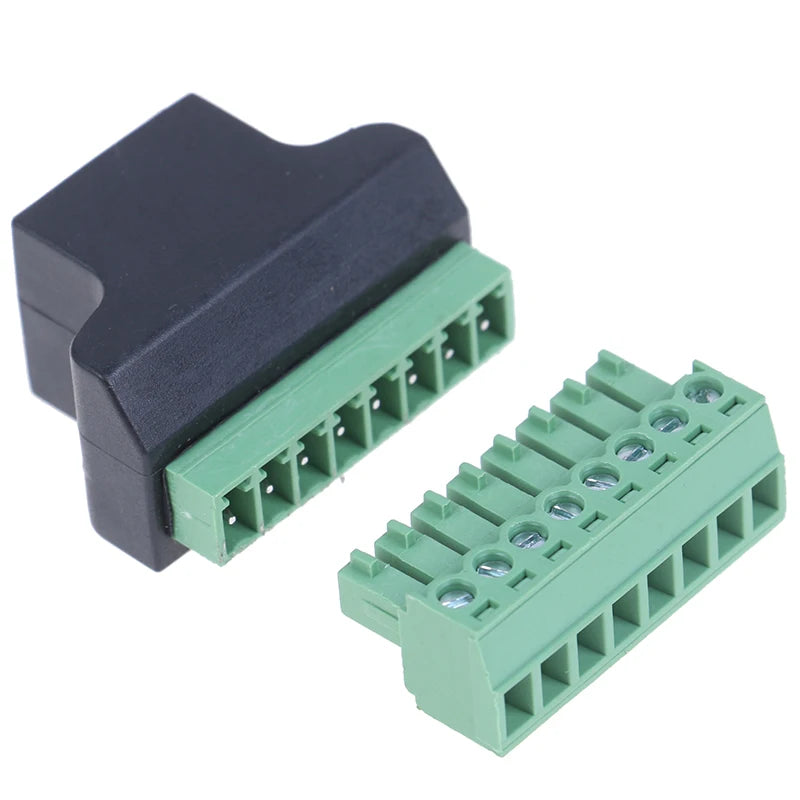

- 8-Pin Screw Terminal Block: Each UTP conductor is clearly landed and labeled on the screw terminal side, making wiring straightforward and error-free.
- Heavy-Duty Construction: Built from a combination of sturdy plastic and metal for long-lasting, reliable connections even in demanding installations.
- Compact & Versatile: Small form factor (approx. 38 × 32 × 18 mm) fits neatly into tight spaces in DVR enclosures, junction boxes, and server racks.
- Plug & Play: Simply insert the RJ45 connector and tighten the screw terminals — no special tools required.
Specifications
| Material | Plastic + Metal |
| Color | Black & Green |
| Dimensions | Approx. 38 × 32 × 18 mm (1.50 × 1.26 × 0.71 in) |
| Connector Type | RJ45 Female to Screw Terminal |
| Wiring Standard | EIA/TIA 568B |
| Quantity | 1 PC |
| Country of Origin | Made in China |
What's in the Box
- 1 × RJ45 to Screw Terminal Converter Adapter
Note: Other accessories shown in product images are for demonstration purposes only and are not included.
Related Products You May Like
- 1PC 10g High Grade Silicon Grease Lubricant for O-Rings — great for maintaining connector threads and seals.
- 1PC Exhaust Duct Interface Pipe Hose Connector — another versatile connector solution for your projects.
- 3PCS Silicone Sealant Scraper Set — handy multi-functional tool set for installation and finishing work.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What wiring standard does this RJ45 to screw terminal adapter follow?
A: This adapter is wired in accordance with the EIA/TIA 568B structured cabling standard, ensuring compatibility with the vast majority of modern CCTV, DVR, and network installations.
Q: Is this adapter compatible with all DVR systems that use RJ45 ports?
A: Yes — this RJ45 female to screw terminal converter is designed for use with hubs and DVR systems that feature standard RJ45 video ports. Always refer to the pinout/wiring diagram of your specific DVR to confirm terminal assignments before installation.
Q: Do I need any special tools to install this adapter?
A: No special tools are needed. Simply insert your RJ45 connector into the female jack and secure the UTP conductors to the labeled screw terminals using a standard screwdriver.
Q: What is the size of this adapter?
A: The adapter measures approximately 38 × 32 × 18 mm (1.50 × 1.26 × 0.71 inches), making it compact enough for use in tight spaces within enclosures and junction boxes.
