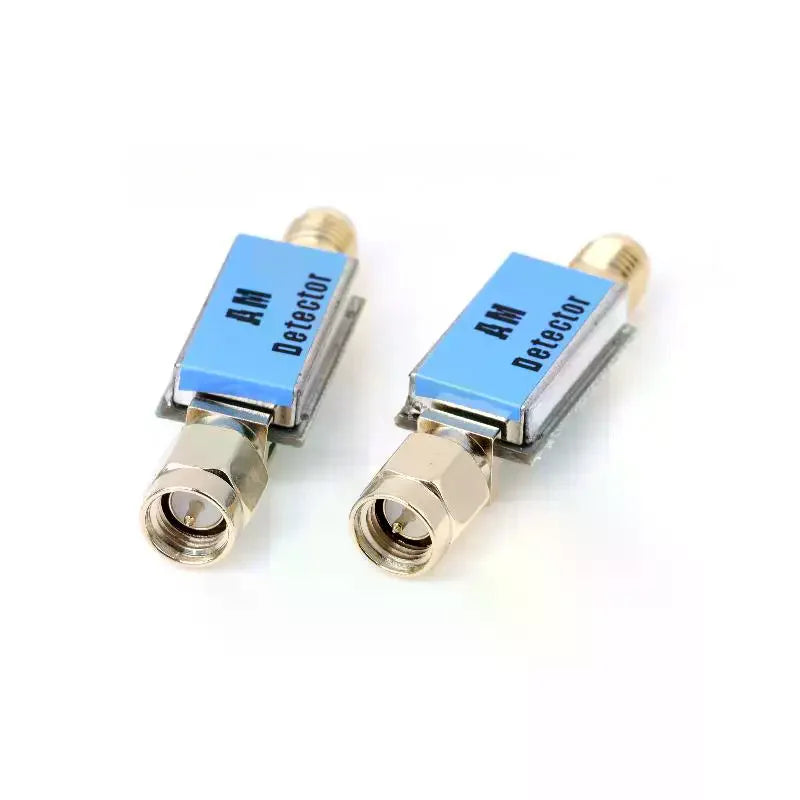

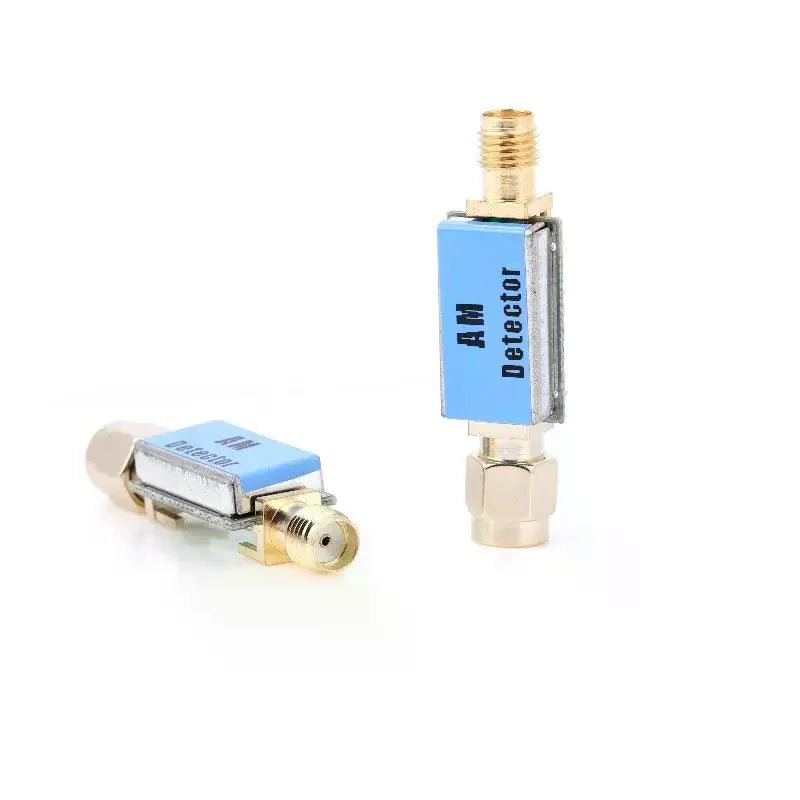

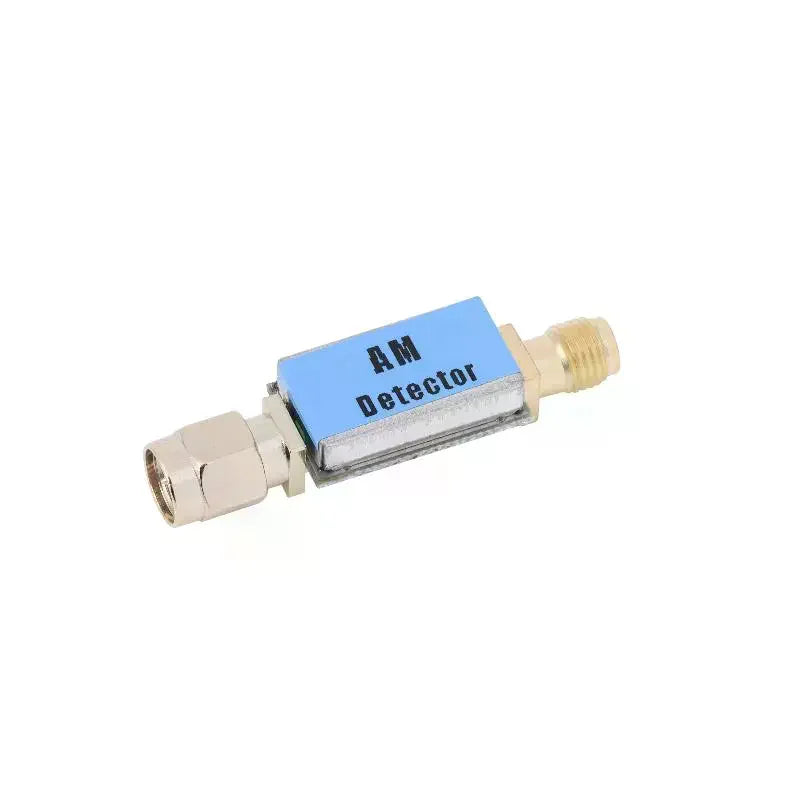

RF AM Envelope Detector – 0.1MHz to 6GHz Wideband Module

The RF AM Envelope Detector is a compact, high-sensitivity wideband detection module covering 0.1 MHz to 6 GHz (6000 MHz). Built around a double voltage detector using two reverse microwave diodes, it delivers 6 dB greater sensitivity compared to single-tube detectors, with a typical sensitivity of -30 dBm and peak performance reaching up to -40 dBm. This makes it a significant upgrade over legacy diode detectors such as the 2AP9 and 1N60.

Whether you're working on amplitude modulation signal envelope detection, carrier signal level monitoring, or RF amplitude measurement, this module provides a clean, reliable output in a tiny metal housing.

Key Features

  • Ultra-wide frequency range: 0.1 MHz – 6 GHz (6000 MHz)
  • Double voltage detector circuit using two reverse microwave diodes
  • 6 dB higher sensitivity than single-tube detector designs
  • Typical sensitivity of -30 dBm, peak up to -40 dBm
  • Ideal for AM envelope detection and carrier signal amplitude measurement
  • Functions as a direct equivalent to a standalone envelope detector

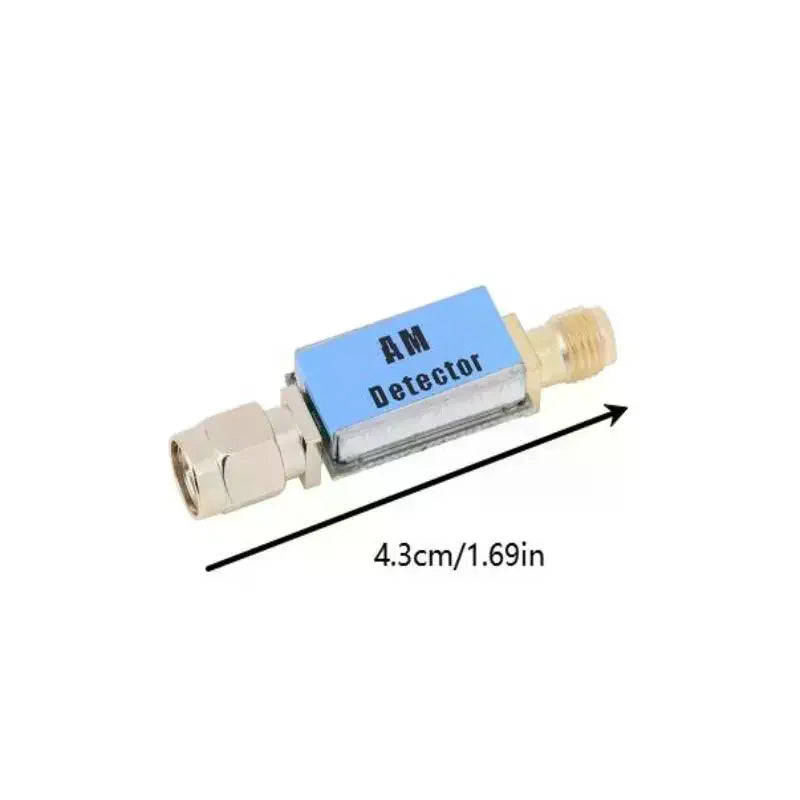

  • Compact metal construction — approximately 4.3 cm in size
  • No battery required — passive detection module

Specifications

Frequency Range 0.1 MHz – 6 GHz
Detector Type Double Voltage (2× Reverse Microwave Diodes)
Sensitivity (Typical) -30 dBm (up to -40 dBm)
Material Metal
Size Approx. 4.3 cm
Battery Not required / Not included
Package 1 pc or 2 pcs
Country of Origin Made in China

What's in the Box?

  • 1 or 2 × RF AM Envelope Detector Module (as selected)

Applications

  • Amplitude modulation (AM) signal envelope detection
  • Carrier signal level and amplitude monitoring
  • RF lab testing, DIY electronics, and engineering prototyping
  • Signal measurement in the 0.1 MHz to 6 GHz frequency band

Note: Color may vary slightly due to monitor display settings. Measurements are manual and minor tolerances are expected.
