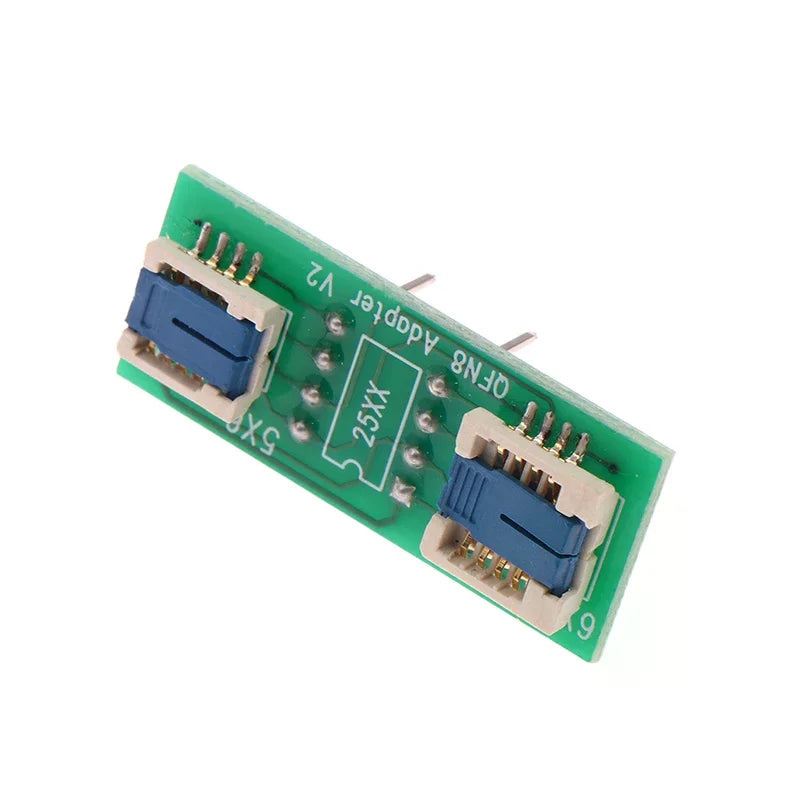

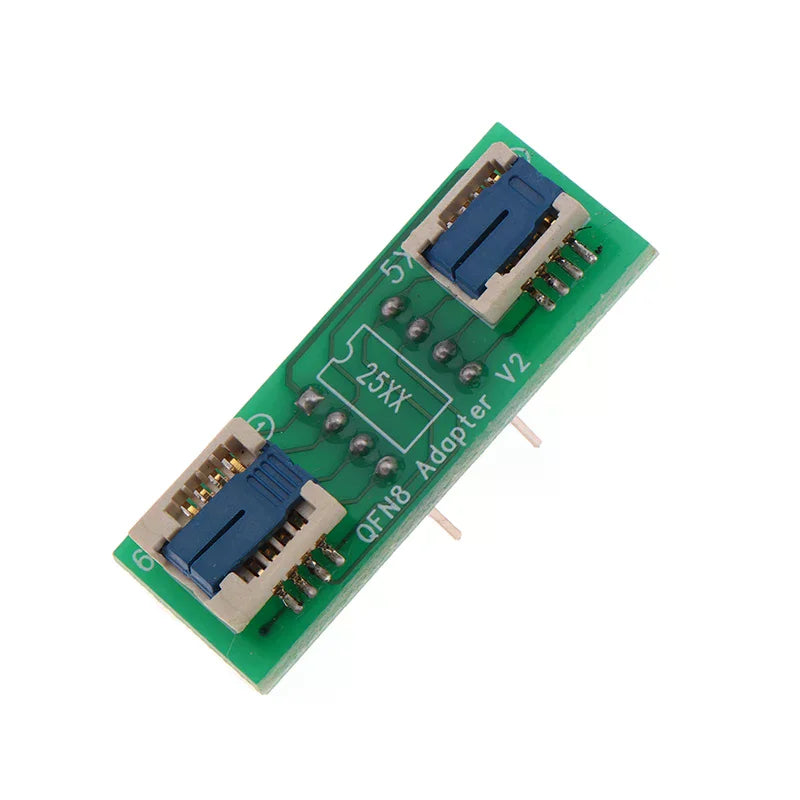

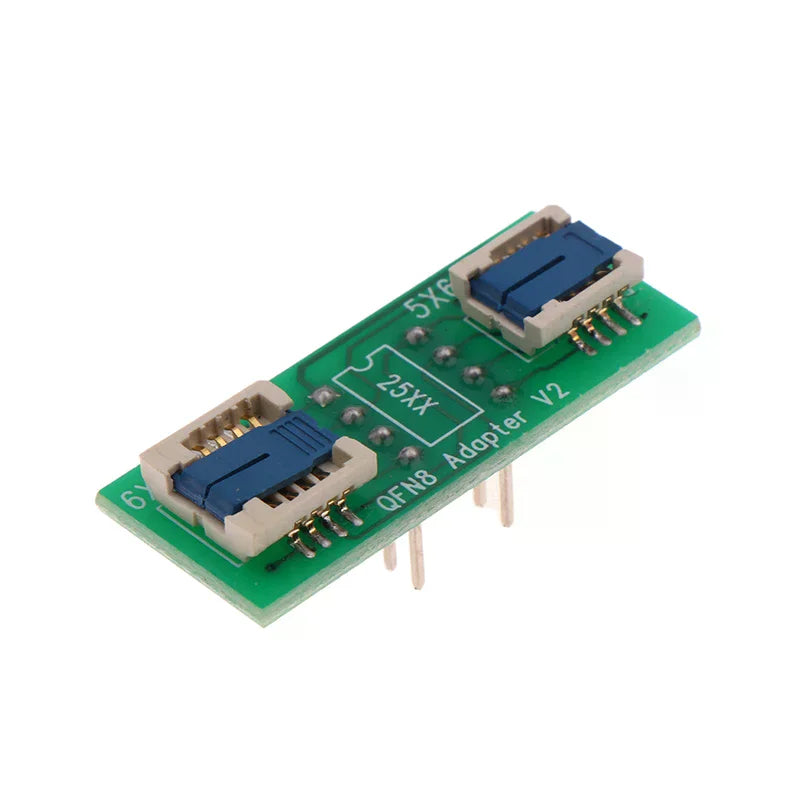

QFN8/WSON8 Universal Flash Socket Adapter — 6×5mm & 8×6mm BIOS Chips
Program your SMT BIOS flash chips with ease using this versatile two-in-one QFN8/WSON8 to DIP8 socket adapter. Designed for both 6×5mm and 8×6mm IC packages, this adapter eliminates the need for multiple sockets — one compact tool covers a wide range of flat-no-lead chip formats.
Compatible IC Packages
- QFN8 (Quad Flat No-Lead, 8-pin)
- WSON8 (Very Small Outline No-Lead, 8-pin)
- MLF8 (Micro Lead Frame, 8-pin)
- MLP8 (Micro Lead Package, 8-pin)
- DFN8 (Dual Flat No-Lead, 8-pin)
Compatible Programmers
Works seamlessly with a wide range of universal chip programmers, including:
- XGecu TL866II Plus
- XGecu T56
- Superpro
- TNM
- TOP
- GQ-4X
- Stager
- SOFI
- And other standard universal programmers
Key Specifications
| Applicable IC Dimensions | 6×5mm & 8×6mm |
| Pin Pitch | 1.27mm |

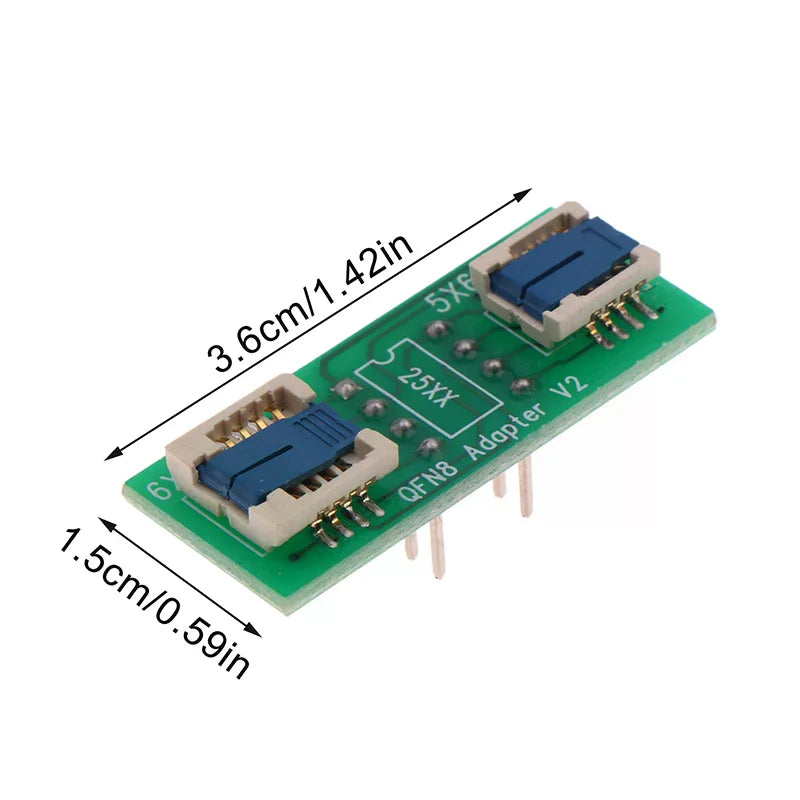

| Adapter Size | 3.6 × 1.5 cm |
| Material | PP (Polypropylene) |
| Package Contents | 1 × QFN8/WSON8 Flash Socket Adapter |
| Origin | Made in Mainland China |
Why Choose This Adapter?
- Universal two-in-one design — supports both 6×5mm and 8×6mm chip footprints in a single socket
- Broad programmer compatibility — works with most popular universal IC programmers on the market
- Compact & portable — easy to store and carry in your toolkit
- Reliable PP construction — durable material ensures consistent electrical contact during programming sessions
- Ideal for BIOS chip programming — perfect for technicians, hobbyists, and electronics repair professionals
Looking for more useful workshop accessories? Check out the 1PC 10g High Grade Silicone Grease Lubricant for maintaining connector contacts, or browse our Large Capacity Battery Storage Organizer Box to keep your workspace tidy.
Note: Due to manual measurement, please allow a tolerance of 0–3mm. Actual product color may vary slightly from images due to differences in monitor settings.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What IC package types does the QFN8/WSON8 flash socket adapter support?
A: This universal adapter supports QFN8, WSON8, MLF8, MLP8, and DFN8 package types in both 6×5mm and 8×6mm IC dimensions, making it a true two-in-one solution for SMT BIOS chip programming.
Q: Which chip programmers are compatible with this QFN8/WSON8 socket adapter?
A: The adapter is compatible with a wide range of universal programmers including XGecu TL866II Plus, XGecu T56, Superpro, TNM, TOP, GQ-4X, Stager, SOFI, and most other standard universal IC programmers that accept DIP8 socket adapters.
Q: What is the pin pitch of this QFN8/WSON8 to DIP8 adapter?
A: The pin pitch of this adapter is 1.27mm, which is the standard pitch for QFN8, WSON8, and related flat no-lead SMT packages.
