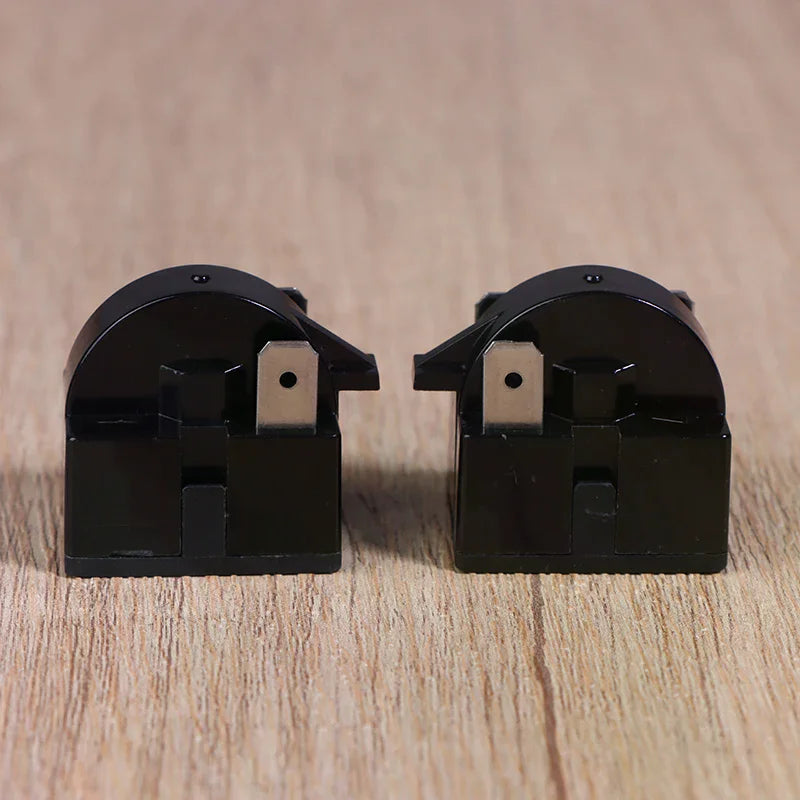

PTC Starter Relay for Refrigerator Compressor – 1–4 Pin
PTC Starter Relay for Refrigerator Compressor – 1–4 Pin
PTC Starter Relay & Compressor Overload Protector
Keep your refrigerator, mini fridge, or cooler running smoothly with this universal PTC Starter Relay and Overload Protector by JETTING. Designed to fit a wide range of compressor types, this compact and reliable component is an essential spare part for appliance maintenance and DIY repairs.
Why You'll Love It
- Universal Compatibility: Works with various brands of refrigerators, mini fridges, coolers, and air conditioner compressors.
- Built-In Overload Protection: Automatically shuts down the compressor if the motor draws excessive current, helping to safeguard your appliance.

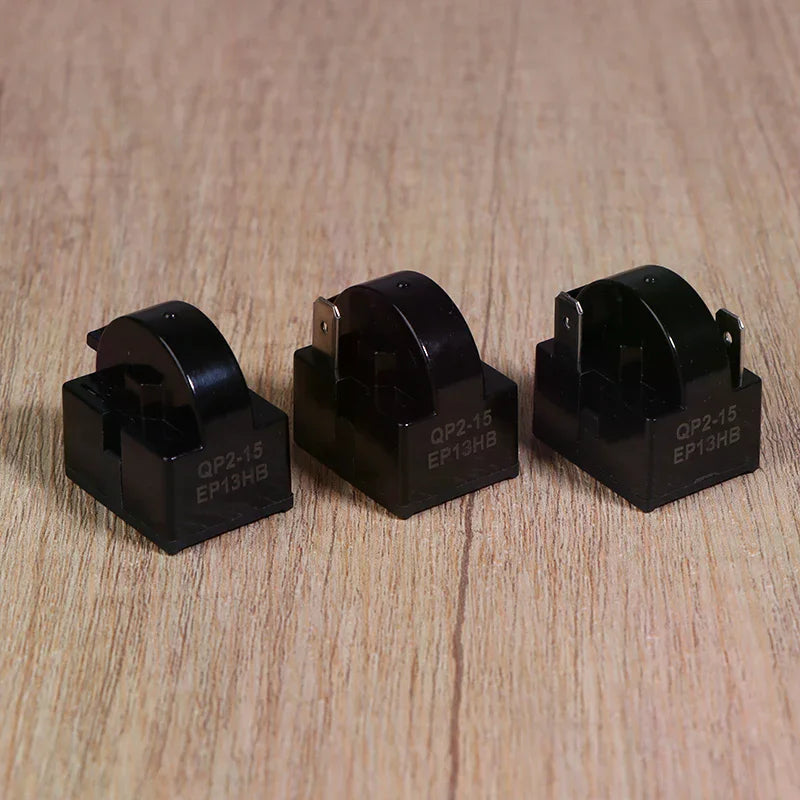

- Multiple Pin Options: Available in 1-pin, 2-pin, 3-pin, and 4-pin configurations to match your specific compressor.

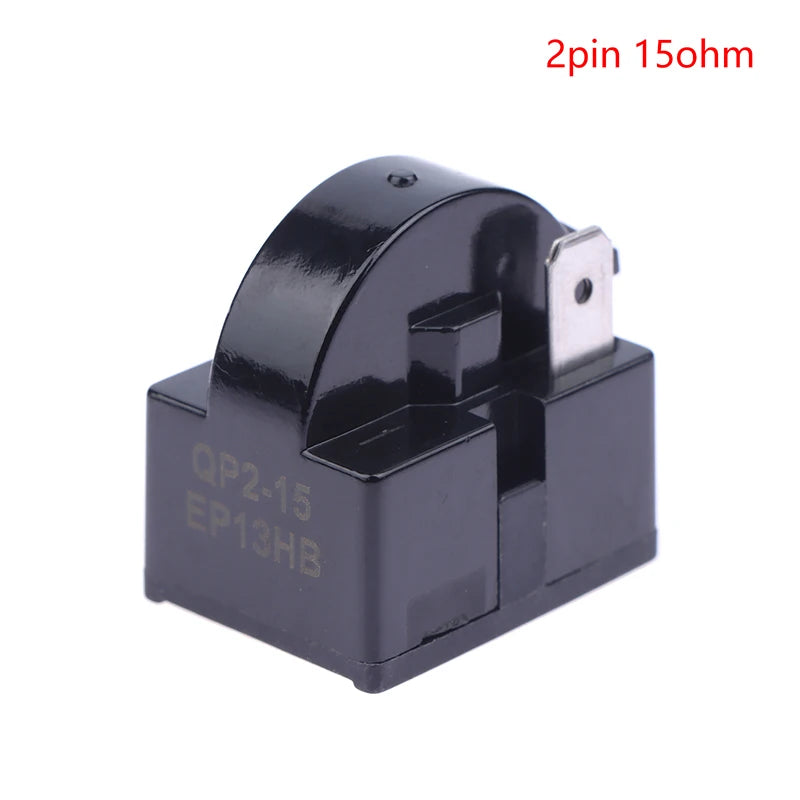

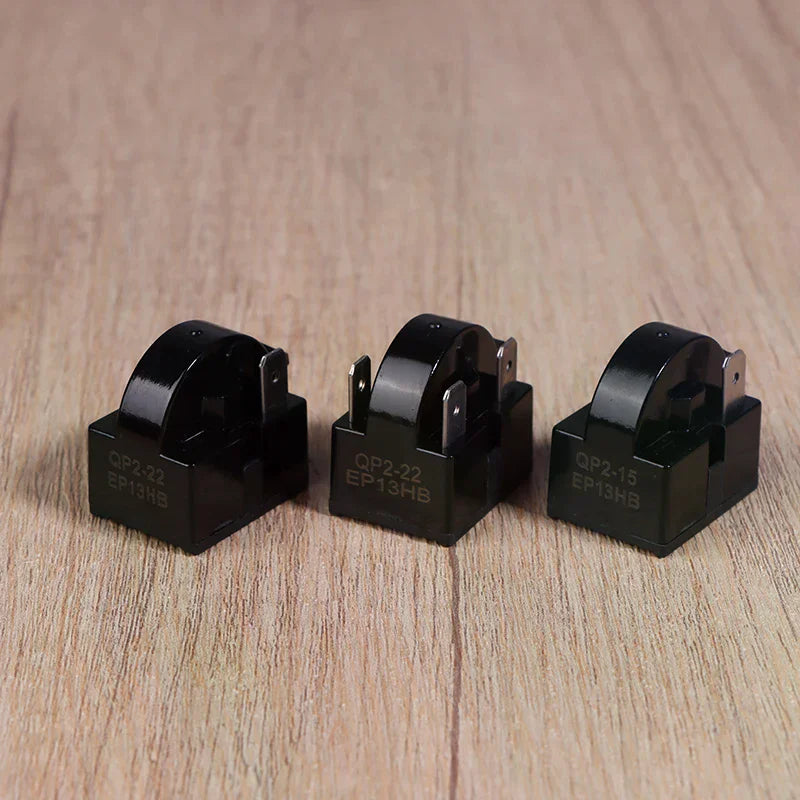

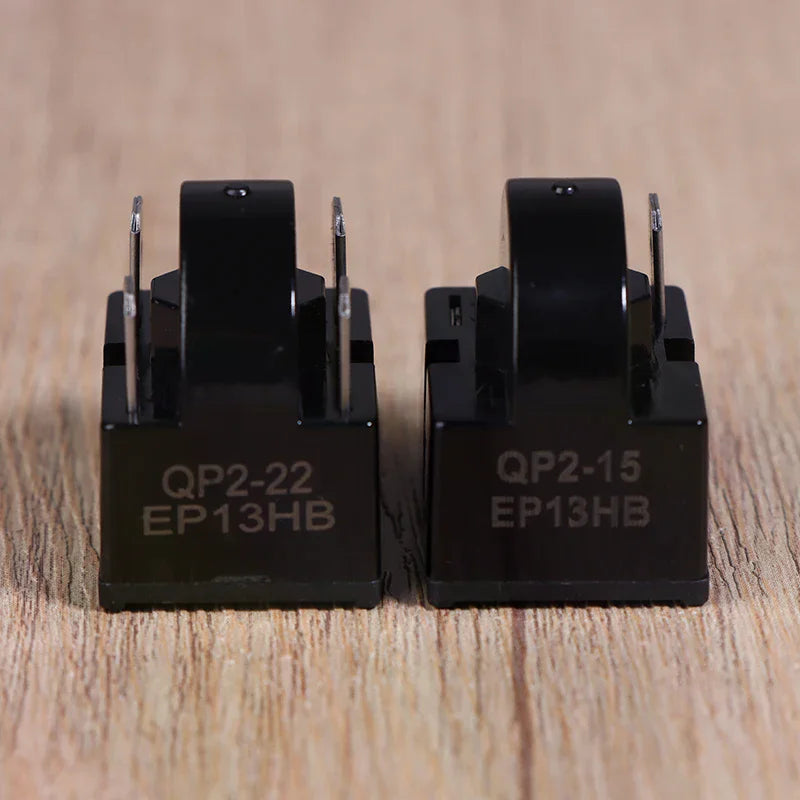

- Choice of Resistance: Select 15 ohm or 22 ohm to suit your unit's requirements.
- Easy Installation: Attaches directly to the compressor — no special tools required.
- Compact & Lightweight: Small form factor (3.2 × 2.0 × 2.8 cm) fits neatly into tight spaces.
- CE Certified: Meets low-voltage safety standards (below 50V AC or 75V DC).
- High-Quality Construction: Made from durable plastic and metal for long-lasting, reliable performance.
Specifications
| Material | Plastic + Metal |
| Color | Black |
| Dimensions | 3.2 × 2.0 × 2.8 cm (approx. 1.26 × 0.79 × 1.1 in) |
| Voltage | 220V |
| Resistance Options | 15 ohm / 22 ohm |
| Pin Options | 1-pin / 2-pin / 3-pin / 4-pin |
| Certification | CE |
| Country of Origin | Made in China |
Package Includes
- 1 × PTC Starter Relay (pin count and resistance per selected option)
Notes
- Please refer to the description for exact dimensions — product images are not to scale.
- Allow slight differences due to manual measurement.
- Actual color may vary slightly from screen to screen due to monitor settings.
You May Also Like
- Multi-Use Faucet Bubbler Wrenches – 6-Size Repair Spanner
- 3PCS Silicone Sealant Scraper Set – Caulking & Grout Tools
- AC Exhaust Duct Pipe Hose Connector & Extension Joint
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is a PTC starter relay and what does it do in a refrigerator?
A: A PTC (Positive Temperature Coefficient) starter relay is a small electronic component attached to the compressor of a refrigerator. It provides the initial current surge needed to start the compressor motor, then quickly reduces current once the motor is running. The built-in overload protector monitors motor current and shuts the compressor down if it draws too much, protecting the appliance from damage.
Q: How do I know which pin configuration (1/2/3/4 pin) to choose?
A: Check your existing starter relay or your refrigerator's compressor terminal block. Count the number of connector pins on the original part and select the matching option (1-pin, 2-pin, 3-pin, or 4-pin). If unsure, consult your appliance's service manual or the compressor model number for guidance.
Q: Is this relay compatible with my refrigerator brand?
A: This is a universal PTC starter relay designed to be compatible with a wide variety of refrigerator and mini fridge brands. Please verify that the pin count, resistance (15 ohm or 22 ohm), and voltage (220V) match your appliance's specifications before purchasing.
Q: Is this starter relay easy to install without professional help?
A: Yes! The relay simply clips onto the compressor's terminal pins — no soldering or special tools are required. Most DIY-savvy homeowners can complete the swap in just a few minutes. Always unplug the appliance before servicing any internal components.
