PT-506 High Accuracy 4-20mA Pressure Sensor
The PT-506 Pressure Sensor delivers industrial-grade precision for monitoring water pumps, hydraulic oil systems, air compressors, and liquid media. With a standard 4–20mA output signal and G1/4 thread connection, this stainless steel sensor integrates seamlessly into automation and control systems of all scales. Made in Mainland China.
Key Features
- High Accuracy (±0.5% FS): Dependable full-scale precision ensures reliable pressure readings for critical monitoring applications.
- IP67 Waterproof & Dustproof: Built-in O-ring seal and gasket provide robust protection against moisture and dust ingress.
- Anti-Mistake Plug Design: Foolproof keyed slot prevents reverse insertion, protecting the sensor from accidental damage during installation.
- Enhanced Signal Integrity: 22AWG tinned shielded wire minimizes electrical interference and ensures clean, stable signal transmission over the 2-metre cable.
- Wide Pressure Range Options: Available in 0–1.0 MPa, 0–1.6 MPa, and 0–2.5 MPa ranges to suit a variety of system requirements.
- Broad Temperature Tolerance: Operates reliably from –40°C to +85°C, suitable for demanding industrial environments.

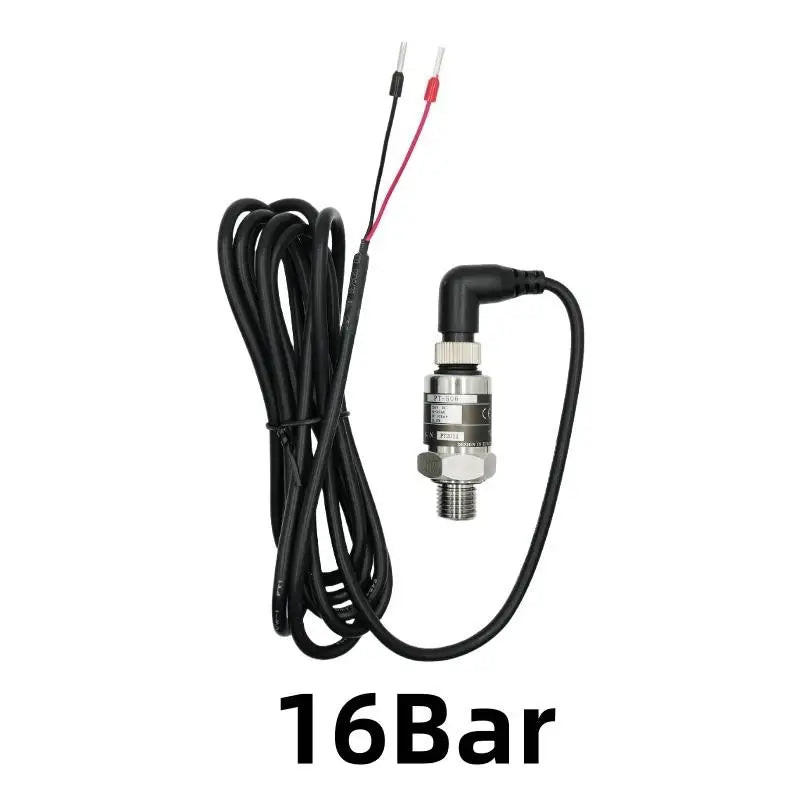

- Straight & Elbow Type Models: Choose the configuration that best fits your installation layout.
Technical Specifications
| Model | Straight / Elbow Type |
| Pressure Range | 0–1.0 MPa / 0–1.6 MPa / 0–2.5 MPa |
| Output Signal | 4–20 mA |
| Power Supply | 24 VDC (10–36 VDC) |
| Thread Size | G1/4 (Ø13 mm) |
| Operating Temperature | –40°C to +85°C |
| Cable Length | 2 Metres |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 |
| Accuracy | ±0.5% FS |
| Package Contents | 1 × Pressure Sensor |
| Country of Origin | Mainland China |
Compatible Applications
The PT-506 is designed for a wide range of industrial and commercial uses:

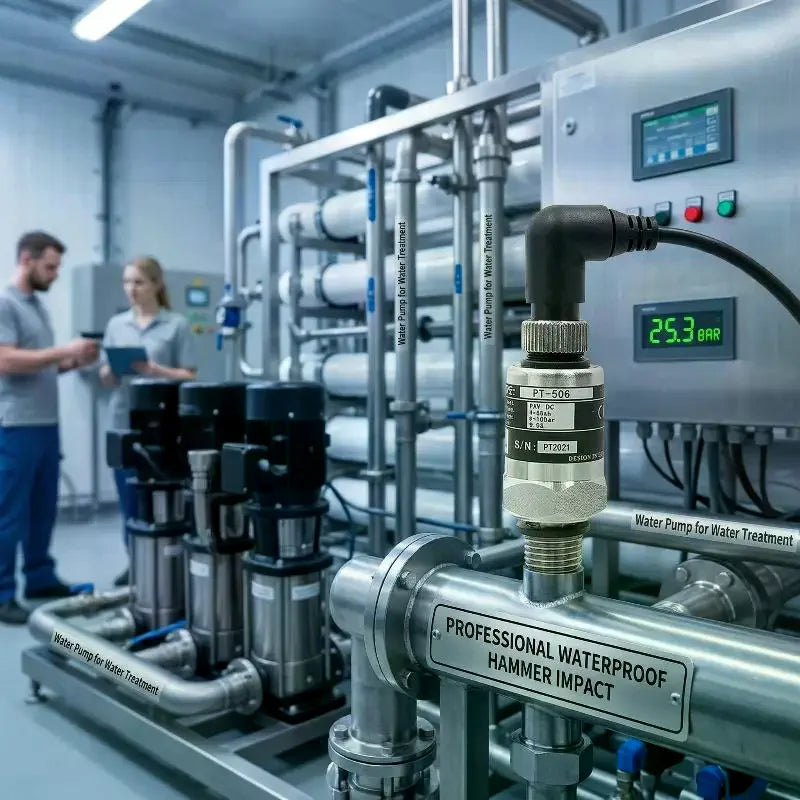

- Water pump pressure monitoring
- Hydraulic oil system control
- Air compressor management
- Liquid level monitoring in tanks and pipelines
- Industrial automation and PLC-based control systems
Compatible media include water, hydraulic oil, and compressed air.
