PIR Solar Street Light Controller Board 3.2V 3.7V Remote

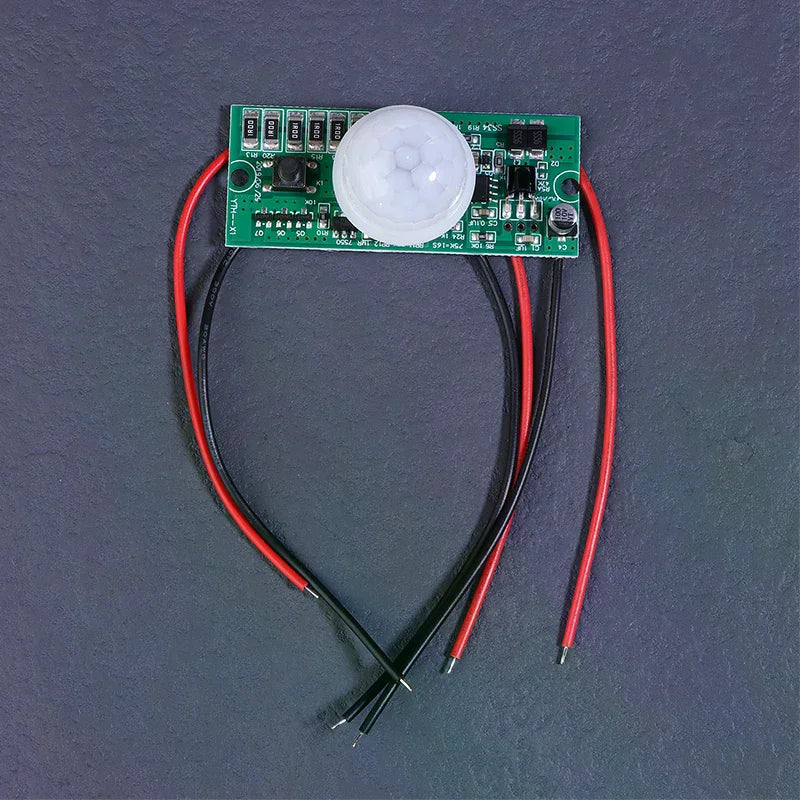

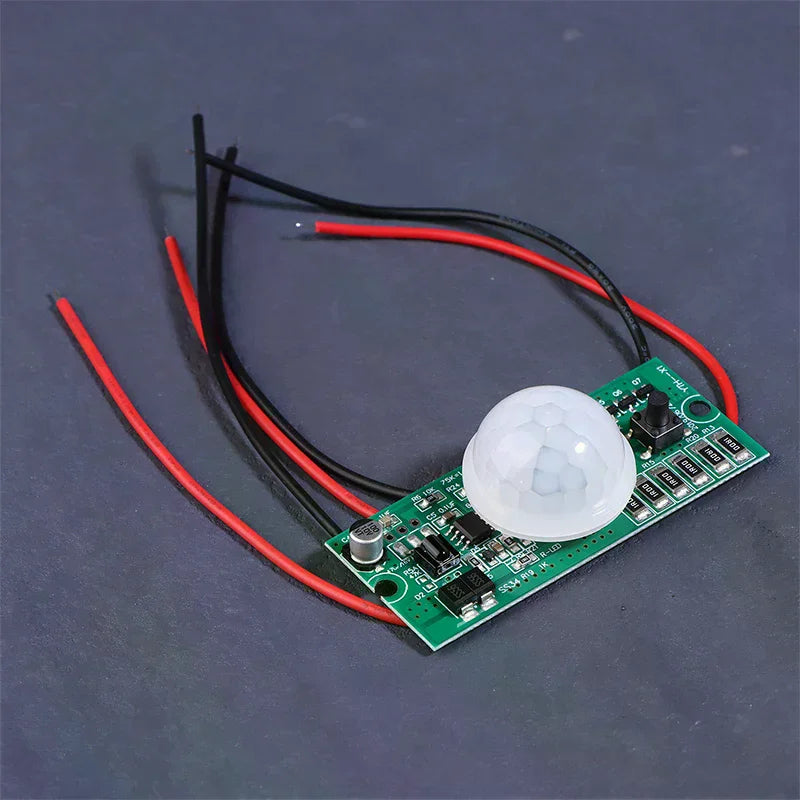

PIR Solar Street Light Sensor Controller Circuit Board

Upgrade or repair your solar integrated street lamp with this compact, high-performance controller circuit board. Compatible with both 3.2V lithium iron phosphate and 3.7V ternary lithium batteries (with protection board), this CE-certified board delivers multi-mode sensing, remote dimming, and a three-gear switch — all in a space-saving 6.4 × 2.6 cm form factor. Made in China.

Key Features

• Wide Battery Compatibility: Works with 3.2V LiFePO₄ and 3.7V lithium batteries. Requires a battery with a built-in protective board (overcharge/overdischarge protection is not built into this control board).
• Dual Sensing Modes: High-brightness motion sensing + continuous low-light mode — sensing activates for approximately 10 seconds with a detection range of 5–10 metres.
• Remote Control Function: Included remote allows you to adjust brightness and toggle lighting modes without touching the fixture.
• Three-Gear Switch: Freely switch between Induction Mode, Constant-On Mode, and Light-Off to suit any scenario.

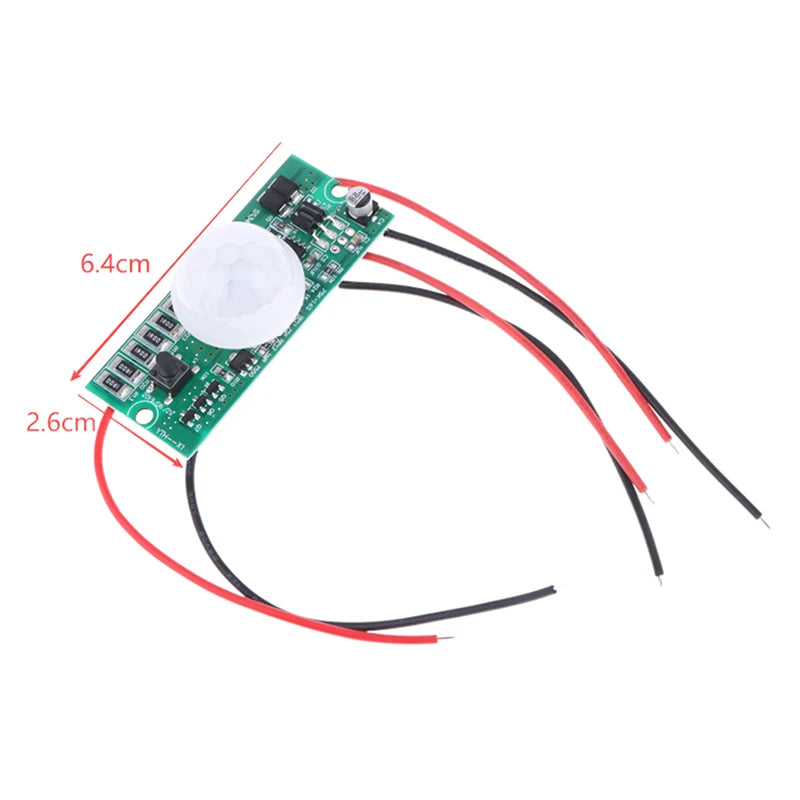

• Compact & Easy to Install: Slim 6.4 × 2.6 cm board fits neatly inside most solar street lamp housings for straightforward retrofits and maintenance.
• CE Certified: Meets CE safety and electromagnetic compatibility standards.

Technical Specifications

Important Notes

• This board does not include overcharge or overdischarge protection — always pair it with a battery that has its own protection board.
• The remote control does not include a battery. Please source a standard AAA (No. 7) battery locally before use.
• Actual lamp output is < 9W; marketed "90W equivalent" figures used in some listings refer to lumen equivalency claims and not actual wattage.
• Please allow a 2–3% variance due to manual measurement. Colour may vary slightly from images depending on your monitor settings.

Related Products You May Like

• 2m Folding Telescoping Tripod Adjustable Floor Lamp Holder for Outdoor Use
• 1PC 18cm Standard Diffuser Light Sock White Lampshade Reflector
• Large Capacity Battery Storage Organizer Box – Holds 30 AAA Batteries

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Is this solar street light controller board compatible with both LiFePO₄ and standard lithium batteries?

A: Yes. The PIR solar street light controller board supports both 3.2V lithium iron phosphate (LiFePO₄) and 3.7V ternary lithium batteries. In both cases, the battery must have its own built-in protection board, as overcharge and overdischarge protection is not built into this controller.

Q: What does the remote control do and what battery does it need?

A: The included remote control allows you to adjust brightness levels and switch between lighting modes without physically touching the lamp. It requires a standard AAA (No. 7) battery, which is not included in the package and must be purchased separately.

Q: What sensing distance and activation time does the PIR sensor support?

A: The PIR motion sensor detects movement within a range of 5 to 10 metres and activates the high-brightness mode for approximately 10 seconds per trigger. When no motion is detected, the lamp returns to the continuous low-light mode (in Induction Mode).

Q: Can I use this board to retrofit an existing solar street lamp?

A: Yes. The compact 6.4 × 2.6 cm board is specifically designed for use in solar integrated street lamp systems, making it well-suited for retrofit projects and maintenance repairs. Ensure your solar panel input is within the 5V–6V, <20W range before installation.
