15-48V Phantom Power Condenser Mic Preamp Amplifier Board DIY
15-48V Phantom Power Condenser Mic Preamp Amplifier Board DIY

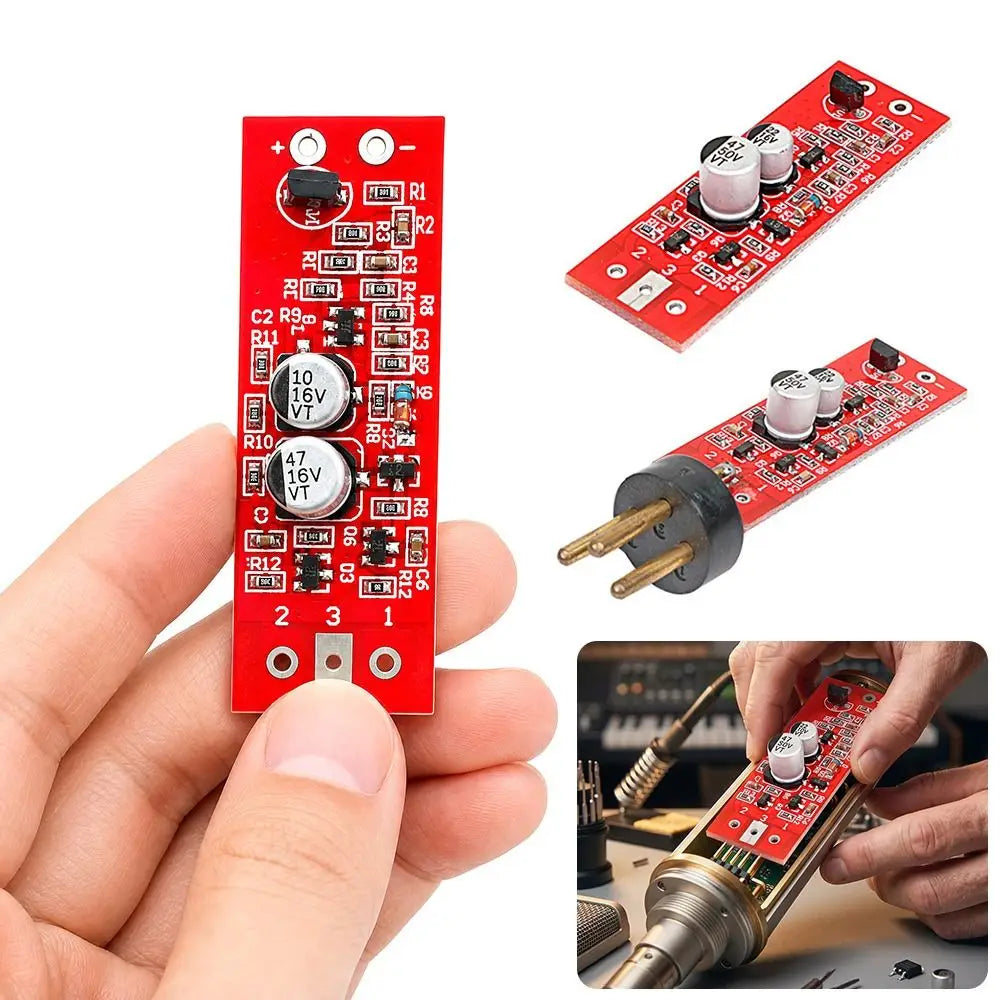

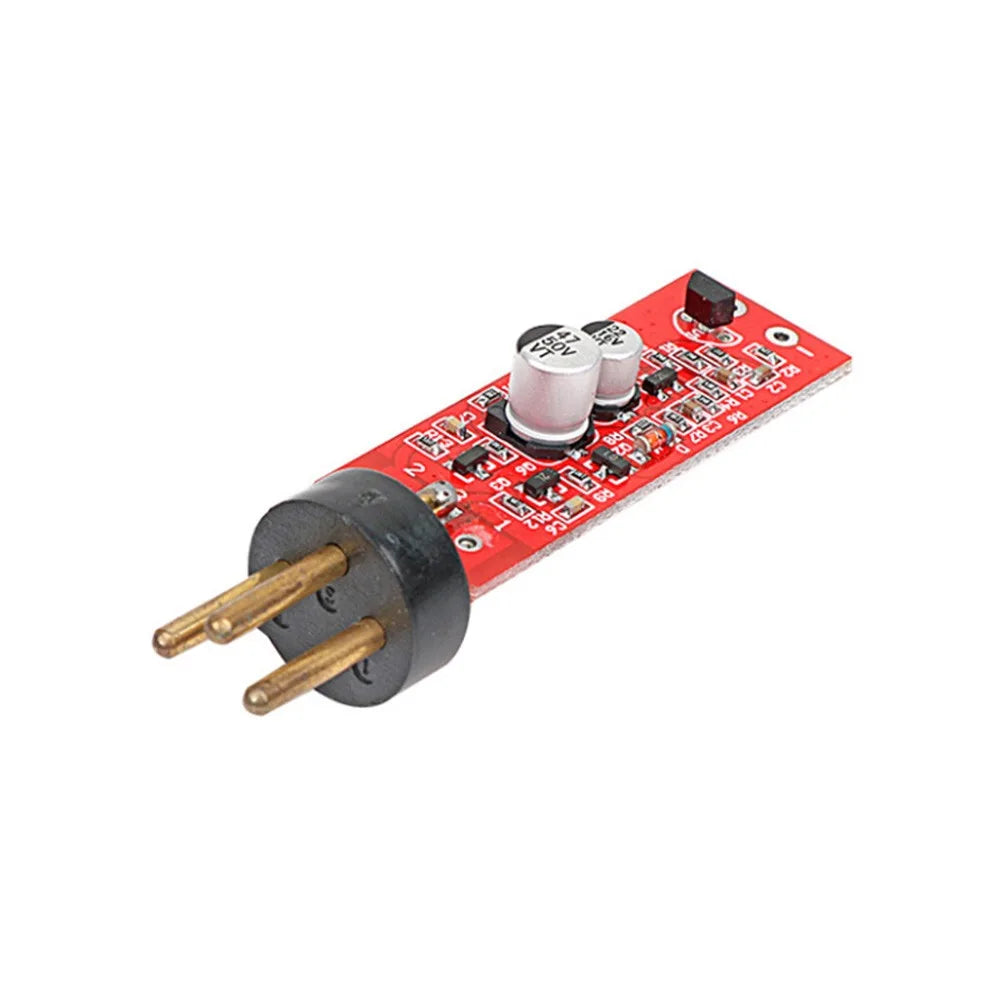

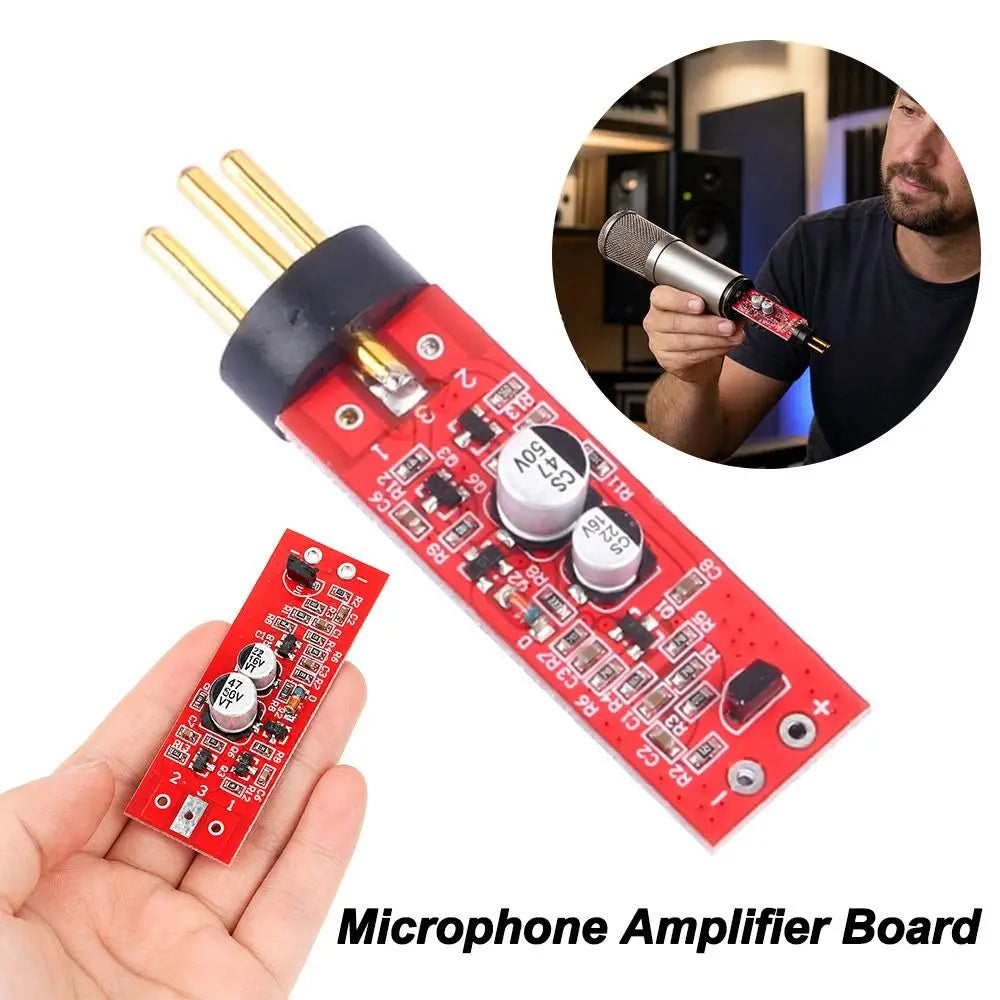

15-48V Phantom Power Condenser Microphone Preamp Amplifier Board
Upgrade your audio setup with this compact and versatile electret condenser microphone amplifier board. Designed for DIY microphone builds, this preamp board supports 15–48V phantom power and delivers clean, high-fidelity audio with a 125dB sound pressure level and a solid 60dB signal-to-noise ratio. Whether you're building a custom microphone for karaoke, home recording, conferencing, or live speech, this board gives you a reliable foundation.
Made in Mainland China.
Key Specifications
- Microphone Type: Electret microphone compatible
- Power Supply: 15–48V Phantom Power
- Sound Pressure Level: 125dB
- Signal-to-Noise Ratio: 60dB
- Output Impedance: 250 Ohms
- Working Current: ~3.2mA
- Board Size: 45mm × 16mm (1.77in × 0.63in) — head part not included
- Material: High-quality plastic housing
Features & Benefits
- Wide Phantom Power Range: Accepts 15V to 48V phantom power, making it compatible with a broad range of audio interfaces and mixers.
- Universal Electret Compatibility: Works with both universal and single-point electret microphones for flexible DIY configurations.
- High SPL Handling: 125dB SPL ensures the board handles dynamic audio environments without distortion.
- Low Noise Performance: Pair with a low-noise electret microphone capsule to achieve the best possible noise floor for professional-quality recordings.
- Versatile Applications: Ideal for karaoke systems, studio/home recording setups, conference rooms, and public address speech applications.
- Compact & DIY-Friendly: Small form factor (45 × 16mm) makes it easy to integrate into custom microphone enclosures and projects.
- Durable Construction: Fine workmanship and quality materials ensure long-lasting, consistent performance.
What's in the Box
- 1× Microphone Amplifier Board
Related Products You May Like
- 1PC 10g High Grade Silicone Grease Lubricant for O-Rings
- 1PC 18cm Standard Diffuser Light Sock – Photo Studio Reflector
- 2m Folding Telescoping Light Stand Tripod for Photography
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What type of microphone is compatible with this amplifier board?
A: This condenser microphone preamp amplifier board is designed specifically for electret microphone capsules — both universal and single-point types. It is not intended for dynamic microphones. For the cleanest audio output, use a low-noise electret capsule.
Q: What phantom power voltage does this board require?
A: The board accepts a wide phantom power range of 15V to 48V. Standard 48V phantom power (provided by most audio interfaces and mixers) works perfectly, as do lower-voltage phantom power sources from 15V and up.
Q: Can I use this board for home recording and studio applications?
A: Yes! This amplifier board is well-suited for DIY home recording microphone builds, as well as karaoke systems, conference setups, and speech applications. By pairing it with a quality low-noise electret capsule, you can achieve a clean, professional-sounding signal with a 60dB signal-to-noise ratio and 125dB SPL handling.
Q: What are the dimensions of the board?
A: The board measures 45mm × 16mm (approximately 1.77in × 0.63in), not including any attached microphone head. Its compact size makes it easy to fit inside custom microphone enclosures for DIY builds.
