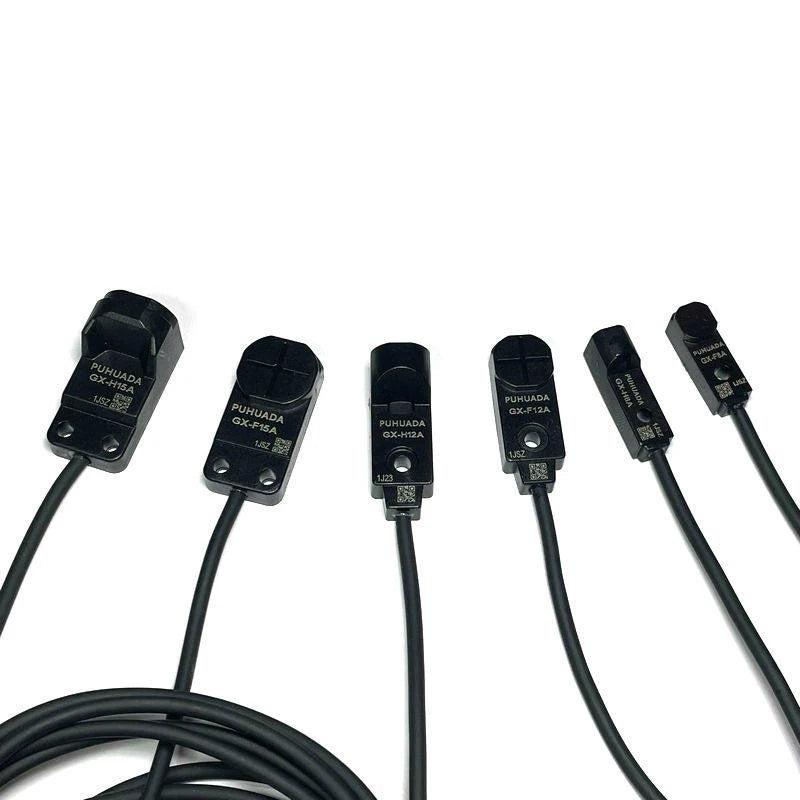

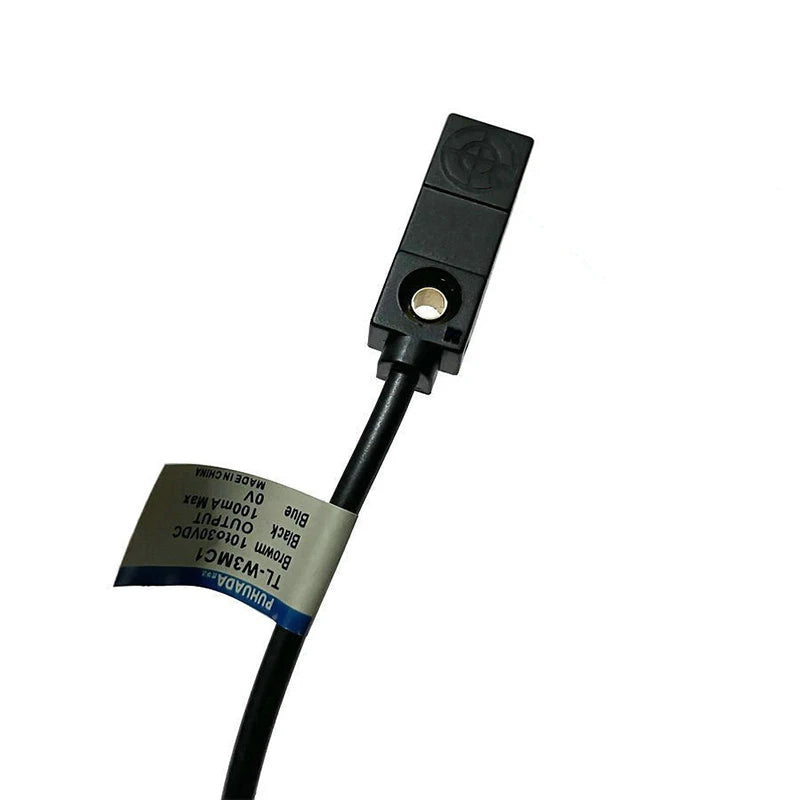

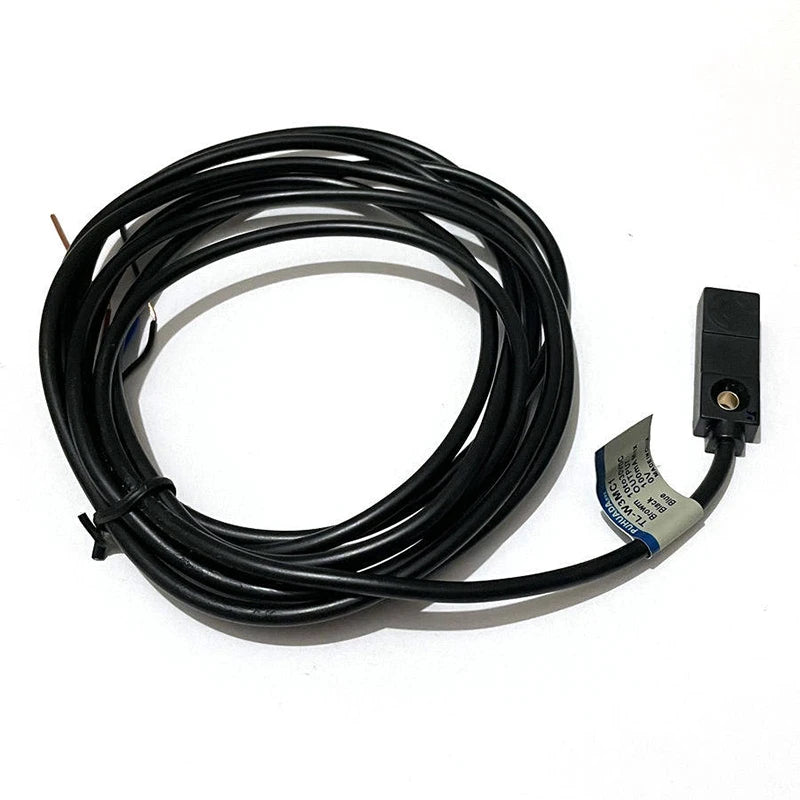

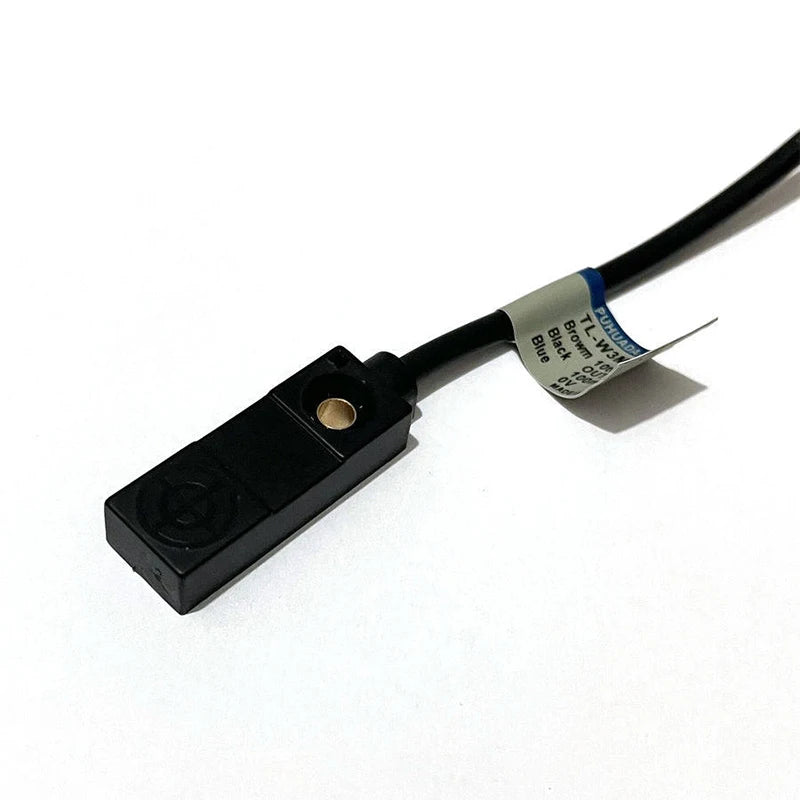

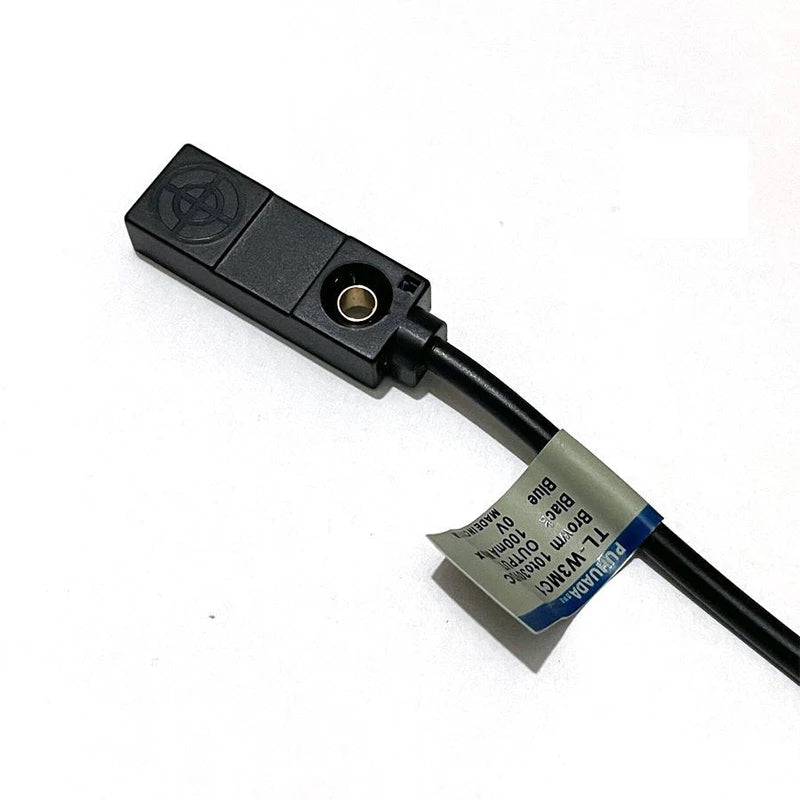

OMCH TL-W1/W3 Series Inductive Proximity Sensor — Small Square Switch
The OMCH TL-W1/W3 Series Inductive Proximity Sensor is a compact, high-performance small square switch engineered for reliable metal detection in industrial and automation environments. Supporting both NPN and PNP output configurations with a DC 3-wire connection, this sensor delivers precise and repeatable detection with minimal wiring complexity.
Key Features
- Dual Sensing Range: Choose between a 1.5mm or 3mm sensing distance to suit your specific application requirements.
- NPN & PNP Compatible: Flexible output options make this sensor compatible with a wide range of PLCs and control systems.
- Non-Flush Design: The non-flush (unshielded) mounting configuration offers an extended sensing field and straightforward installation.
- DC 3-Wire Operation: Simplified 3-wire DC wiring reduces installation time and improves system integration.
- Durable Alloy & Plastic Construction: Built from robust metal alloy and plastic materials to withstand demanding industrial conditions.
- Compact Square Form Factor: The small square housing is ideal for tight spaces on machinery, conveyor lines, and automated equipment.
Specifications

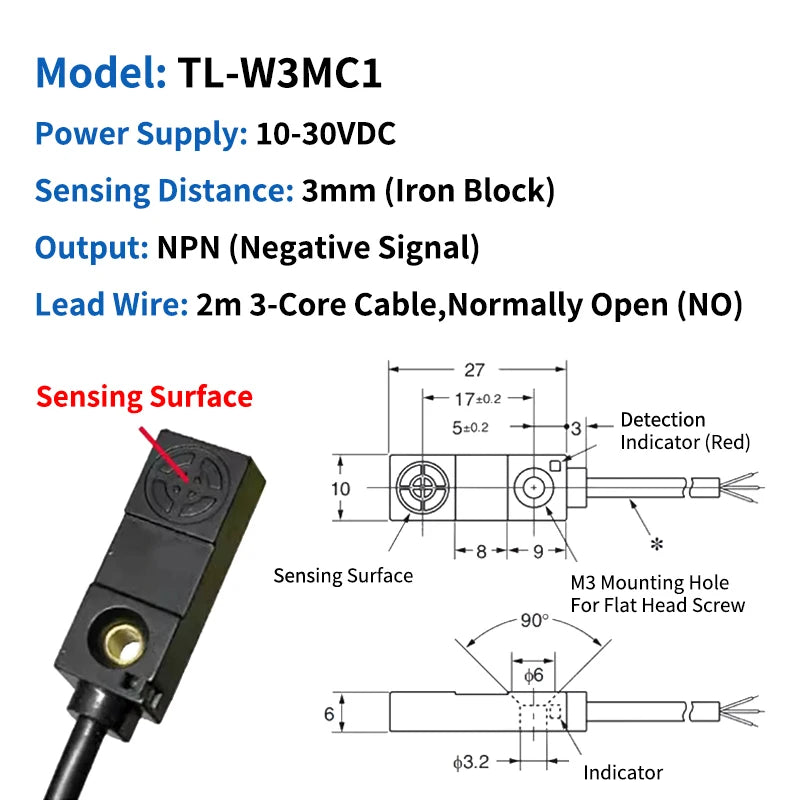

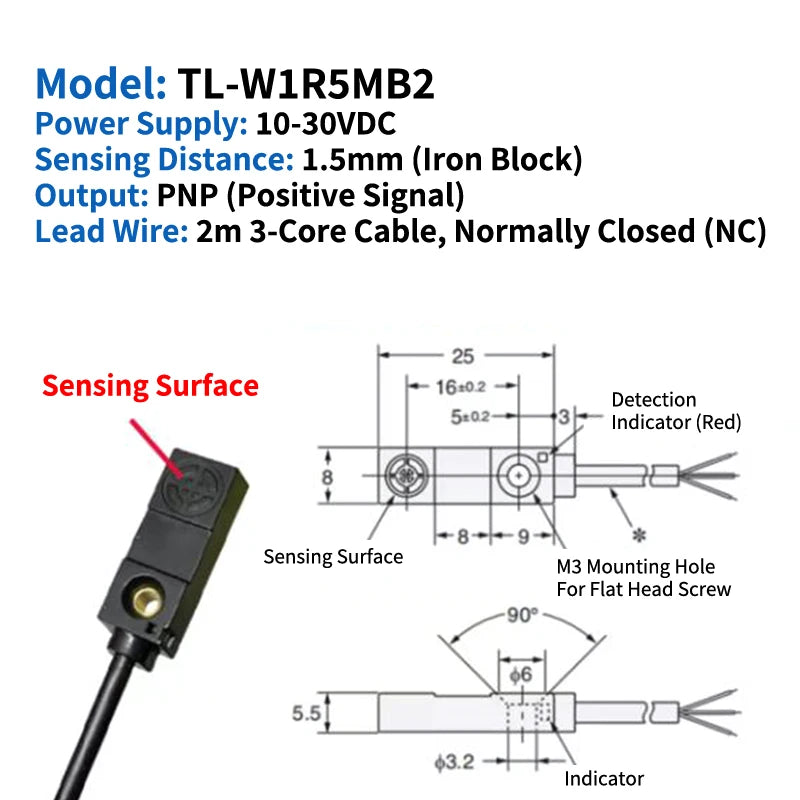

| Model Series | TL-W1 / TL-W3 |
| Sensing Distance | 1.5mm (W1) / 3mm (W3) |
| Output Type | NPN / PNP |
| Wiring | DC 3-Wire |
| Design Type | Non-Flush (Unshielded) |
| Material | Alloy + Plastic |
| Color | Black |
| Operating Voltage | Low Voltage: Below 50V AC or 75V DC |
| Country of Origin | Made in Mainland China |
Package Includes
- 1 × OMCH TL-W Series Square Inductive Proximity Sensor Switch
Related Products You May Like
- 1PC 10g High Grade Silicone Grease Lubricant for O-Rings
- 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking Tools
- 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes Repair Spanner
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the difference between the TL-W1 and TL-W3 series inductive proximity sensor?
A: The primary difference is the sensing distance. The TL-W1 series has a sensing range of 1.5mm, while the TL-W3 series offers a 3mm sensing range. Both feature the same non-flush design, NPN/PNP output options, and DC 3-wire configuration — the choice depends on how close the target metal object will be to the sensor face.
Q: Can this sensor work with both NPN and PNP wiring configurations?
A: Yes. The OMCH TL-W1/W3 Series supports both NPN (sinking) and PNP (sourcing) output types, making it compatible with a wide variety of PLCs, controllers, and automation systems. Ensure you select the correct output type for your control circuit when ordering.
Q: What types of objects can this inductive proximity sensor detect?
A: This is an inductive proximity sensor designed specifically to detect metallic objects such as steel, iron, aluminum, and other conductive metals. It is not suitable for detecting non-metallic materials like plastic, wood, or glass.
Q: Is this sensor suitable for harsh industrial environments?
A: Yes. The OMCH TL-W Series is constructed from durable alloy and plastic materials, making it well-suited for use in demanding industrial settings including machine tools, conveyor systems, and automated production lines operating at low DC voltages (below 75V DC).
