MPPT Solar Charger Control Board — DC5–18V, 2.5A, Type-C & USB Output

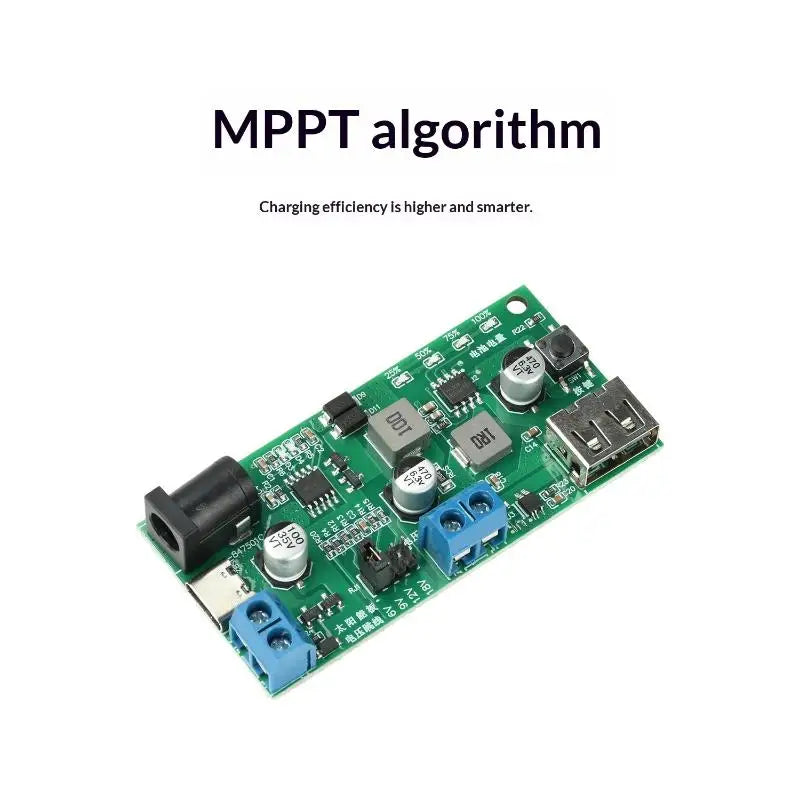

Power your DIY projects and off-grid setups with this compact MPPT Solar Charging Management Module. Designed for 3.7V 18650 ternary lithium batteries, this versatile PCB board accepts input from a 5–18V solar panel, DC 5.5×2.1mm port, or Type-C connector — giving you the flexibility to charge from virtually any available power source. A stable 5V/2.1A USB output keeps your smartphones, tablets, and portable electronics topped up wherever you are.
Made in Mainland China.
Key Features

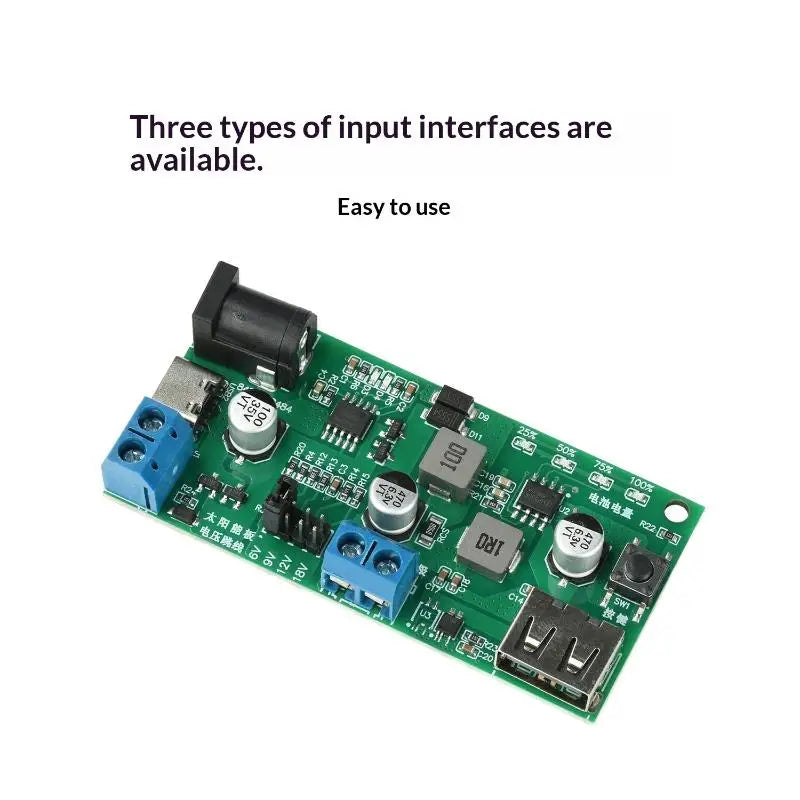

- Flexible Multi-Input Support: Compatible with 5–18V / 10–30W solar panels, DC 5.5×2.1mm, and Type-C inputs (one port at a time). Easily adapt to the most convenient power source for any scenario.
- Reliable Circuit Protection: Built-in anti-reverse connection and anti-backflow components plus insulated plastic protection on all interfaces — minimises risk of short circuits or component damage from incorrect wiring, extending module lifespan.

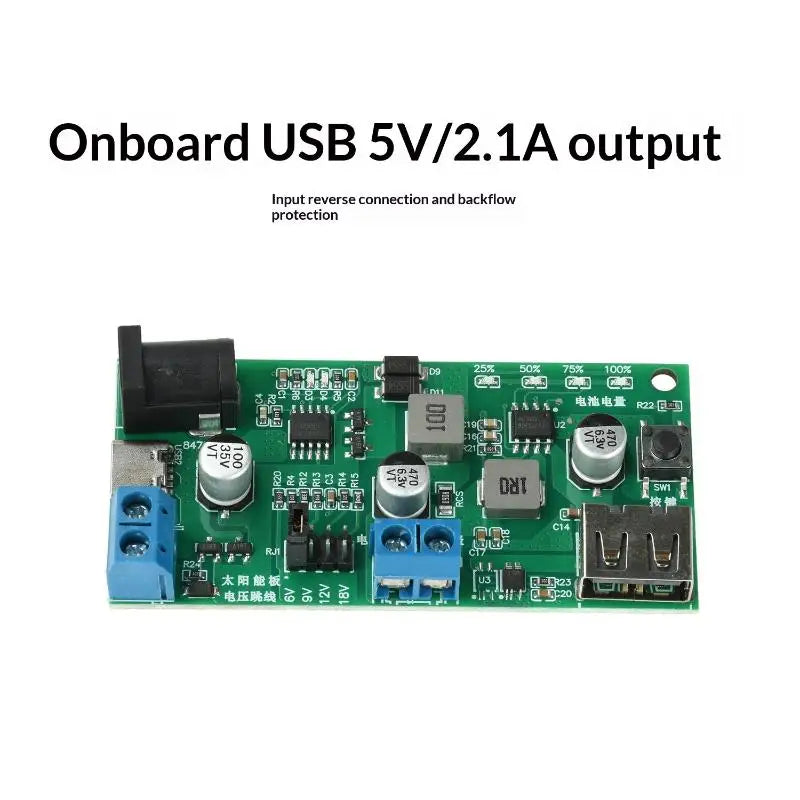

- Stable 5V / 2.1A USB Output: High-precision voltage-stabilising capacitors deliver consistent power output suitable for fast-charging most smartphones and portable digital devices.
- 4-Segment LED Battery Indicator: Clear, real-time battery level display with a light-transmitting plastic cover so you can monitor remaining charge at a glance — no extra tools needed.

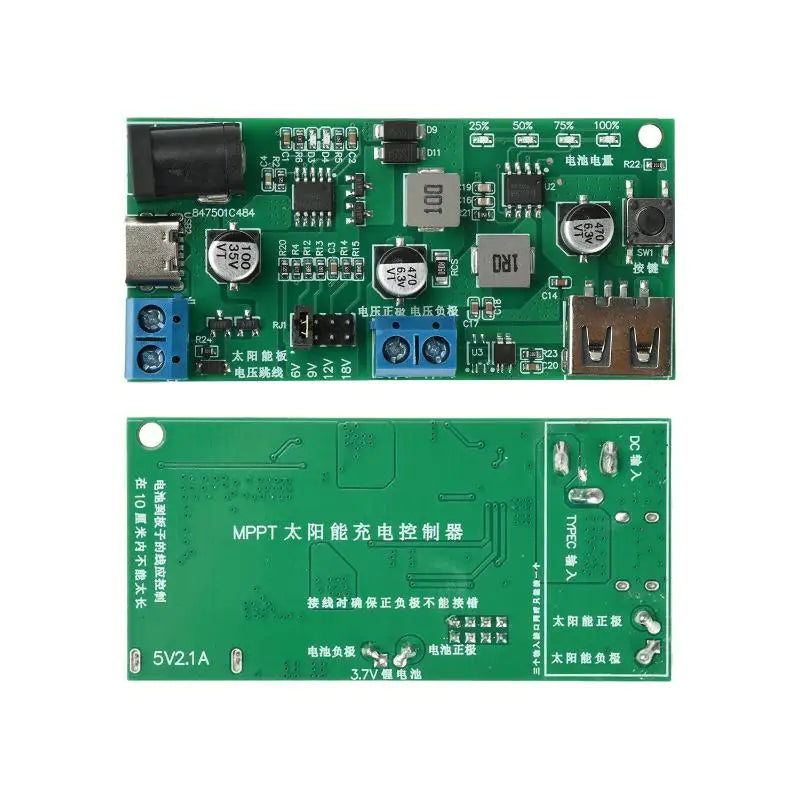

- Compact & Durable Build: Rigid PCB with scratch-resistant plastic edge protection. Measuring just 70 × 34 mm and lightweight, it fits neatly into small DIY power banks, outdoor solar systems, and portable power projects.

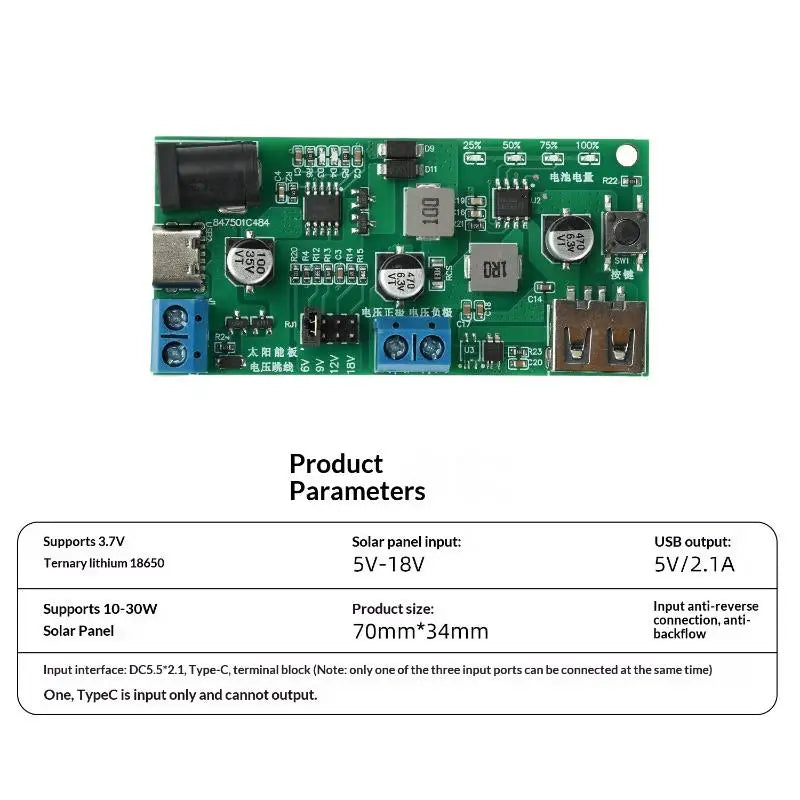

Specifications
| Category | Solar Battery Charging Controller Module |
| Input Voltage | DC 5–18V (Solar Panel 10–30W) |
| Input Current (Max) | 2.5A |
| USB Output | DC 5V / 2.1A |
| Compatible Battery | 3.7V 18650 Ternary Lithium Battery |
| Input Ports | Solar Terminal, DC 5.5×2.1mm, Type-C |
| Dimensions | 70 mm × 34 mm |
| Material | Flame-retardant plastic, PCB, electronic components |
| Colour | Green main board, blue terminal blocks, silver/black interfaces |
| Quantity | 1 piece |
| Origin | Mainland China |
Ideal Applications
- DIY portable power bank assembly
- Small off-grid and outdoor solar power systems
- 3.7V 18650 lithium battery charging projects
- Maker and electronics hobbyist builds
Important Notes
- Photos are for illustrative purposes; please refer to the specifications above for exact dimensions.
- Minor measurement differences may occur due to manual measurement.
- Actual colours may vary slightly depending on your monitor settings.
- Only one input port should be connected at a time.
Related Products You May Like
- 1PC 10g High Grade Silicon Grease Lubricant for O-Rings & Components
- 1PC Large Capacity Battery Storage Organizer Box — Holds 30 AAA Batteries
- 1PC Mobile Data Cable & Charger Storage Box with Lid
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What battery type is this MPPT solar charger module compatible with?
A: This solar charger control board is specifically designed for 3.7V 18650 ternary lithium batteries. It manages the full charge cycle — including MPPT optimisation from the solar panel — to keep your 18650 cells charged safely and efficiently.
Q: Can I connect the solar panel and Type-C input at the same time?
A: No — only one input port should be connected at any given time. You may choose between the solar panel terminal, the DC 5.5×2.1mm port, or the Type-C port based on the power source available to you, but simultaneous multi-input connection is not supported.
Q: What can I power with the 5V USB output on this module?
A: The USB output provides a stable 5V / 2.1A supply, which is suitable for charging most smartphones, portable Bluetooth speakers, small fans, and other USB-powered devices commonly used in off-grid or outdoor setups.
Q: What is the maximum solar panel wattage I can use with this board?
A: The module supports solar panels rated between 10W and 30W with an input voltage range of 5V to 18V and a maximum input current of 2.5A. Using a panel within these parameters will ensure optimal performance and protect the module's circuitry.
