Mini DC Solenoid Electric Lock – 50KG Holding Force
Keep your cabinets, drawers, lockers, and storage units securely fastened with this compact and powerful Mini DC Solenoid Electric Lock. Designed for a wide voltage range of DC 3V to 24V, this versatile electric lock delivers a robust 50KG hooks bearing force and over 600G unlocking force, making it an ideal upgrade for delivery lockers, refrigerated cabinets, mail boxes, self-service lockers, changing rooms cabinets, and more. Made in Mainland China.
Key Features
- Wide Voltage Compatibility: Operates on DC 3V/1.5A, DC 5V/1.2A, or DC 12V/1.4A — suitable for a variety of electrical setups.
- High Holding Force: 50KG hooks bearing force with a latch hook capable of withstanding up to 150KG traction without permanent deformation.
- Fail-Secure Design: Power-to-open operation — the lock stays engaged when power is off, ensuring security during outages.
- Shockproof & Anti-Pry: Robust zinc alloy and ABS construction resists tampering and shock for long-term dependability.
- Self-Elastic Adjustable Design: Adjustable elasticity suitable for doors weighing 0.5–3 kg.
- Universal Mounting: No left/right/front/reverse side limitation — easy to install in virtually any orientation.
- Mechanical Backup Unlock: Allows manual emergency unlocking when needed.

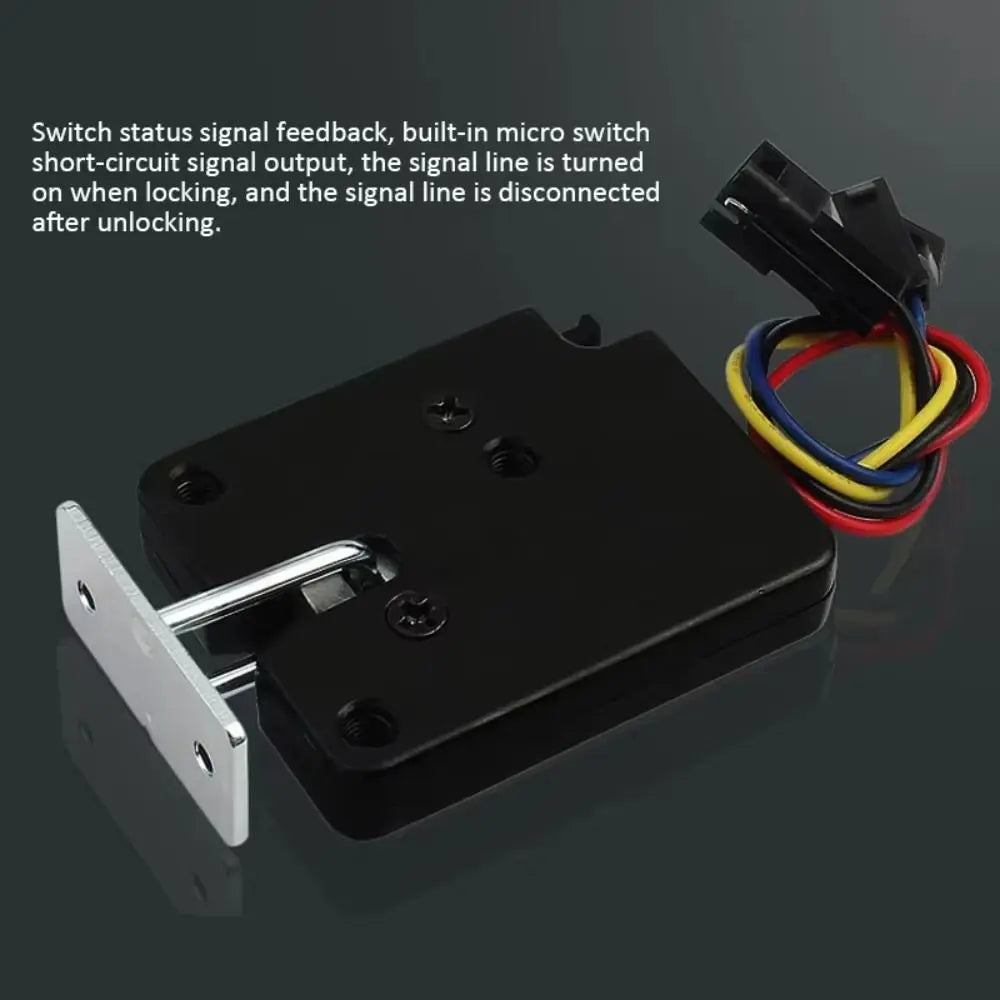

- Feedback Signal Line: Short-circuit signal switch — disconnected when unlocked, connected when locked — for easy integration with control systems.
- Long Service Life: Rated for more than 300,000 operation cycles for lasting performance.
Specifications
| Material | ABS + Zinc Alloy (Carbon Steel inner) |

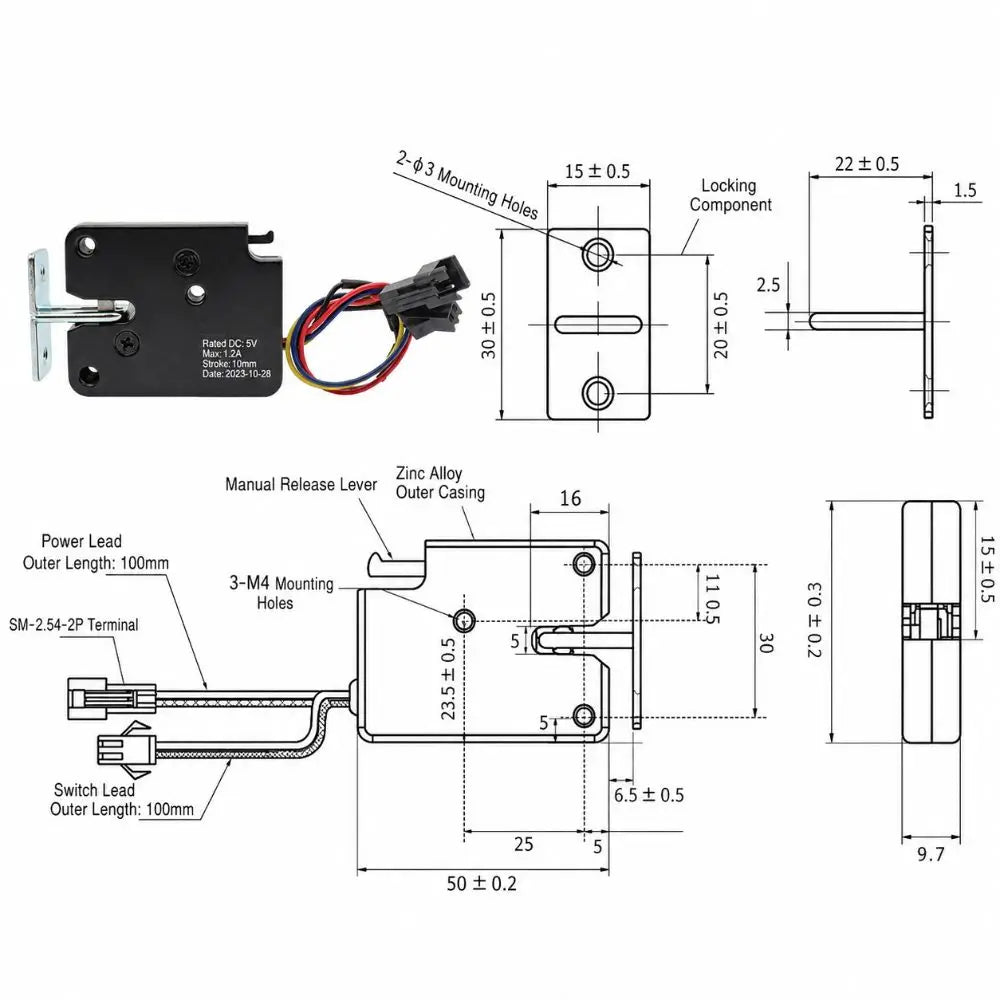

| Dimensions | 50 × 40 × 9.7 mm (1.97 × 1.57 × 0.38 in) |
| Operating Voltage | DC 3V–24V |
| Hooks Bearing Force | 50 KG |
| Unlocking Force | >600G |
| Service Life | 300,000+ cycles |
| Lock Type | Fail-Secure (Power to Open) |
| Country of Origin | Mainland China |
Package Includes
- 1 × Electric Solenoid Lock Set
Applications
Perfect for delivery lockers, refrigerated cabinets, mail or newspaper boxes, self-service lockers, book counters, changing room cabinets, drawer units, and any custom locking enclosure project.
Related Products You May Like
- 4PCS Self-Adhesive Multi-Purpose Cabinet & Door Handles
- 1PC Multi-Use Faucet Bubbler Wrenches – Repair Tool
- 3PCS Silicone Sealant Scraper Set – Caulking & Renovation Tools
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage does this solenoid electric lock support?
A: This mini solenoid lock supports a wide range of DC voltages — DC 3V/1.5A, DC 5V/1.2A, and DC 12V/1.4A — making it compatible with many standard power supplies and DIY electronic projects.
Q: Is this a fail-secure or fail-safe lock?
A: This electric lock uses a fail-secure (power-to-open) design, meaning it remains locked when no power is applied and unlocks when power is supplied. This provides security during power outages.
Q: Can this lock be installed in any orientation?
A: Yes! The lock has no left, right, front, or reverse side limitation, so it can be mounted in virtually any direction. It also includes a mechanical emergency unlock option for added flexibility.
Q: What are the typical applications for this solenoid lock?
A: This compact electric lock is ideal for delivery lockers, self-service kiosks, refrigerated cabinets, mail boxes, book counters, changing room lockers, and custom drawer or cabinet locking systems.
