Mini 24V DC Gear Motor – 200RPM, High Torque, CW/CCW Control
The XD-25GA370 Mini 24V DC Gear Motor delivers reliable low-speed, high-torque performance in a compact, lightweight package. Whether you're building industrial automation equipment, smart home devices, or DIY electromechanical projects, this micro gear motor offers smooth, efficient operation with minimal upkeep.
Key Features

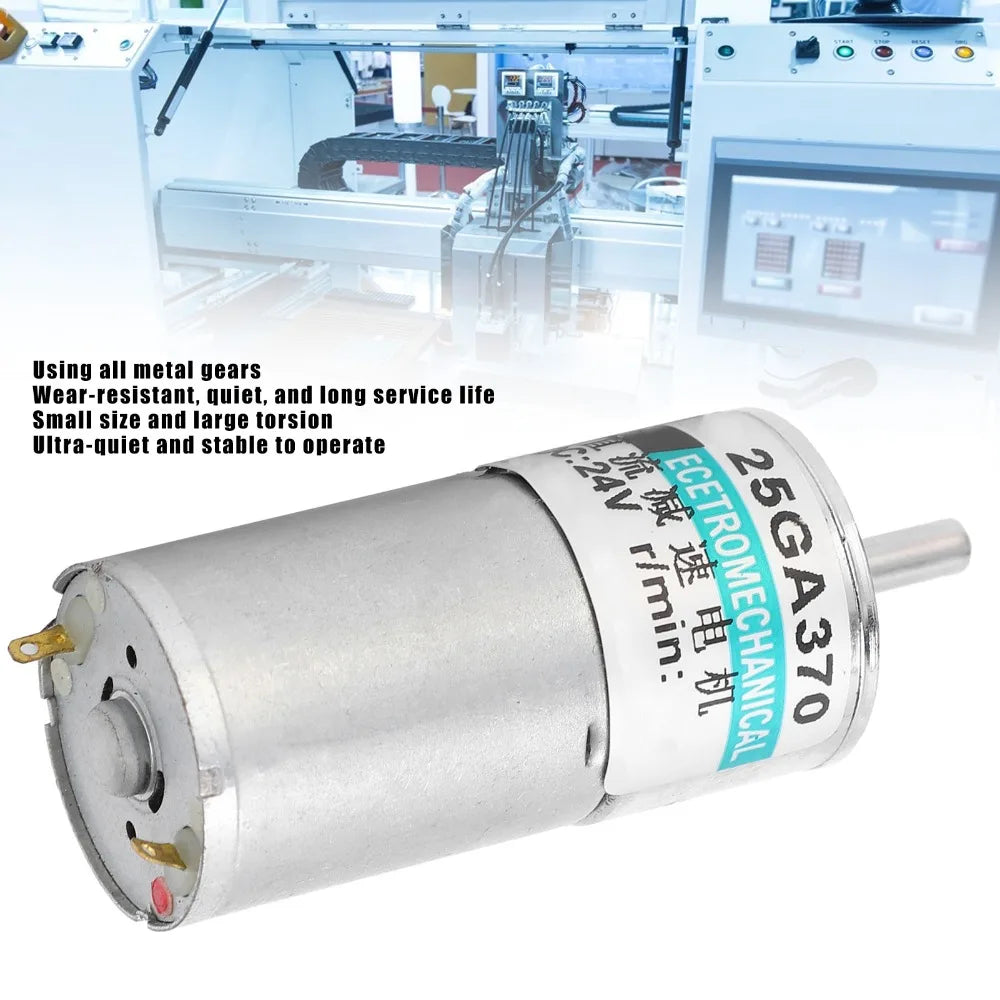

- Metal Gear Train: Solid metal gears resist daily wear and support bearings for long-lasting, smooth operation.
- Smooth & Efficient Operation: High transmission accuracy in a compact frame — runs quietly, draws minimal power, and requires little maintenance.
- CW/CCW Reversible Control: Supports both clockwise and counterclockwise rotation with adjustable speed for versatile applications.
- Compact & Lightweight: Small form factor makes installation and removal simple, saving space in tight builds.

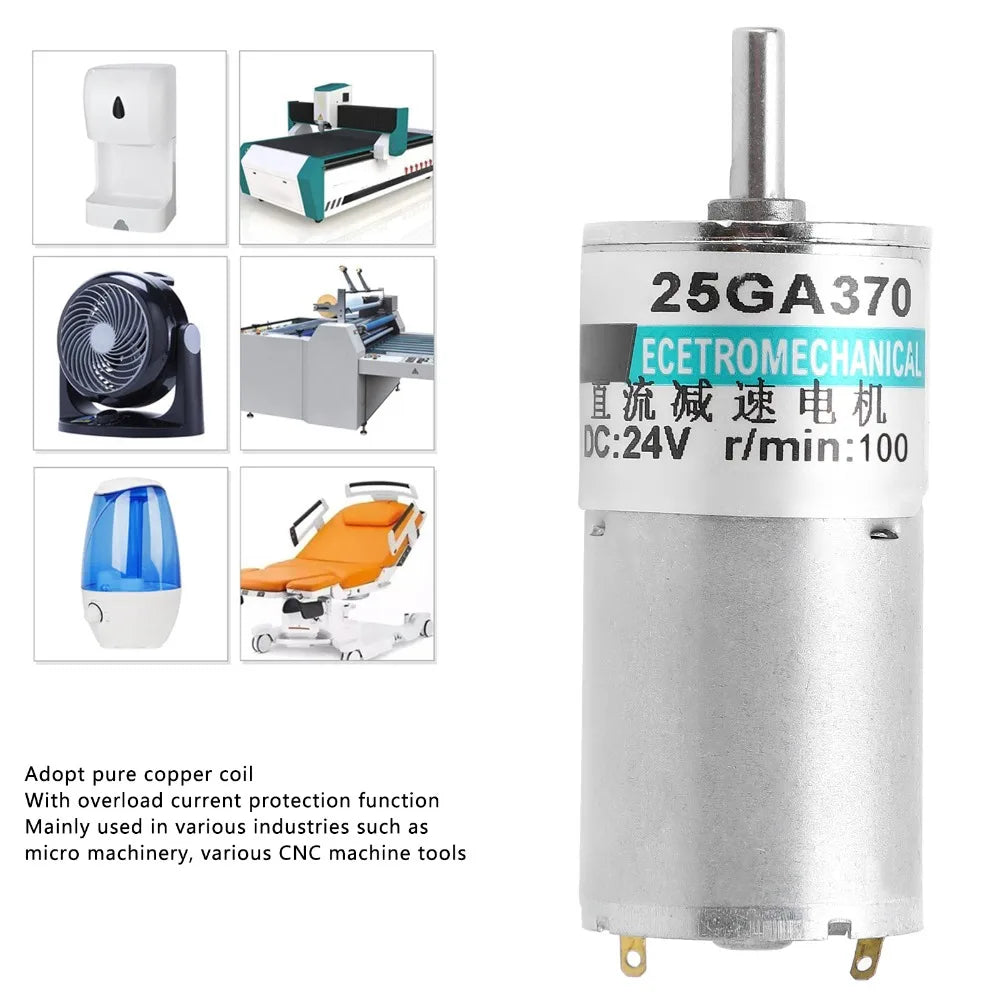

- Wide Application Range: Ideal for circulating fans, humidifiers, dehumidifiers, air fresheners, cooling/heating fans, soap dispensers, hand dryers, smart door locks, textile machinery, engraving machines, printing machinery, and automatic packaging equipment.
Technical Specifications
- Item Type: DC Gear Motor
- Model: XD-25GA370
- Voltage: 24V DC
- Speed: 200 RPM
- Material: Copper
- Color: Silver

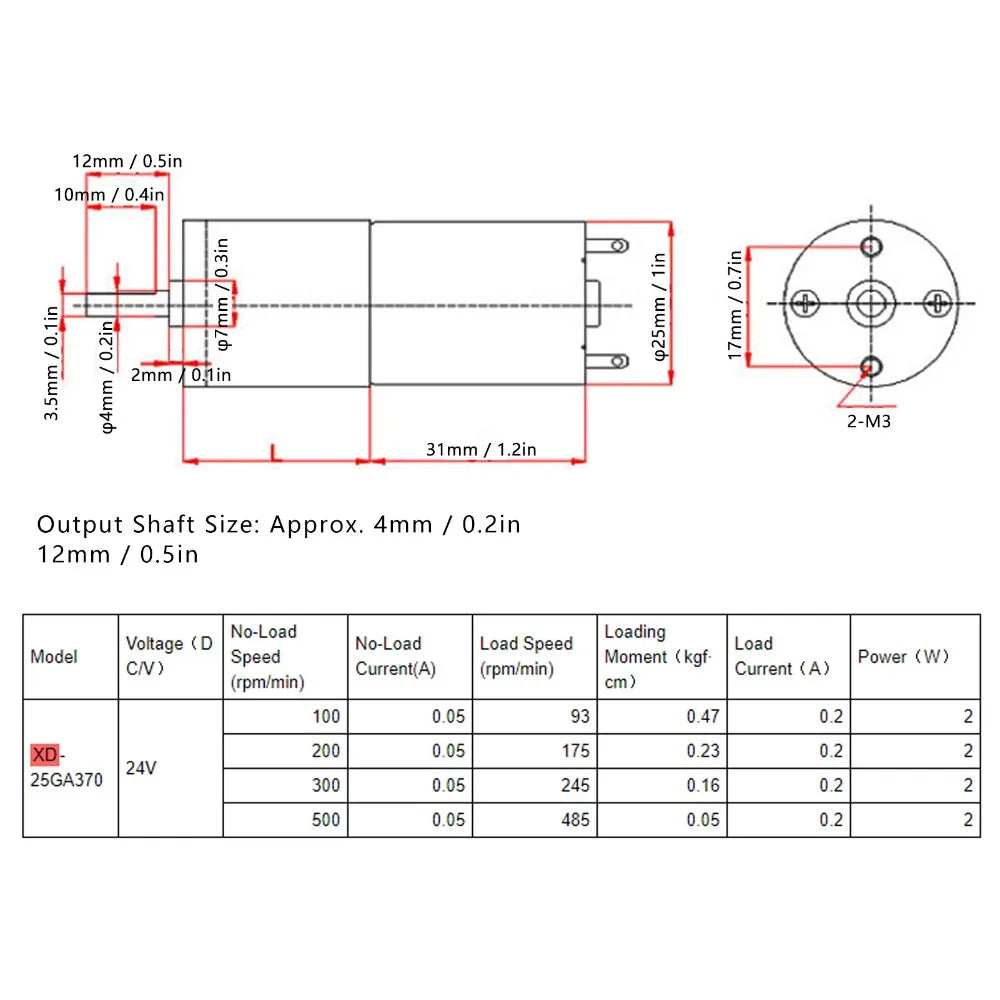

- Output Shaft Size: Approx. 4 × 12 mm / 0.2 × 0.5 in
- Insulation Class: Class B (130°C)
- Operating Temperature: -10°C to +40°C (no icing)
- Operating Humidity: 85% or less (no condensation)
- Speed Adjustable: Yes
- CW/CCW: Yes
Important Usage Notes
- Overload & Locked Rotor: Keep load within rated range to prevent overheating. Overloading or prolonged locked-rotor conditions can damage the motor's internal coil insulation.
- Low-Speed Operation: Carbon brush powder from friction at low speeds can accumulate and cause short circuits. Monitor regularly during low-speed use.
- PWM Controller Use: Recommended PWM frequency is 10–20 kHz. Carbon brush wear may increase under PWM control. Use a varistor if the motor fails to rotate at certain fixed frequencies.
- Inertia & Braking: After power-off, the rotor may continue spinning due to inertia. For immediate stop, short the positive and negative terminals — note this may temporarily increase current and reduce service life.
- Drop Precaution: The magnetic tile is brittle. A drop from height can break it and cause the motor to jam. Do not use the motor if it has been dropped from a significant height.
What's in the Box
- 1 × DC Gear Motor (XD-25GA370)
- 1 × Mounting Bracket
- 2 × Screws
Made in Mainland China.
Related Products You May Like
- 1PC 10g High Grade Silicone Grease Lubricant for O-Rings & Mechanical Parts
- 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking & Finishing Tools
- 1PC Multi-Use Faucet Bubbler Wrench – 6-Size Repair Spanner Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the operating voltage and speed of this DC gear motor?
A: This DC gear motor operates at 24V DC and delivers an output speed of 200 RPM. It is designed for low-speed, high-torque applications in industrial and DIY automation projects.
Q: Can this motor run in both clockwise and counterclockwise directions?
A: Yes. The XD-25GA370 supports CW (clockwise) and CCW (counterclockwise) rotation and is compatible with speed-adjustment controllers, giving you flexible directional and speed control for your application.
Q: What types of equipment is this DC gear motor compatible with?
A: This motor is suitable for a wide range of devices including humidifiers, dehumidifiers, circulating fans, soap dispensers, hand dryers, smart door locks, engraving machines, printing machinery, and automatic packaging equipment, making it a highly versatile choice for both industrial and home automation setups.
Q: Is a PWM controller compatible with this motor?
A: Yes, the motor is compatible with PWM controllers. A recommended PWM frequency of 10–20 kHz provides smooth speed control. Note that PWM use may accelerate carbon brush wear compared to fixed-voltage operation, so periodic inspection is advised.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
