M18 18V Li-ion Battery DIY PCB Charging Protection Circuit Board

18V M18 Li-ion Battery DIY PCB Charging Protection Circuit Board (3Ah–6Ah)

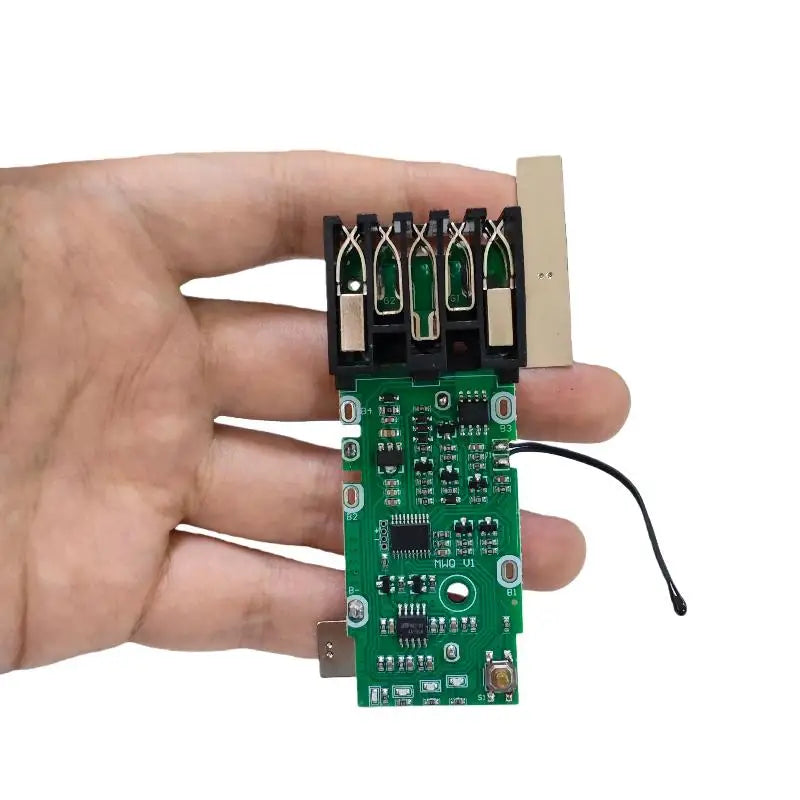

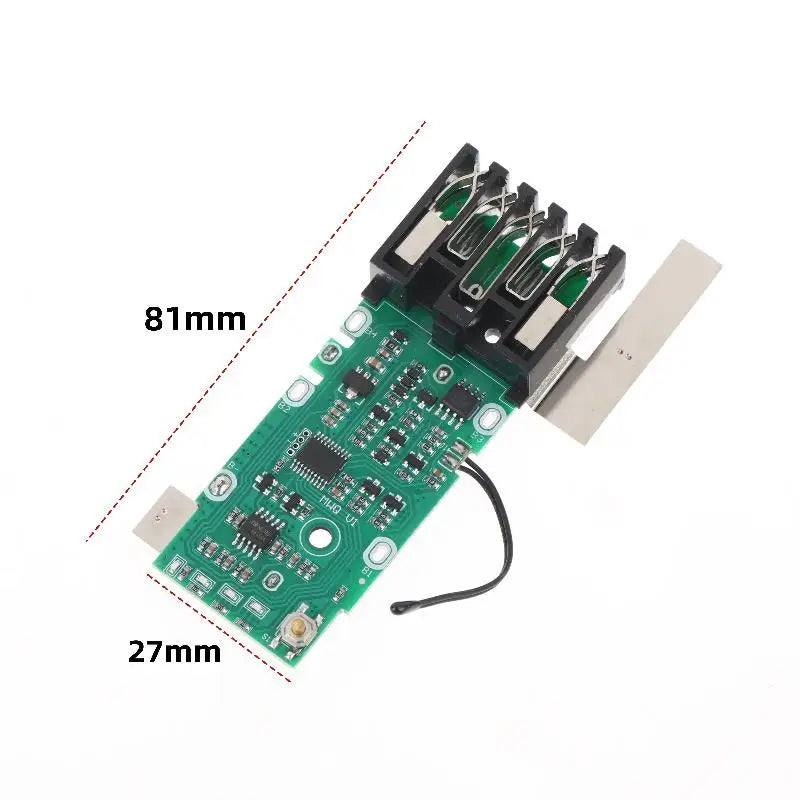

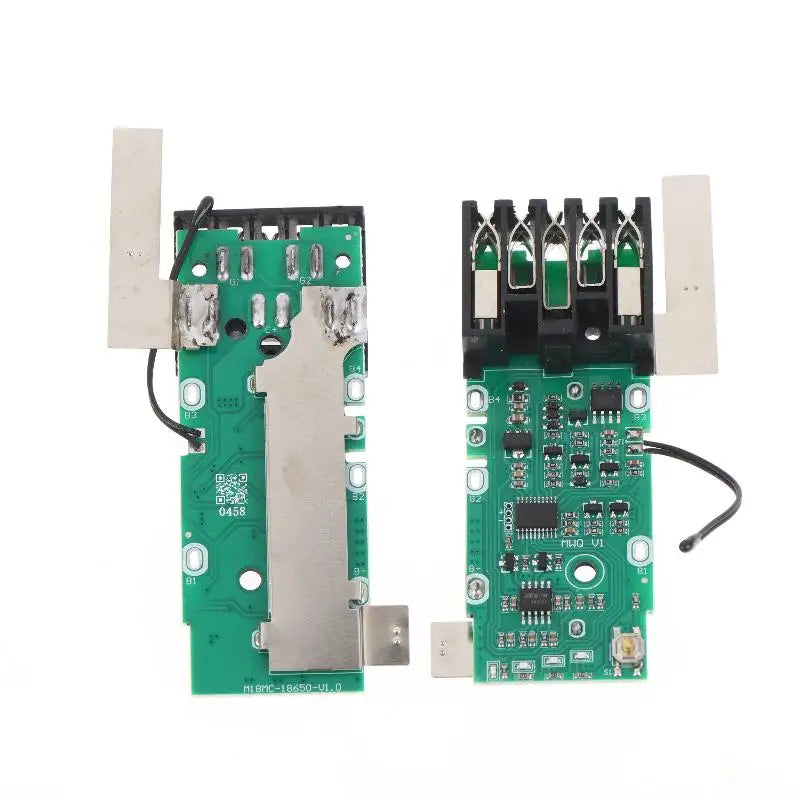

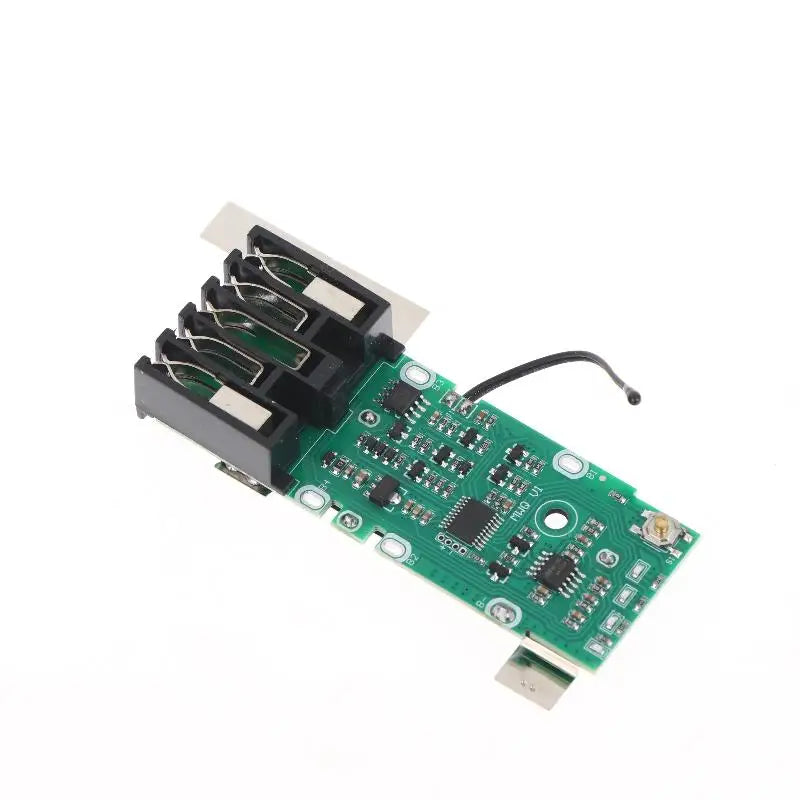

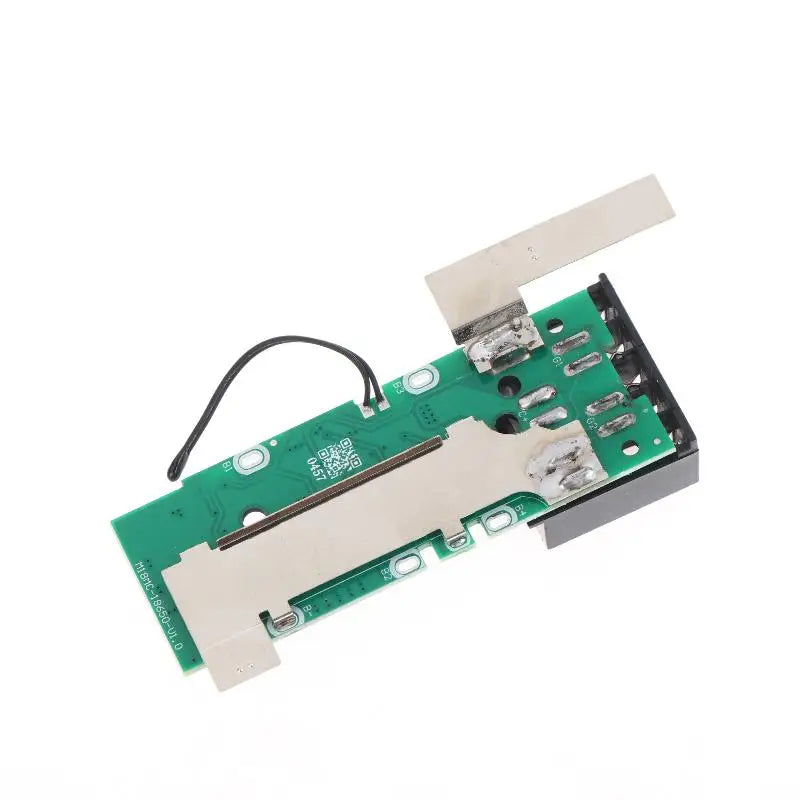

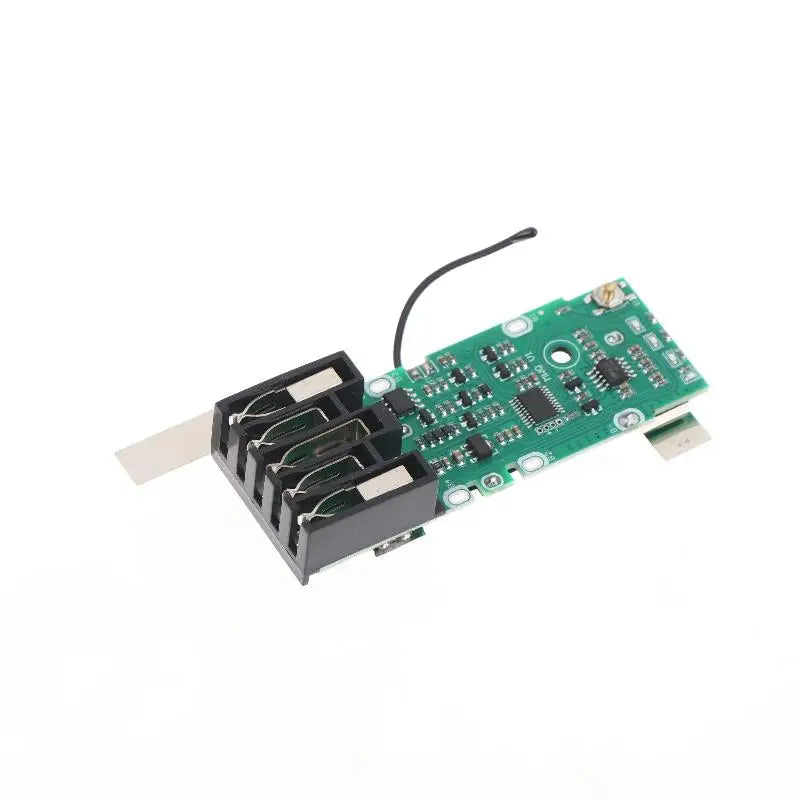

Upgrade or restore your 18V M18-compatible power tool batteries with this DIY PCB Charging Protection Circuit Board. Designed for 18650 lithium-ion battery packs ranging from 3Ah to 6Ah, this green PCB board features a built-in IC that actively monitors voltage and current, keeping your battery pack operating safely and efficiently. Made in Mainland China.

Key Features

• Smart Built-in IC: Detects battery cell voltage and current in real time, and logs usage cycles for accurate battery management.
• Multi-Layer Protection: Includes overheat, overvoltage, undervoltage, overcurrent, and overcharge protection — giving you complete peace of mind during charging and use.
• Low-Voltage Shutdown: Compatible with the entire M18 series; automatically shuts down at low voltage to extend battery lifespan.
• Shock-Resistant & Stable: Robust PCB construction makes it an ideal partner for torque wrenches, impact drills, angle grinders, and other M18 power tools.
• Wide Compatibility: Supports 5-cell, 10-cell, and 15-cell 18650 battery configurations (3Ah to 6Ah).
• DIY-Friendly: Perfect for battery pack assembly or repair projects.

Specifications

Assembly Tips

Using New Batteries:

• Select 18650 power lithium battery cells only.
• Equip your 5/10/15-cell sets with the appropriate resistors and capacitors to ensure consistent voltage across all cells before connecting to the PCB.

Repairing an Old Battery Pack:

• Test the voltage across each individual battery cell.
• Charge all cells to the same voltage level before connecting to this protection board.

Note: PCB design may change due to supply chain or processing technology updates. Battery cells are NOT included. Actual color may vary slightly from images due to monitor and lighting differences. Please allow minor measurement deviations.
