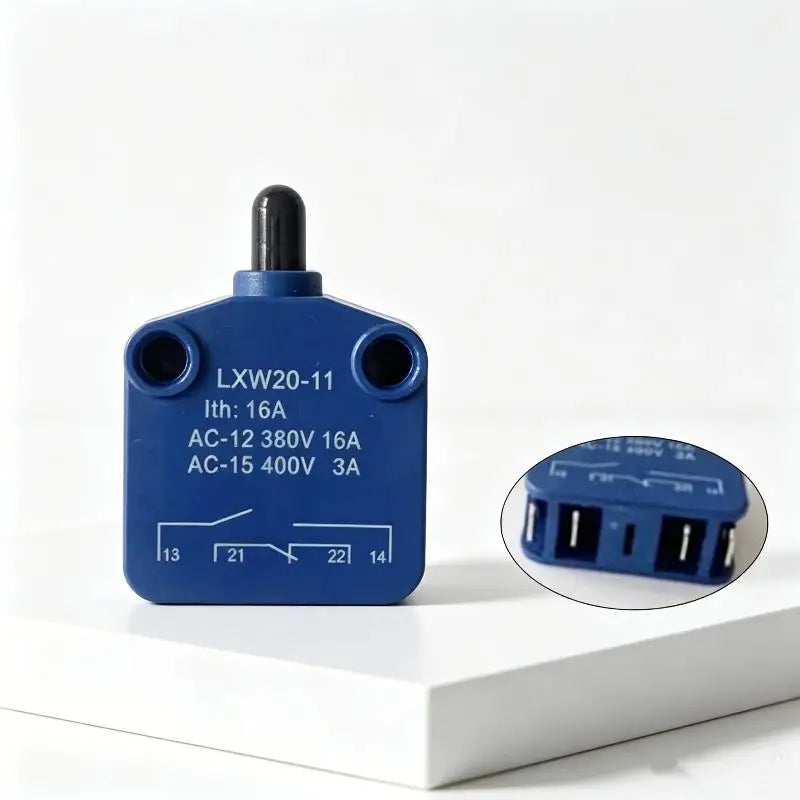

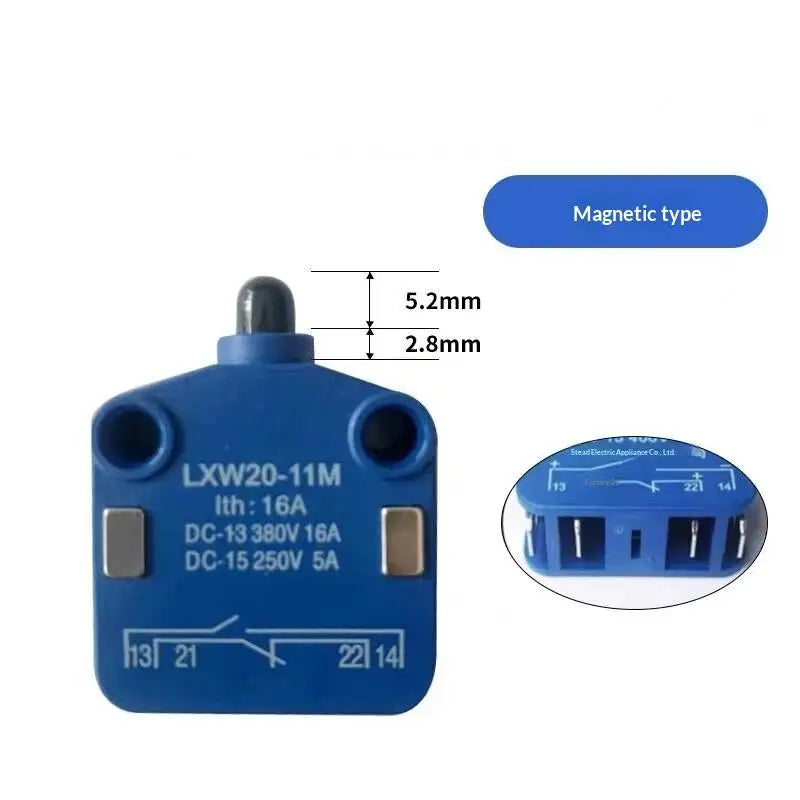

LXW20-11/M Micro Limit Switch 16A 1NO 1NC Silver Contact

LXW20-11/M Micro Limit Switch – 16A, 1NO 1NC, Silver Alloy Contact

The LXW20-11/M Micro Limit Switch is a high-sensitivity, industrial-grade travel switch designed for precise circuit control in automation equipment, household appliances, vending machines, access control systems, and mechanical position-limiting applications. With silver alloy contacts, a flame-retardant ABS shell, and a robust push-plunger actuator, this compact component delivers dependable, millisecond-level switching performance across a wide load range.

Made in Mainland China.

Key Features

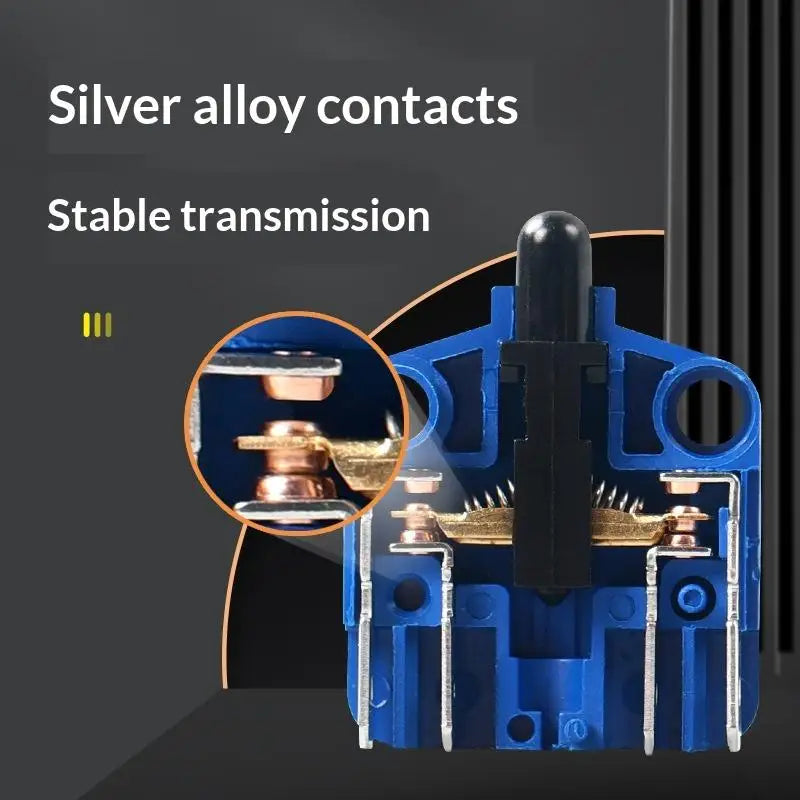

• Ultra-Sensitive Trigger Response: High-purity silver alloy conductive contacts combined with a low contact-resistance structure deliver millisecond-level circuit on/off action, reducing false triggering and improving overall equipment stability.
• Flame-Retardant, Impact-Resistant Housing: High-grade flame-retardant ABS engineering plastic shell offers excellent insulation and corrosion resistance, guarding against electric leakage and fire risk in both industrial and everyday environments.
• Wide Load Compatibility: Thickened pure copper internal conductors support up to AC 380V / 16A and DC 250V / 5A, accommodating diverse circuit control demands without additional parameter adjustment.
• Stable, Easy-to-Install Design: Pre-drilled standard-size mounting holes with reinforced edges ensure tight, secure fixation after installation — preventing displacement or poor contact over long-term use and simplifying assembly for equipment manufacturers.
• Permanent Laser-Engraved Markings: Non-fading parameter labels and circuit diagrams laser-engraved directly on the shell make quick identification, wiring, and maintenance straightforward, reducing wiring errors.

Technical Specifications

Applications

• Industrial automation machinery and conveyor systems
• Household appliances (washing machines, ovens, refrigerators)
• Vending machines and dispensing equipment
• Access control and security devices
• Electronic instruments and test equipment
• Mechanical position and travel limit control

Related Products You May Like

• 1PC 10g High Grade Silicon Grease Lubricant for O-Rings & Mechanical Parts
• 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes Repair Spanner
• 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking Tools

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the contact configuration of the LXW20-11/M micro limit switch?

A: The LXW20-11/M features a 1NO (Normally Open) + 1NC (Normally Closed) contact configuration, making it versatile for a wide range of circuit control and position-sensing applications in industrial and domestic equipment.

Q: What voltage and current ratings does this limit switch support?

A: This micro limit switch supports up to AC 380V / 16A for alternating current circuits and DC 250V / 5A for direct current circuits, covering the majority of industrial automation and household appliance control requirements.

Q: How is the LXW20-11/M limit switch installed?

A: The switch features pre-drilled standard-size mounting holes with reinforced edges, allowing it to be securely fastened using standard hardware. The laser-engraved wiring diagram on the shell guides quick and accurate installation, minimizing setup time and wiring errors.

Q: Is this limit switch suitable for harsh industrial environments?

A: Yes. The flame-retardant ABS engineering plastic housing provides excellent insulation, impact resistance, and corrosion resistance, making the LXW20-11/M well-suited for demanding industrial conditions as well as everyday appliance use.
