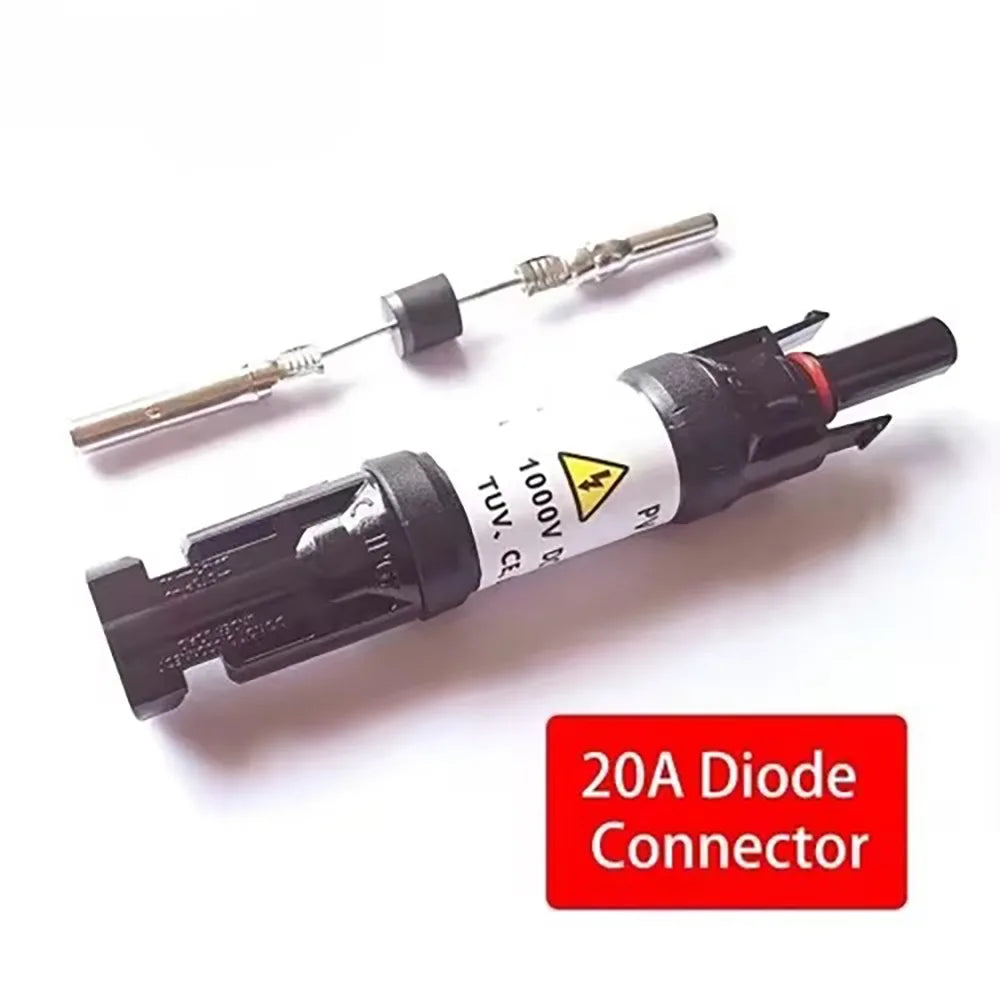

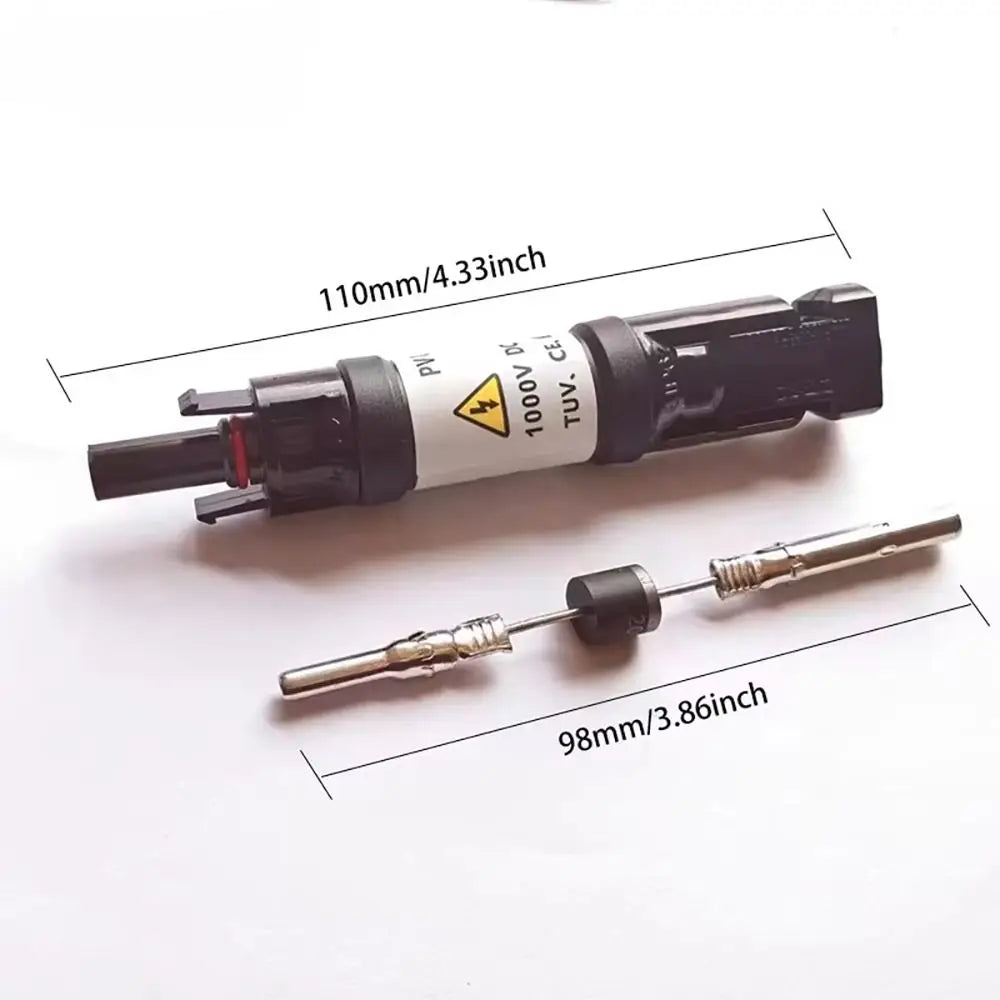

IP67 Waterproof Photovoltaic Diode Connector – 10A / 15A / 20A / 30A
Keep your solar panel system running at peak efficiency with this high-quality Photovoltaic Diode Connector. Designed for residential and commercial solar installations, it features copper tin-plated contacts, PC/PA insulation, and a robust IP67 waterproof and dustproof rating — making it ideal for outdoor use in all weather conditions.
Key Specifications
- Rated Voltage: 1000V
- Rated Impulse Voltage: 1000V
- Rated Current: 24A – 14AWG (2.5mm²) | 30A – 12 & 10AWG (4mm² & 6mm²)
- Test Voltage: 6kV (50Hz)
- Protection Grade: IP67 (Waterproof & Dustproof)
- Contact Material: Copper, Tin Plated
- Insulation Material: PC/PA
- Flame Class: UL94-V0
- Contact Resistance: ≤5mΩ
- Operating Temperature: -40°C ~ +90°C
- Compatible Cable Sizes: 10, 12, 14 AWG (2.5mm² / 4mm² / 6mm²)

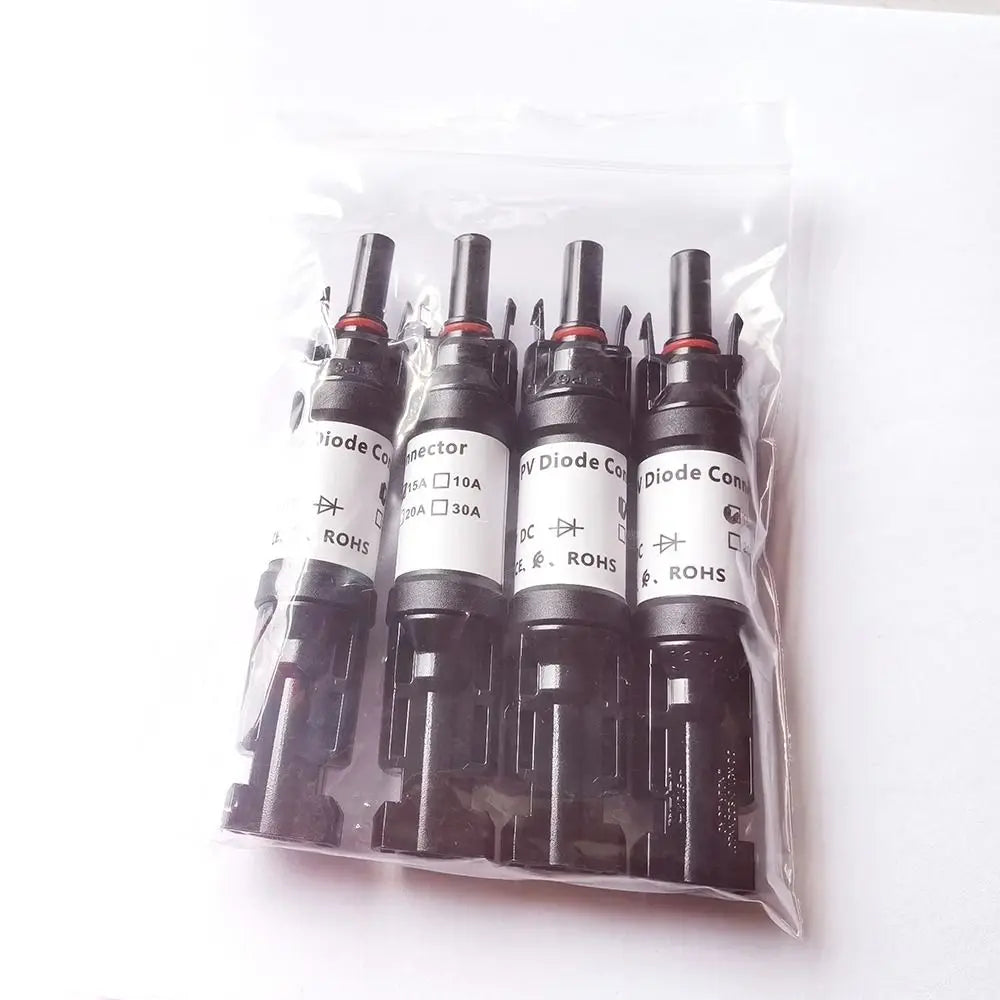

- Diode Options: 10A, 15A, 20A, 30A
- Quantity: 1 Piece
Why Choose This Solar Diode Connector?
- ✅ Anti-Backflow Protection: Built-in diode prevents reverse current flow, safeguarding your solar modules and battery systems.
- ✅ IP67 Rated: Fully waterproof and dustproof — engineered to withstand harsh outdoor environments.
- ✅ Tin-Plated Copper Contacts: Ensures excellent electrical conductivity and long-term corrosion resistance.
- ✅ UL94-V0 Flame Rated: Self-extinguishing insulation material for enhanced fire safety.

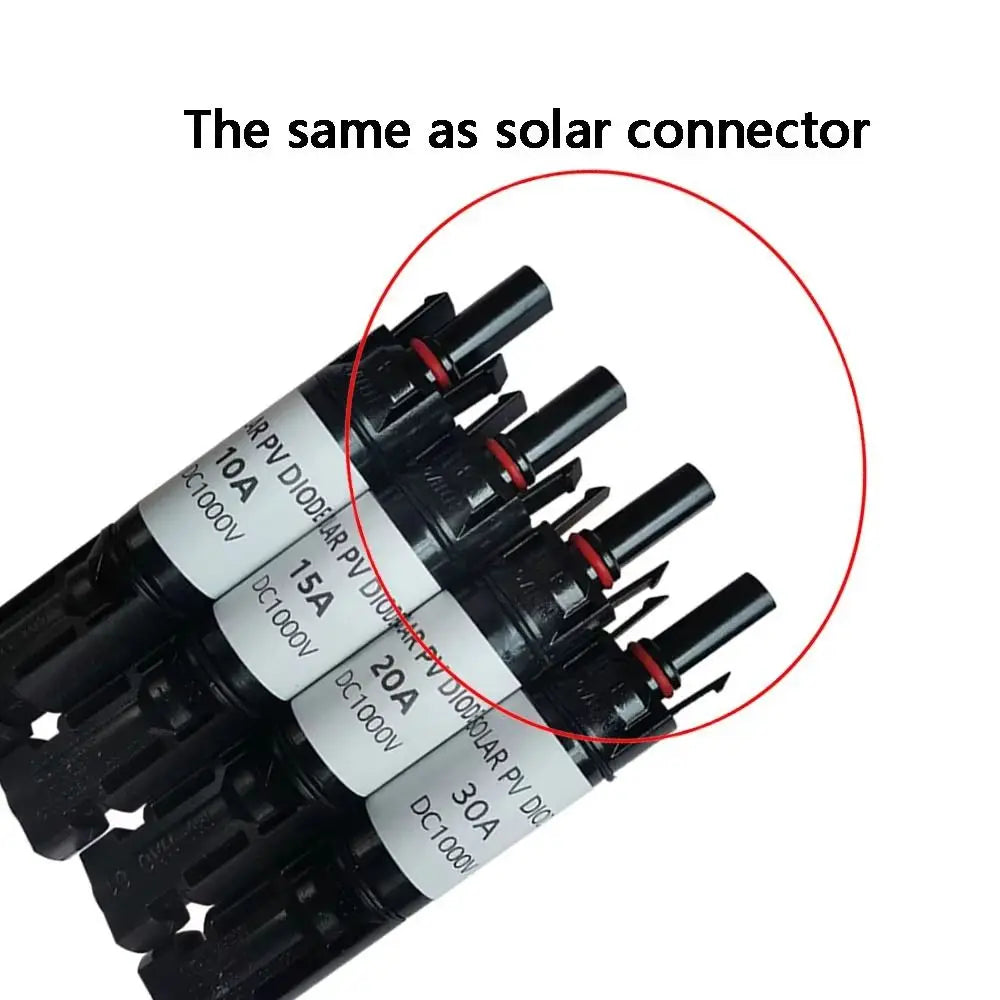

- ✅ MC4 Compatible: Plug-and-play design works seamlessly with standard MC4 solar connectors.
- ✅ Snap-In Locking System: Secure, tool-free connection that won't loosen under vibration or thermal expansion.
- ✅ Wide Temperature Range: Performs reliably from -40°C to +90°C — from freezing winters to scorching summers.
Applications
Perfect for DIY solar panel setups, off-grid systems, RV solar installations, rooftop photovoltaic arrays, and any solar module wiring project requiring reliable anti-reverse current protection.
Package Contents
- 1× Photovoltaic Diode Connector
Made in China.
You May Also Like
- Silicone Grease Lubricant for O-Rings & Connectors
- Waterproof Sealing Tape for Pipes & Connections
- Silicone Sealant Scraper Set for Sealing & Finishing
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What diode current ratings are available for this photovoltaic connector?
A: This solar panel diode connector is available in four current ratings: 10A, 15A, 20A, and 30A, making it suitable for a wide range of solar module configurations and cable sizes (10–14 AWG / 2.5mm²–6mm²).
Q: Is this connector compatible with standard MC4 solar connectors?
A: Yes, this photovoltaic diode connector is designed to be compatible with MC4 connectors, offering a simple plug-and-play installation with no special tools required.
Q: What does the IP67 rating mean for outdoor solar installations?
A: An IP67 rating means the connector is fully dustproof and can withstand temporary immersion in water up to 1 meter for 30 minutes. This makes it highly suitable for permanent outdoor solar panel installations exposed to rain, humidity, and dust.
Q: What is the purpose of the diode in this solar connector?
A: The built-in diode prevents reverse current (backflow) from flowing back through the solar panel, which can occur in shaded or low-light conditions. This protects your solar modules and connected equipment from potential damage caused by unwanted current reversal.
