IP65 Mushroom Head Emergency Stop Button Switch – 1NO, Self-Locking / Resetting
Meet the ultimate heavy-duty control switch for industrial and commercial environments. This IP65-rated, Ø92 mm mushroom head pushbutton is engineered for quick, reliable activation by hand, foot, or elbow — making it ideal for emergency stop stations, conveyor cut-offs, arcade game buzzers, and pedestrian control panels. Built from tough PC/ABS housing with silver-alloy contacts, it delivers consistent performance in demanding conditions.
Key Features
- IP65 Weatherproof Rating: Fully dust-tight and protected against high-pressure water jets — suitable for factory floors, washdown areas, and outdoor installations.
- Large Ø92 mm Actuator: Oversized mushroom head allows fast, instinctive activation by hand, foot, elbow, or knee — no precision aiming required in an emergency.
- Dual Operation Modes: Choose between self-locking (latching / push-pull) or self-resetting (spring-return momentary) — both configurations are available in this set.

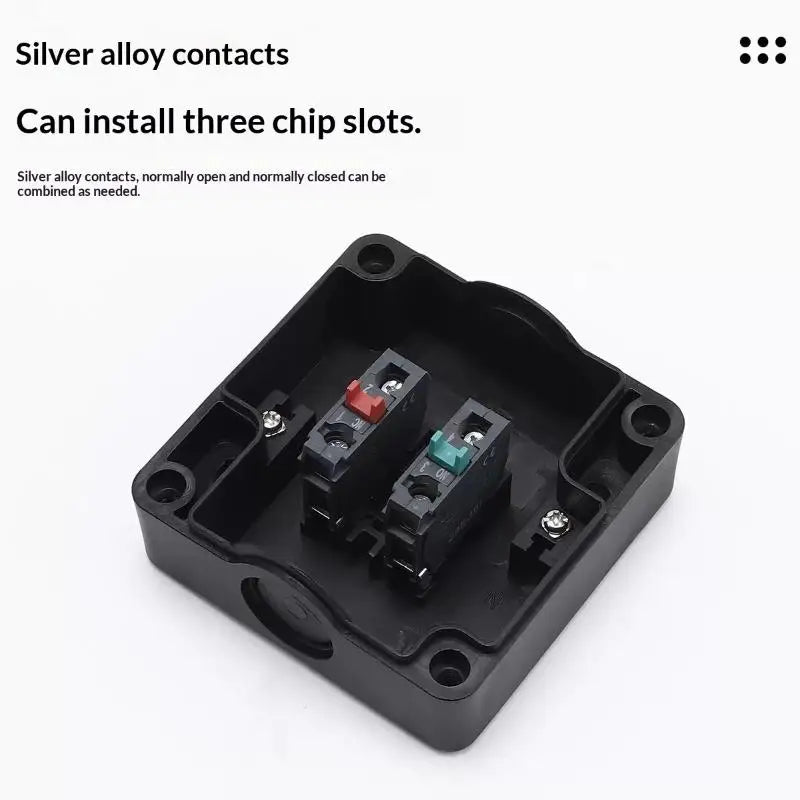

- Snap-In Contact Blocks: Modular 1NO contact block included; custom NC/NO combinations can be configured with compatible snap-in blocks.
- Flexible Cable Entry: Accommodates up to three M20 (PG13.5) cable glands or one M16 gland for clean, organised wiring.
- Silver Alloy Contacts: Low contact resistance (≤ 100 mΩ initial value) ensures highly reliable electrical continuity every time.

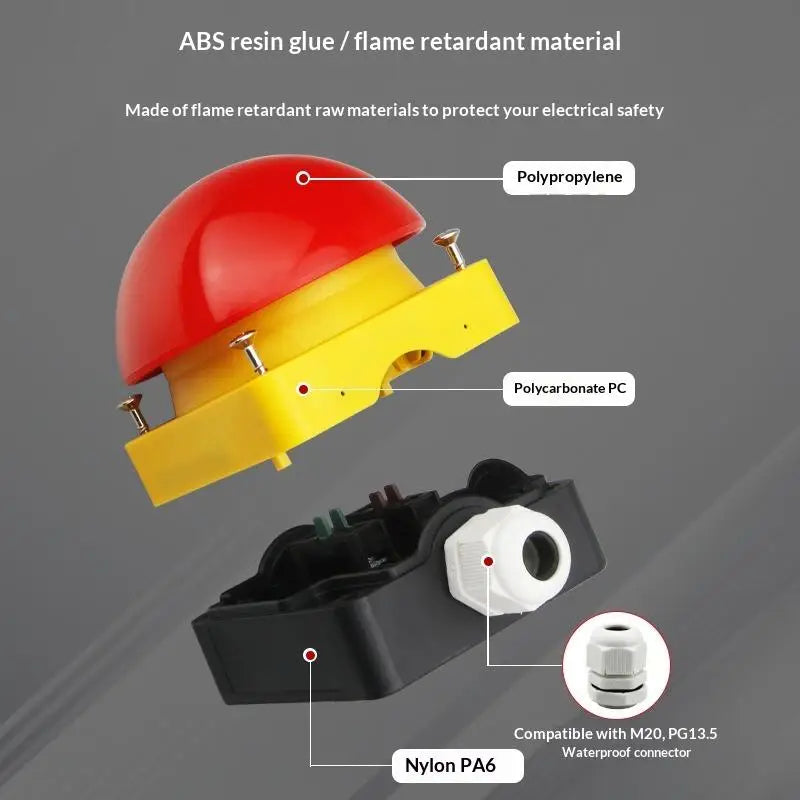

- Rugged PC/ABS Shell: Impact, dust, and water-resistant housing stands up to the toughest industrial settings.
Specifications
| Shell Material | PC/ABS |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤ 100 mΩ (Initial Value) |

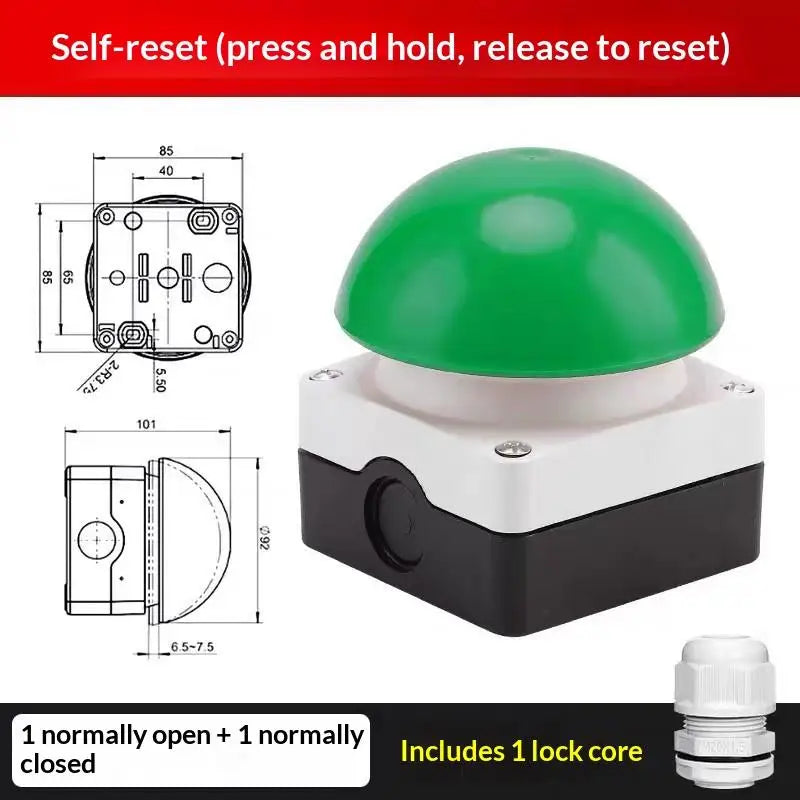

| Actuator Diameter | Ø92 mm |
| Contact Configuration | 1NO (Normally Open) |
| Operation Mode | Self-Locking (Latching) / Self-Resetting (Momentary) |
| IP Rating | IP65 |
| Voltage | Low Voltage: Below 50V AC or 75V DC |
| Wiring Screw Torque | 0.8 Nm |
| Cable Entry | M20 (PG13.5) × 3 or M16 × 1 |
| Package Contents | 1 Set |
| Country of Origin | Made in Mainland China |
Common Applications
- Industrial emergency stop (E-stop) stations
- Conveyor belt and machinery cut-off controls
- Arcade game buzzers and scoring panels
- Pedestrian crossing and access control panels
- Workshop and factory floor safety controls
Related Products You May Like
- 1PC 10g High Grade Silicone Grease Lubricant for O-Rings & Seals
- 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking & Grout Tools
- 1PC Multi-Use Faucet Bubbler Wrenches – 6-Size Repair Spanner Tool
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the difference between the self-locking and self-resetting modes on this mushroom head switch?
A: In self-locking (latching) mode, the button stays depressed after you push it and must be released by pulling or twisting it back out — ideal for maintaining a stopped state until deliberately reset. In self-resetting (spring-return momentary) mode, the button automatically returns to its original position as soon as pressure is released — best for buzzers or pulse-type commands.
Q: Is this emergency stop button switch suitable for outdoor or washdown environments?
A: Yes. The IP65 rating means the housing is fully dust-tight and protected against direct high-pressure water jets, making it suitable for outdoor industrial installations, food processing lines, and other washdown environments.
Q: Can I add more contact blocks to this switch for NC (Normally Closed) configurations?
A: Absolutely. The modular snap-in contact block design allows you to add or swap compatible NC or NO contact blocks to suit your specific wiring requirements. The set includes one 1NO contact block, and additional blocks can be purchased separately.
Q: What cable entry options does this switch support?
A: The enclosure supports up to three M20 (PG13.5) cable glands or one M16 cable gland, giving you flexible options for clean and secure cable routing in your installation.
