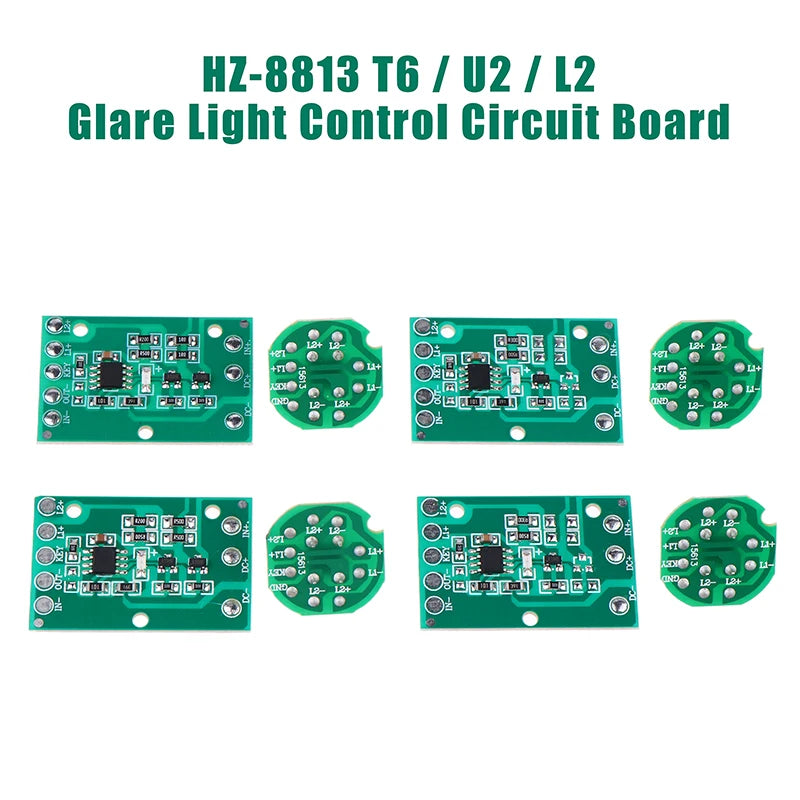

HZ-8813 Flashlight Driver Board – T6 / U2 / L2 Compatible Control Circuit
Upgrade or repair your high-powered flashlight with the HZ-8813 Flashlight Driver Board. Designed for T6, U2, and L2 LED emitter flashlights, this compact PCB control circuit board delivers precise light-mode switching with either a 3-function or 5-function gear selection. Whether you're a flashlight enthusiast, hobbyist, or DIY repair technician, this driver board is an essential component for maintaining and customizing your torch.
Made in Mainland China.
Key Features
- Compatible LED Types: T6, U2, and L2 high-output LED emitters
- Mode Options: Available in 3-function or 5-function gear configurations for versatile brightness control
- Material: High-quality green PCB (Printed Circuit Board)
- Color: Green (standard PCB finish)
- Package Contents: 1× Driver Board set
- New & High Quality: Manufactured to tight tolerances for reliable performance
Product Specifications
| Model | HZ-8813 |
| Compatible Emitters | T6 / U2 / L2 |
| Function Modes | 3-Function / 5-Function (Gear selectable) |
| Material | PCB Board |
| Color | Green |
| Package | 1 Set |
| Origin | Mainland China |
Who Is This For?
This driver board is ideal for:
- DIY flashlight builders and modders
- Electronics hobbyists looking to repair or upgrade torch circuits
- Technicians replacing faulty control boards in high-lumen flashlights
- Anyone sourcing spare parts for T6, U2, or L2 LED torches
Related Products You May Like
- 1PC 10g High Grade Silicon Grease Lubricant – Great for O-rings & Assembly
- 2m Folding Telescoping Light Stand Tripod – Perfect for Outdoor Use
- 1PC 18cm Standard Diffuser Light Sock – Studio Reflector Accessory
Note: Please allow 2–3% dimensional variance due to manual measurement. Actual product color may vary slightly from images due to monitor display differences.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What LED flashlight types is the HZ-8813 driver board compatible with?
A: The HZ-8813 flashlight driver board is compatible with T6, U2, and L2 LED emitter flashlights. These are among the most common high-output LED types used in modern torches, making this board a versatile replacement or upgrade component.
Q: What is the difference between the 3-function and 5-function modes on this driver board?
A: The 3-function mode typically cycles through three brightness or lighting settings (e.g., high, low, strobe), while the 5-function mode offers five selectable gear settings for more granular control over your flashlight's output. The mode configuration is determined by the gear/electric plate variant you select.
Q: Is soldering required to install this flashlight driver board?

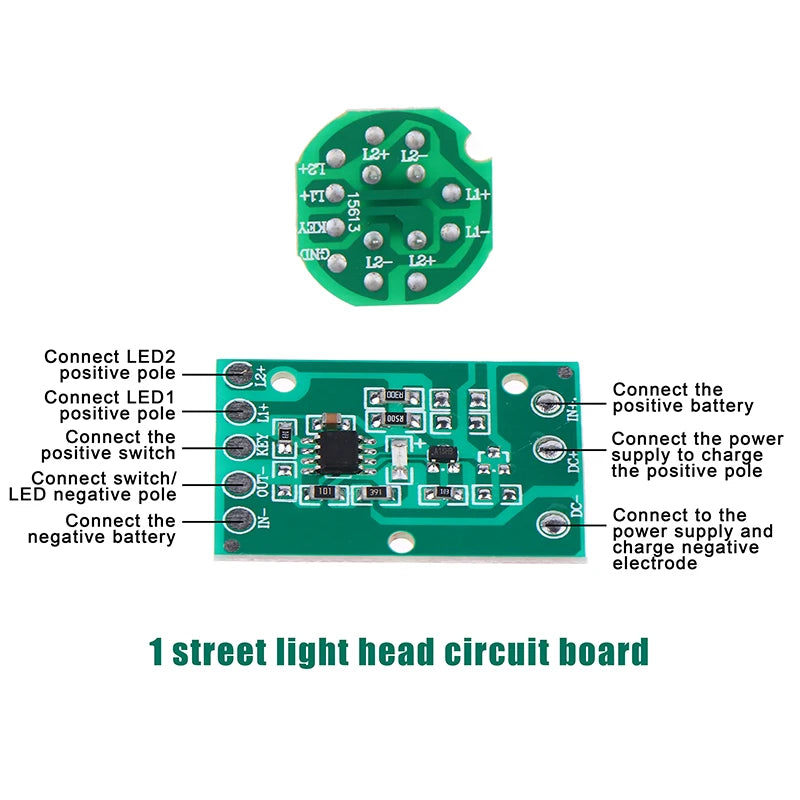

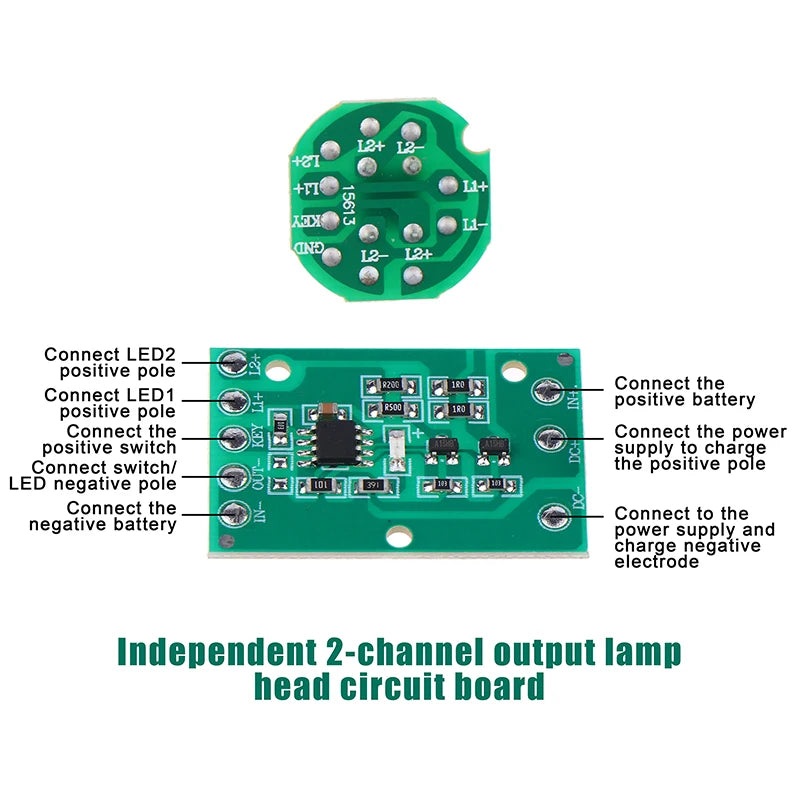

A: Yes, basic soldering skills are recommended for installing this PCB driver board into your flashlight. It is intended for DIY repairs, modifications, or custom flashlight builds where the user has some familiarity with electronics assembly.
Q: What is included in the package?

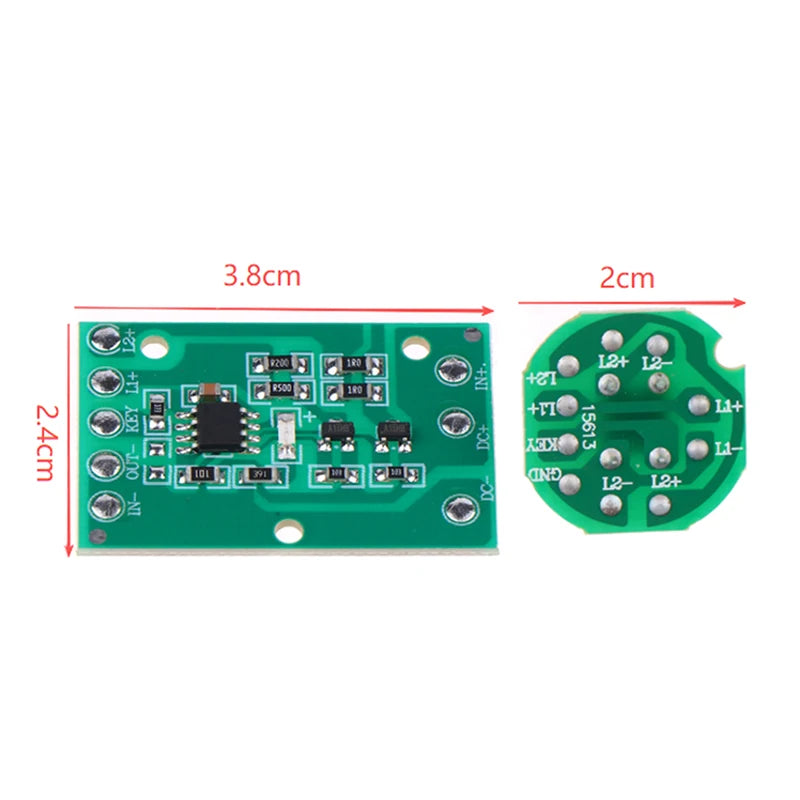

A: Each package includes 1 set of the HZ-8813 flashlight driver board. Please refer to the product images for exact dimensions, as sizes vary by model variant.
