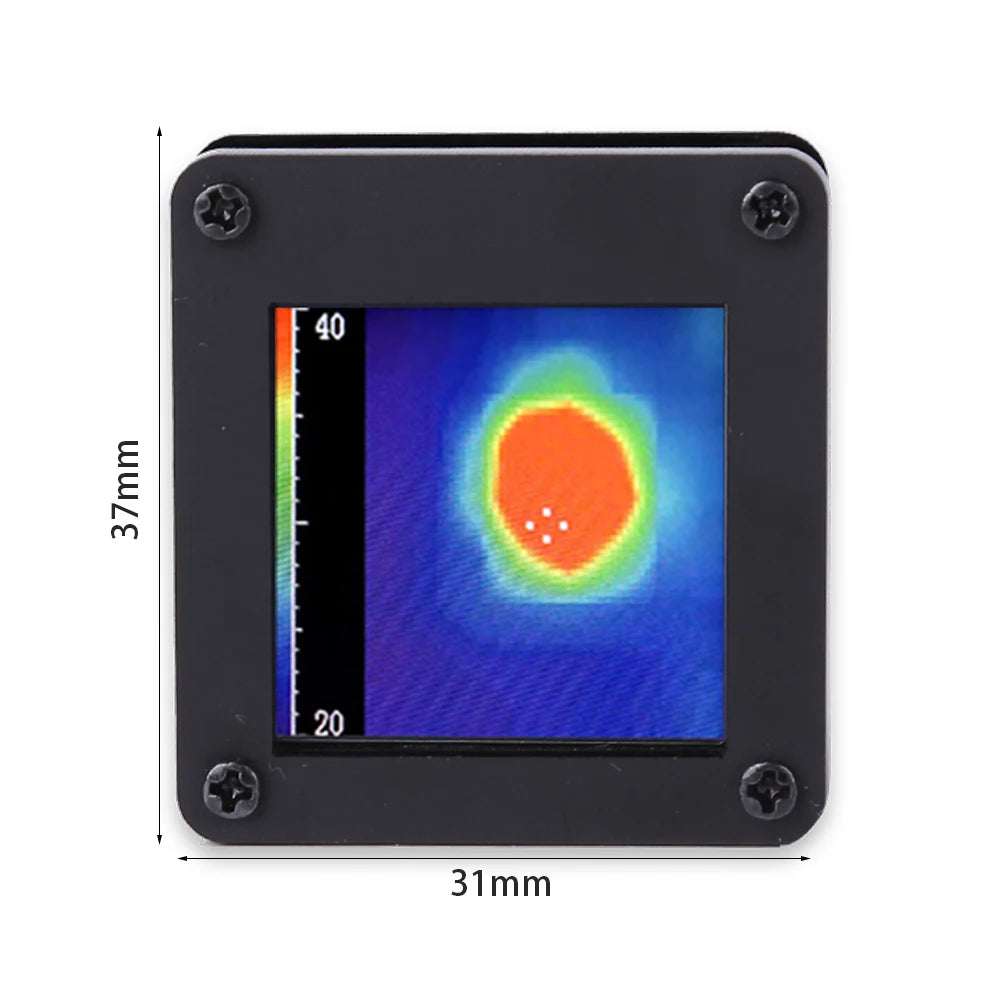

Handheld Thermal Imaging Camera with AMG8833 Infrared Sensor
Detect temperature variations instantly with this compact, portable Handheld Thermal Imaging Camera. Powered by the reliable AMG8833 infrared thermal sensor, it delivers stable, high-precision temperature readings across a wide range — from -20°C to 80°C — with an impressive detection distance of up to 7 metres (23 ft). Whether you're inspecting electrical panels, monitoring heat distribution, or performing building diagnostics, this lightweight imager gives you a clear infrared picture right in your hand.
Made in Mainland China.
Key Features
- AMG8833 Infrared Thermal Sensor — Professional-grade sensor with stable, consistent performance for reliable temperature mapping.
- USB 5V Powered — Powers directly via USB, making it easy to use with power banks, laptops, or USB chargers — no dedicated batteries required.
- 8×8 Pixel Array (64 pixels) — Captures a clear thermal matrix for quick, visual heat detection across surfaces and objects.
- Up to 7 m Detection Range — Spot heat signatures from a safe distance, ideal for human detection and surface monitoring.
- 60° Wide Viewing Angle — Covers a broad field of view so you can scan larger areas efficiently.
- 10 Frames/Second Refresh Rate — Smooth, near-real-time infrared imaging for dynamic scenes.
- High-Quality PCB Construction — Built from premium printed circuit board material for maximum durability and longevity.
- Compact & Lightweight — Designed for easy portability; take it wherever your inspection work demands.
Technical Specifications
| Sensor | AMG8833 Infrared Thermal Sensor |
| Pixel Array | 8×8 (64 pixels) |
| Temperature Output Range | -20°C to 80°C (-4°F to 176°F) |
| Temperature Resolution | 0.25°C |
| Thermistor Resolution | 0.0625°C |
| Accuracy (High Gain) | Typical ±2.5°C (±4.5°F) |
| NETD (1 Hz) | Typical 0.05°C |
| NETD (10 Hz) | Typical 0.16°C |
| Detection Distance | Up to 7 m / 23 ft |
| Viewing Angle | 60° |
| Frame Rate | 10 fps or 1 fps |
| Power Supply | USB 5V |
| Current (Normal Mode) | 4.5 mA |
| Current (Sleep Mode) | 0.2 mA |
| Output Mode | Temperature Output |
| Material | High-quality Printed Circuit Board (PCB) |
| Country of Origin | Mainland China |
What's in the Box
- 1× Thermal Imager Camera
Looking for other practical tools and gadgets? Check out our Multi-Use Faucet Bubbler Wrench Set or our versatile Silicone Sealant Scraper Set for your next home project.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What temperature range does this thermal imaging camera detect?
A: The AMG8833-based thermal imager provides temperature output across a range of -20°C to 80°C (-4°F to 176°F), with a thermistor resolution of 0.0625°C for precise readings.
Q: How does this handheld thermal camera connect and get powered?
A: This thermal imager is powered directly via USB 5V, meaning you can use any standard USB port, power bank, or USB wall adapter — no proprietary batteries are required, making it extremely convenient for field use.
Q: What is the maximum detection distance of the infrared sensor?
A: The AMG8833 infrared sensor has a human and object detection range of approximately 7 metres (23 feet), allowing you to safely scan from a comfortable distance.
Q: Is this thermal camera suitable for electrical and building inspections?
A: Yes — this handheld thermal imager is well-suited for general-purpose inspections including electrical panel checks, heat distribution mapping, HVAC diagnostics, and building envelope surveys where identifying temperature differentials is essential.
