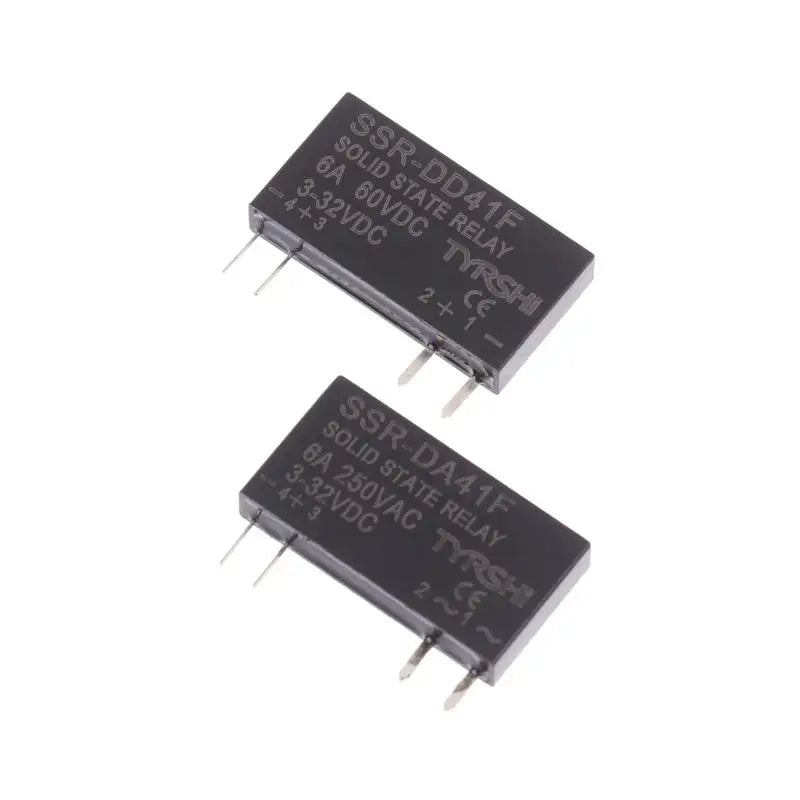

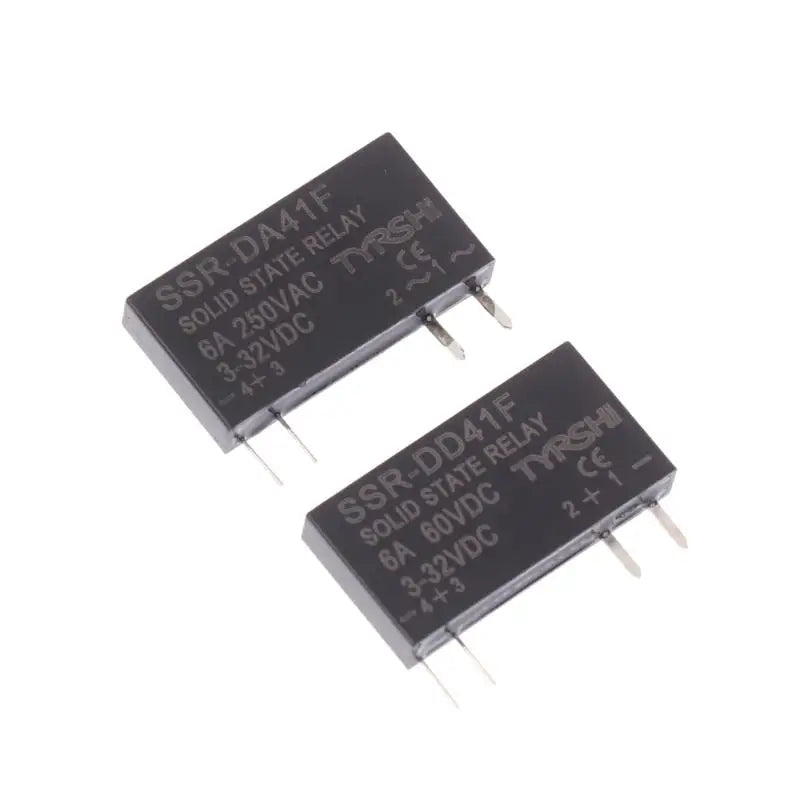

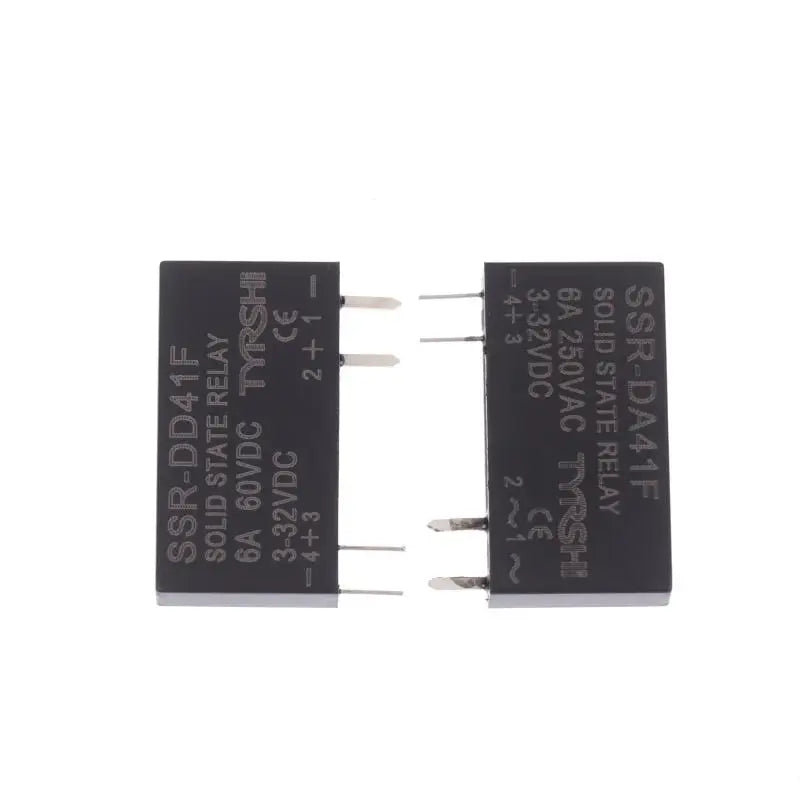

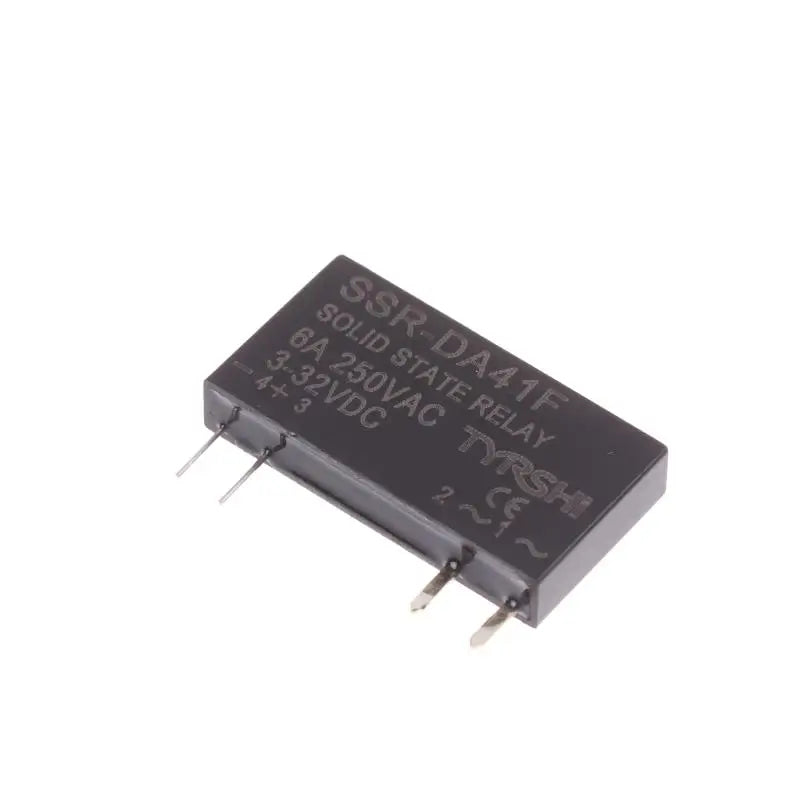

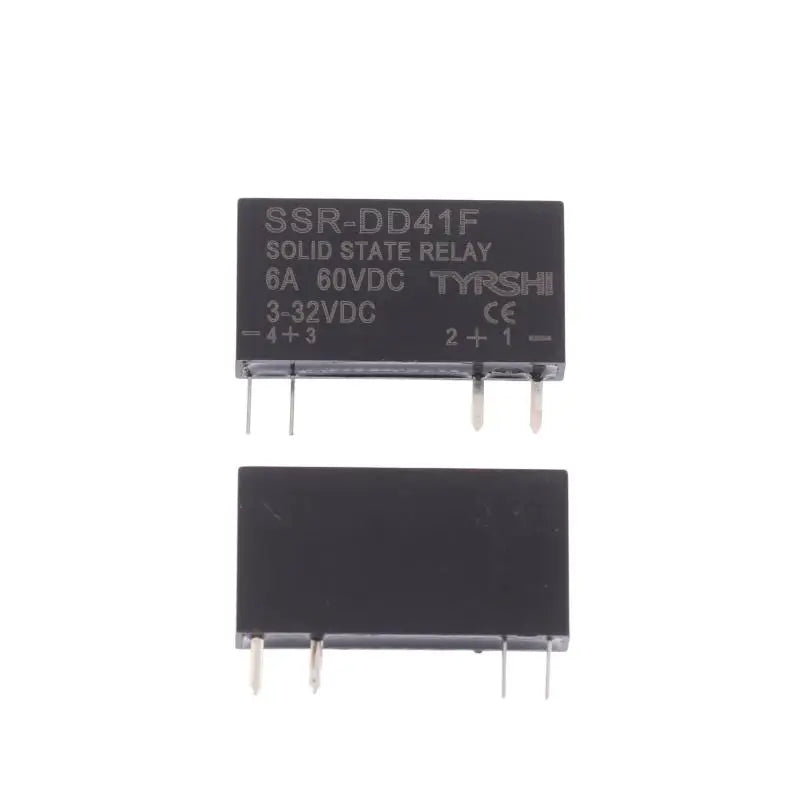

DIN Rail Solid State Relay SSR-41FDD/FDA DC-DC 6A 3-32VDC

DIN Rail Mounted SSR-41FDD/41FDA Solid State Relay Module — DC to DC, 6A, 3-32VDC

Upgrade your control panel with this compact, high-performance DIN Rail Mounted Solid State Relay (SSR). The SSR-41FDD/41FDA uses non-contact switching technology to deliver silent, arc-free operation and exceptional long-term durability — ideal for industrial automation, PLCs, DIY electronics, and smart control systems.

Key Features

• Wide Voltage Range: Control voltage 3–32V DC; load voltage 5–60V DC (SSR-41FDD) or 24–250V AC (SSR-41FDA) — versatile enough for a broad range of applications.
• 6A Load Capacity: Reliably handles high-power loads up to 6A for demanding control tasks.
• Slim, Space-Saving Design: Ultra-compact form factor with standard DIN Rail mounting for neat, efficient panel installation.
• Non-Contact SSR Technology: Solid state switching eliminates mechanical wear, sparking, and electrical noise for enhanced reliability and longevity.
• Versatile Signal Compatibility: Suitable for DC-to-DC or DC-to-AC control scenarios, making it adaptable across many automation and switching applications.
• Easy Installation: Snap-on DIN Rail mounting requires no additional tools or brackets.

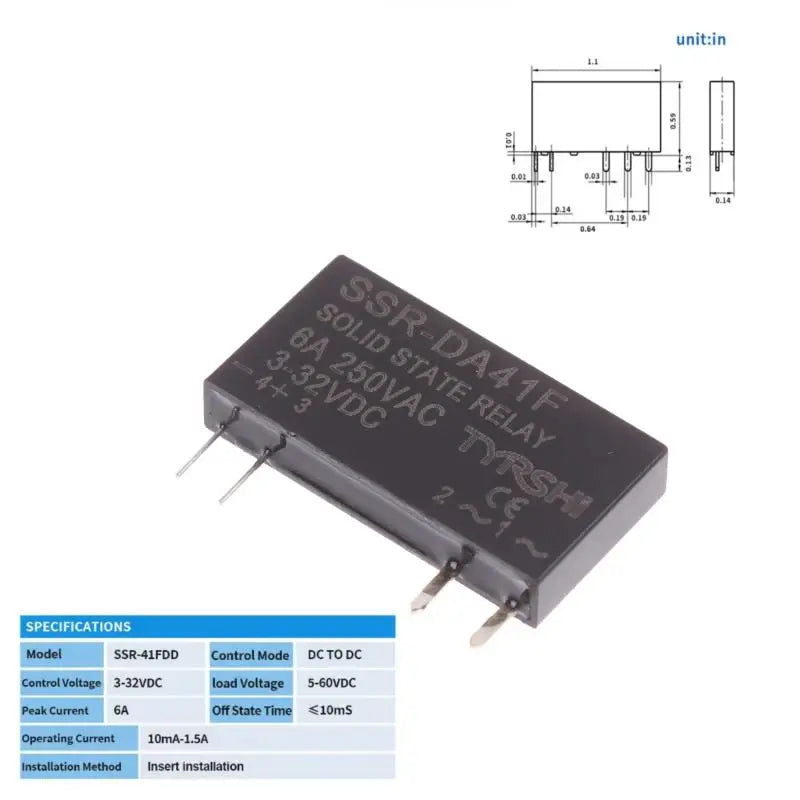

Specifications

• Model: SSR-41FDD (DC to DC) / SSR-41FDA (DC to AC)
• Input (Control) Voltage: 3–32V DC
• Output (Load) Voltage: 5–60V DC / 24–250V AC
• Load Current: 6A
• Mounting: Standard DIN Rail
• Package Includes: 1 × Solid State Relay Module

Made in Mainland China.

Note: Slight dimensional differences may occur due to manual measurement. Colors may vary slightly between screen displays and the actual product.

Related Products You May Like

• 1PC 10g High Grade Silicon Grease Lubricant for O-Rings & Tubes
• 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes Repair Spanner
• 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking Tools

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What is the difference between the SSR-41FDD and SSR-41FDA models?

A: The SSR-41FDD is a DC-to-DC solid state relay, switching a DC load (5–60V DC) with a DC control signal (3–32V DC). The SSR-41FDA is a DC-to-AC solid state relay, switching an AC load (24–250V AC) with the same DC control signal (3–32V DC). Choose based on whether your load is DC or AC powered.

Q: How do I install this solid state relay on a DIN rail?

A: Simply align the module's built-in DIN rail clip with a standard 35mm DIN rail and snap it into place — no screws or additional hardware required. The slim profile allows side-by-side installation of multiple relays in compact control panels.

Q: Is this SSR relay suitable for PLC and automation control systems?

A: Yes. The 3–32V DC control input is fully compatible with most PLC output signals. Its non-contact SSR technology ensures fast, noise-free switching — making it a reliable choice for industrial automation, home automation, temperature control, and other switching applications.

Q: What load can this relay handle?

A: This relay supports a maximum load current of 6A. It is designed for controlling DC loads up to 60V DC or AC loads up to 250V AC, depending on the model variant selected. Always ensure your load specifications do not exceed these ratings.
