Carbon Steel Double Split Shaft Collar 6–55mm Clamping Ring

Carbon Steel Double Split Shaft Collar – Heavy-Duty Clamping Ring for Industrial Use

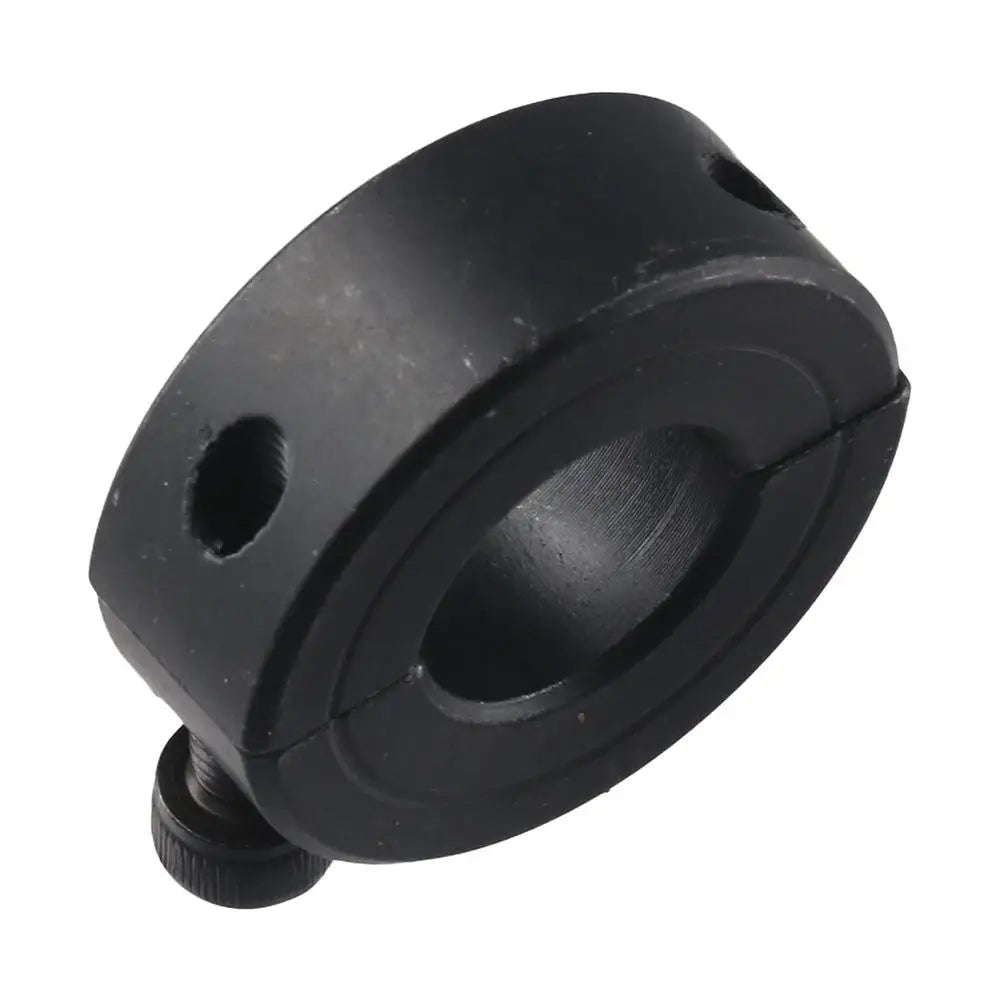

Keep your guide shafts, drive shafts, and machine components firmly in place with this Carbon Steel Double Split Shaft Collar. Engineered for industrial automation, manufacturing conveyors, motor bases, and machine tools, this precision clamping collar delivers a strong, reliable locking force and excellent fitting performance across a wide range of shaft diameters from 6 mm to 55 mm.

Made in Mainland China.

Key Features

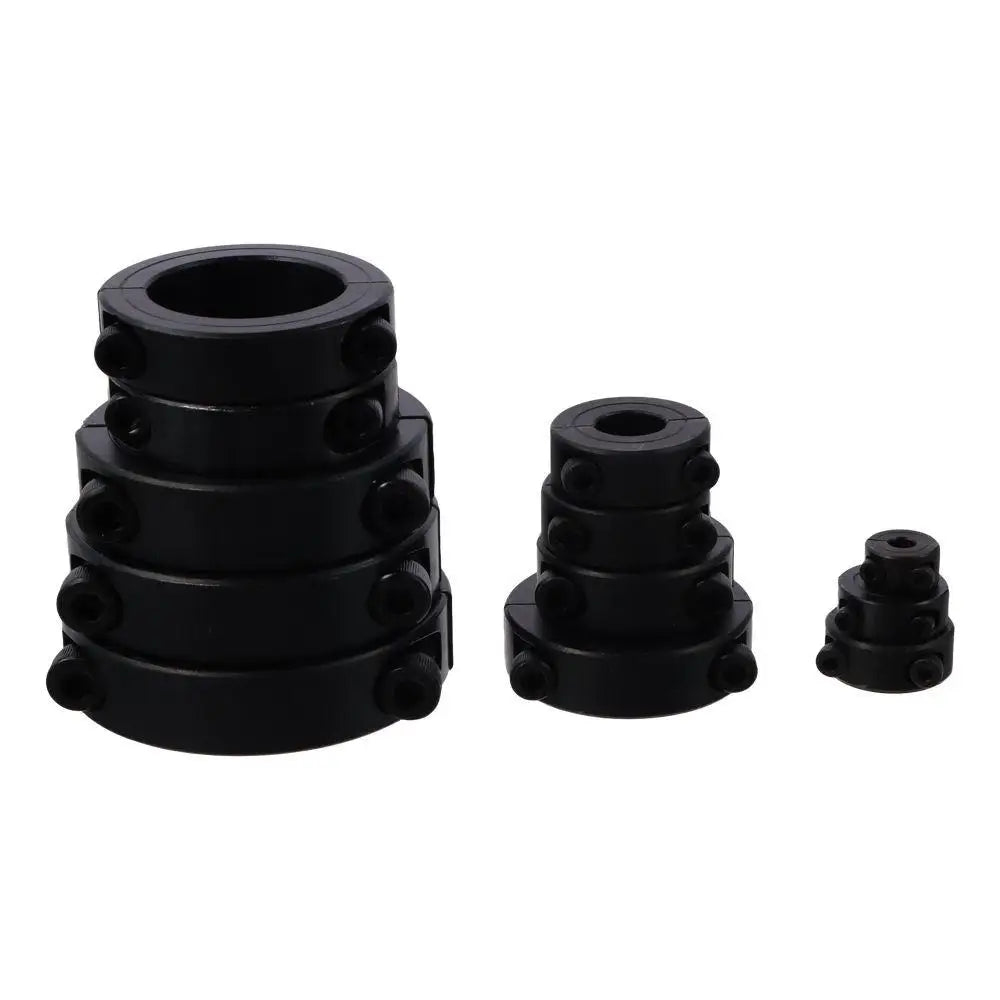

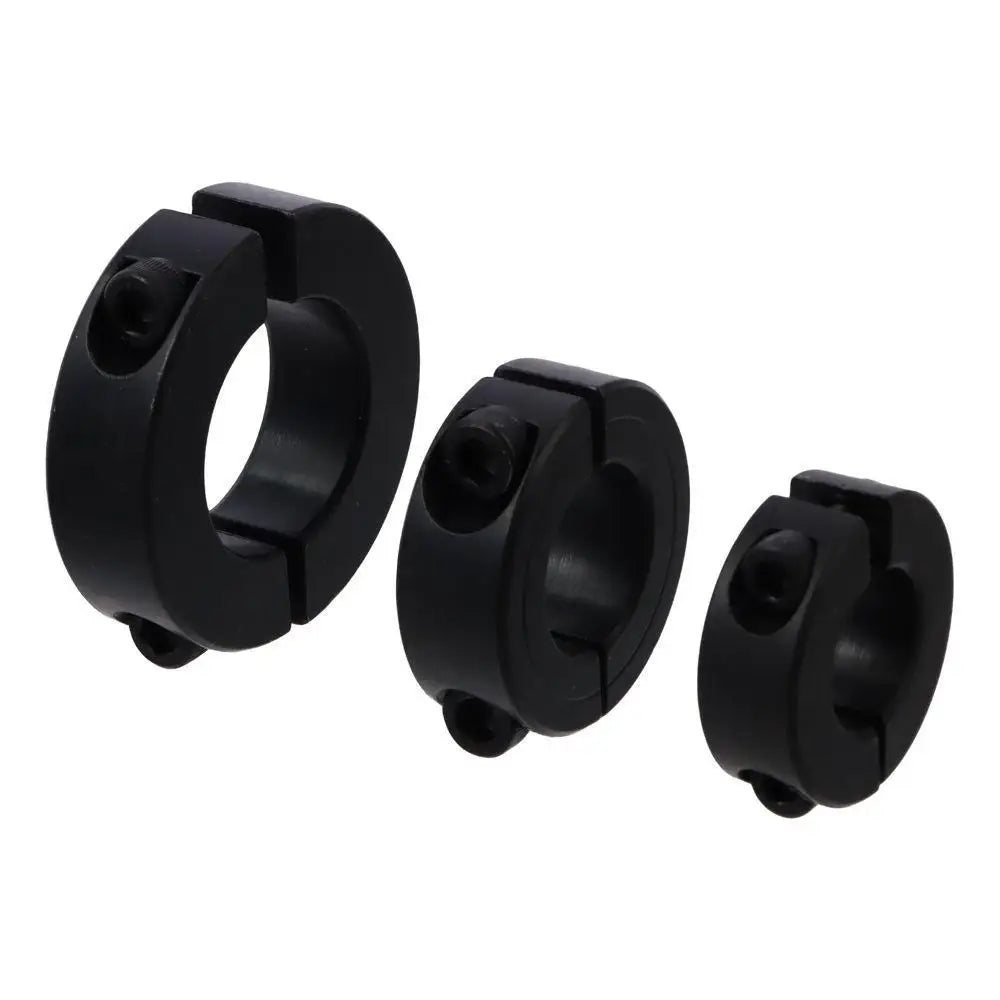

• Wide Size Range: Available in inner diameters of 6, 8, 10, 12, 15, 16, 17, 18, 20, 22, 25, 30, 35, 40, 45, 50, and 55 mm to suit virtually any shaft application.

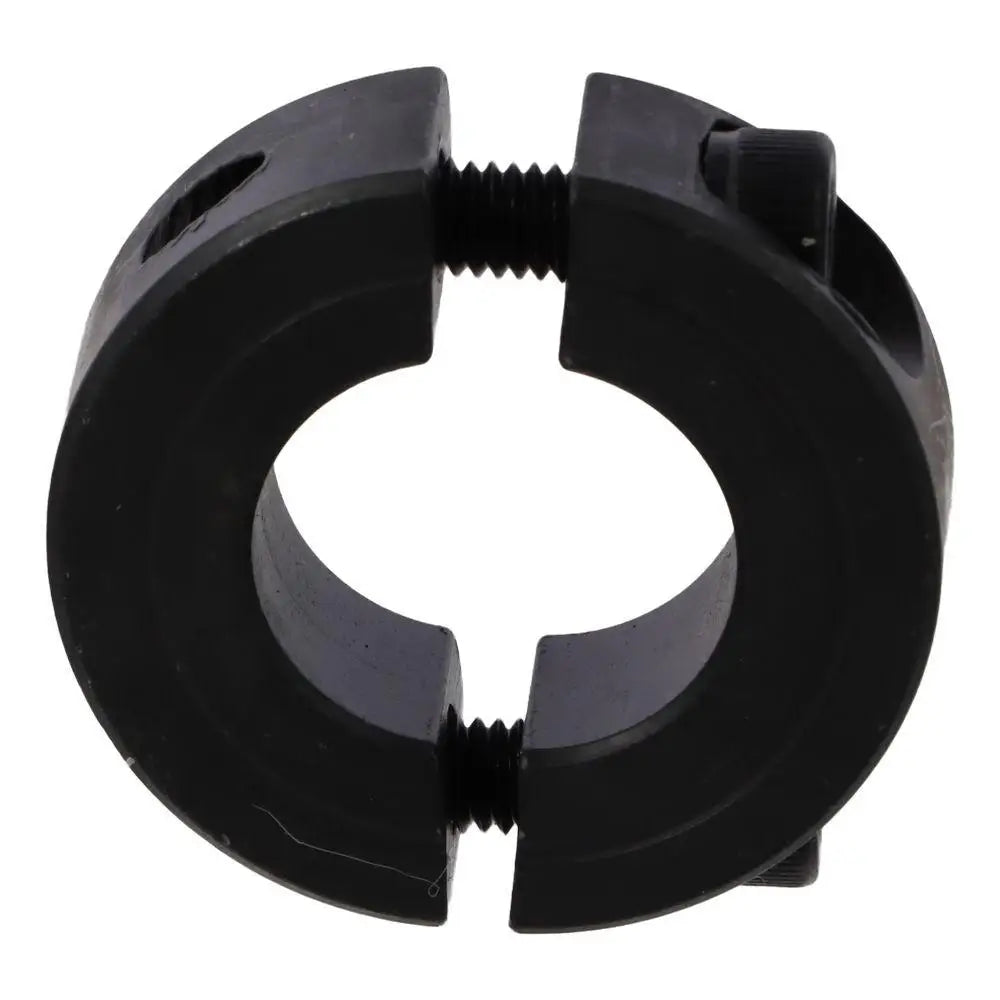

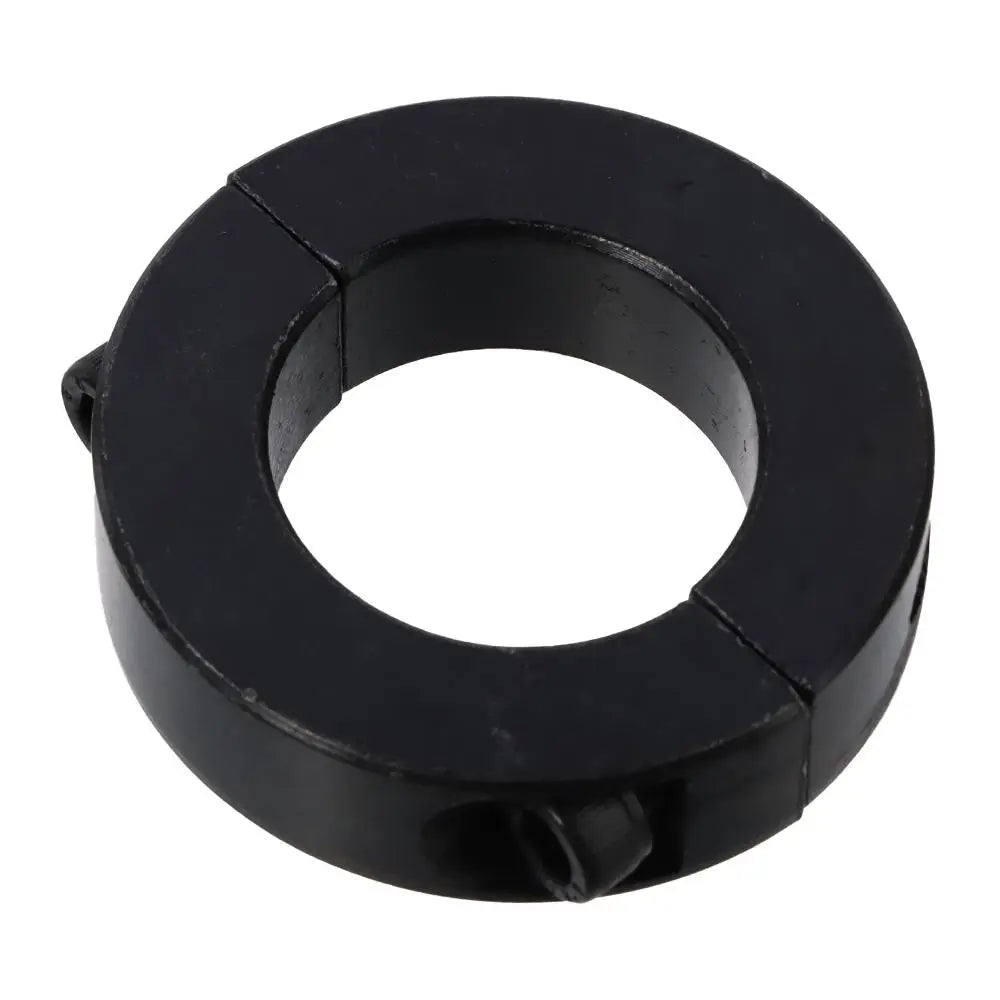

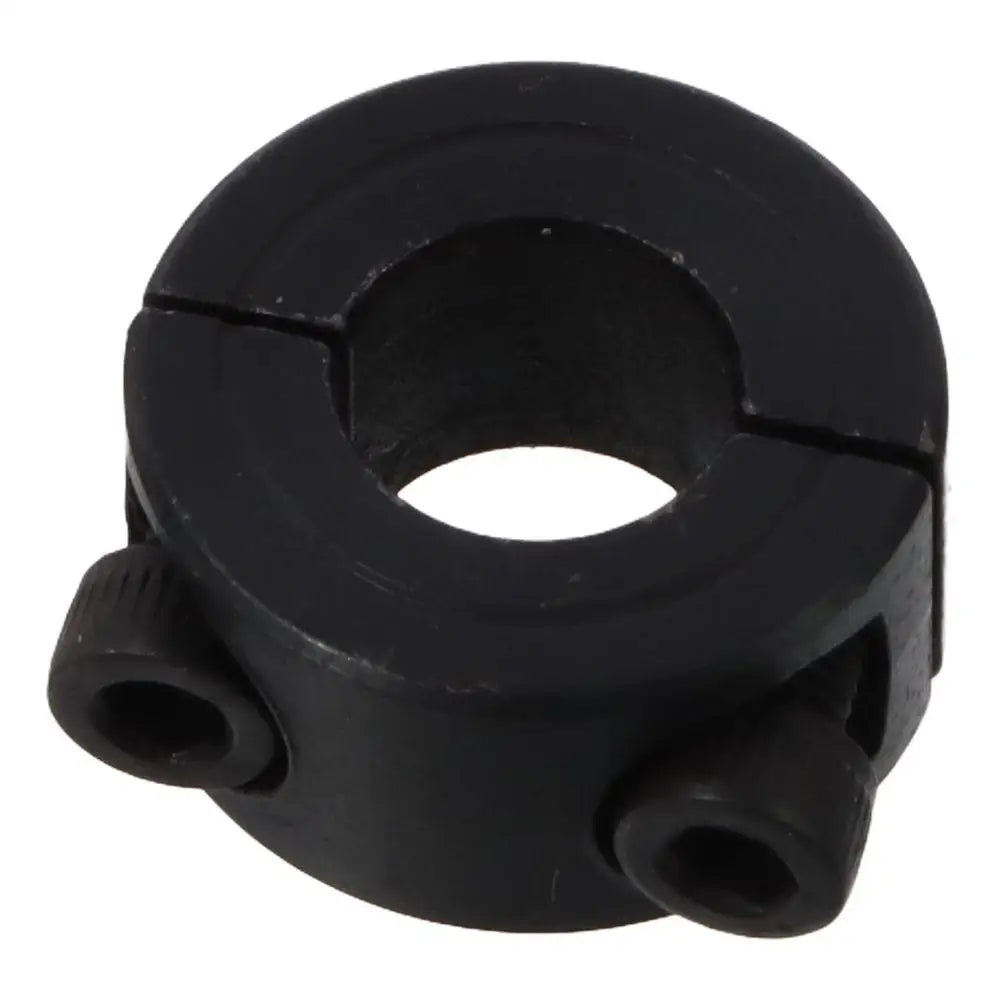

• Double Split Clamping Design: Provides superior grip and support, closely hugging the guide shaft for maximum holding power without damaging the shaft surface.
• Carbon Steel Construction: High-strength carbon steel body in a sleek black finish offers excellent durability, oxidation resistance, and long service life.
• Versatile Applications: Ideal for motor bases, drive shafts, machine tools, printing machines, conveyor belt systems, and a broad range of industrial automation equipment.
• Simple Installation: Just slide the collar onto the guide shaft, then tighten the set screw to lock it firmly in place — no specialist tools needed.
• Precision Fit: Acts as a dependable mechanical stop, preventing the ball guide shaft from slipping out during operation.

Specifications

Installation Guide

1. Select the correct inner diameter to match your guide shaft.
2. Slide the shaft collar onto the guide shaft at the desired position.
3. Tighten the set screw securely to lock the collar firmly in place.

Please Note: Due to manual measurement, there may be a ±2–3% dimensional tolerance. Please verify the required size carefully before purchasing. Minor color variations may occur depending on screen settings and lighting conditions.

You May Also Like

• 1PC 10g High Grade Silicon Grease Lubricant for O-Rings — keep your mechanical components running smoothly.
• 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking Tools — essential workshop and renovation tools.
• 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes Repair Spanner — handy multi-size wrenches for mechanical tasks.

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What inner diameter sizes are available for the carbon steel shaft collar?

A: This shaft collar is available in 17 inner diameter sizes: 6, 8, 10, 12, 15, 16, 17, 18, 20, 22, 25, 30, 35, 40, 45, 50, and 55 mm, making it suitable for a wide variety of industrial and automation shaft applications.

Q: What is the double split clamping design and why does it matter?

A: The double split clamping design splits the collar body, allowing it to clamp evenly and tightly around the shaft when the set screw is tightened. This distributes clamping force uniformly, ensuring a strong, stable grip without deforming or scoring the shaft surface.

Q: What applications is this carbon steel shaft collar suitable for?

A: This collar is widely used in industrial automation systems, conveyor belts, motor bases, drive shafts, machine tools, and printing machines. It serves as a precise mechanical stop to prevent shaft components from shifting or disengaging during operation.

Q: Is this shaft collar easy to install without professional tools?

A: Yes. Installation is straightforward — simply position the collar on the guide shaft at the desired location and tighten the set screw with a standard hex key or wrench. No specialist equipment is required.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
