Brass Compression Union Straight Coupling — Multi-Size Adapter Fitting

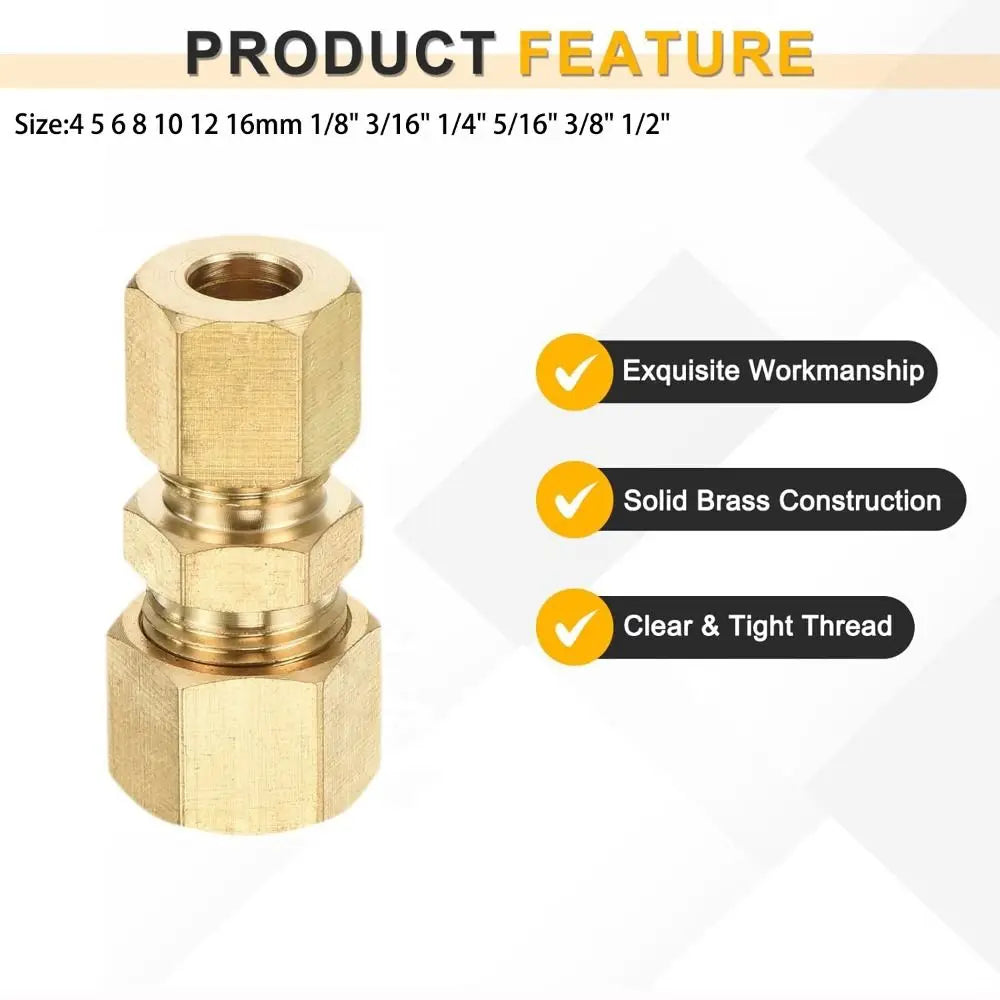

Achieve a secure, leak-free connection every time with this heavy-duty Brass Compression Union Straight Coupling. Available in a wide range of metric and imperial sizes — 4, 5, 6, 8, 10, 12, and 16 mm as well as 1/8", 3/16", 1/4", 5/16", 3/8", and 1/2" — this versatile adapter is the go-to solution for instrumentation, hydraulic, and pneumatic systems.
Made in Mainland China.
Key Features
- Hex grip on both sides: The hex-head design on both ends ensures excellent grip for easy installation and removal using standard wrenches.
- Universal compatibility: Works seamlessly with copper, brass, aluminum, and plastic tubing — ideal for converting between different tube sizes and materials.

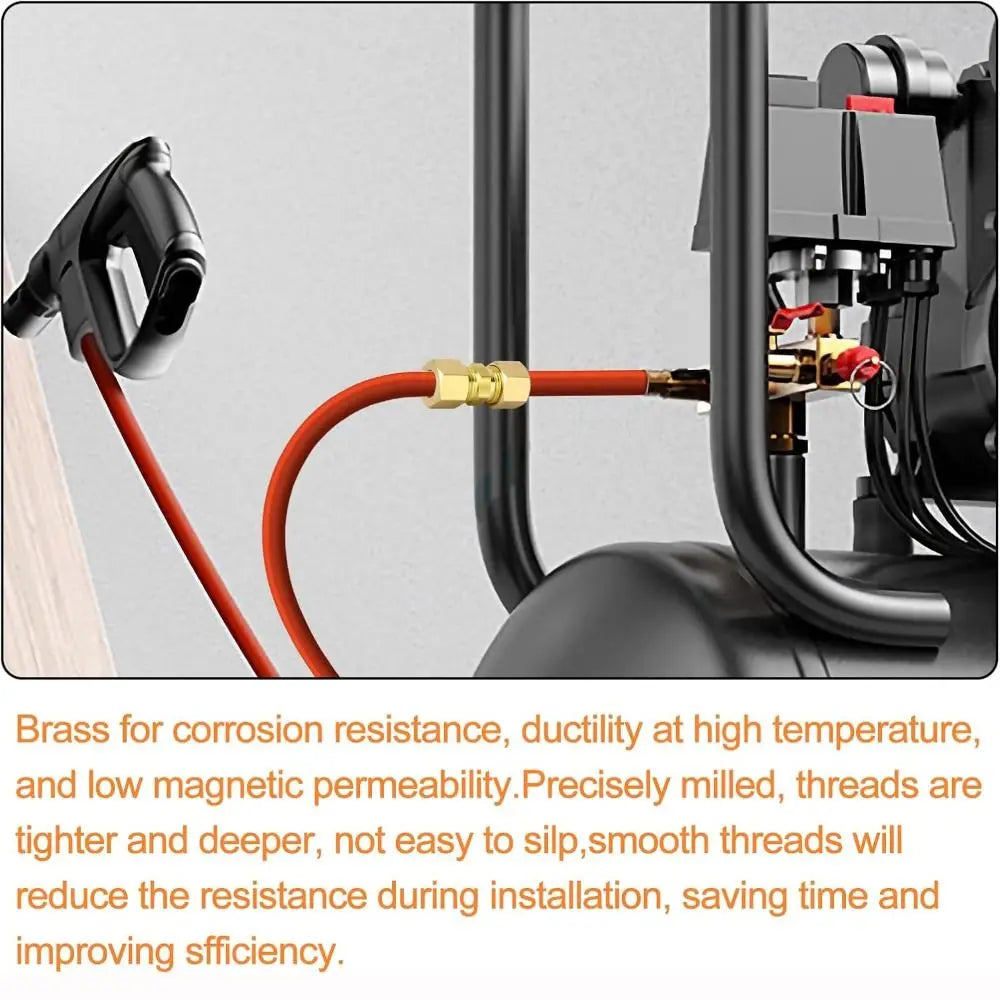

- Heavy-duty brass construction: Rust-proof, corrosion-resistant, and built to handle high temperatures with low magnetic permeability for lasting performance.

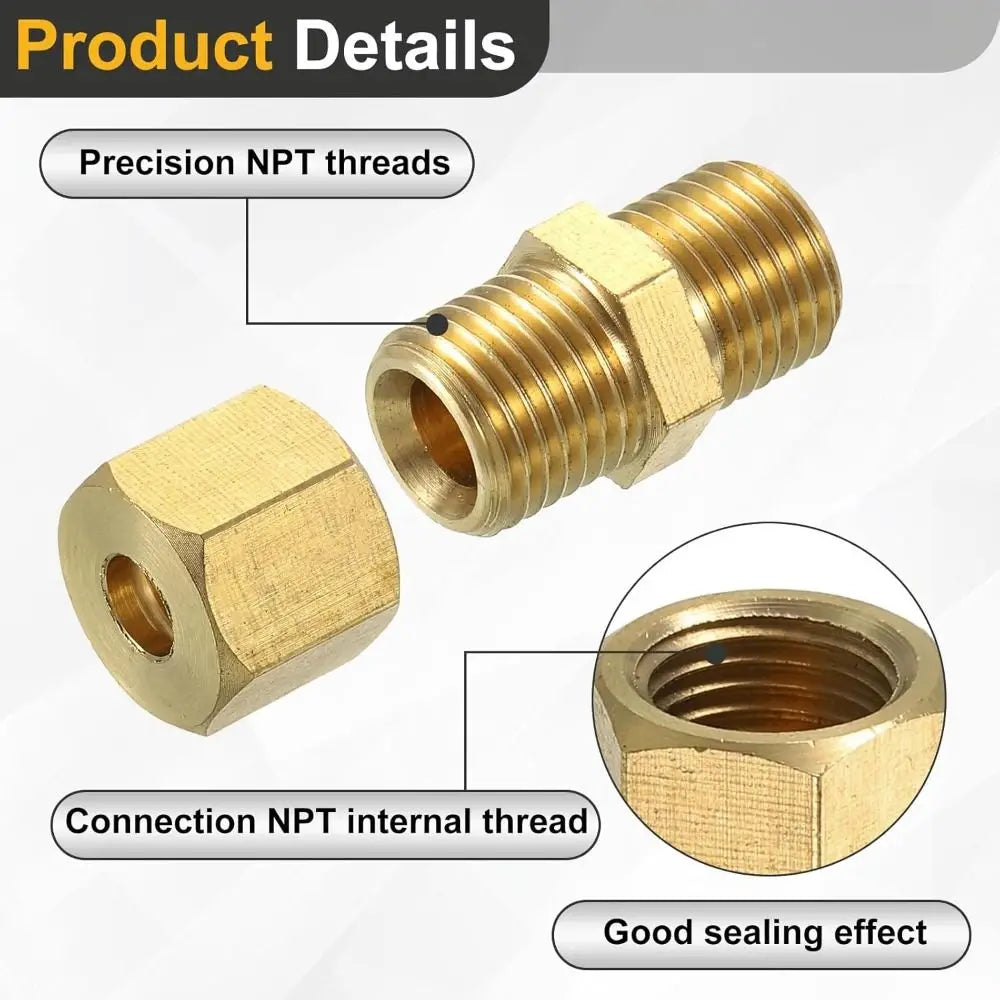

- Deep, precision threads: High-quality deep threads allow the fitting to bite firmly, delivering a perfect compression seal for a dependable leak-free connection.

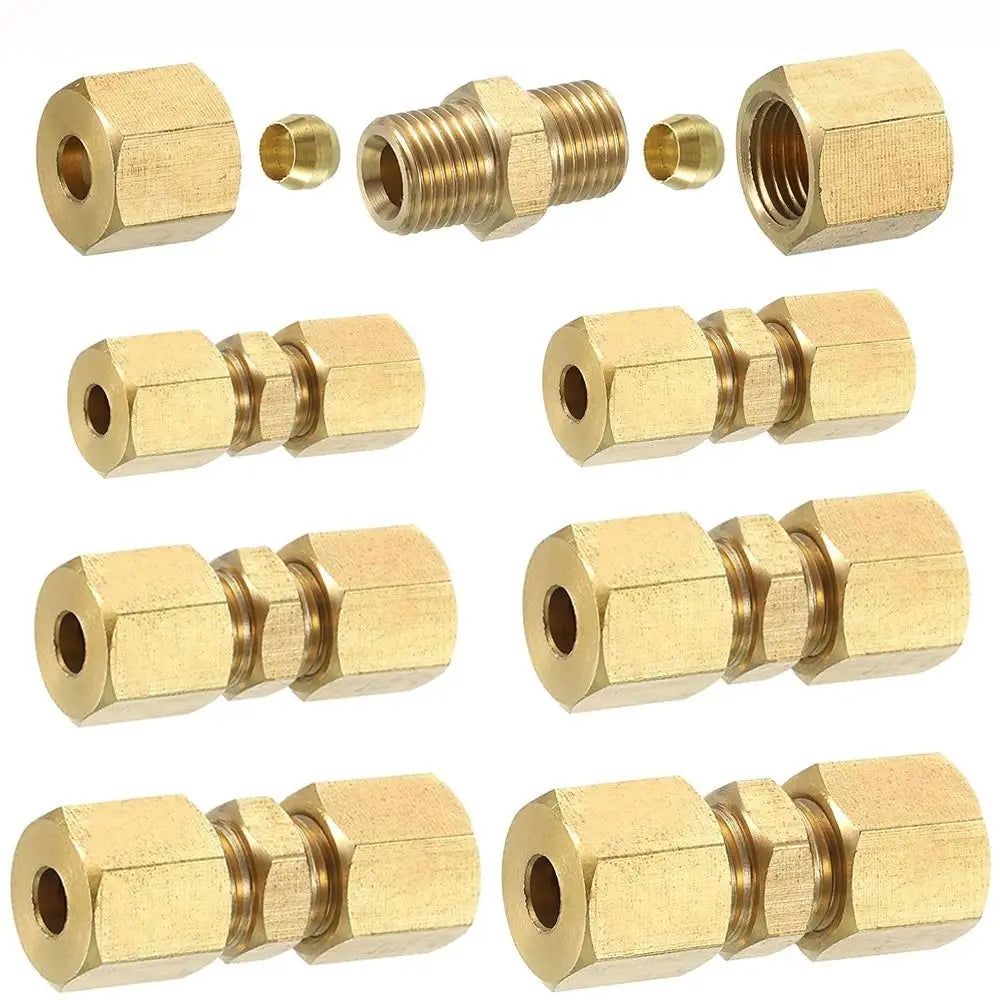

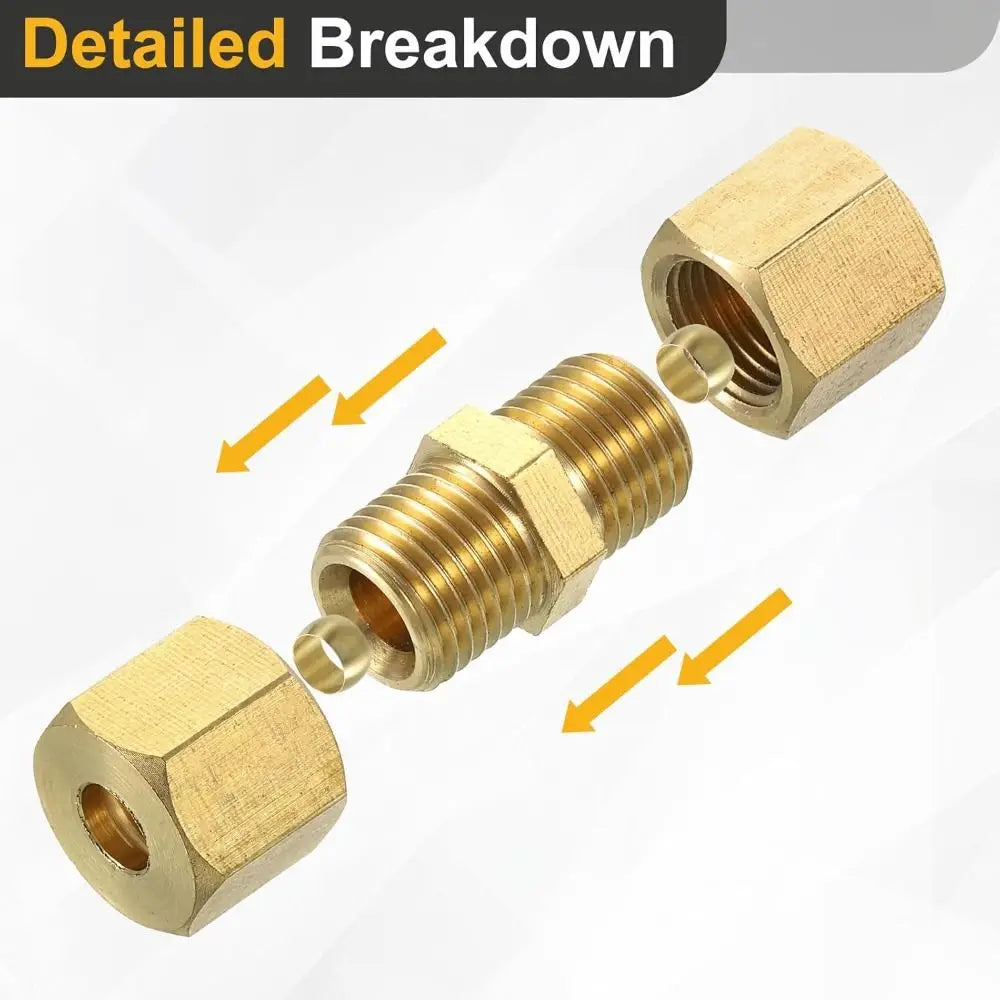

- Three-piece design: Consists of a nut, sleeve, and body with an attached insert — the standard compression fitting configuration for a reliable, robust seal.
- Wide size range: Metric (4–16 mm) and imperial (1/8"–1/2") options available to suit virtually any plumbing or fluid-system project.
- Max pressure rating: Suitable for systems up to 850 kPa.
Specifications
| Material | Brass (Copper alloy) |
| Connection Type | Compression Union / Straight Coupling |

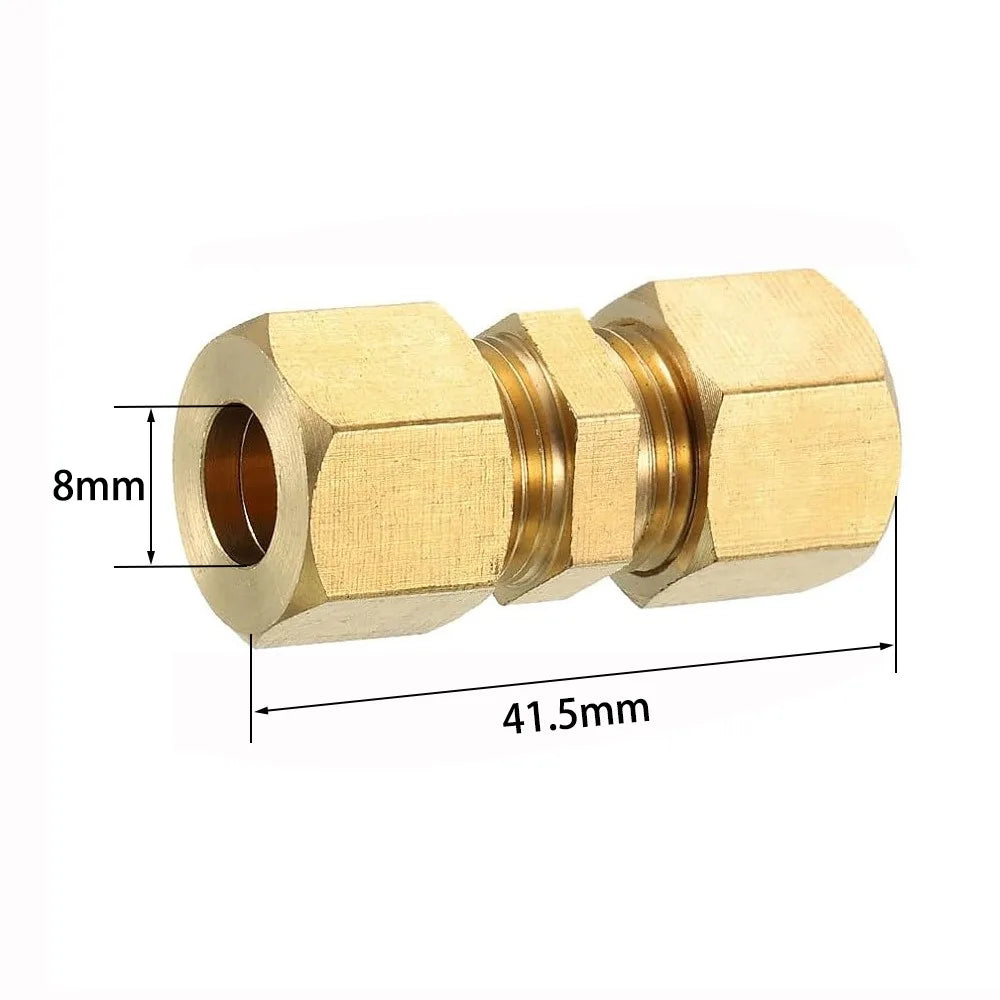

| Available Sizes (Metric) | 4, 5, 6, 8, 10, 12, 16 mm |
| Available Sizes (Imperial) | 1/8", 3/16", 1/4", 5/16", 3/8", 1/2" |
| Color | Gold (Brass) |
| Max Pressure | < 850 kPa |
| Typical Applications | Instrumentation, hydraulic systems, pneumatic systems |
| Package Contents | 1 × Brass Compression Union Straight Coupling |
| Origin | Mainland China |
You May Also Like
- 1PC 400cm Sealing Tape – Leak-Proof Water Pipe & Gas Pipeline Tape
- 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes Sink Detach Tool
- 1PC High Grade Silicone Grease Lubricant for O-Rings & Tubes
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What types of tubing are compatible with this brass compression coupling?
A: This brass compression union straight coupling is compatible with copper, brass, aluminum, and plastic tubing. Its three-piece construction (nut, sleeve, and body with insert) provides a firm, leak-free grip on all these tube materials, making it highly versatile for plumbing, instrumentation, and fluid-system projects.
Q: What sizes are available for this compression fitting?
A: The fitting is available in both metric sizes — 4, 5, 6, 8, 10, 12, and 16 mm — and imperial sizes — 1/8", 3/16", 1/4", 5/16", 3/8", and 1/2". This broad size range ensures compatibility with most standard tubing used in hydraulic, pneumatic, and instrumentation systems.
Q: What is the maximum pressure this compression coupling can handle?
A: This brass compression straight coupling is rated for system pressures below 850 kPa. It is well-suited for typical instrumentation, pneumatic, and low-to-medium-pressure hydraulic applications. Always verify your system's pressure requirements before installation.
Q: Is any special tool required to install this fitting?
A: No special tools are needed. The hex-head design on both sides of the coupling provides excellent grip for a standard wrench, making installation and removal straightforward for both professionals and DIY users.
