Acrylic Crack Gauge Monitor — Precise Wall Crack Tracking Made Easy
Keep a close eye on your building's structural health with this Clear Acrylic Crack Gauge Monitor. Whether you're a construction professional or a vigilant homeowner, this compact, L-shaped crack monitor gives you accurate, real-time measurements of wall deformation and crack displacement — indoors and outdoors alike.
Key Features
- Double-Plate Measurement Design: The overlapping plate system ensures consistent, repeatable readings for long-term crack displacement tracking — ideal for monitoring structural integrity over time.
- High-Resolution XY Axis Scale: Clear scale markings on both X and Y axes provide detailed visibility of crack movement, making it easy to detect even minor changes at a glance.

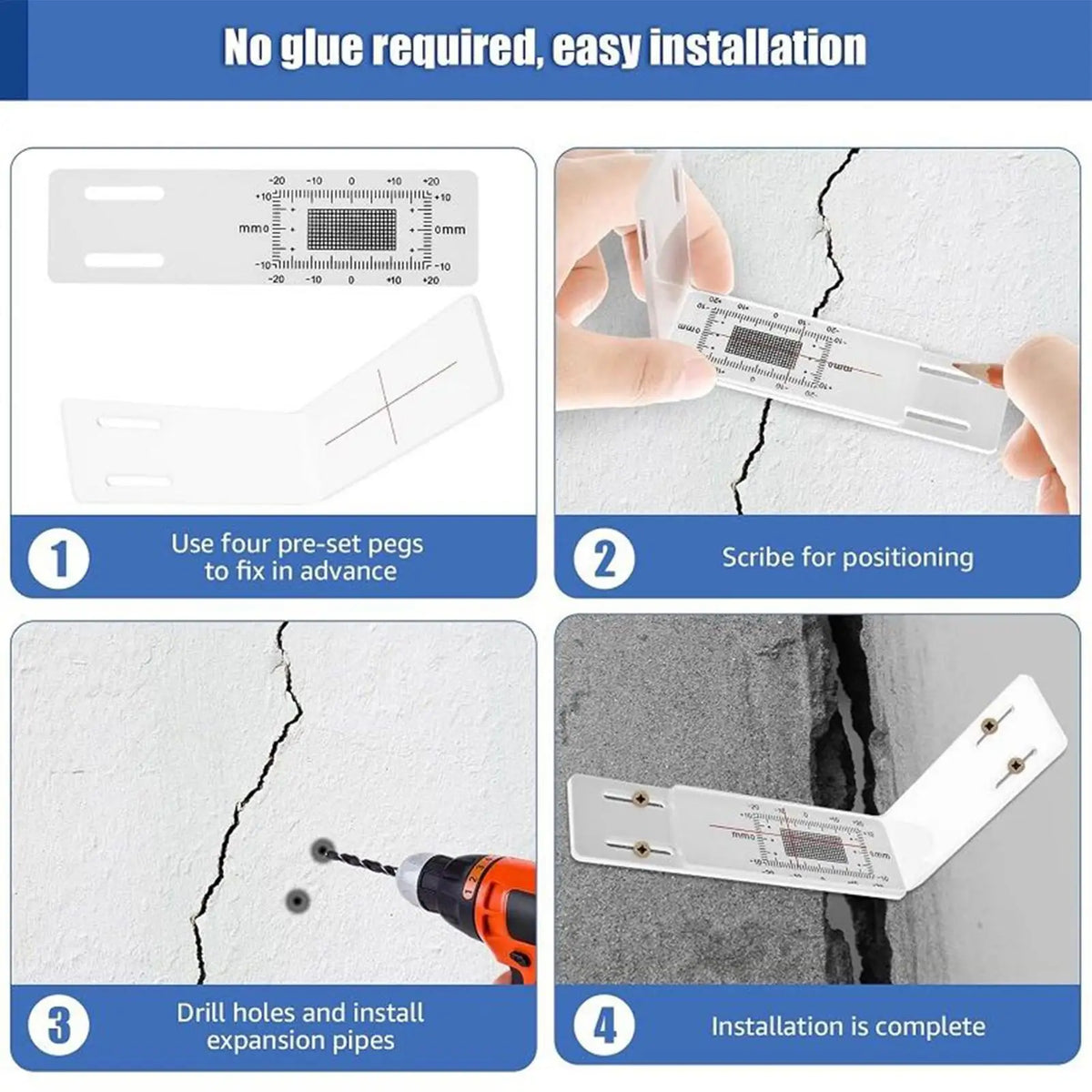

- No-Adhesive Installation: Improved mounting columns allow for secure, tool-friendly fixation without the need for glue or adhesive — perfect for quick deployment on walls and corners.

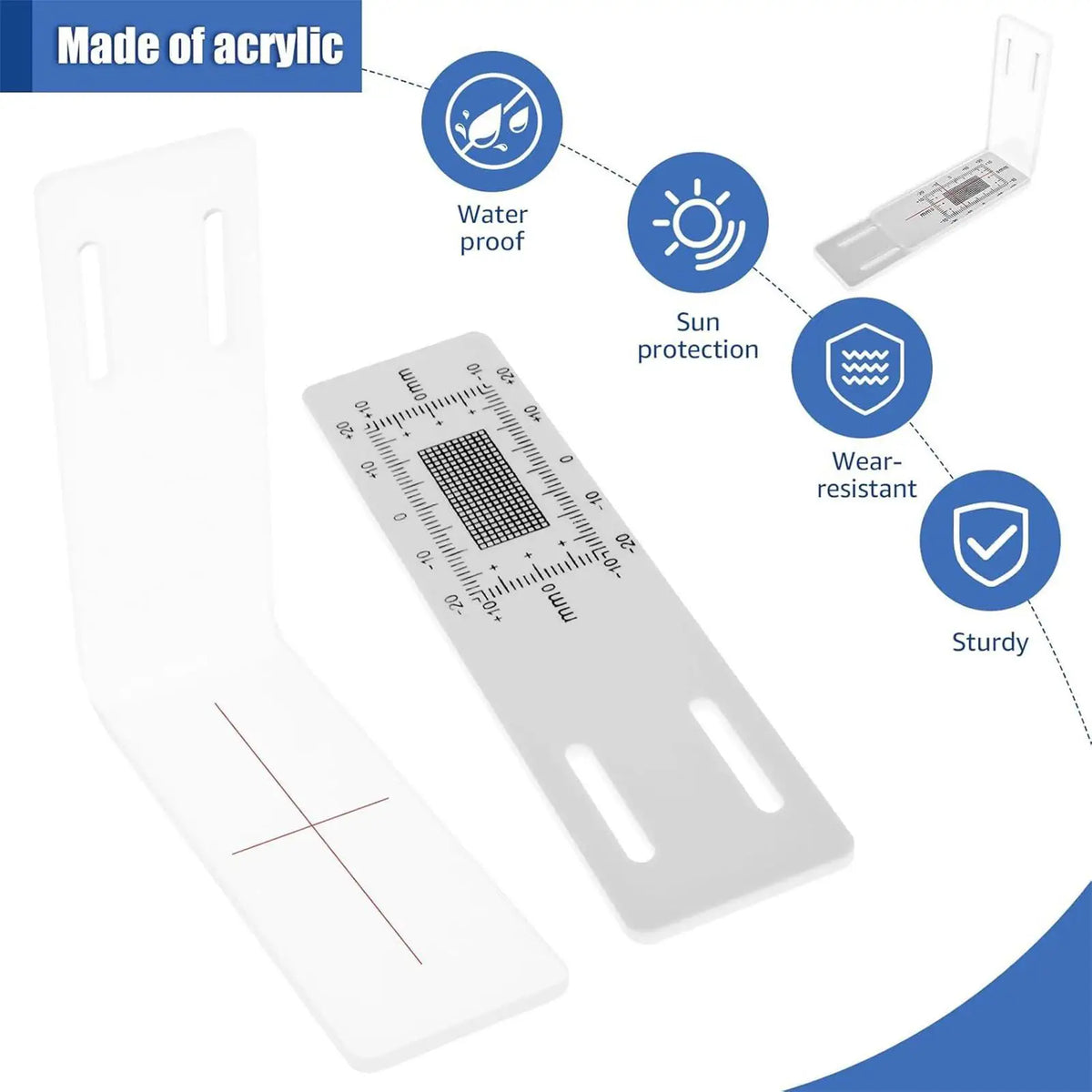

- Durable Acrylic Construction: Made from robust, transparent acrylic material, the monitor delivers all-conditions performance with clear visibility through its panels for efficient data tracking.
- L-Shaped Corner Design: Engineered to monitor both internal and external wall corners, this gauge supports thorough evaluations of crack expansion in a wide range of structures.
- Built-In Measuring Ruler: Documents crack dimensions precisely over time, serving as a reliable record tool for building inspections and safety assessments.
Specifications
- Material: Acrylic

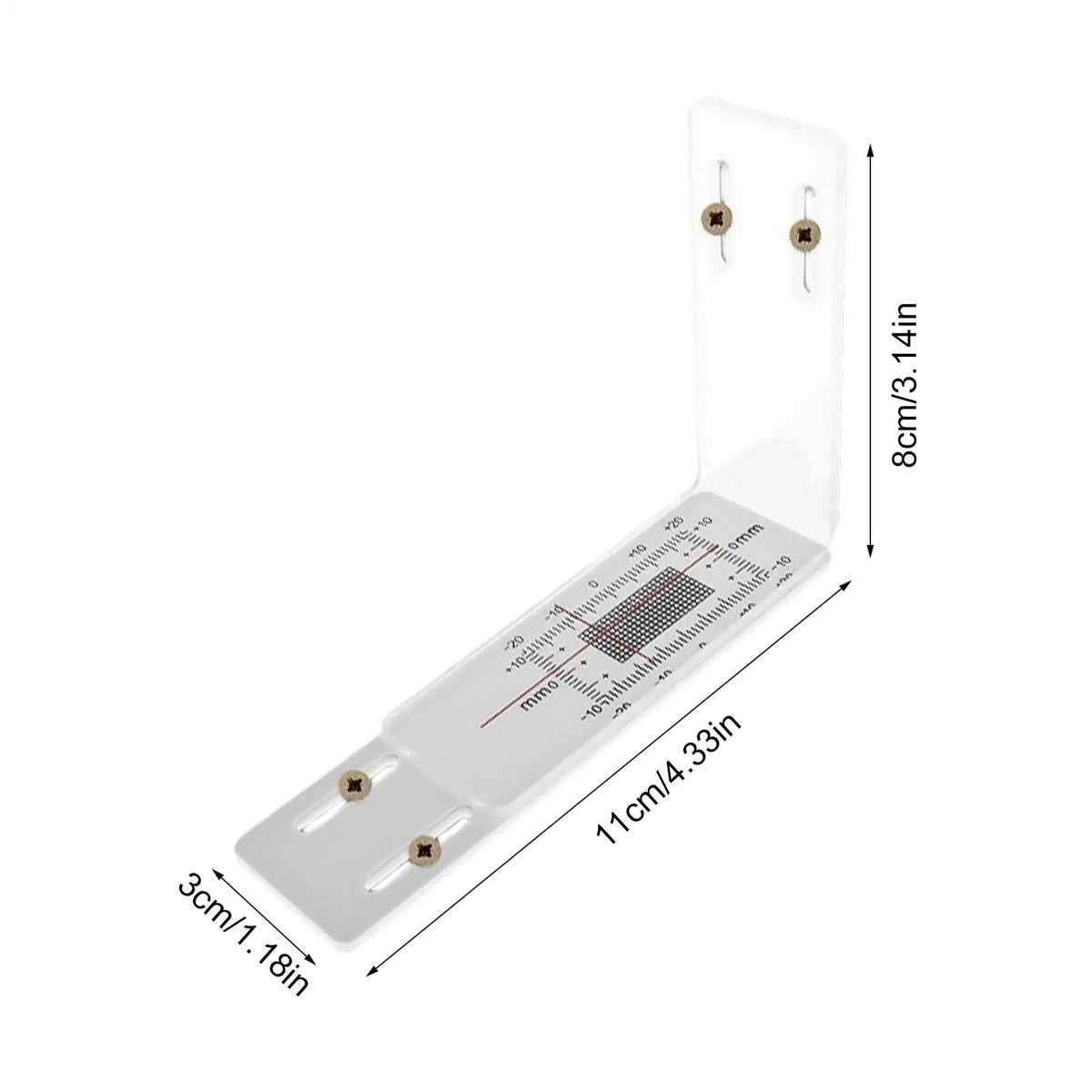

- Dimensions: Approx. 11 × 8 × 3 cm (4.33 × 3.15 × 1.18 inches)
- Weight: 33 grams
- Purpose: Monitoring wall deformation and crack progression
- Country of Origin: Made in Mainland China
What's in the Box
- 1 × Crack Monitor Set
- 1 × Instruction Manual
Please Note
- Due to lighting conditions and display settings, slight color differences may appear in product images.
- Minor size variations may occur due to manual measurement.
Related Products You May Like
- 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking & Grout Tools
- 1PC High Grade Silicone Grease Lubricant for O-Rings & Tubes
- 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes Repair Spanner
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What surfaces is the acrylic crack gauge monitor compatible with?

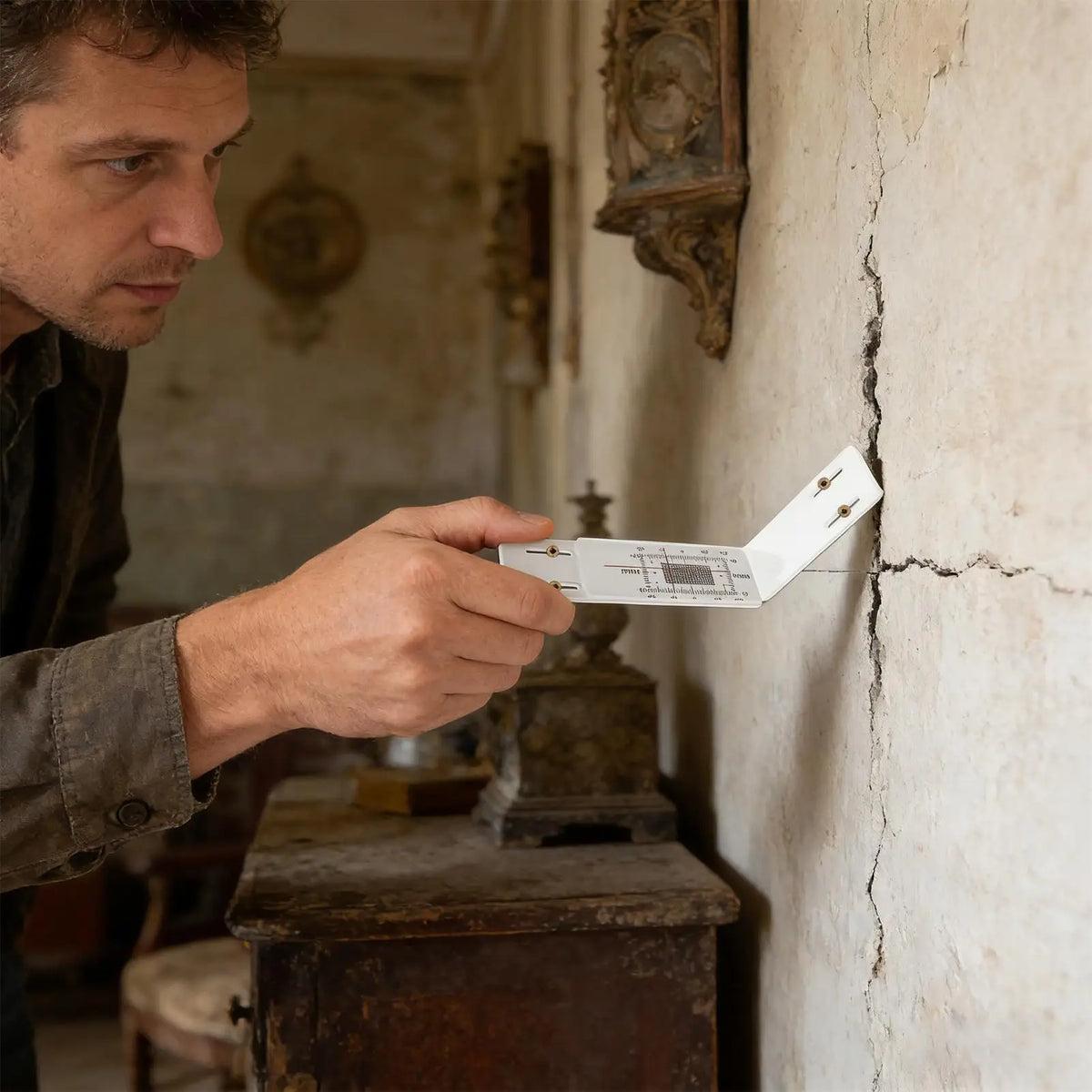

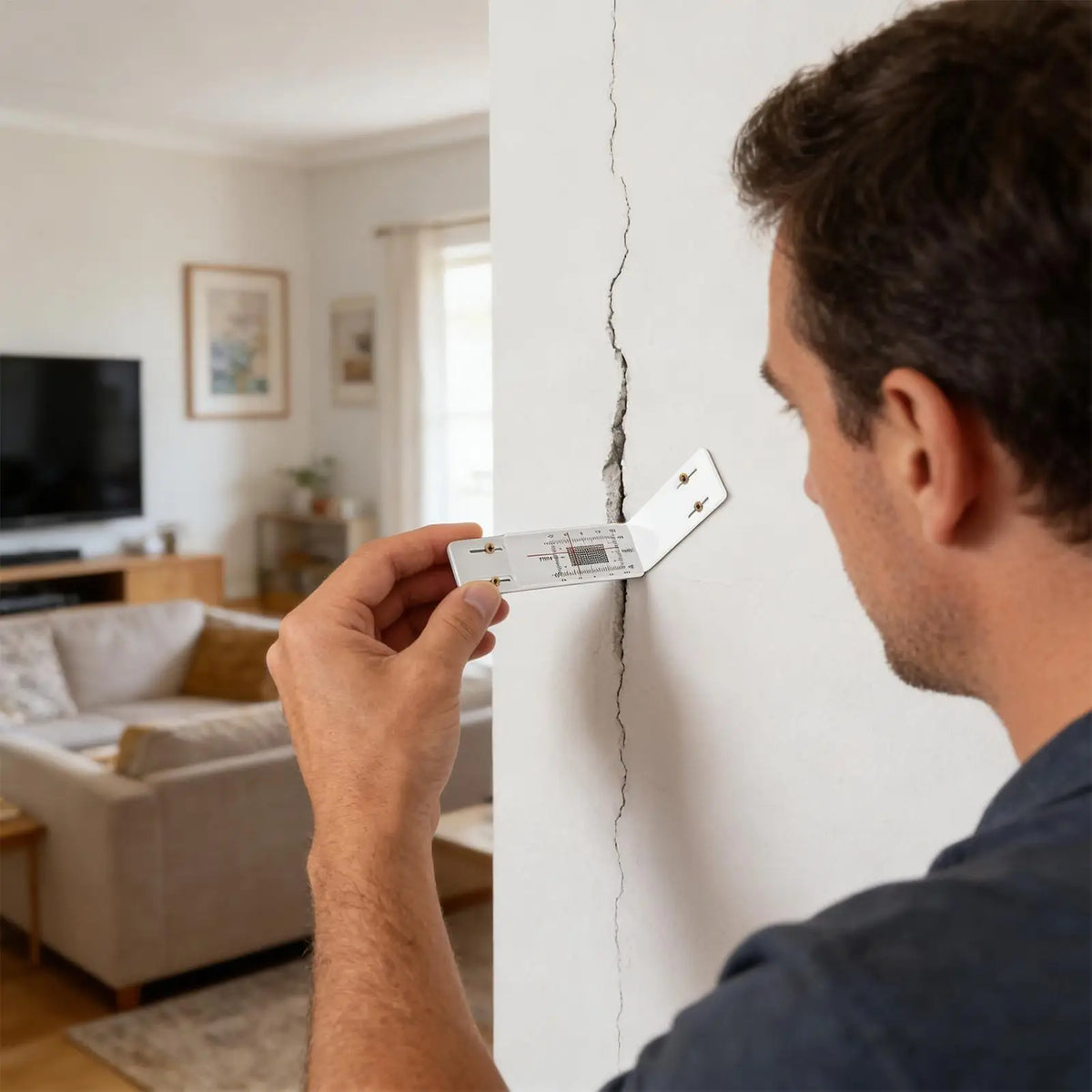

A: The crack gauge monitor is designed for use on building walls, concrete surfaces, and structural corners — both internal and external. Its L-shaped design makes it particularly effective for monitoring corner cracks and wall deformation in homes, commercial buildings, and other structures.
Q: Does the crack monitor require adhesive or special tools to install?
A: No adhesive is required. The monitor features an improved mounting column system that allows for secure, convenient fixation directly onto surfaces without glue, making installation quick and straightforward.
Q: How do I read the measurements on the crack gauge?
A: The monitor uses a high-resolution XY axis scale system printed on overlapping transparent acrylic plates. As a crack expands or shifts, you can read the displacement directly from the scale markings on both axes, giving you precise horizontal and vertical movement data over time.
Q: Is this crack monitor suitable for outdoor use?
A: Yes. The robust acrylic construction delivers reliable all-conditions performance, making the crack gauge suitable for both indoor and outdoor structural monitoring applications.
