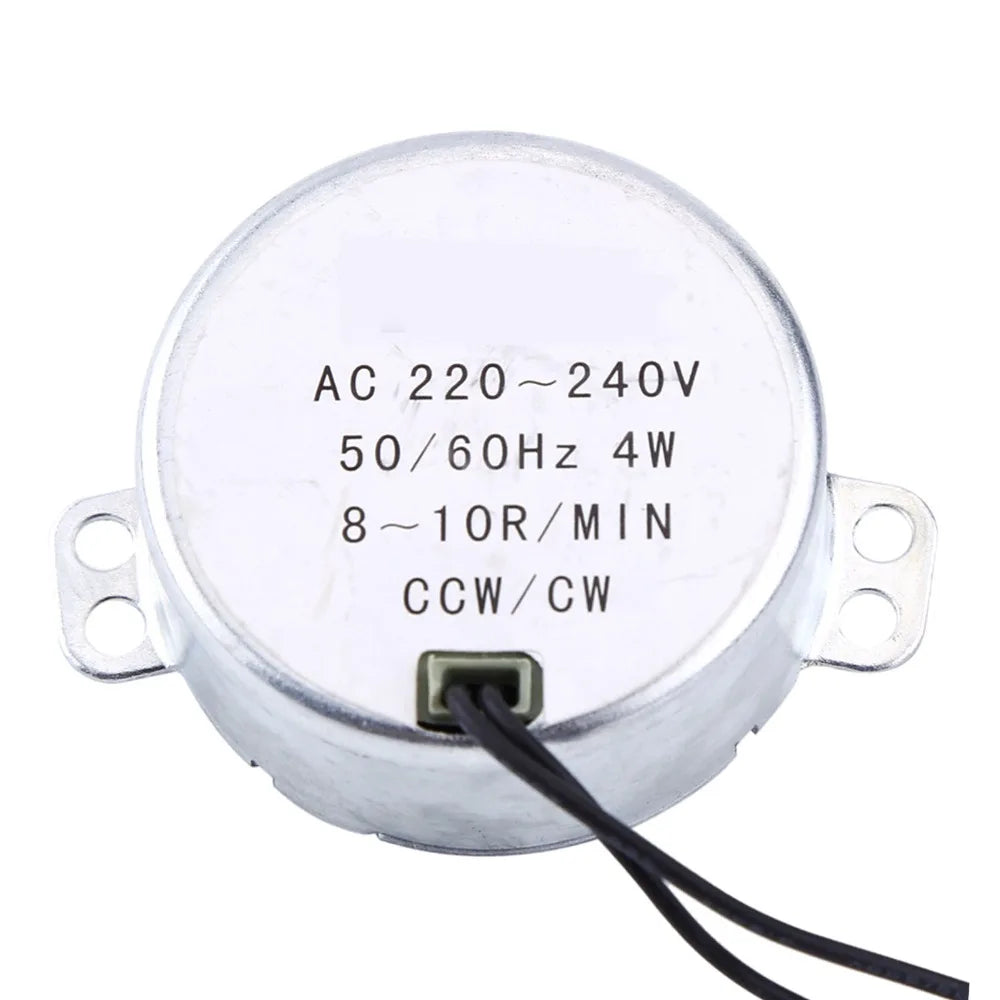

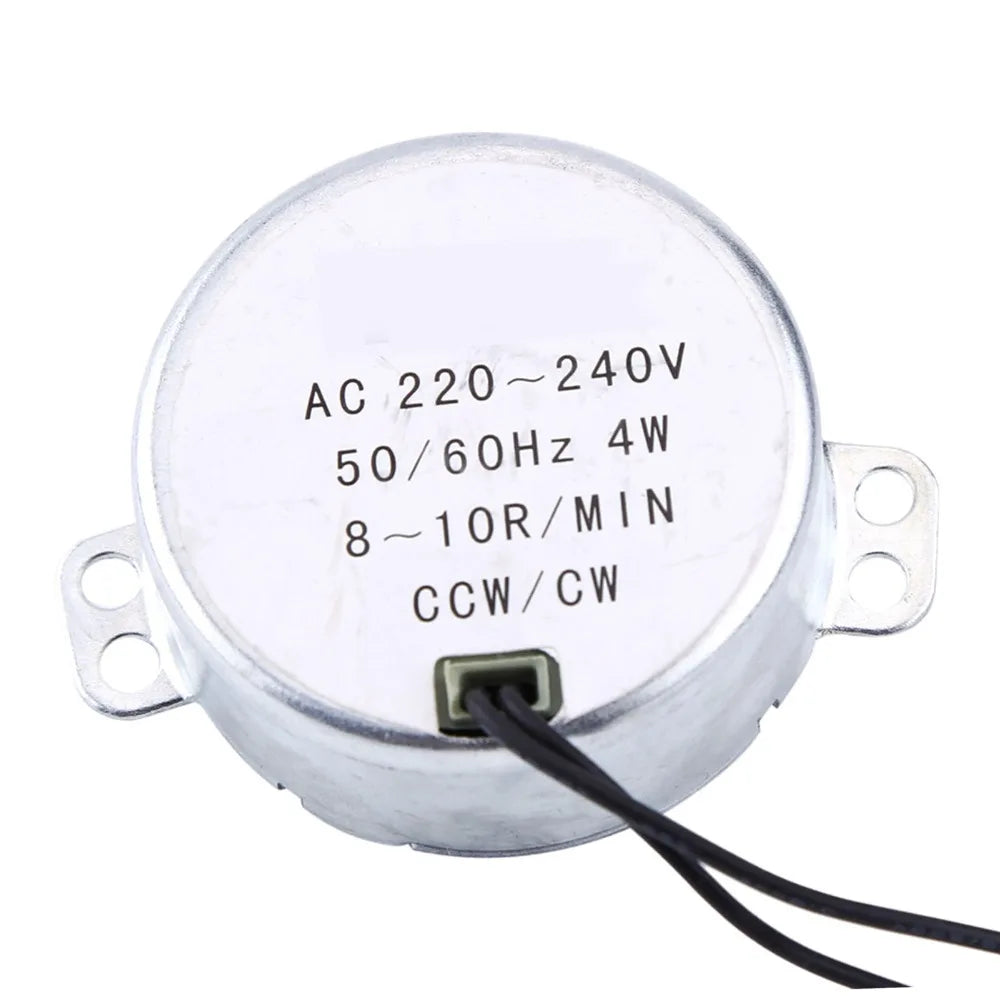

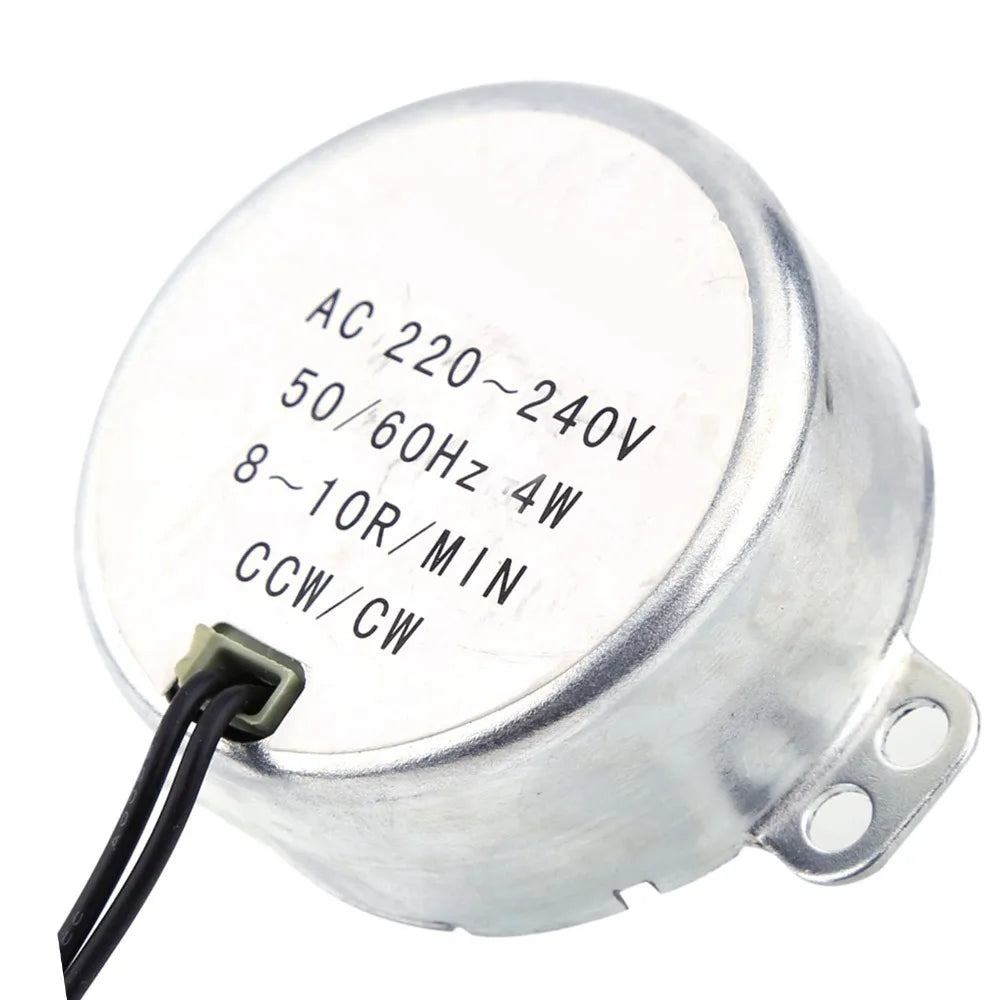

AC Synchronous Geared Motor – 4W | 220-240V | CW/CCW | 8-10RPM
This compact AC synchronous geared motor combines a permanent magnet synchronous motor with precision reduction gears, delivering reliable, low-noise torque in a lightweight metal housing. Whether you're building a DIY turntable, display stand, BBQ rotisserie, antenna rotator, or any slow-speed automation project, this motor offers stable, consistent output at a rated 8–10RPM.
Made in Mainland China.
Key Features

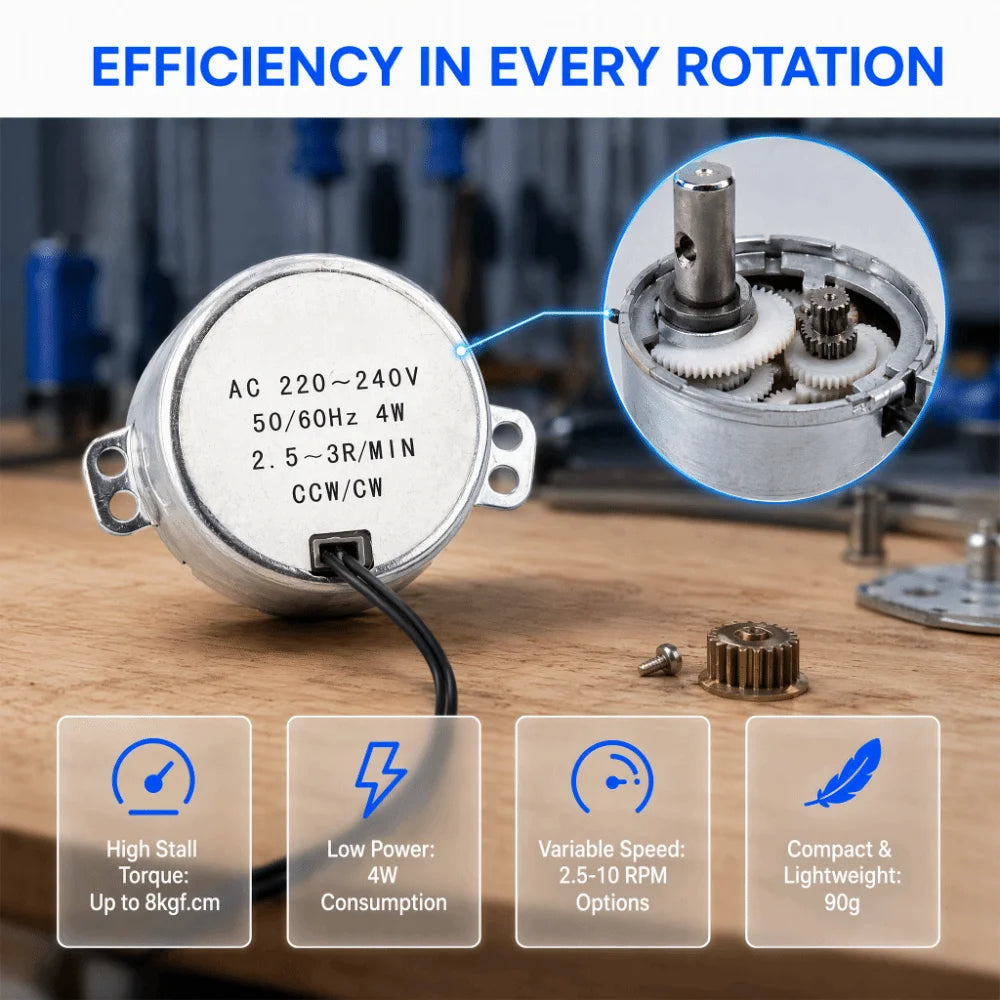

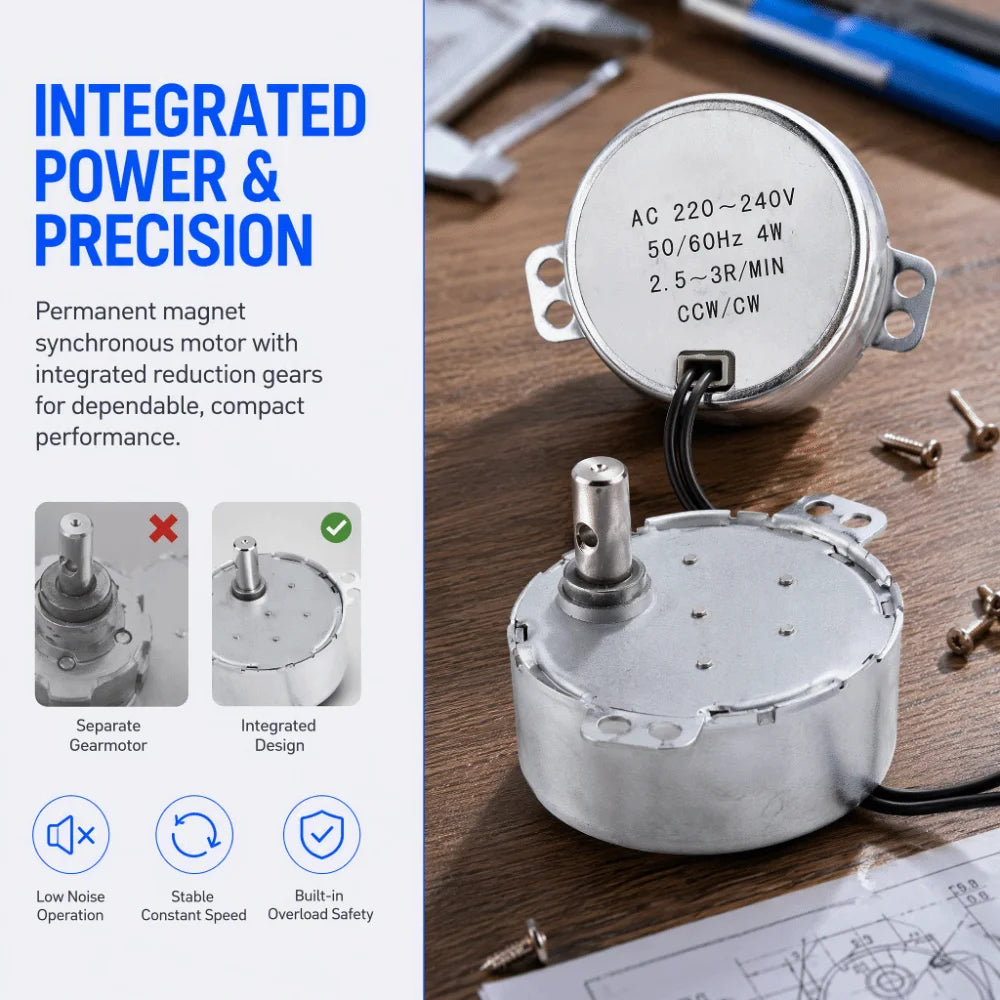

- Integrated Permanent Magnet Design: Combines a synchronous motor with reduction gears for dependable, compact performance.
- Efficient & Low Noise: Low energy consumption, high torque output, minimal noise, and a small, lightweight form factor — easy to mount and install.
- Stable Speed at Rated Frequency: Motor speed remains consistent under rated frequency and is not affected by voltage fluctuations.
- Overload-Safe Coil: The motor coil will not burn out if the shaft is stalled or overloaded, ensuring long-term durability in demanding applications.
- Flexible Rotation Modes: Supports clockwise (CW), counterclockwise (CCW), and auto-reversing modes — automatically reverses direction when a heavy load is encountered.
Specifications
| Voltage | AC 220–240V |
| Frequency | 50/60Hz |
| Rated Power | 4W |
| Revolving Speed | 8–10RPM (optional: 2.5–3RPM) |
| Stall Torque | 3 kgf·cm (8–10RPM) / 8 kgf·cm (2.5–3RPM) |
| Material | Metal |
| Color | Silver |
| Weight | ~90g |
What's in the Box
- 1 × AC Synchronous Geared Motor
Related Products You May Like
- 1PC 10g High Grade Silicon Grease Lubricant for O-Rings & Mechanical Parts
- 3PCS Silicone Sealant Scraper Set – Multi-Functional DIY Tool
- 1PC Multi-Use Faucet Bubbler Wrench Set – 6 Sizes
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage does this AC synchronous geared motor require?
A: This motor is designed to run on AC 220–240V at 50/60Hz frequency, making it compatible with standard mains power supplies in Europe, the UK, Australia, and many other regions worldwide.
Q: Can I change the rotation direction of this synchronous motor?
A: Yes. This motor supports clockwise (CW), counterclockwise (CCW), and auto-reversing rotation modes. The auto-reversing mode automatically switches direction when it encounters a large load, providing extra versatility for various applications.
Q: Is this motor safe to use if the shaft gets blocked or stalled?
A: Absolutely. The motor coil is designed to withstand stall or overload conditions without burning out, making it a reliable choice even in scenarios where the shaft may occasionally be obstructed.
Q: What are common applications for this geared synchronous motor?
A: This 4W synchronous geared motor is widely used in DIY projects such as rotating display stands, turntables, BBQ rotisseries, slow-moving conveyors, antenna rotators, clock mechanisms, and other low-speed automation builds that require steady, consistent torque.
