9-Port PWM ARGB Fan Hub Splitter with Remote for PC Case
9-Port PWM ARGB Fan Hub Splitter with Remote for PC Case

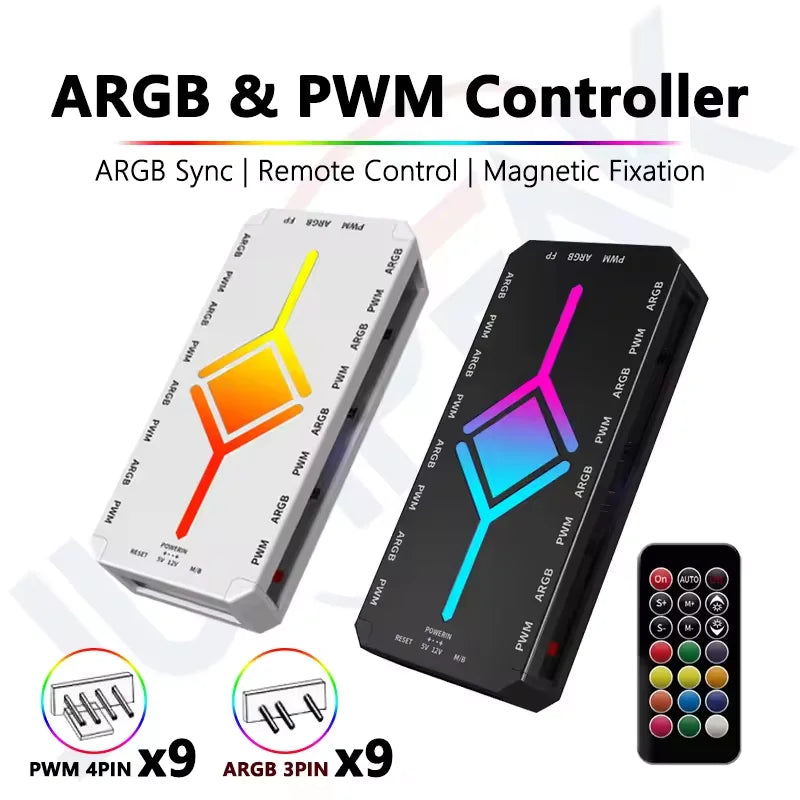

9-Port PWM & ARGB Fan Hub with Wireless Remote — Take Full Control of Your PC Build
Upgrade your PC's cooling and lighting in one shot. This 3-in-1 PWM & ARGB Fan Hub supports up to 9 fans simultaneously, combining intelligent PWM temperature control, full ARGB synchronization, and a wireless remote — all powered by a stable SATA connection and mounted tool-free via a magnetic base.
Key Features
- 9 × 4-Pin PWM + 9 × 3-Pin ARGB Interfaces: Connect up to 9 fans at once for maximum airflow and full addressable RGB lighting across your entire case.
- Intelligent PWM Temperature Control: When PWM mode is active on your motherboard, fan speeds automatically adjust based on CPU temperature — ramping up when things heat up and dialing back when the system is cool, keeping noise to a minimum.

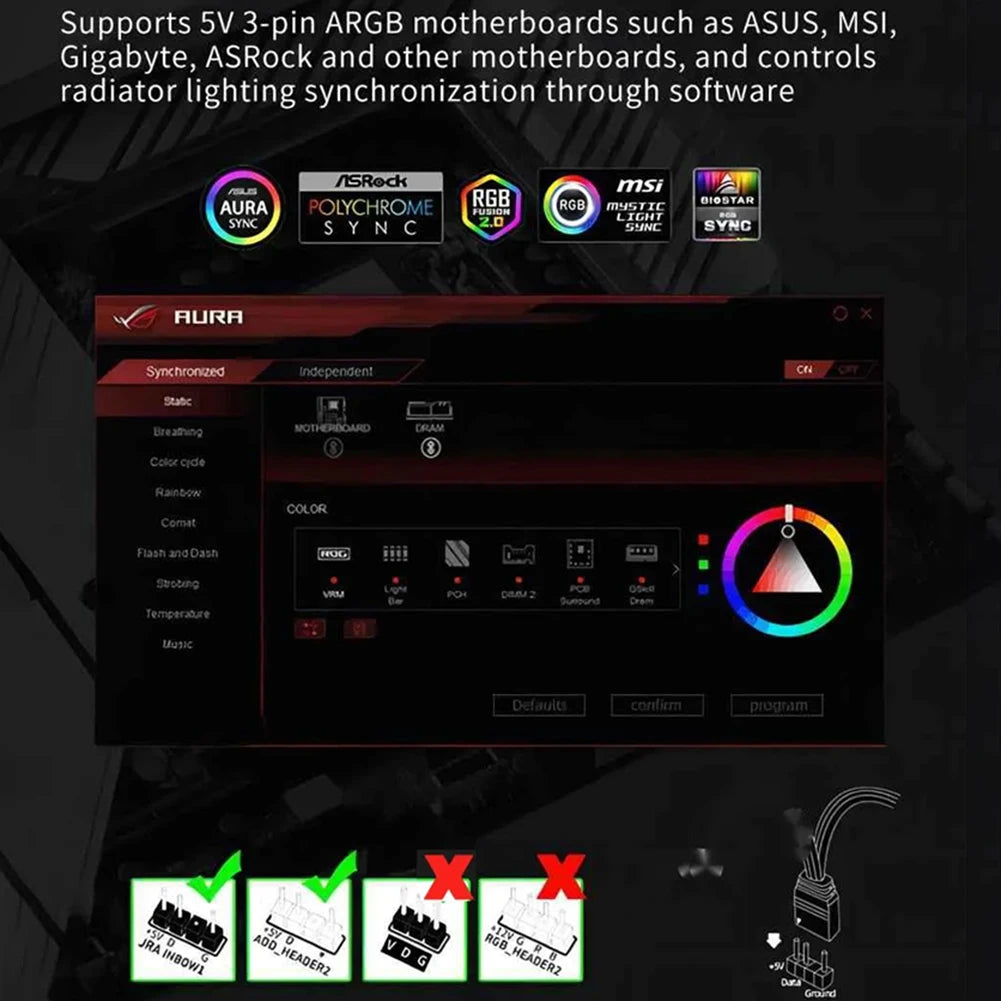

- ARGB Motherboard Sync: Compatible with ASUS AURA, MSI Mystic Light, Gigabyte RGB Fusion, and ASRock Polychrome via the 5V 3-Pin ARGB header. Synchronize all your lighting effects — flowing lights, mosaic patterns, static colors, and more — directly through your motherboard's software.
- Wireless Remote with 360+ Lighting Effects: No ARGB header on your motherboard? No problem. The included wireless remote lets you switch modes, turn lights on/off, adjust brightness, and control fan speed independently — offering over 360 built-in lighting presets.

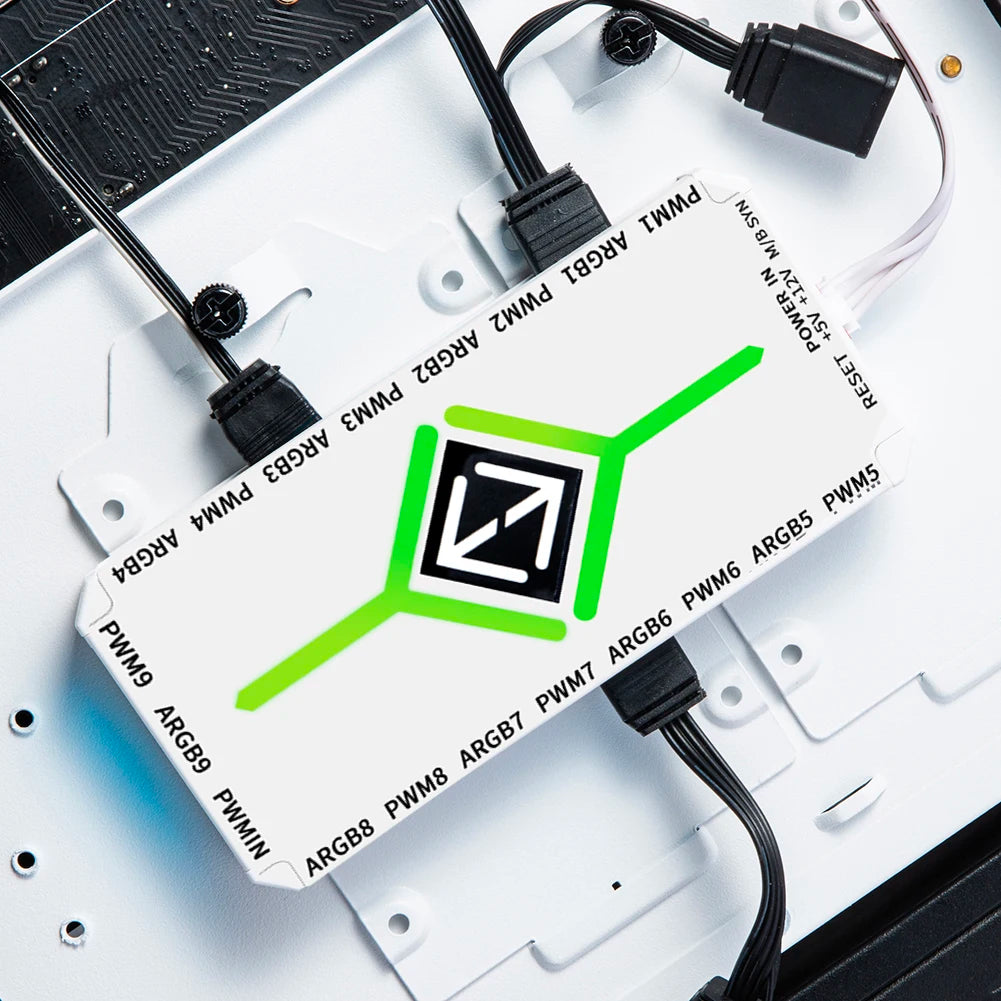

- Magnetic Tool-Free Installation: The magnetic base attaches instantly to any metal surface inside your case — no screws, no drilling, clean cable management every time.
- Stable SATA Power Supply: Draws power directly from your PSU via SATA, delivering up to 60W without placing any load on your motherboard — even under full system load.
- Premium Build Quality: Double-layered black PCB and durable ABS housing ensure long-term reliability and a clean look inside your rig.
Specifications

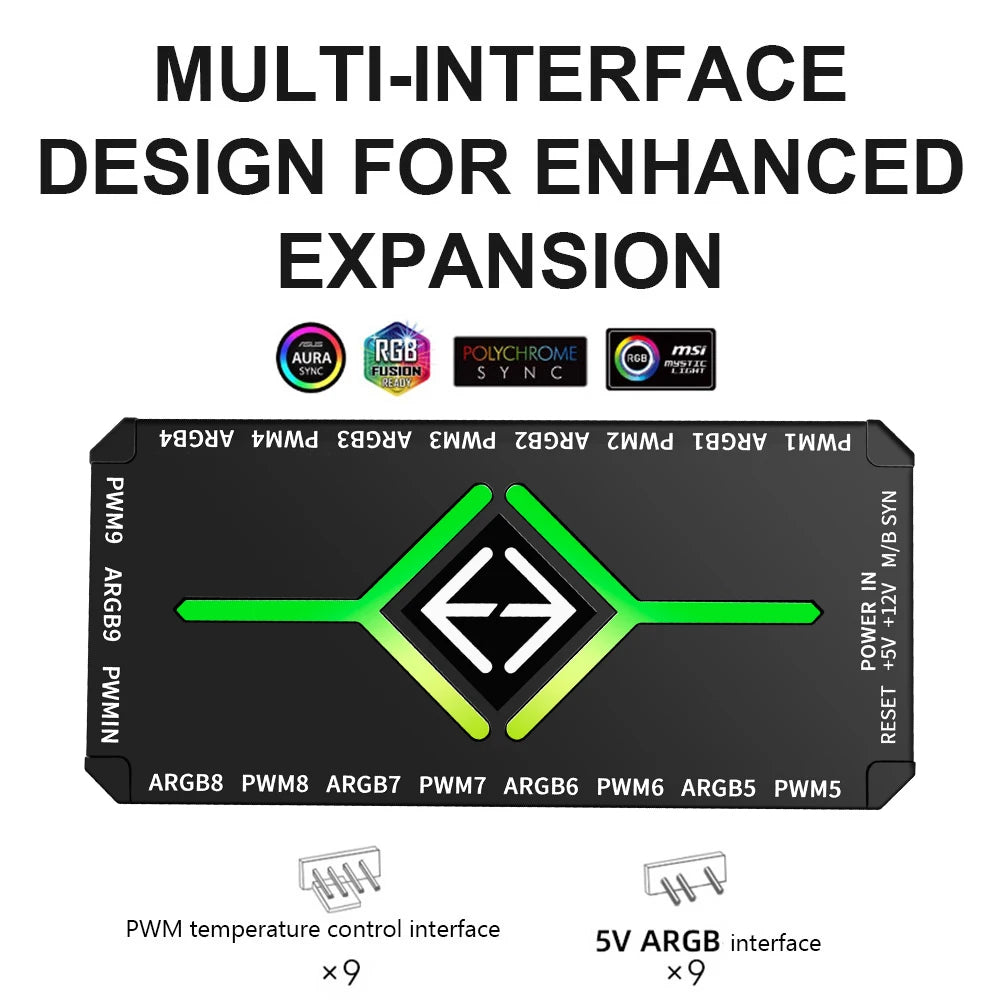

- Interfaces: 9 × 4-Pin PWM, 9 × 3-Pin ARGB
- Rated Voltage: 12V (fan motor) + 5V (LED lighting)
- Max Current: 10A
- Max Power: 60W

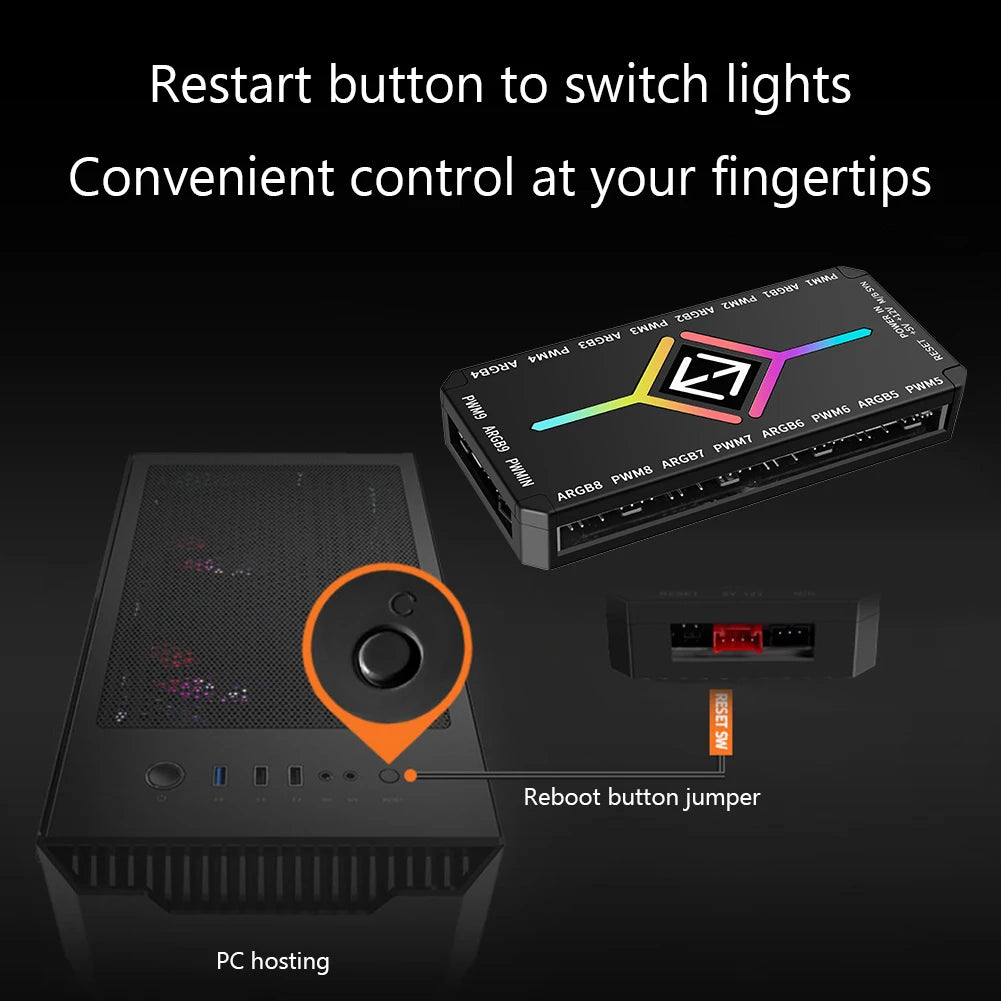

- Control Modes: PWM temperature control, motherboard 5V ARGB sync, wireless remote, motherboard restart button light switch
- Dimensions: 118 × 55 × 24 mm (4.65 × 2.17 × 0.94 in)
- Weight: ~0.12 kg
- Color Options: Black, White
- Material: ABS + Electronic Components
- Certification: CE
- Made in Mainland China

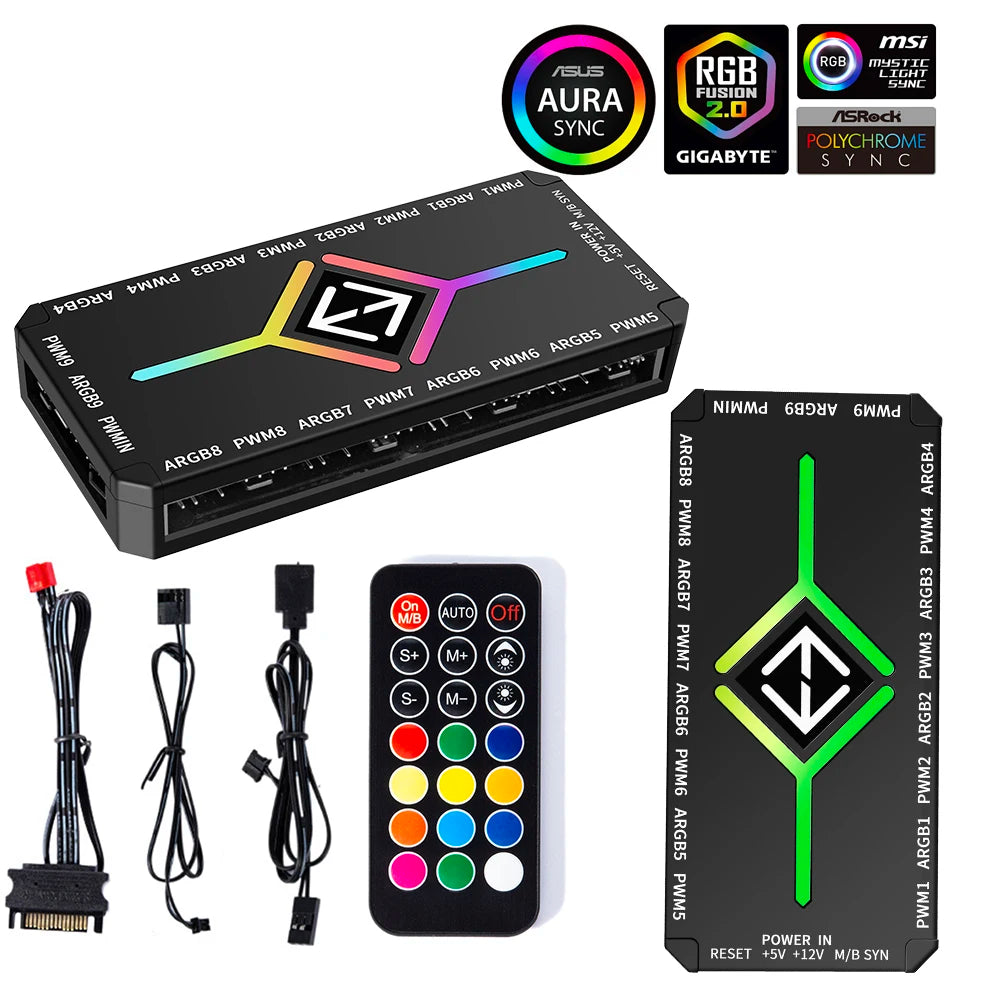

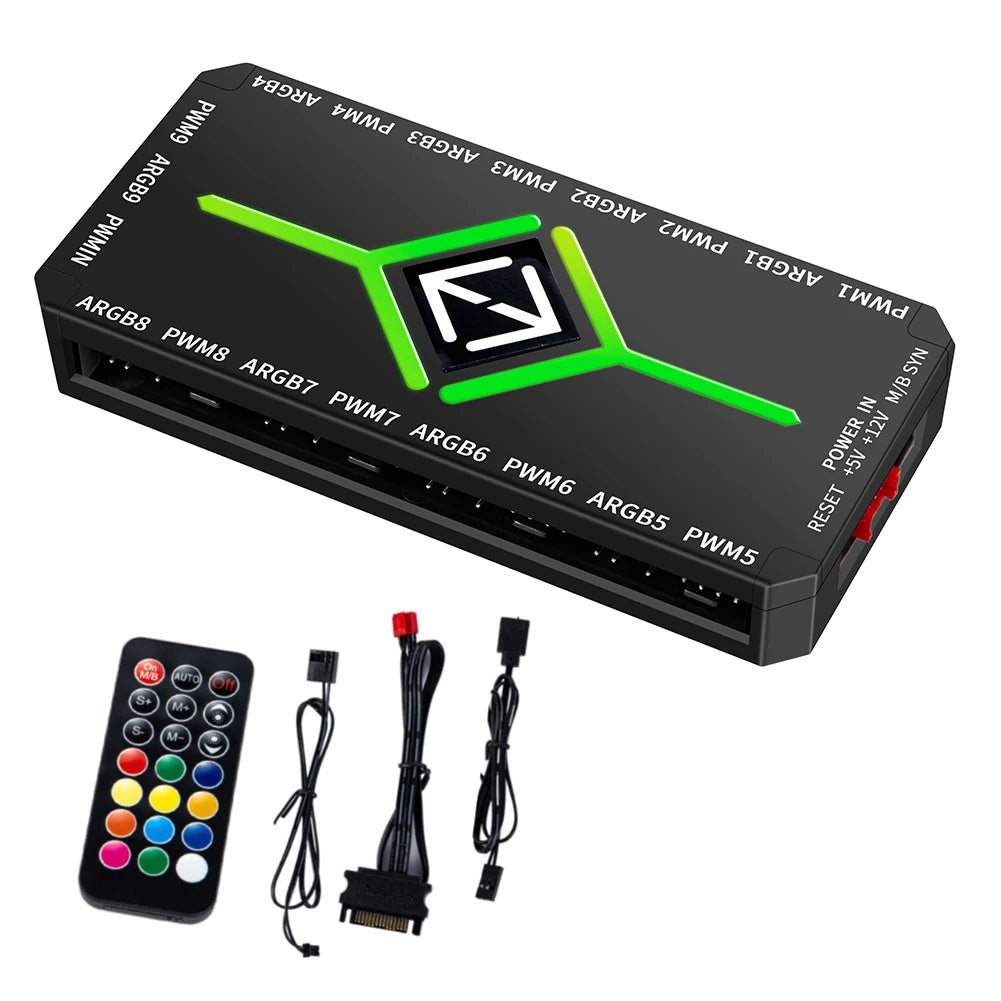

What's in the Box
- 1 × Fan Hub Controller
- 1 × Wireless Remote Control
- 1 × SATA Power Cable
- 1 × Motherboard Sync Cable
- 1 × PWM Temperature Control Signal Line
You May Also Like
Note: Due to differences in monitor calibration and lighting conditions, actual product color may vary slightly from images. Please allow ±1–2 cm measuring deviation due to manual measurement.
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: How many fans can I connect to this PWM ARGB fan hub at once?
A: This fan hub supports up to 9 fans simultaneously through its 9 × 4-Pin PWM and 9 × 3-Pin ARGB interfaces, making it ideal for high-airflow PC case builds with full addressable RGB lighting.
Q: Is this ARGB fan hub compatible with my motherboard?
A: Yes — it is compatible with major motherboard brands including ASUS (AURA Sync), MSI (Mystic Light), Gigabyte (RGB Fusion), and ASRock (Polychrome) via the 5V 3-Pin ARGB header. If your motherboard lacks an ARGB header, you can still control all lighting and fan speeds using the included wireless remote.
Q: Does this fan hub need to be screwed into the PC case?
A: No — it features a magnetic base that attaches tool-free to any metal surface inside your case, making installation quick and clean without any drilling or additional hardware.
Q: What power source does this PWM fan hub use?
A: It connects directly to your power supply unit via a standard SATA power cable, drawing up to 60W at 12V. This keeps the load off your motherboard even when all 9 fan ports are in use.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
