8A Rotary Knob LED Dimmer Switch DC 12V 24V – Flicker-Free
8A Rotary Knob LED Dimmer Switch DC 12V 24V – Flicker-Free
8A Adjustable Rotary Knob LED Dimmer Switch – DC 12V/24V
Take full control of your LED lighting with this smooth, reliable rotary knob dimmer. Whether you're setting the mood in your living room, fine-tuning under-cabinet task lighting, or managing brightness in a commercial display, this compact DC 12V–24V dimmer delivers seamless 0–100% stepless brightness adjustment at your fingertips.
Made in Mainland China.
Key Features
- Wide Compatibility: Supports 12–24V DC input with up to 8A maximum output. Compatible with most low-voltage LED strips, LED panel lights, under-cabinet lights, and other LED products — no extra adapters needed.
- Flame-Retardant ABS Housing: The main body is constructed from high-strength, flame-retardant ABS material offering excellent insulation, impact resistance, and high-temperature tolerance for safe long-term operation.

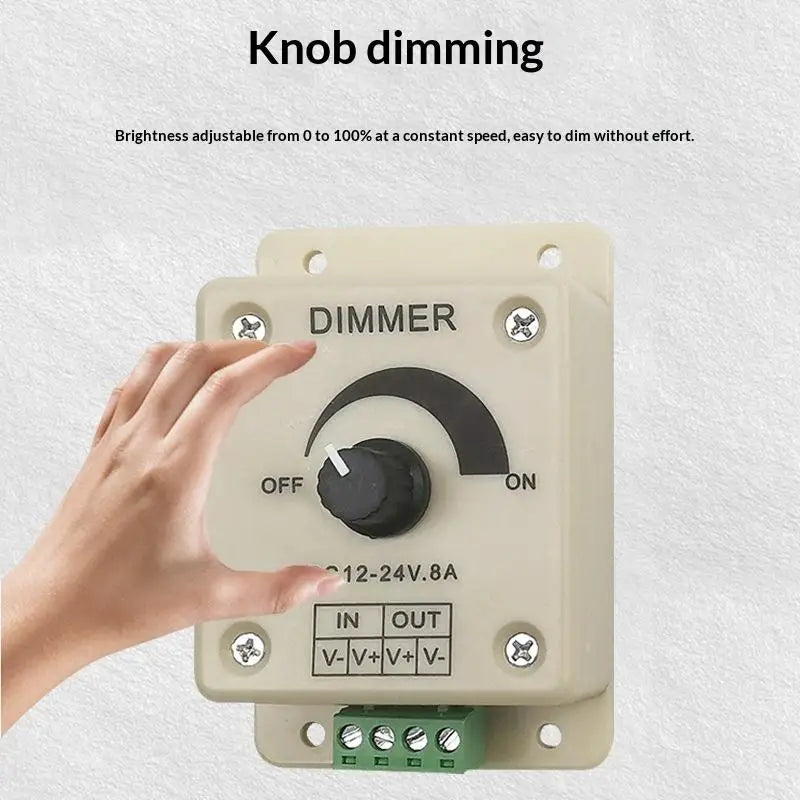

- Smooth Stepless Dimming: The non-slip, wear-resistant PVC control knob features proper rotation damping for effortless 0–100% brightness adjustment — set exactly the light level you need for any scenario.
- Stable Wiring Terminals: Tinned copper contacts on a flame-retardant PC terminal base ensure superior electrical conductivity, preventing loose connections and light flicker for a reliable installation.
- Flicker-Free PWM Technology: A built-in high-precision PWM dimming IC chip delivers stable, flicker-free brightness control — ideal for extended residential use and demanding commercial lighting environments.
- Easy Mounting: Integrated mounting base with pre-drilled holes and anti-rust coating allows simple installation on walls, cabinets, or flat surfaces — no professional tools required.
Specifications
| Input Voltage | DC 12V – 24V |
| Maximum Output Current | 8A |
| Dimming Range | 0–100% Stepless |
| Dimming Method | PWM (Pulse Width Modulation) |
| Housing Material | Flame-retardant ABS |
| Knob Material | Non-slip PVC |
| Terminal Material | Tinned copper contacts, flame-retardant PC base |

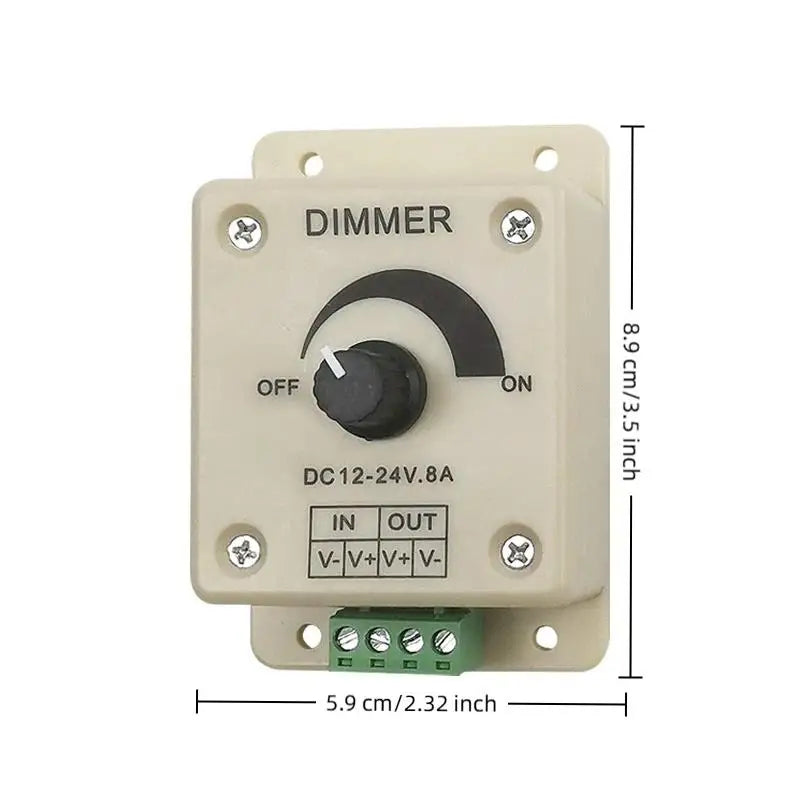

| Dimensions | Approx. 8 cm × 8 cm × 3.5 cm |
| Color | Beige body, black knob, green terminal block |
| Quantity | 1 piece per package |
Applications
Perfect for home ambient lighting, under-cabinet kitchen lighting, commercial showcase and retail display lighting, LED strip brightness control, bar and catering venue setups, and DIY lighting projects.
Related Products You May Like
- 1PC 10g High Grade Silicon Grease Lubricant – Ideal for Smooth Electrical Connections
- 1PC Exhaust Duct Interface Pipe Hose Connector – For Home Installation Projects
- 3PCS Silicone Sealant Scraper Set – Multi-Functional Home Renovation Tool
Note: Please allow slight differences due to manual measurement. Colors may vary slightly between monitors and the actual product.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What types of LED lights is this rotary knob dimmer compatible with?
A: This LED dimmer switch is compatible with most low-voltage DC 12V–24V LED products, including single-color LED strips, LED panel lights, under-cabinet LED lights, and other LED lighting systems with a maximum load of 8A. It is not designed for AC-powered or mains-voltage lighting.
Q: Does this LED dimmer cause flickering when adjusting brightness?
A: No. This dimmer uses a high-precision PWM (Pulse Width Modulation) IC chip that provides stable, flicker-free brightness control across the full 0–100% dimming range, making it comfortable for prolonged use in both home and commercial settings.

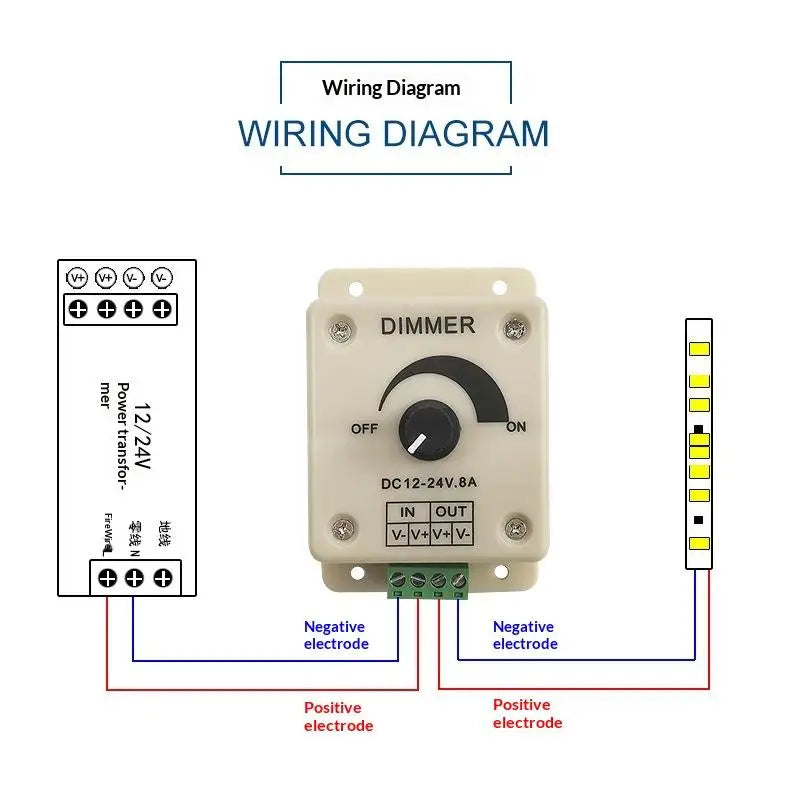

Q: How is this LED dimmer switch installed?
A: Installation is straightforward. The integrated mounting base features pre-drilled holes with an anti-rust coating, allowing you to secure it to a wall, cabinet, or any flat surface using standard screws. The screw-terminal connections are clearly labeled, and no specialized professional tools are required.
Q: Can I use this dimmer with a 24V LED strip and a 12V LED strip interchangeably?
A: Yes. The dimmer supports both 12V and 24V DC inputs, so you can use it with either voltage system as long as the total load does not exceed 8A. Simply connect your LED strip and power supply of the matching voltage.
