775-P16 Dual Hall Magnet Encoder for 775 DC Gear Motor

$16.11 $19.32

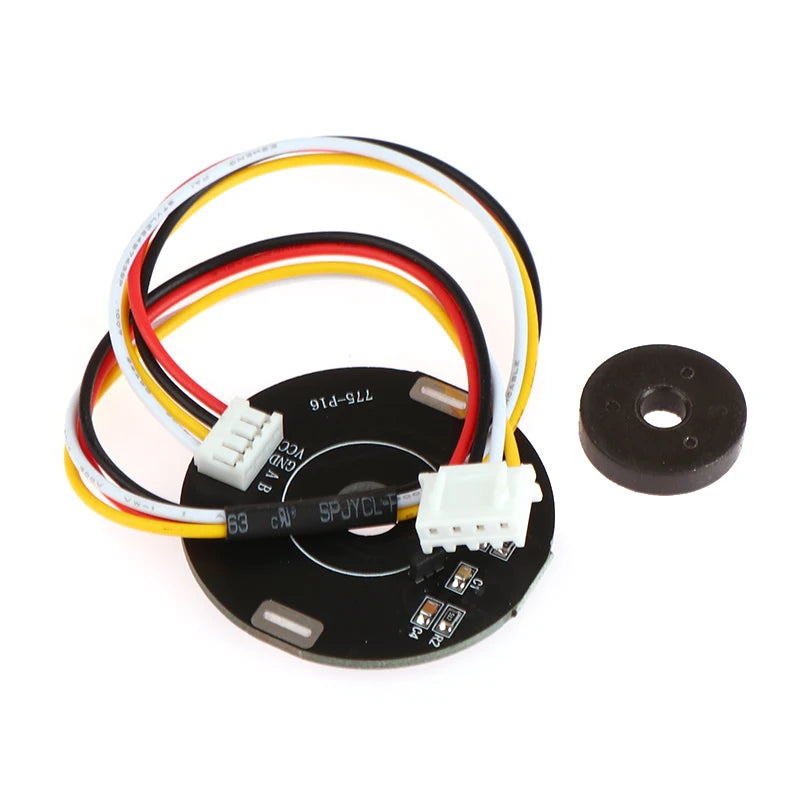

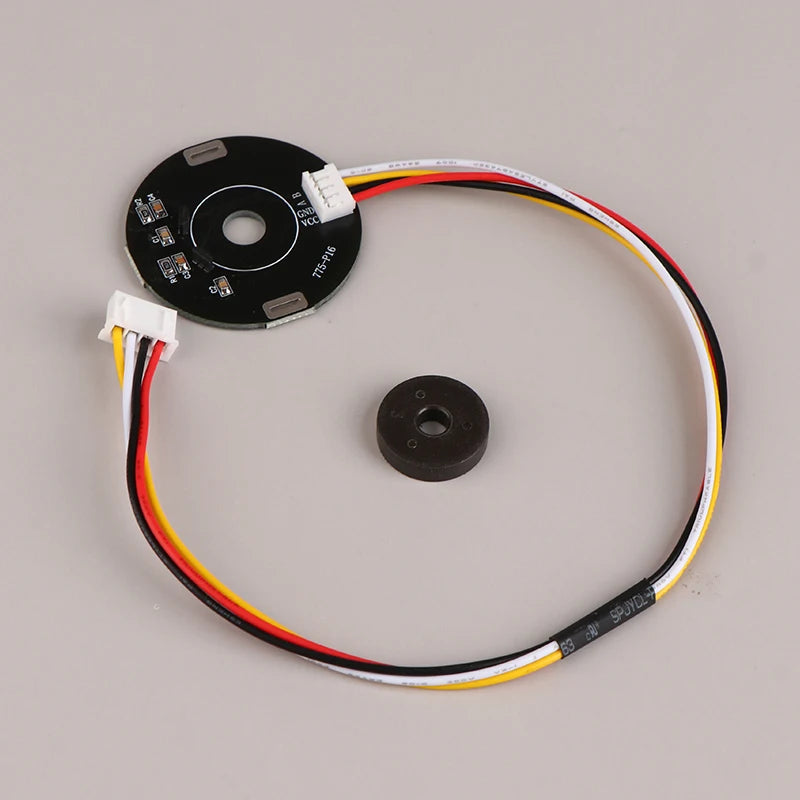

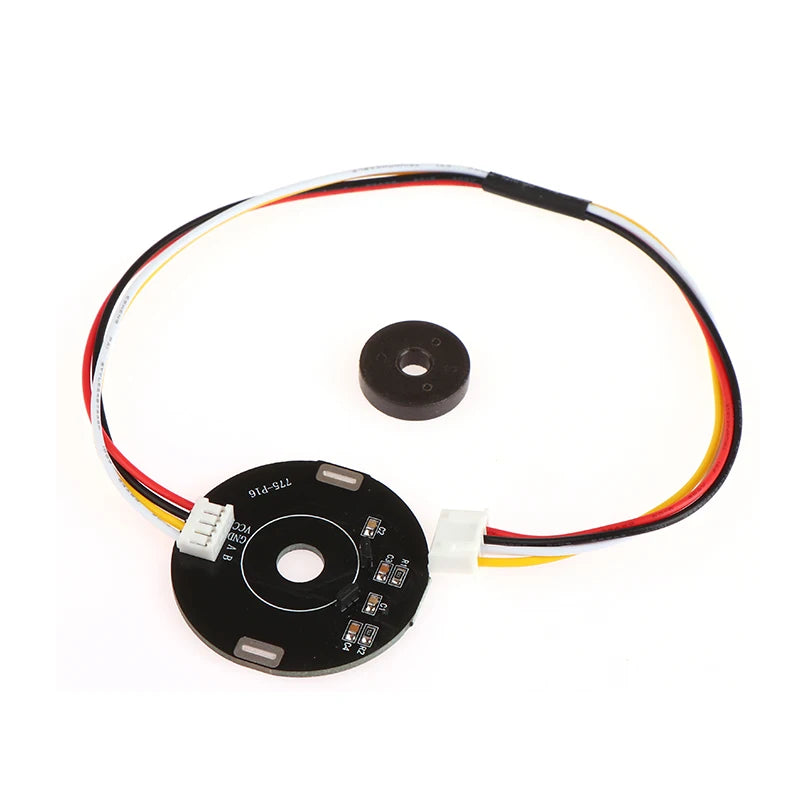

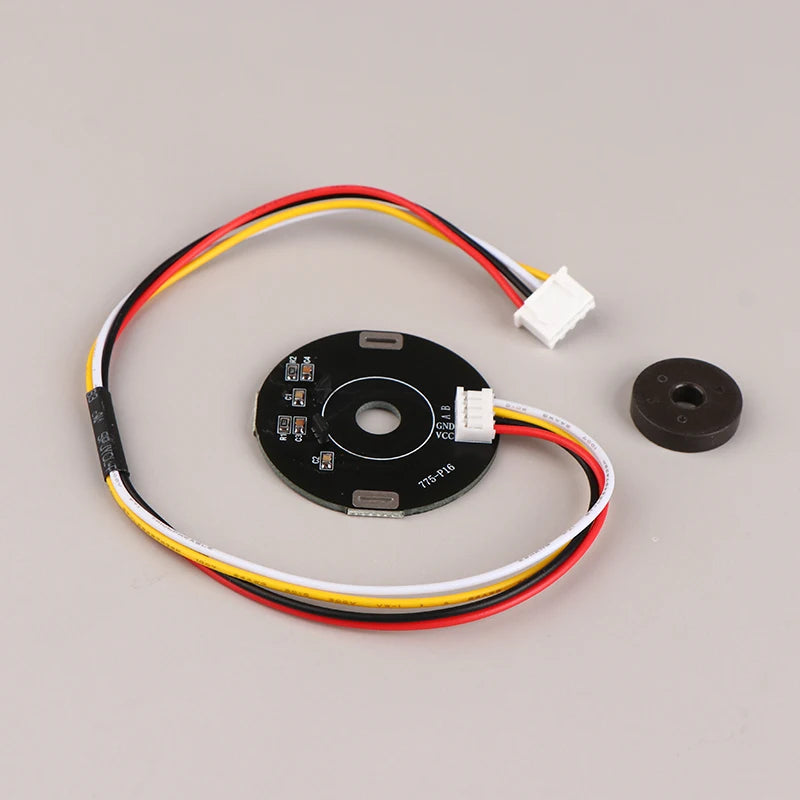

775-P16 Double Hall Magnet Encoder – Precise Speed & Direction Sensing for 775 DC Gear Motors

Upgrade your 775 DC gear motor setup with this high-quality 775-P16 Dual Hall Magnetic Encoder. Featuring a magnetic induction code plate with dual Hall effect sensors, this encoder accurately detects rotation speed and direction, making it ideal for robotics, automation projects, DIY motor control systems, and precision motion feedback applications.

Key Specifications

Working Voltage: 5V DC
Working Temperature: -20°C to 80°C
Working Frequency: 100 kHz

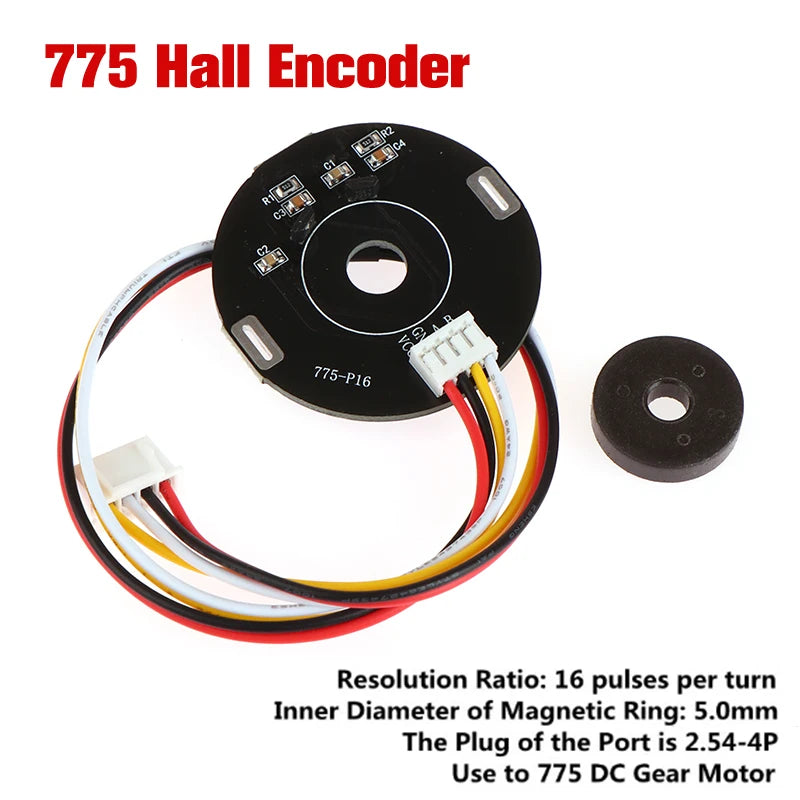

Resolution: 16 pulses per revolution

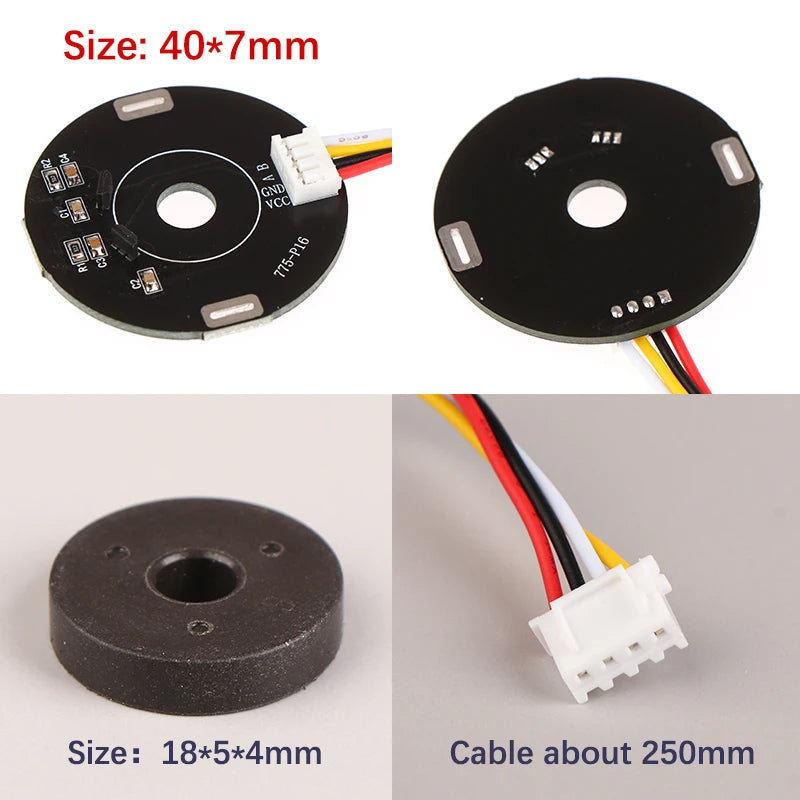

Inner Diameter of Magnetic Ring: 5.0 mm
Connector: 2.54-4P plug port
Compatible With: 775 DC Gear Motor
Package Includes: 1× Hall Encoder Module

Why Choose This Encoder?

Dual Hall Sensors: Detects both rotation speed and direction for comprehensive motor feedback
Magnetic Induction Technology: Non-contact sensing for long-lasting, reliable performance
Plug-and-Play Design: Standard 2.54-4P connector for easy integration with microcontrollers and motor drivers
Wide Temperature Range: Operates reliably from -20°C to 80°C, suitable for varied environments
Compact & Lightweight: Designed to fit directly onto 775 DC gear motors without modification

Ideal For

Robotics and automation systems
DIY CNC and motion control projects
Speed and direction feedback loops
Arduino, Raspberry Pi, and other microcontroller platforms

Made in Mainland China.

Note: Due to manual measurement, please allow a tolerance of 1–3 mm. Actual product color may vary slightly from images due to differences in monitor calibration.

Frequently Asked Questions

Q: Is this Hall encoder compatible with all 775 DC gear motors?

A: This 775-P16 dual Hall magnet encoder is specifically designed for standard 775 DC gear motors. The magnetic ring has an inner diameter of 5.0 mm to fit the motor shaft. Please verify your motor shaft diameter before purchasing to ensure a proper fit.

Q: What connector type does this encoder use?

A: The encoder uses a standard 2.54-4P plug connector, which is widely compatible with most microcontroller breakout boards, motor driver modules, and development platforms such as Arduino and Raspberry Pi.

Q: What is the resolution of this encoder and why does it matter?

A: The 775-P16 encoder provides 16 pulses per revolution. This resolution is suitable for general-purpose speed monitoring and direction detection in robotics, automation, and DIY motion control projects where moderate positional feedback accuracy is required.
