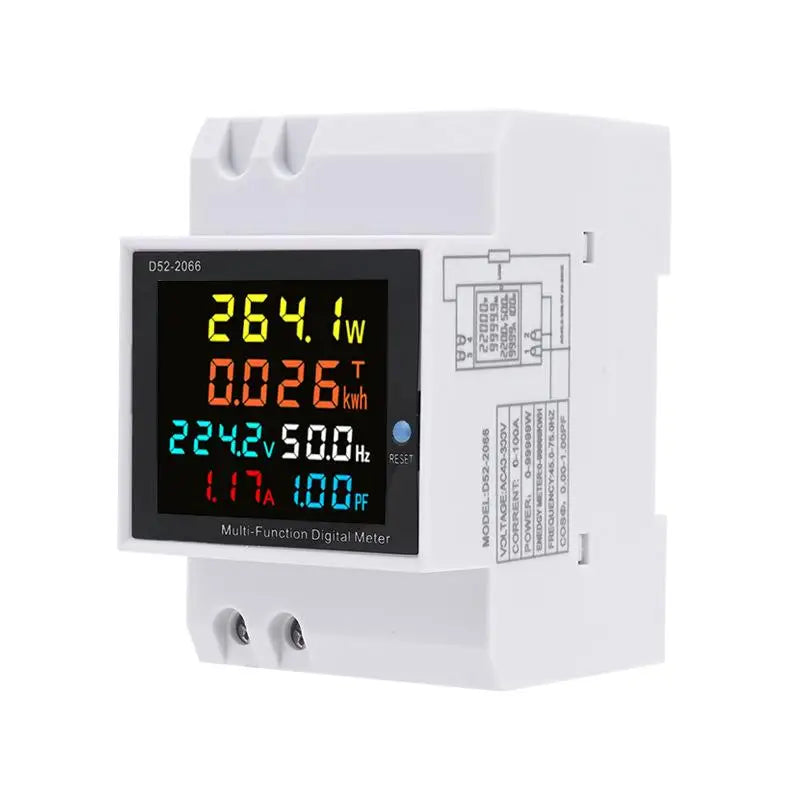

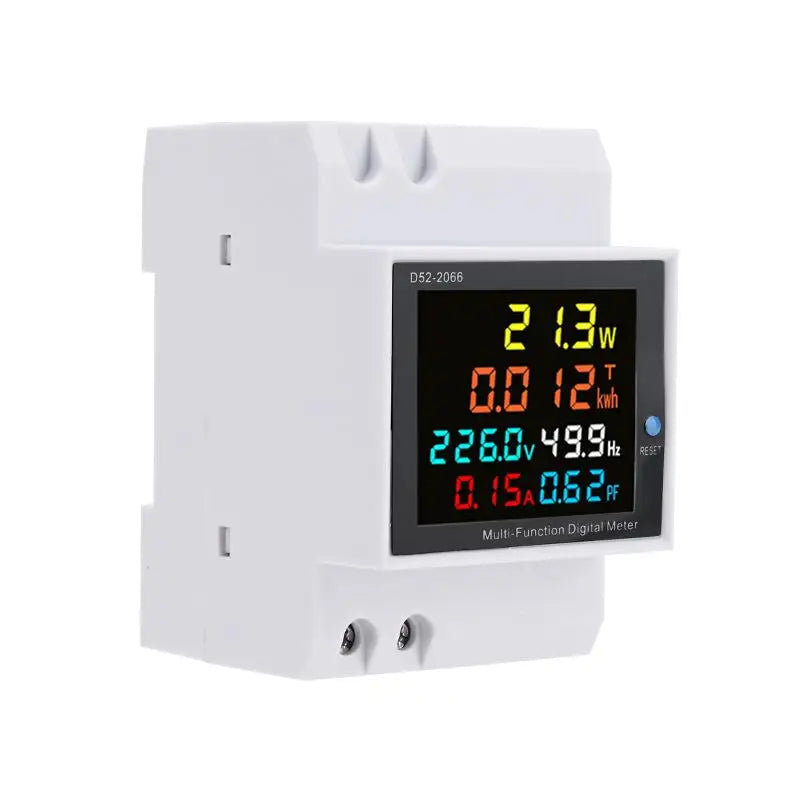

6-in-1 DIN Rail AC Electric Energy Meter — Complete Power Monitoring in One Device

Take full control of your electrical system with this compact, high-precision 6-in-1 DIN Rail AC Energy Meter. Simultaneously monitor voltage, current, power, energy (KWH), frequency, and power factor on a single bright LED display — eliminating the need for multiple instruments and saving valuable time in residential, commercial, and industrial settings.

Made in Mainland China.

Key Features

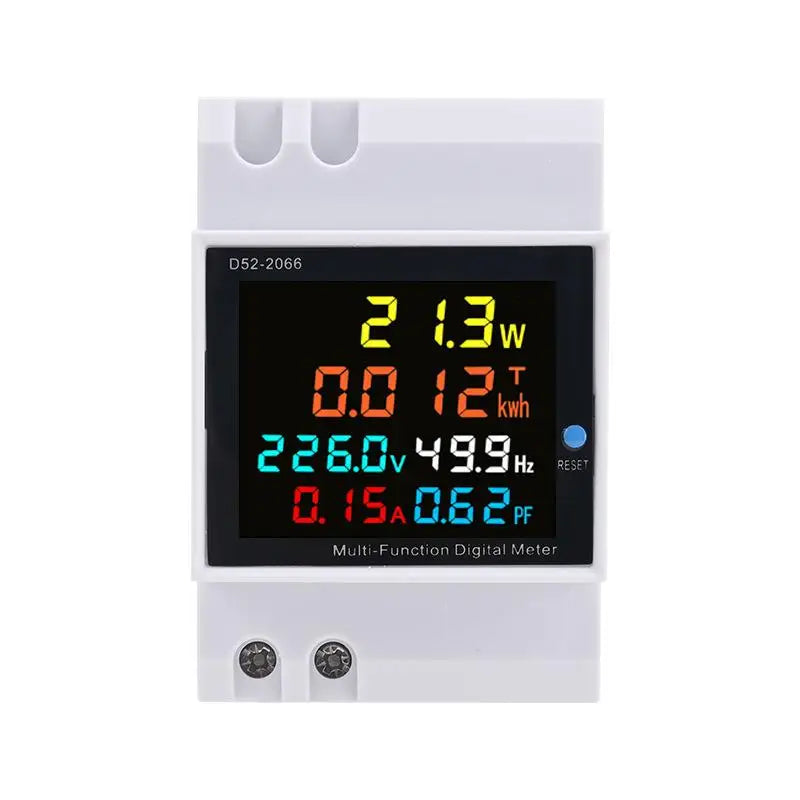

  • High-Visibility LED Display: High-contrast, low-power LED digital display with an anti-glare surface coating. All six parameters are readable at a glance even under bright ambient light, reducing data-collection errors.
  • Flame-Retardant ABS Housing: Engineered ABS plastic shell rated for high-temperature environments, resisting electric arc spread and minimizing fire risk from short circuits or overload conditions — safe for both household and commercial distribution boards.
  • ±0.5% High-Precision Measurement: Built-in manganin shunt sampling sensor keeps measurement error within 0.5%, delivering highly reliable power data to help you pinpoint high-energy-consuming equipment and optimize electricity usage.

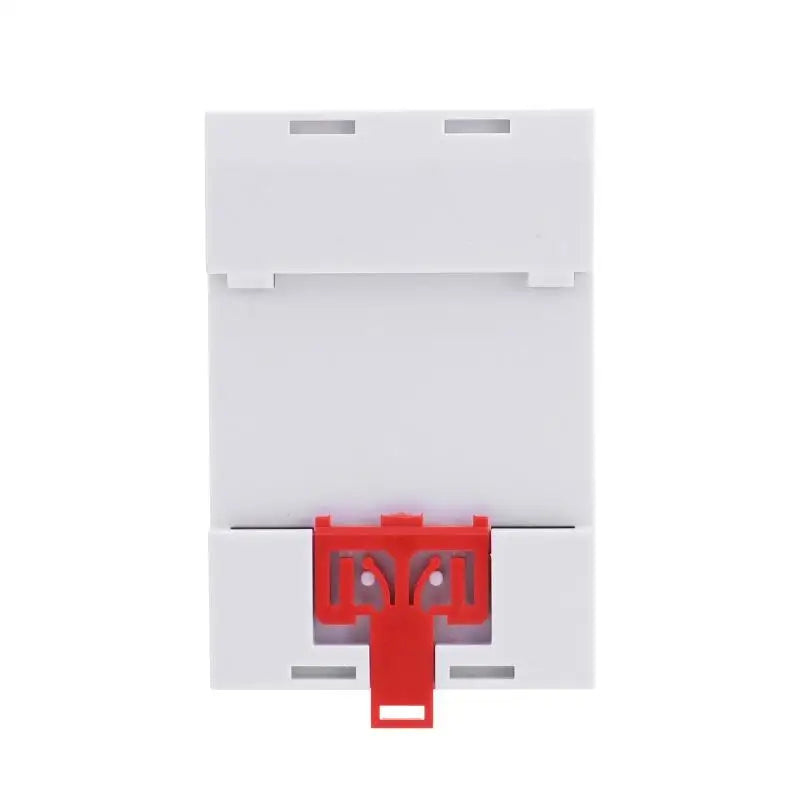

  • Tool-Free Quick Installation: Standard 35 mm DIN rail buckle structure with clearly marked wiring terminals. Mounts inside distribution boxes in minutes — no specialist tools required.
  • Non-Volatile Energy Memory & Reset: Independent non-volatile storage chip retains accumulated KWH data through unexpected power outages. A single press of the physical reset button clears historical records whenever needed — no complex configuration.

Specifications

Voltage Range AC 40 – 300 V
Current Range 0 – 100 A
Parameters Measured Voltage, Current, Power, Energy (KWH), Frequency, Power Factor
Measurement Accuracy ≤ ±0.5%
Shunt Type Manganin Shunt Sampling Sensor
Housing Material Flame-Retardant ABS Engineering Plastic
Mounting 35 mm Standard DIN Rail
Data Storage Non-Volatile Memory with Physical Reset Button
Battery Required No
Package Contents 1 × Energy Meter Unit
Origin Mainland China

Applications

  • Residential energy consumption monitoring
  • Industrial distribution box parameter detection
  • Office building energy management
  • Photovoltaic (solar) power system monitoring
  • Electrical equipment safety testing

Important Notes

  • Product images are for illustration purposes; please refer to specifications for exact dimensions.
  • Minor measurement differences may occur due to manual measurement tolerances.
  • Screen color may vary slightly from the actual product due to monitor differences.

You May Also Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What parameters does this 6-in-1 DIN rail energy meter measure simultaneously?

A: This multi-function power meter monitors six parameters at once: AC voltage (40–300 V), current (0–100 A), active power (Watts), accumulated energy (KWH), frequency (Hz), and power factor — all shown on a single LED display in real time.

Q: Does the energy meter retain KWH data after a power outage?

A: Yes. The meter uses a built-in non-volatile memory chip to permanently store accumulated energy data even when power is lost unexpectedly. You can also reset the stored data at any time using the physical reset button on the unit.

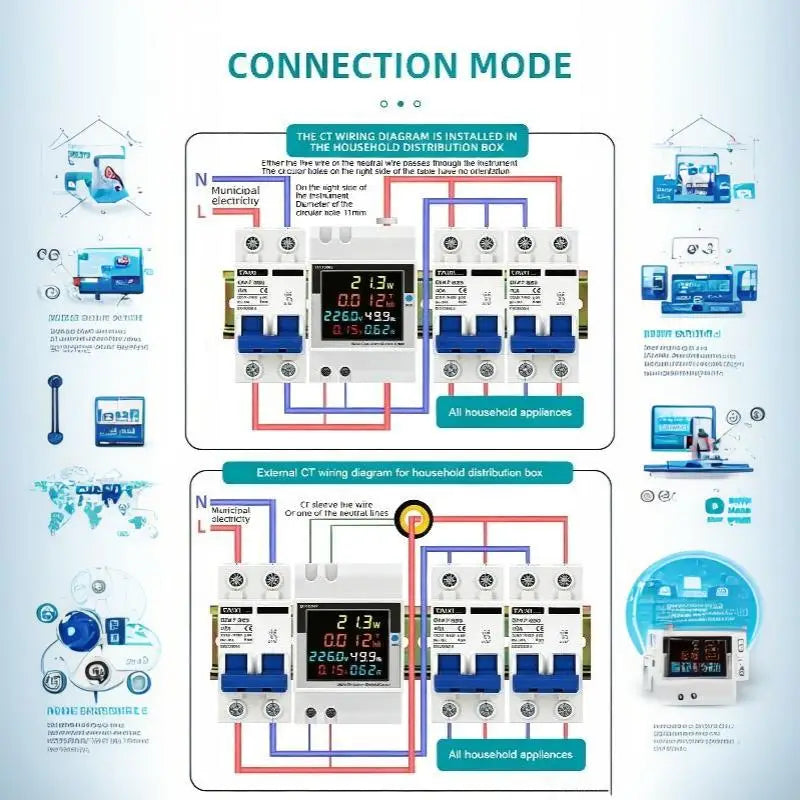

Q: How do I install this energy meter in a distribution box?

A: Installation is tool-free and straightforward. Simply clip the meter onto a standard 35 mm DIN rail using the integrated buckle mechanism, then connect your wiring to the clearly labeled terminals. Most users complete mounting and wiring in just a few minutes.

Q: Is this meter suitable for solar / photovoltaic system monitoring?

A: Yes. The wide voltage range of AC 40–300 V and high-precision ±0.5% measurement accuracy make it well suited for monitoring photovoltaic power systems, as well as residential, commercial, and industrial electrical distribution boards.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
