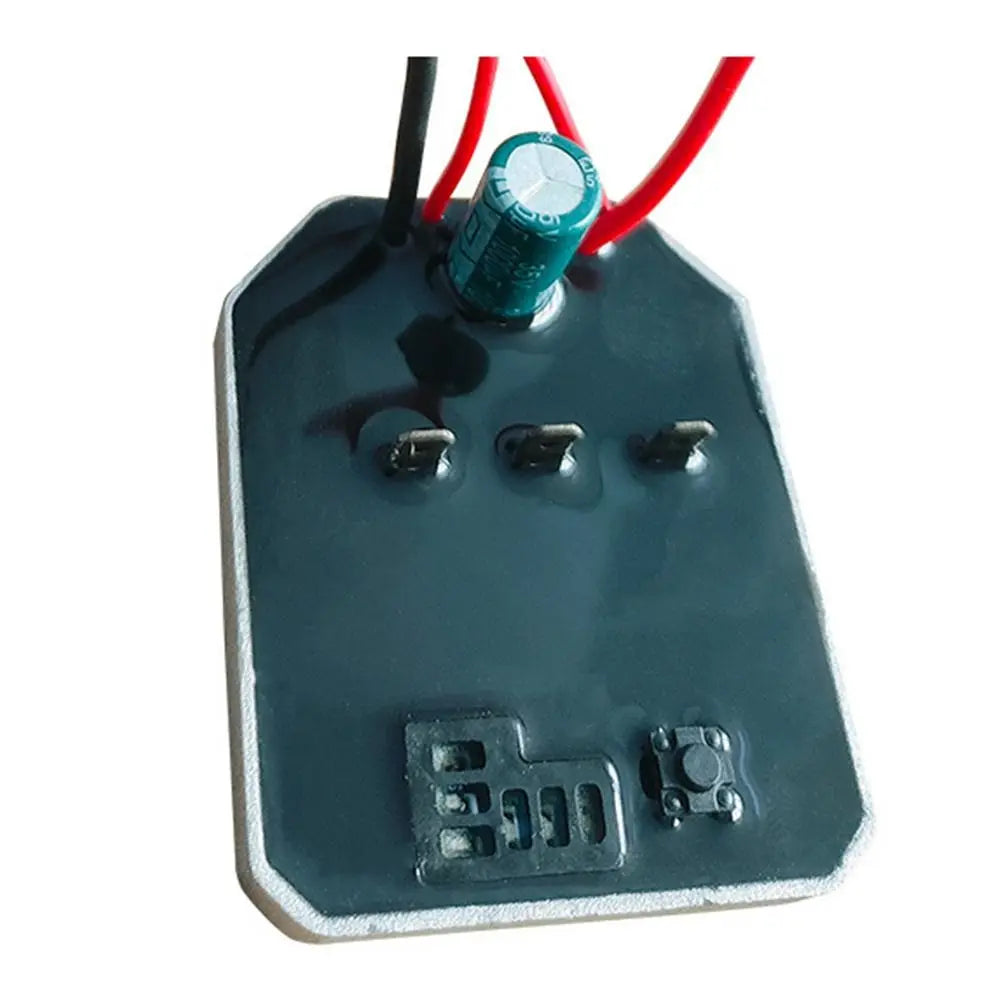

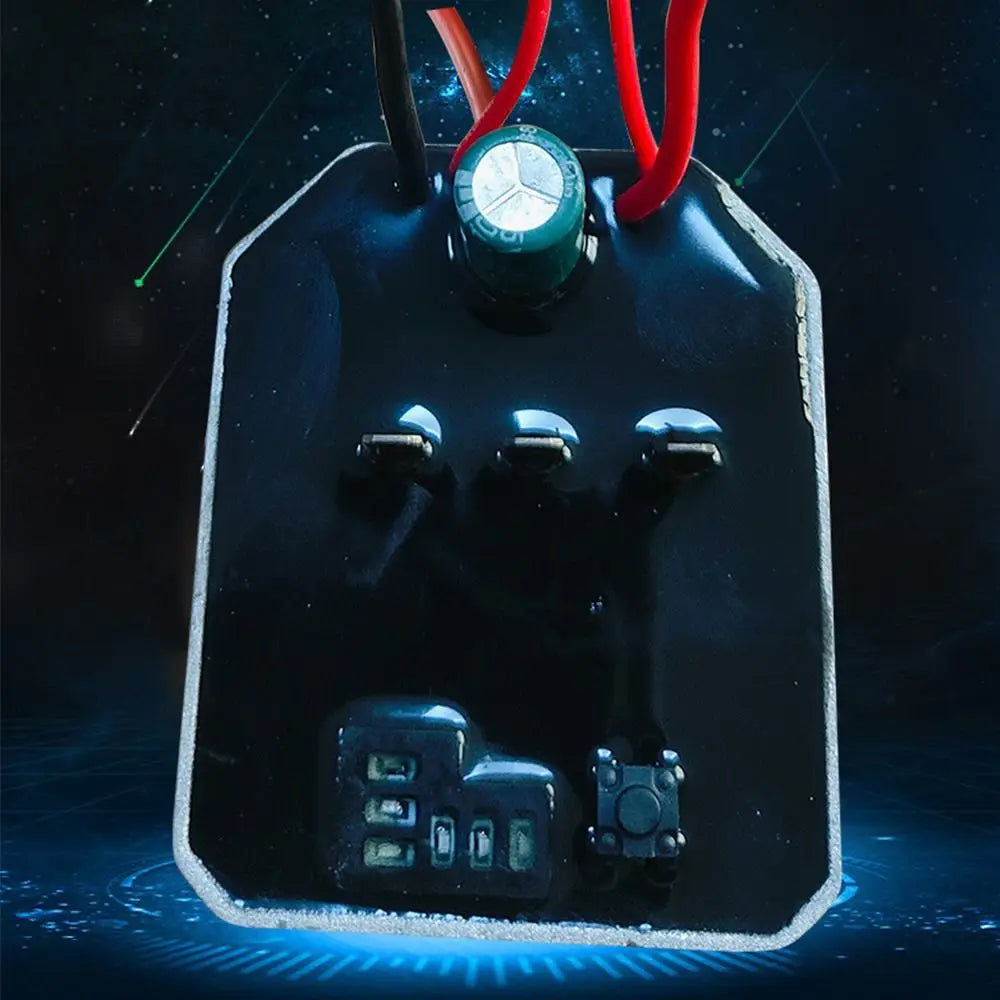

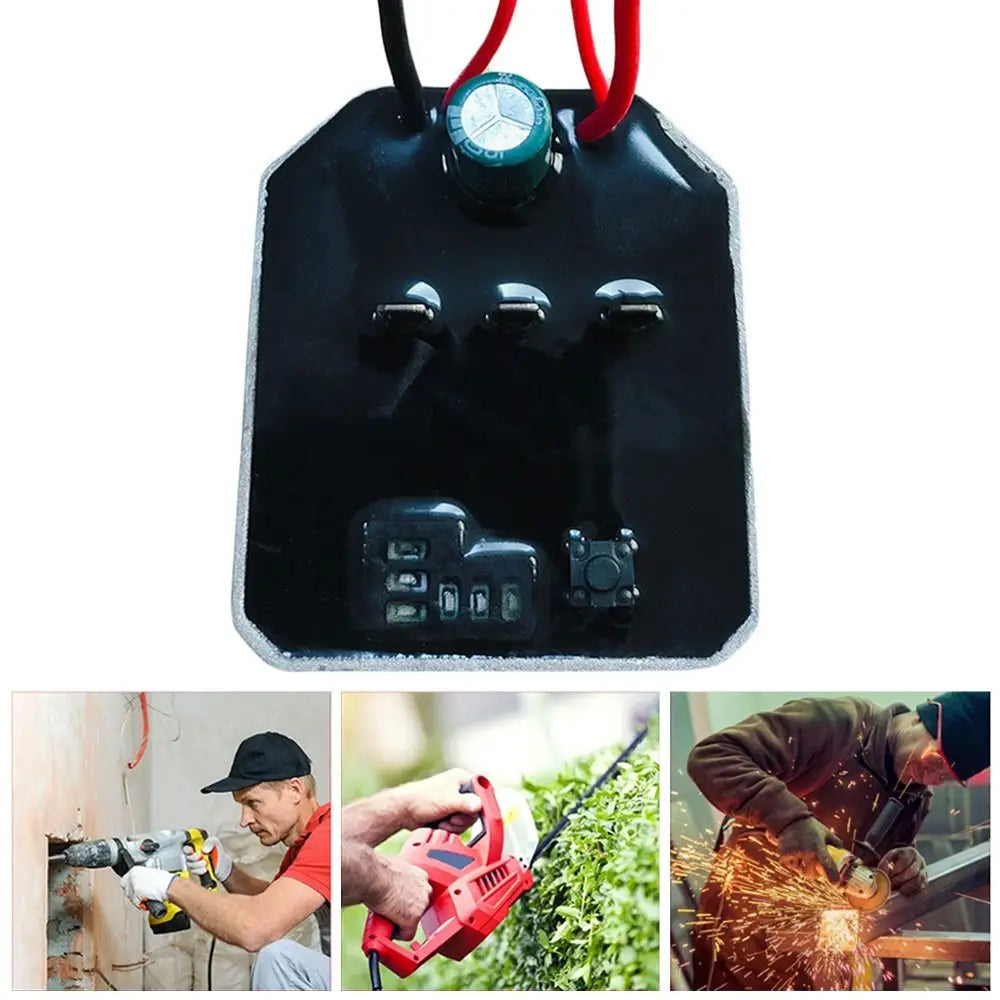

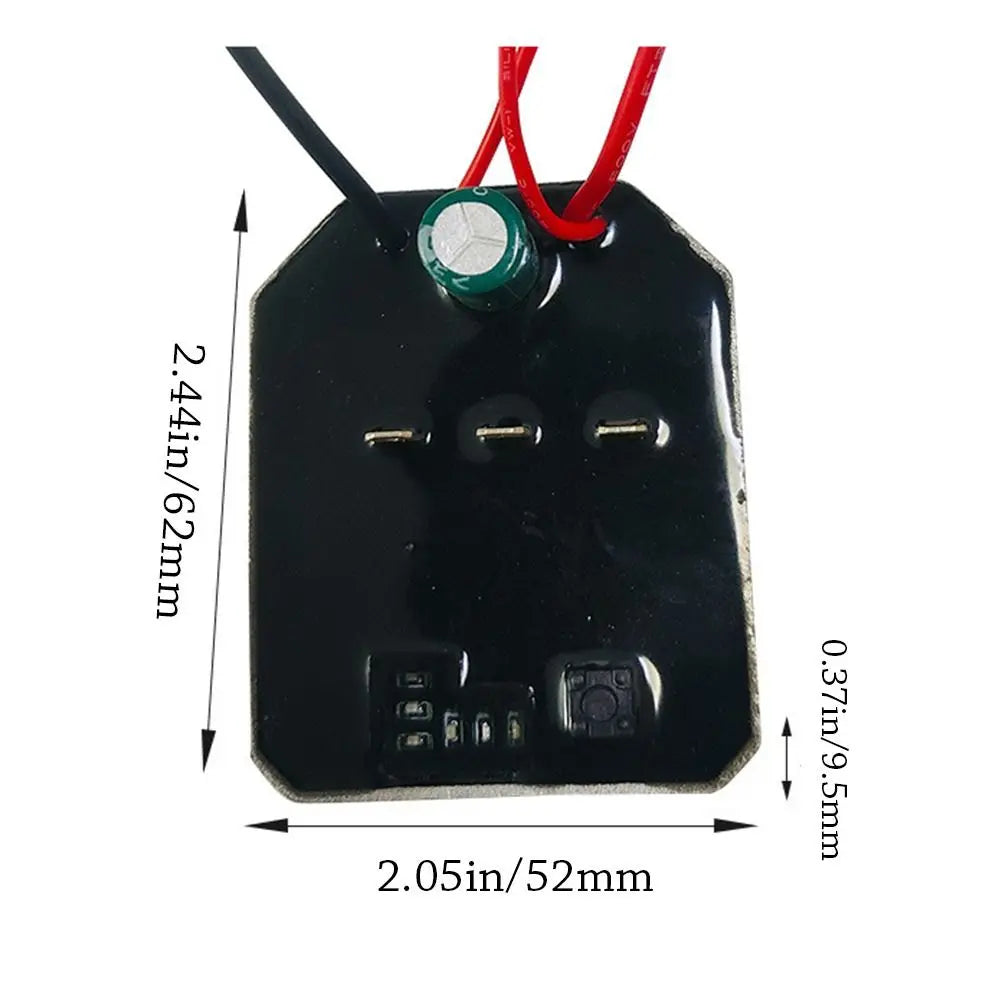

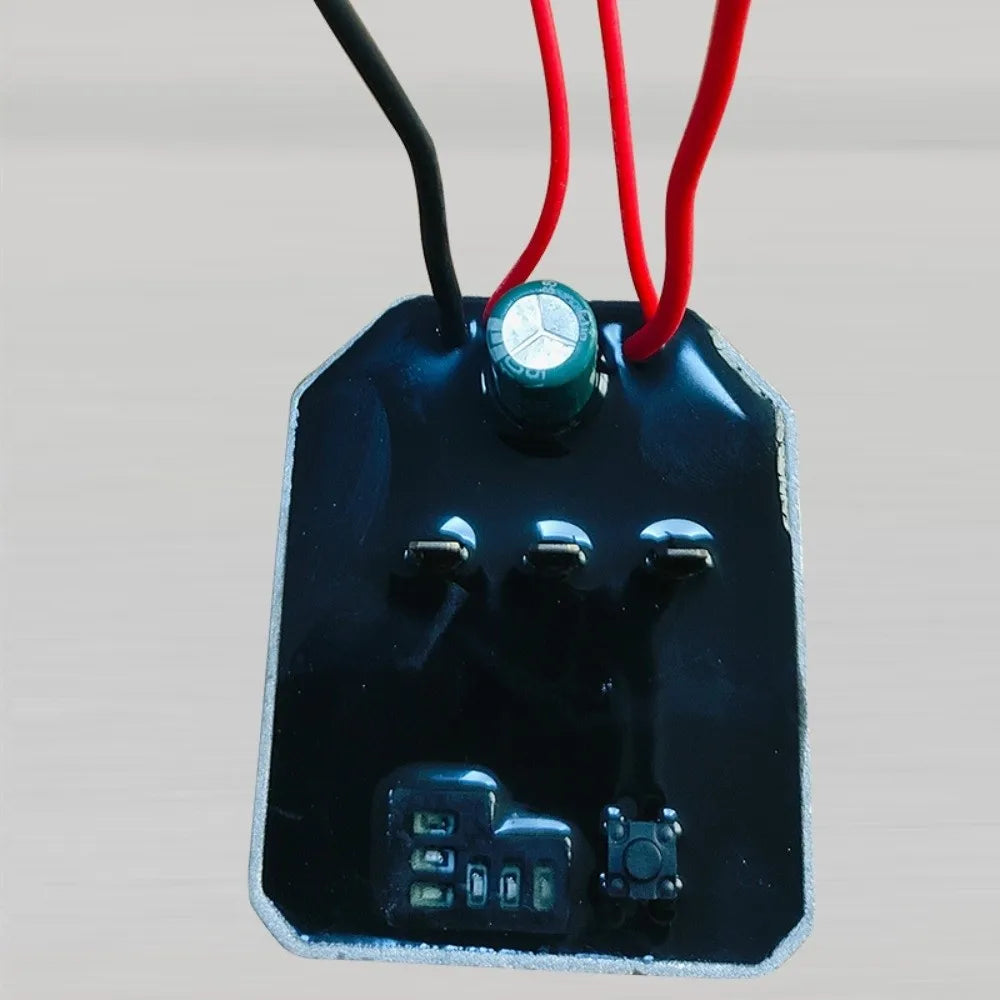

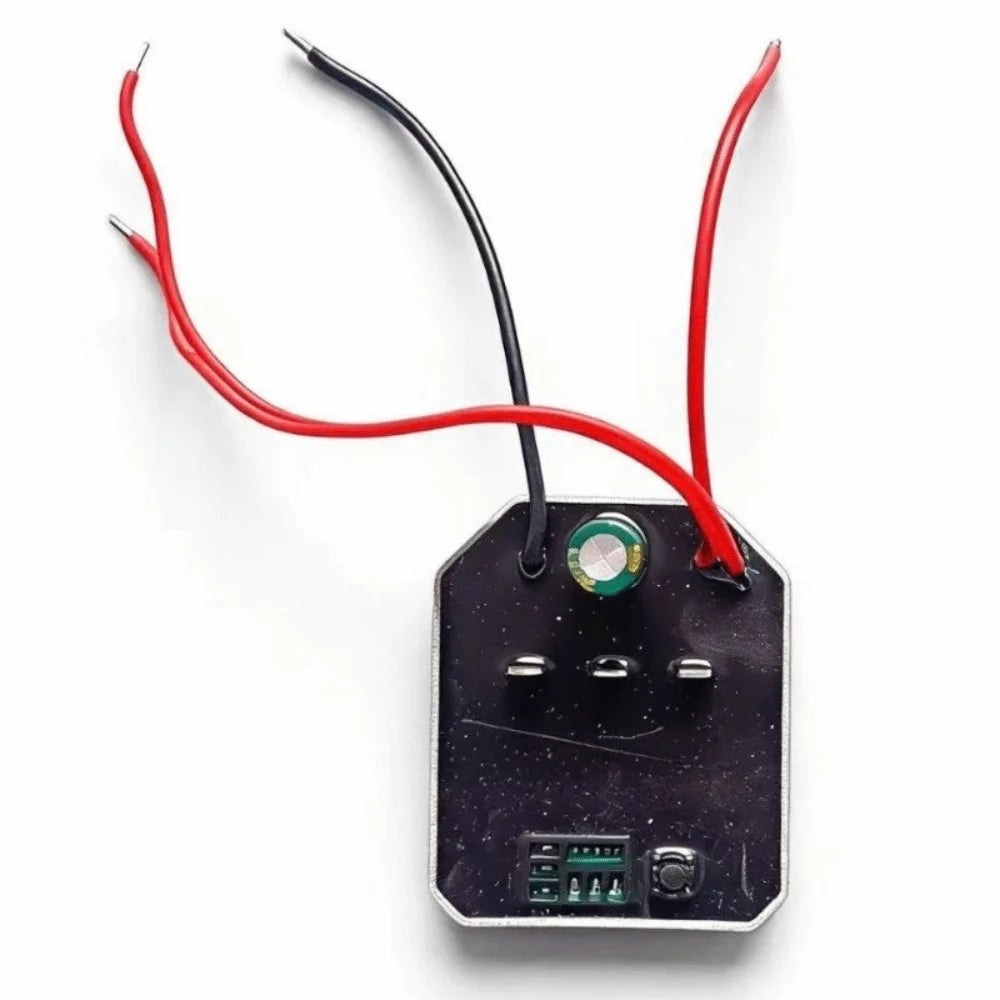

60A Brushless Angle Grinder Control Board – Speed Switch Circuit Controller
Upgrade or repair your brushless lithium-powered angle grinder with this high-performance 60A Control Board. Designed as a direct replacement motherboard, this circuit board delivers smooth speed switching, reliable motor control, and up to 1200W of output power — making it an ideal solution for DIY woodworking enthusiasts and professional tool repair technicians alike.
Made in Mainland China.
Key Features
- High Current Capacity: 60A rated controller handles demanding loads with ease
- Wide Voltage Range: Compatible with 18V–21V lithium battery systems
- Maximum Output Power: Up to 1200W for powerful, consistent performance
- Brushless Motor Support: Optimized for brushless motor technology for greater efficiency and longer tool life
- Speed Switch Circuit: Built-in speed control switch for variable speed operation
- Durable Construction: Plastic + metal build for lasting reliability
- Easy Replacement: Drop-in fit for compatible angle grinder models
Specifications
| Voltage | 18–21V |
| Max Output Power | 1200W |
| Current Rating | 60A |
| Material | Plastic + Metal |
| Color | As shown |
| Package Contents | 1 × Control Board |
Installation Instructions
For safe and correct installation, please follow these steps in order:
- Connect the wires first
- Fix the motor securely in place
- Install the casing
- Tighten all screws
- Confirm the square shaft of the head rotates freely without jamming
- Connect the power supply
- Press down the speed control switch so there is no gap in the shell
⚠ Important: Failure to follow these steps may result in a buzzing alarm or potential damage to the motherboard. Please carefully read all instructions before installation.
Please Note
Due to manufacturing batches, there may be minor differences in wiring color, base plate color, or other cosmetic aspects between the actual product and listed images — however, all functions remain exactly the same. Additionally, colors may appear slightly different on-screen due to monitor brightness and lighting conditions.
