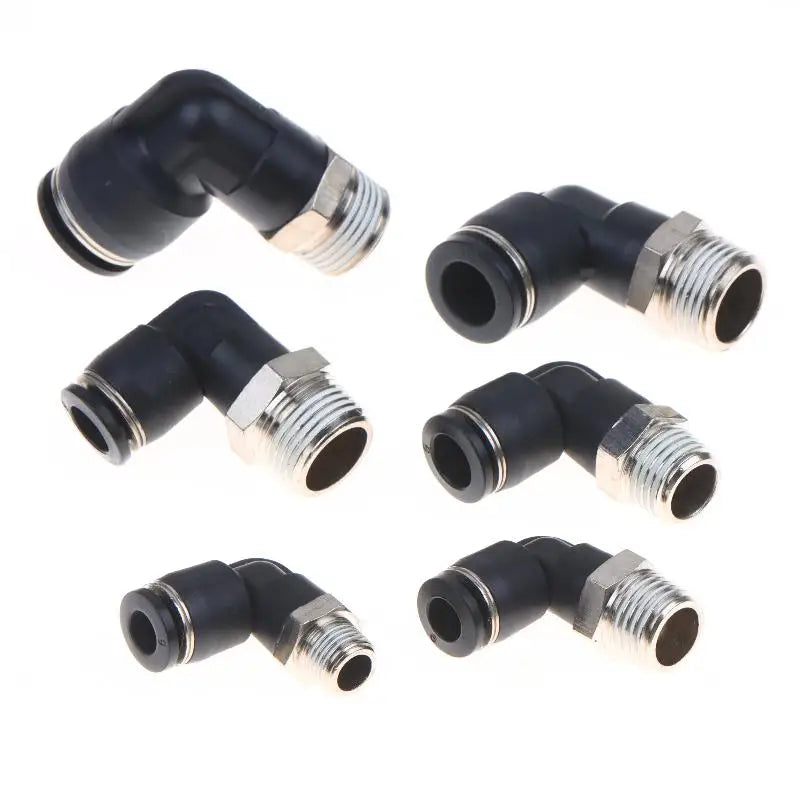

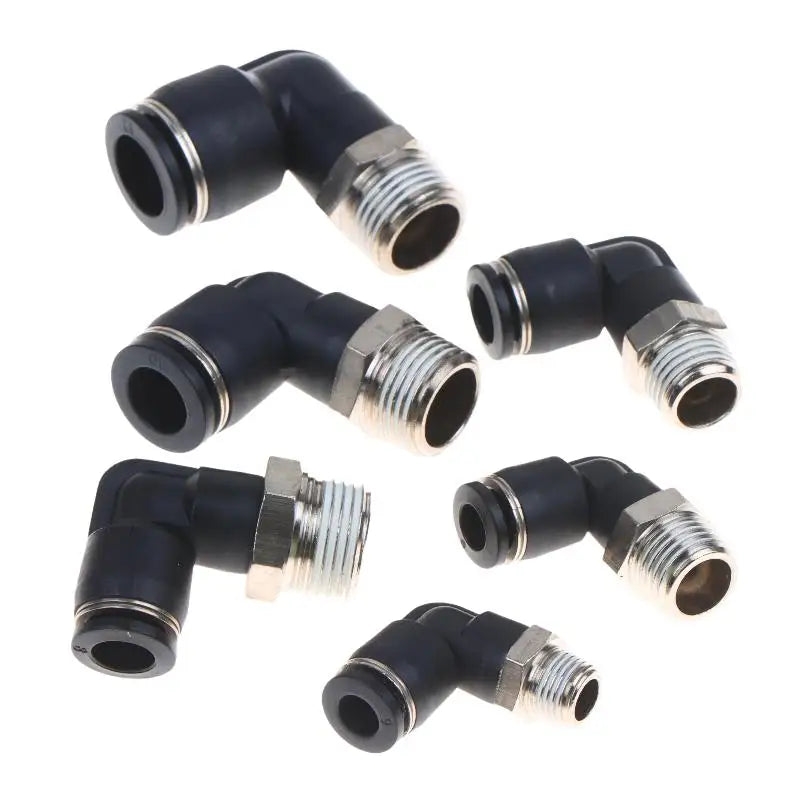

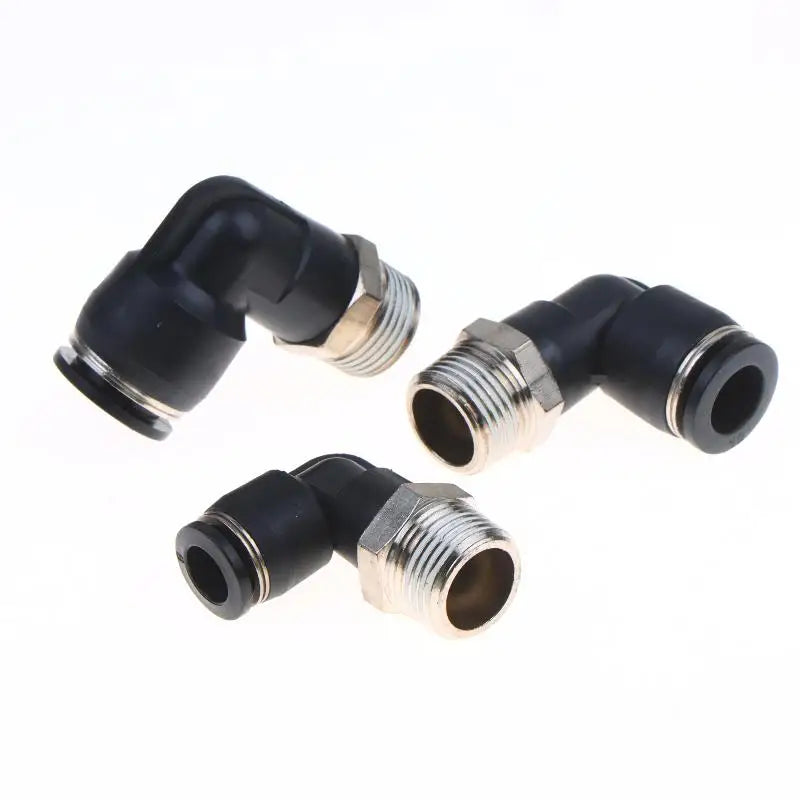

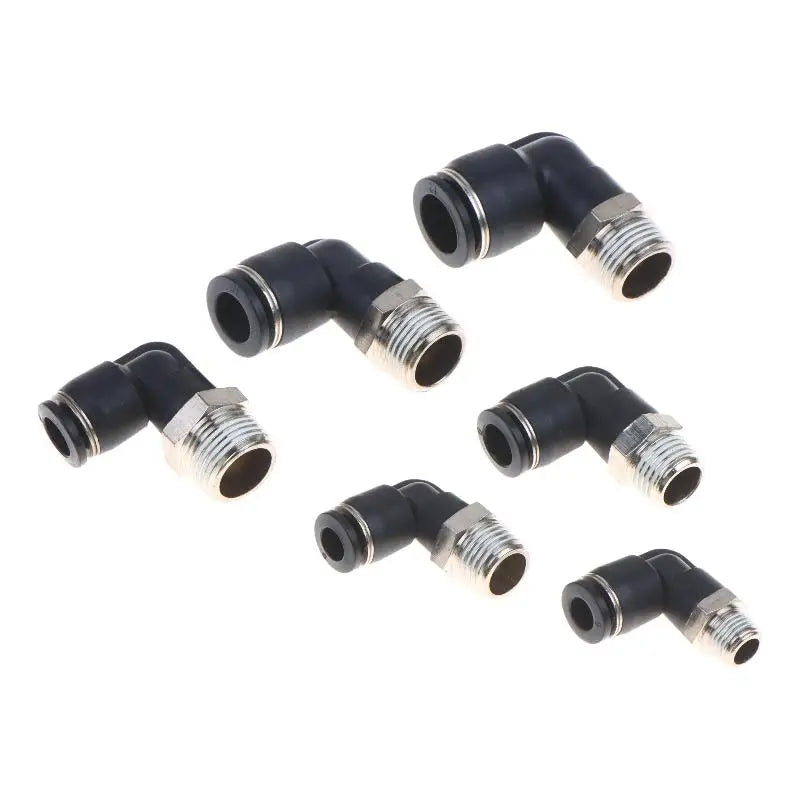

5-Pack PL Series 90° Push-to-Connect Pneumatic Elbow Fittings
Keep your pneumatic systems running smoothly with these PL Series 90-Degree Push-Fit Air Tube Connectors. Designed for quick, tool-free installation, these right-angle elbow fittings deliver reliable, leak-proof performance in air compressors, pneumatic equipment, and industrial piping layouts. Available in a variety of sizes (PL6-01, PL6-02, PL8-02, PL8-03, PL10-03, PL12-03) to suit a wide range of pneumatic system configurations. Made in Mainland China.
Key Features
- Tool-Free Quick Connect: Push-in design allows fast, effortless installation and disconnection — no extra tools required.
- 90° Elbow Configuration: Right-angle design maximises space efficiency and simplifies complex piping layout changes.

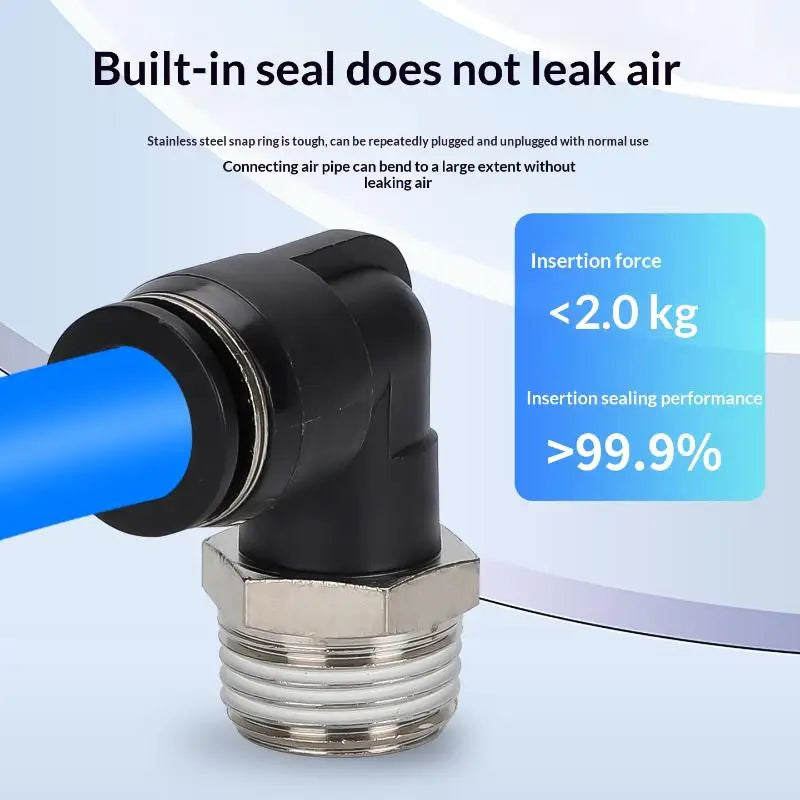

- Leak-Proof Sealing: Built-in sealing washer effectively prevents gas leakage during operation, ensuring consistent system pressure.
- Pressure-Resistant Construction: High-strength plastic body withstands stable air pressure and resists cracking under normal operating conditions.
- Wide Application: Ideal for pneumatic system connections and modifications on air compressors and pneumatic equipment in industrial and workshop environments.
Specifications
| Quantity | 5 pcs per set |
| Material | High-strength plastic body with metal threaded insert |
| Color | Black |

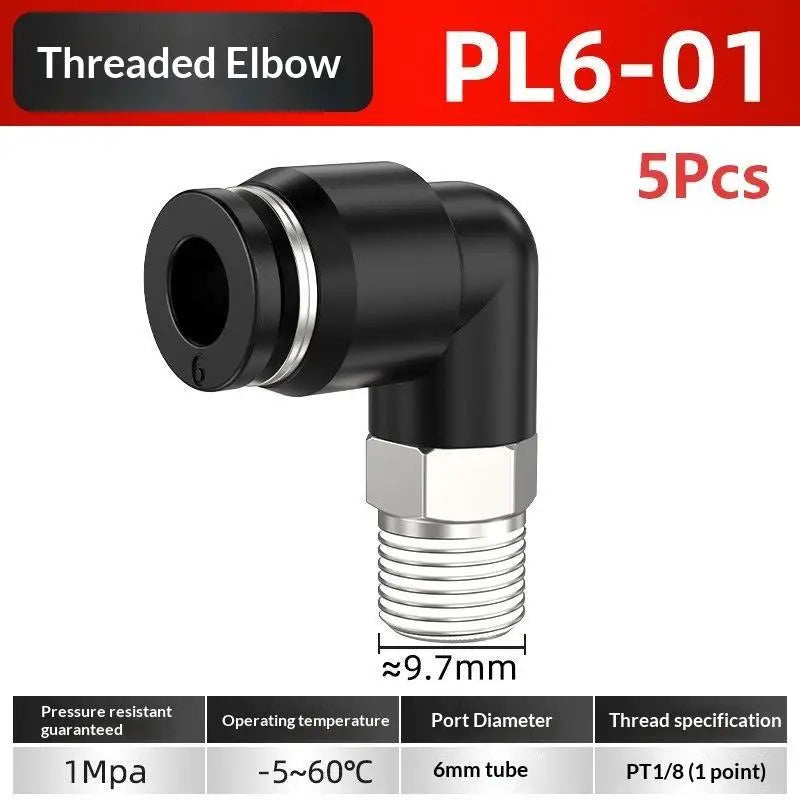

| Compatible Sizes | PL6-01, PL6-02, PL8-02, PL8-03, PL10-03, PL12-03 |
| Angle | 90 degrees |
| Fitting Type | Push-to-Connect Elbow |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 5 × 90° Push-Fit Pneumatic Elbow Connectors (size per selected variant)
Please Note
- Slight dimensional differences may occur due to manual measurement — please allow for minor tolerances.
- Actual color may vary slightly from images due to different monitor settings.
You May Also Like
- 1PC 400cm Sealing Tape – Oil-Free Leak Proof for Water & Gas Pipelines
- 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes for Pipe Repair
- 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking Tools
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What sizes are included in the PL Series push-fit pneumatic elbow fittings set?
A: The PL Series is available in multiple sizes including PL6-01, PL6-02, PL8-02, PL8-03, PL10-03, and PL12-03. Each set contains 5 pieces of the same size variant, so please select the correct size for your pneumatic system before ordering.
Q: Do these pneumatic elbow fittings require any special tools to install?
A: No special tools are needed. These fittings feature a push-to-connect design — simply push the air tube firmly into the fitting until it clicks into place. To disconnect, press the release collar and pull the tube free.
Q: Are these fittings suitable for use with air compressors?
A: Yes, the PL Series 90° elbow connectors are widely used in air compressor piping and pneumatic equipment installations. Their high-strength plastic body and integrated sealing washer make them a dependable choice for stable, leak-resistant airflow connections.
Q: Are these fittings leak-proof?
A: Each fitting is equipped with a built-in sealing washer designed to prevent gas leakage during normal operation. For best results, ensure the air tube is correctly sized and fully inserted into the fitting.
