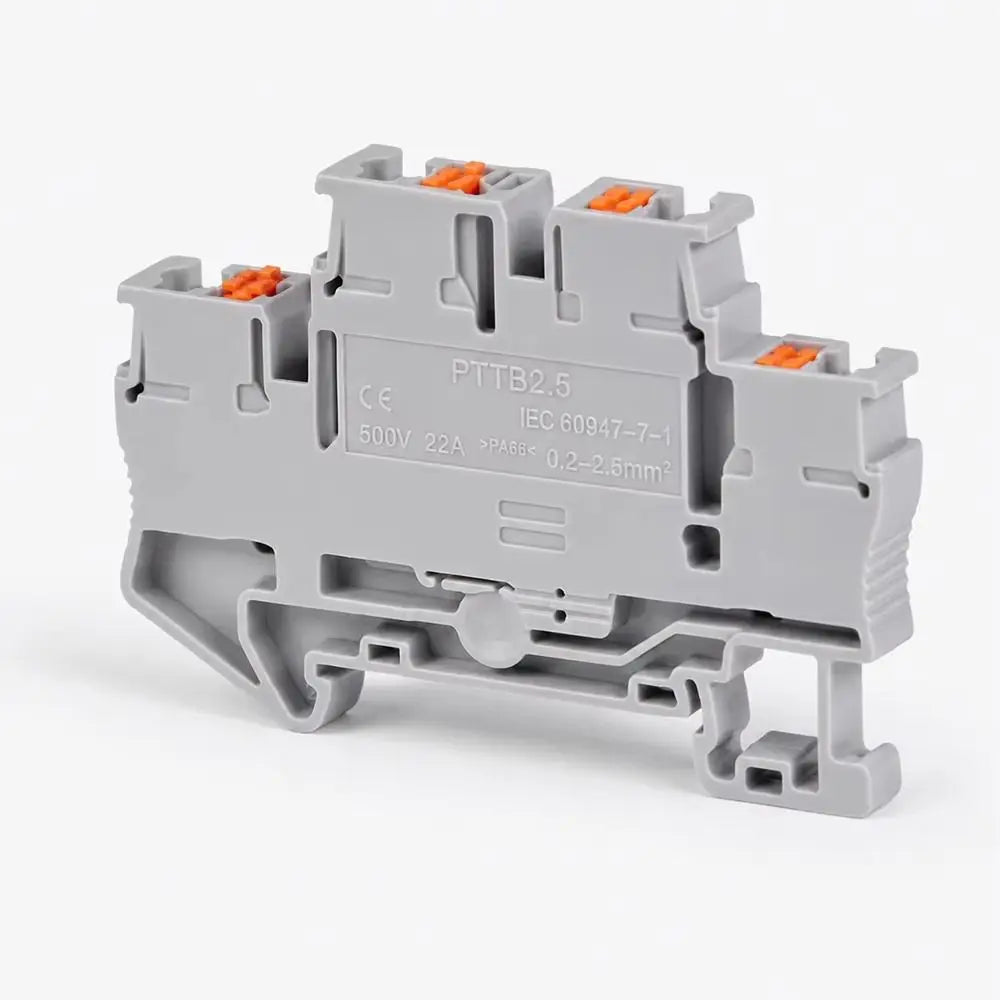

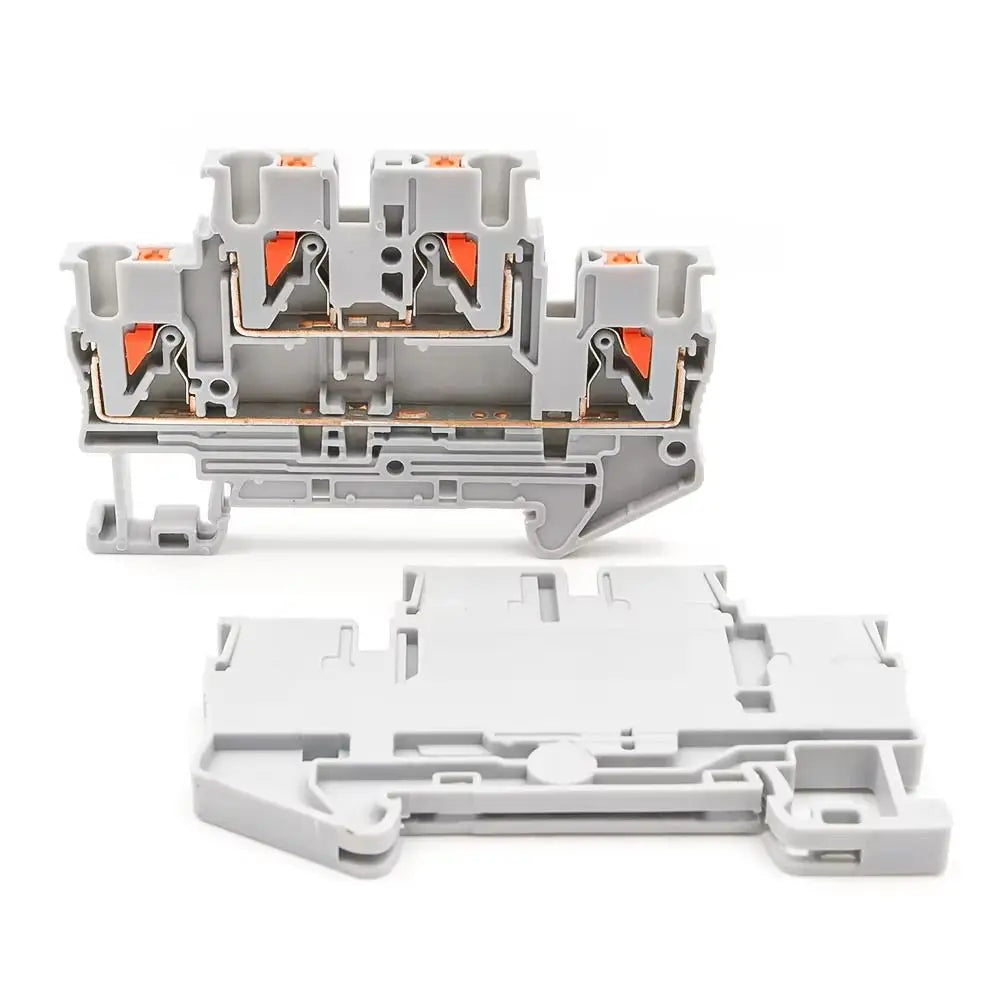

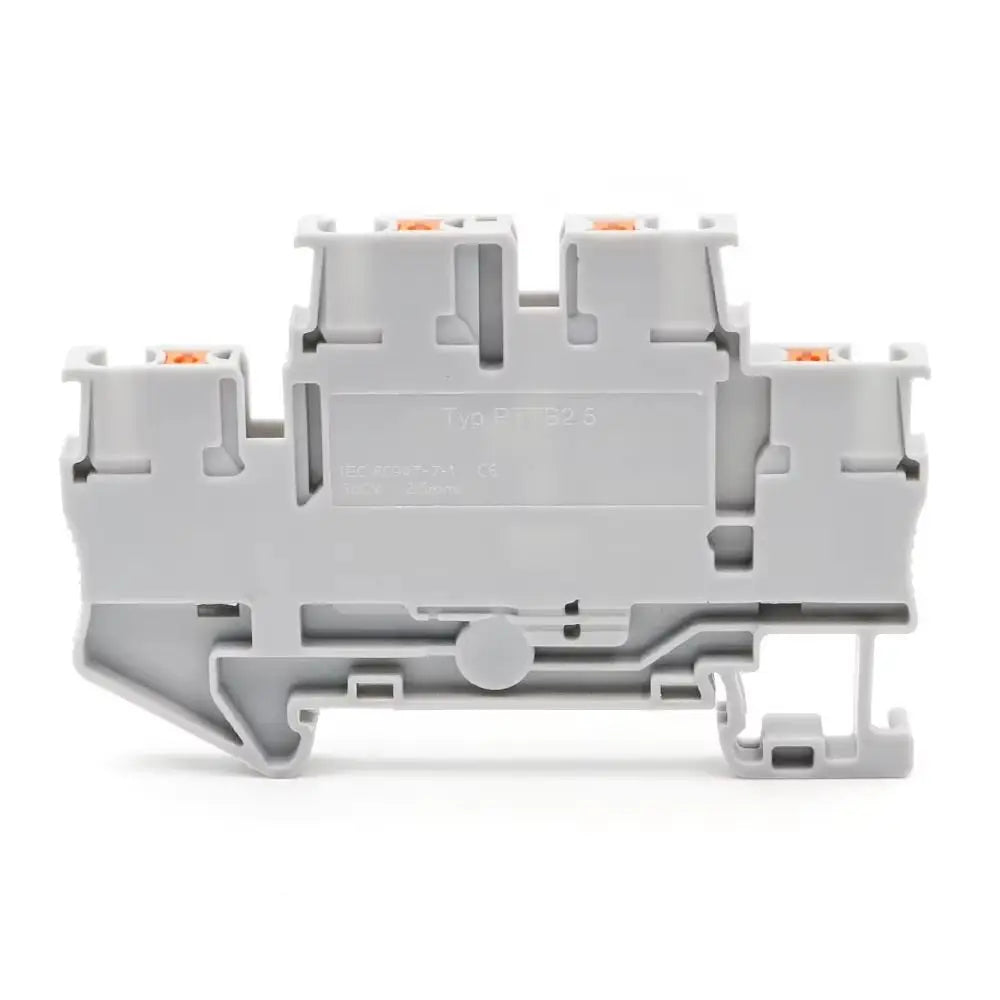

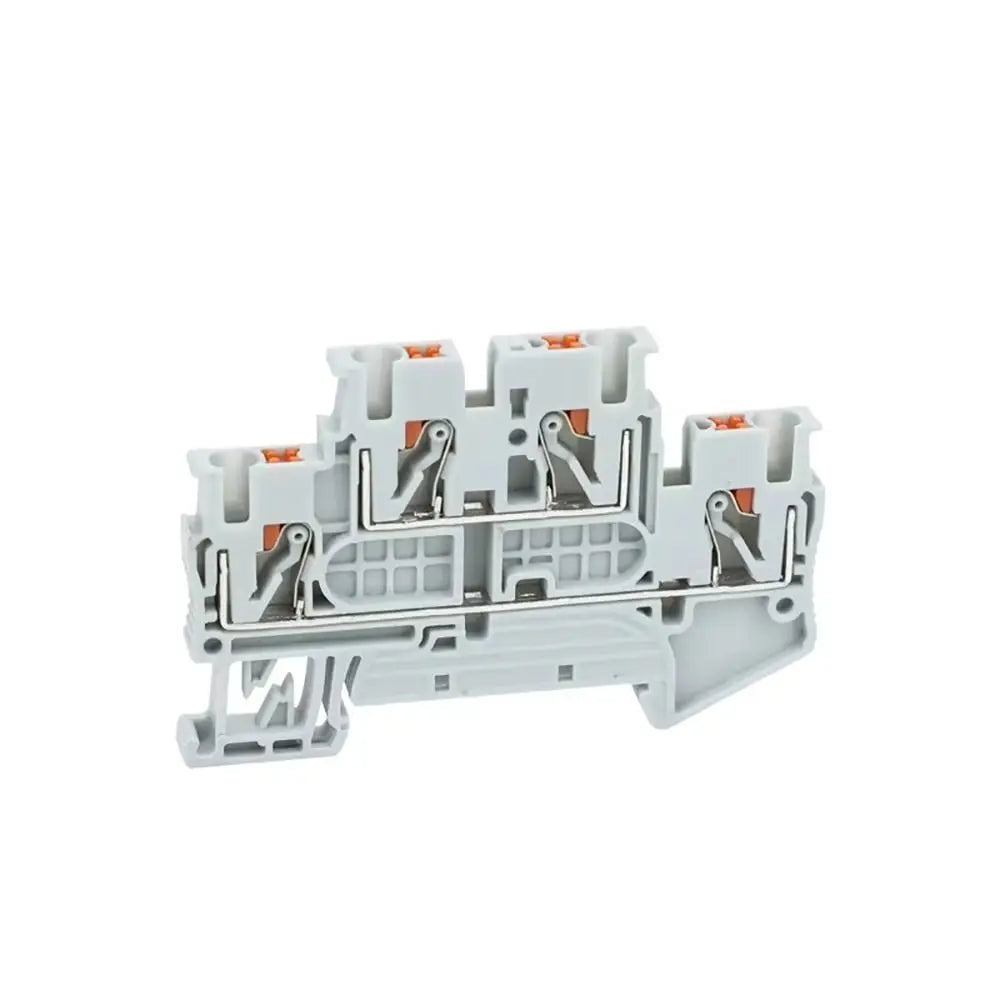

4Pcs PTTB-2.5 Double Layer Spring Terminal Block – 2 In 2 Out, Tool-Free Push-In Connection
Upgrade your electrical panel wiring with the PTTB-2.5 Double Layer Spring Terminal Block. Designed for industrial control systems, distribution cabinets, and DIN rail panels, this 4-piece set delivers fast, secure, and tool-free wire connections using a push-in spring cage mechanism. Say goodbye to tedious screw terminals — simply push the wire in and you're done.
Made in Mainland China.
Key Features
- Double Layer 2-In / 2-Out Design: Compact structure enables organized, high-density cabinet wiring without sacrificing accessibility.

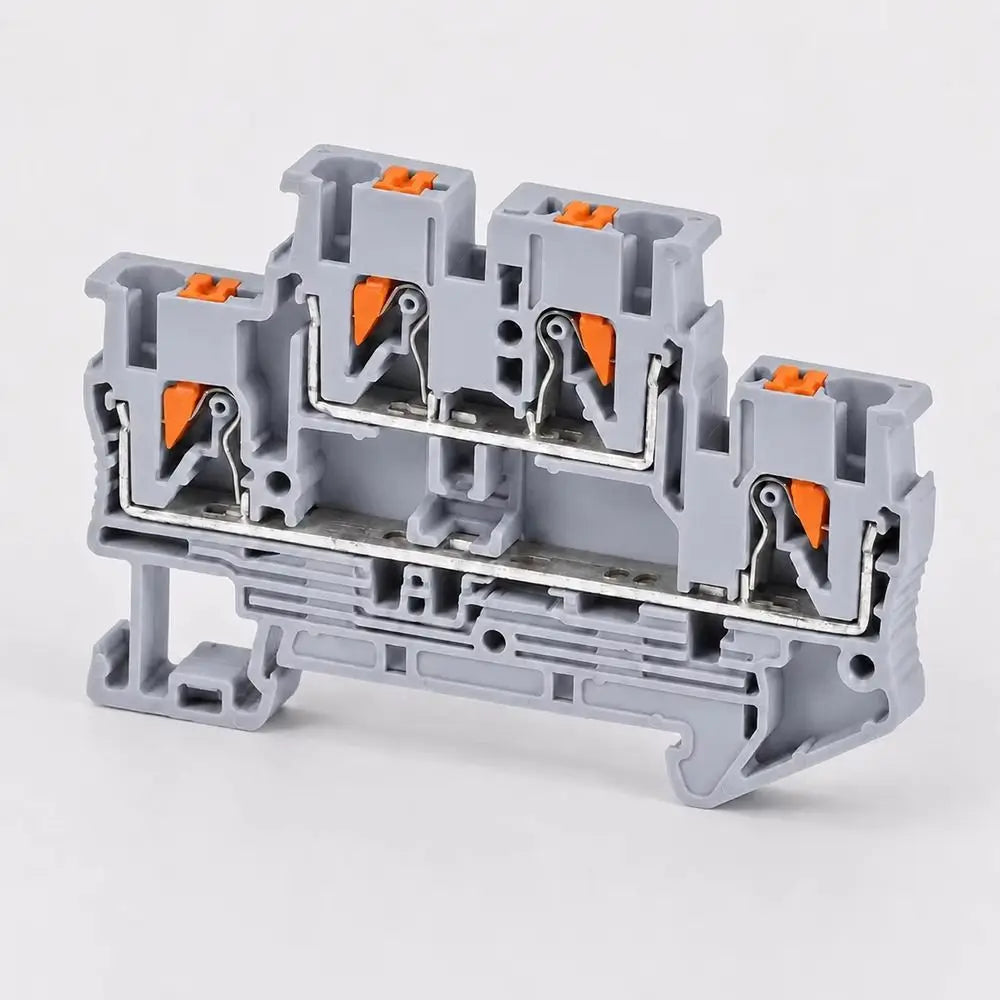

- Tool-Free Push-In Spring Cage Connection: Wires lock in place instantly — no screwdriver required — saving valuable installation and maintenance time.
- Nylon PA66 Construction: Offers excellent insulation, flame resistance, and long-term durability in demanding electrical environments.
- Wide Wire Compatibility: Accepts 0.14–4mm² solid cable and 0.14–2.5mm² flexible cable (26–12 AWG), suitable for a broad range of wiring applications.
- DIN Rail Mounting: Compatible with NS 35/7.5 DIN rail for quick, stable installation in standard electrical enclosures.
- High Rated Voltage & Current: Rated at 500V / 22A, meeting IEC 60947-7-1 standards for reliable performance.
Specifications
| Model | PTTB-2.5 |
| Material | Nylon PA66 |

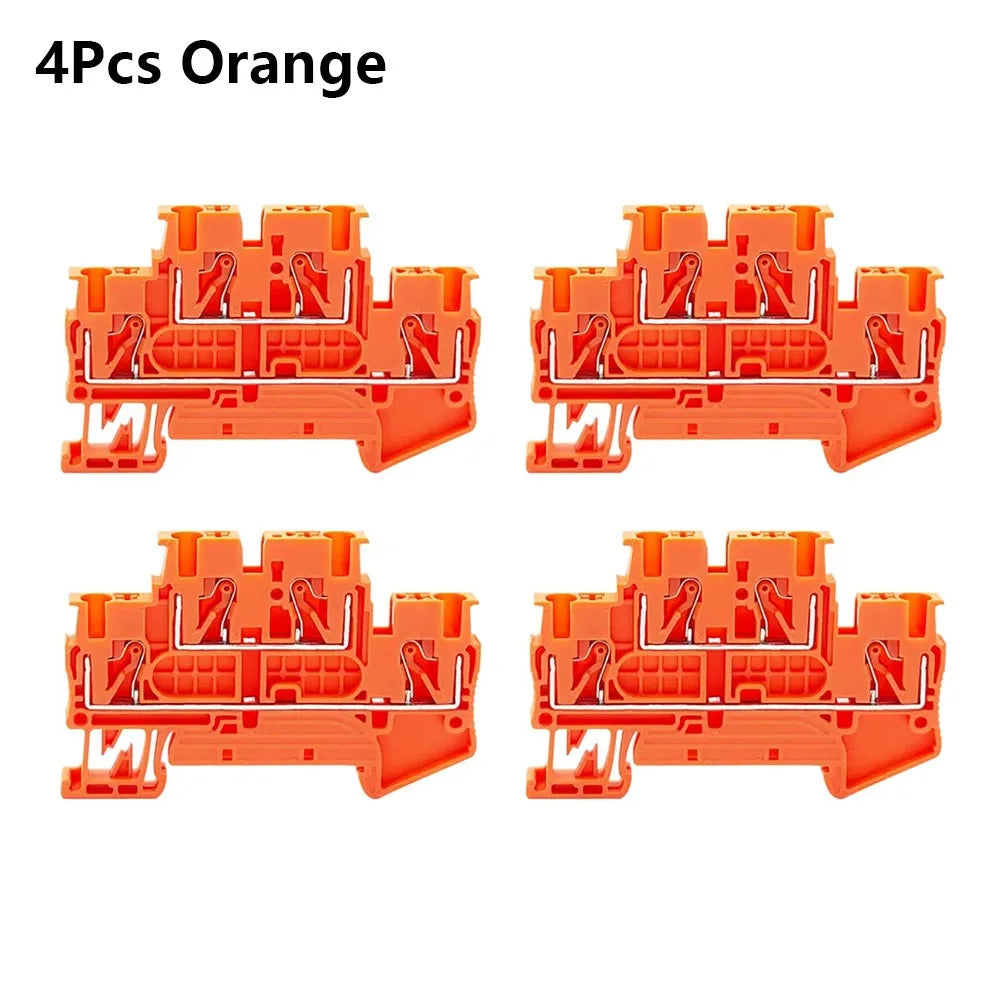

| Color | Grey, Blue (Customizable) |
| Connection Method | Spring Cage Push-In |
| Rated Voltage / Current | 500V / 22A |
| Cross Section (Solid Cable) | 0.14–4mm² |
| Cross Section (Flexible Cable) | 0.14–2.5mm² |
| Conductor Size | 26–12 AWG |
| Mounting Type | NS 35/7.5 DIN Rail |
| Standard | IEC 60947-7-1 |
| Quantity | 4 Pieces |
What's in the Box?
- 4× PTTB-2.5 Double Layer Spring Terminal Block
Notes
- Actual color may vary slightly from product images due to monitor brightness and lighting conditions.
- Please allow minor measurement deviations (1cm ≈ 0.39 inches).
You May Also Like
- 1PC 10g High Grade Silicone Grease Lubricant for O-Rings & Tubes
- 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking Tools
- 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes Repair Spanner
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What wire sizes are compatible with the PTTB-2.5 spring terminal block?
A: The PTTB-2.5 terminal block accepts 0.14–4mm² solid cables and 0.14–2.5mm² flexible/soft cables, covering conductor sizes from 26 AWG to 12 AWG — suitable for a wide range of standard electrical wiring tasks.
Q: Does the PTTB-2.5 terminal block require any special tools for installation?
A: No tools are needed. The push-in spring cage connection method allows you to insert a wire directly into the terminal and it locks securely in place without a screwdriver, making installation fast and straightforward.
Q: What type of DIN rail does this terminal block mount on?
A: The PTTB-2.5 is designed for NS 35/7.5 DIN rail mounting, which is the standard top-hat DIN rail used in most industrial control panels and distribution cabinets.
Q: What standard does this terminal block comply with?
A: The PTTB-2.5 double layer spring terminal block is manufactured to IEC 60947-7-1 standards, ensuring reliable performance at its rated 500V / 22A operating parameters.
