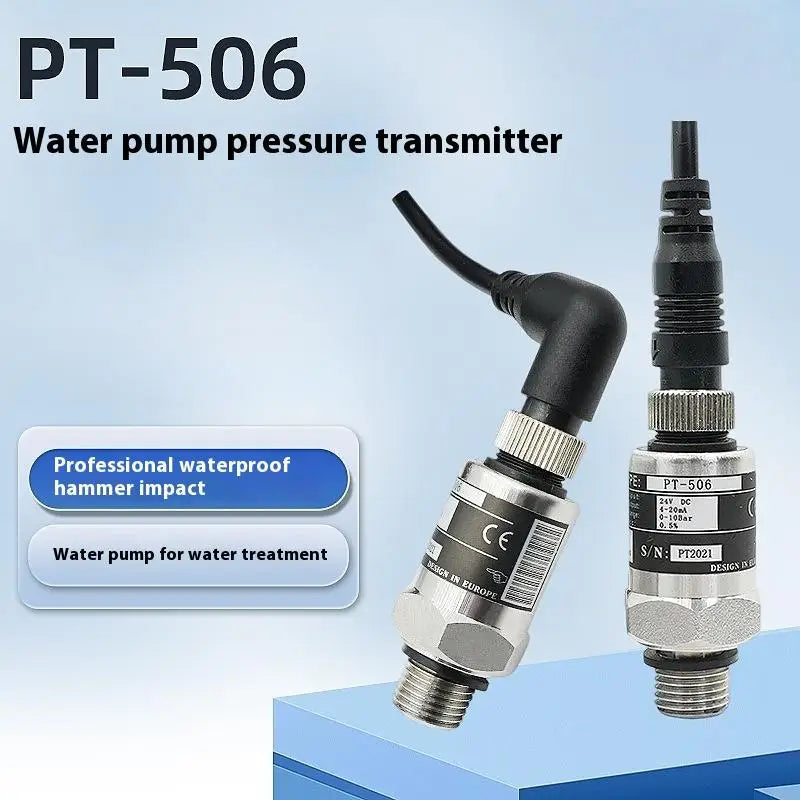

eelhoe PT-506 4–20mA Pressure Sensor | G1/4 Thread | IP67 Rated
Meet the eelhoe PT-506 Pressure Sensor — a high-precision, industrial-grade transducer engineered for continuous, dependable monitoring in water pump systems, oil lines, hydraulic circuits, air compressors, and liquid level applications. With a standard 4–20mA output and wide power-supply tolerance, this sensor integrates seamlessly into virtually any PLC or control system.
Made in Mainland China.
Key Features
- High-Accuracy Sensing: ±0.5% FS precision ensures consistent, trustworthy readings across the full pressure range.
- IP67 Waterproof & Dustproof: O-ring seal and built-in gasket provide robust moisture and particulate resistance — ideal for harsh industrial environments.
- Anti-Mistake Plug Design: Foolproof keyed slot prevents reverse insertion, protecting the sensor and your equipment from accidental damage.
- Enhanced Signal Integrity: 22AWG tinned shielded wiring minimises electromagnetic interference for clean, stable signal transmission over the 2-metre cable.
- Wide Pressure Range Options: Available in 0–1.0 MPa, 0–1.6 MPa, and 0–2.5 MPa to suit a variety of industrial demands.
- Extreme Temperature Tolerance: Rated from –40°C to +85°C, performing reliably in both cold and high-heat environments.
- Stainless Steel Construction: Durable, corrosion-resistant body compatible with water, oil, and air media.
Specifications

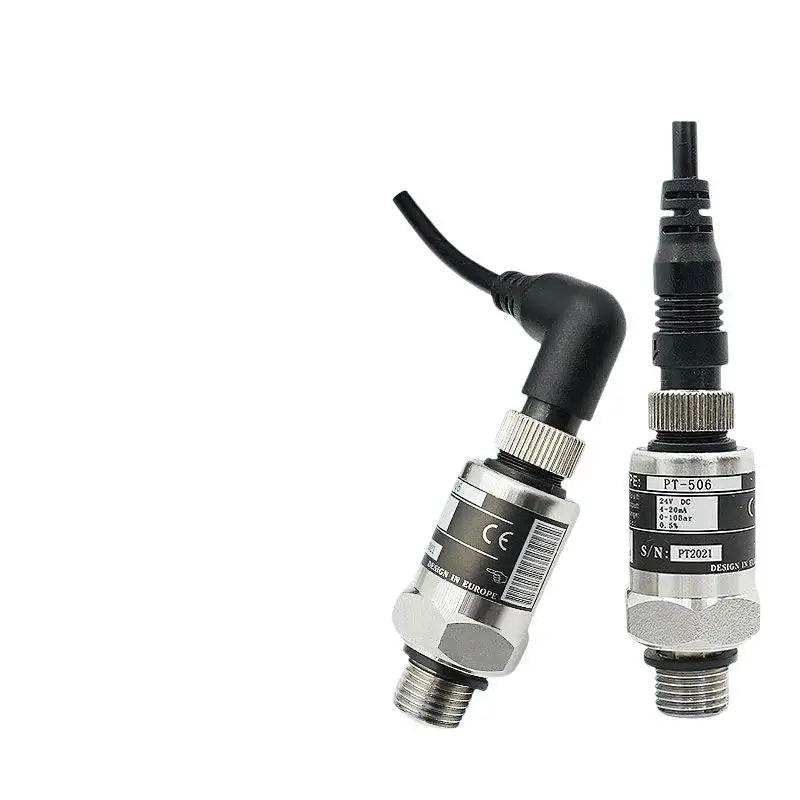

| Model | PT-506 (Straight / Elbow type) |

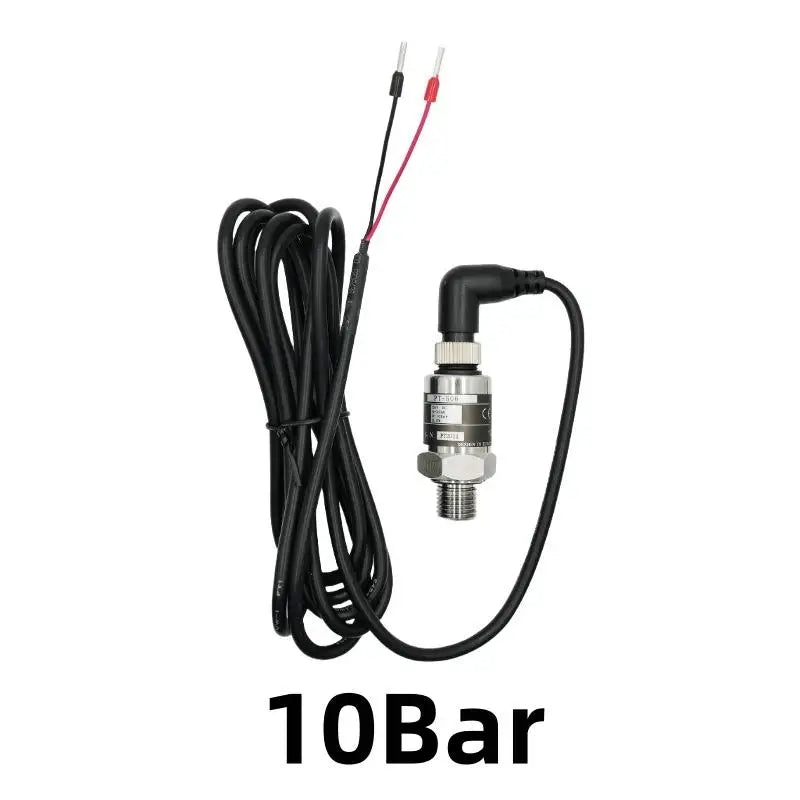

| Pressure Range | 0–1.0 MPa / 0–1.6 MPa / 0–2.5 MPa |
| Output Signal | 4–20mA |
| Power Supply | 24VDC (10–36VDC) |
| Thread Size | G1/4 (Ø13mm) |
| Operating Temperature | –40°C to +85°C |

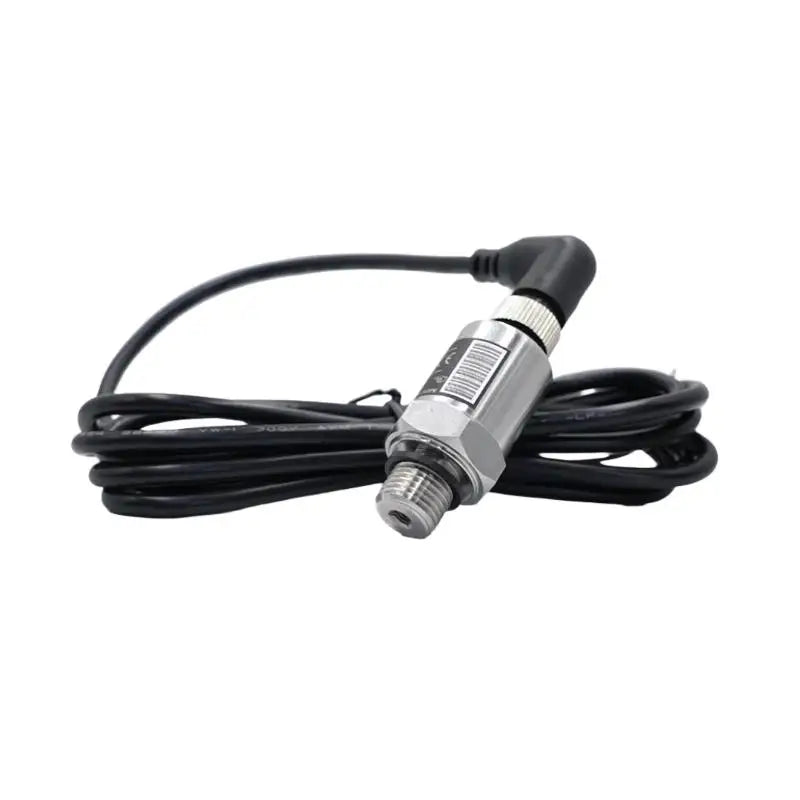

| Cable Length | 2 metres |
| Material | Stainless Steel |
| Protection Rating | IP67 |
| Accuracy | ±0.5% FS |
| Package Contents | 1 × PT-506 Pressure Sensor |
Applications
- Industrial automation & process control
- Hydraulic systems & pneumatic circuits
- Water pump monitoring & liquid level systems
- Air compressors & HVAC systems
- Oil lines & fuel management systems
Related Products You May Like
- 1PC 400cm Sealing Tape – Leak-Proof Water Pipe & Gas Pipeline Tape
- 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes Sink Repair Spanner
- 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking Tools
Note: Colours shown in product images may vary slightly from the actual item due to monitor display settings and ambient lighting. Please refer to the physical product received.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What media is the PT-506 pressure sensor compatible with?
A: The eelhoe PT-506 pressure sensor is compatible with water, oil, and air media, making it suitable for hydraulic systems, water pump monitoring, oil lines, and air compressor applications.
Q: What output signal does this pressure sensor use?
A: The PT-506 outputs a standard 4–20mA analogue signal, which is universally compatible with PLCs, data loggers, and industrial control systems operating on 10–36VDC power supplies.
Q: Is the PT-506 sensor safe to use outdoors or in wet environments?
A: Yes. The PT-506 carries an IP67 protection rating, meaning it is fully dustproof and protected against temporary immersion in water. Its O-ring seal and built-in gasket provide additional moisture resistance for demanding outdoor or industrial environments.
Q: What thread size does this pressure sensor use?
A: The sensor uses a G1/4 thread (Ø13mm), a common standard fitting widely used in hydraulic and pneumatic systems, ensuring straightforward installation in most setups.
