Ruby Impact Misting Nozzle 1/8" – 304 Stainless Steel + Filter
Ruby Impact Misting Nozzle 1/8" – 304 Stainless Steel + Filter

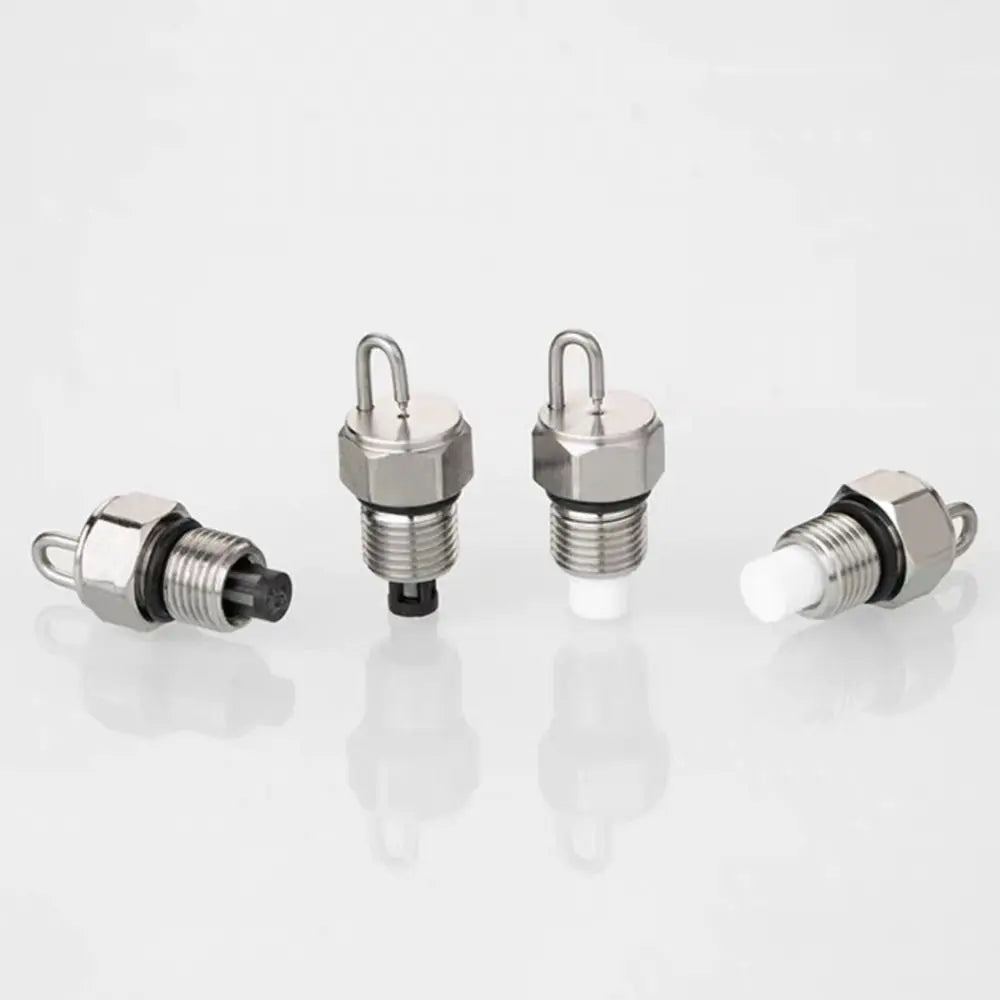

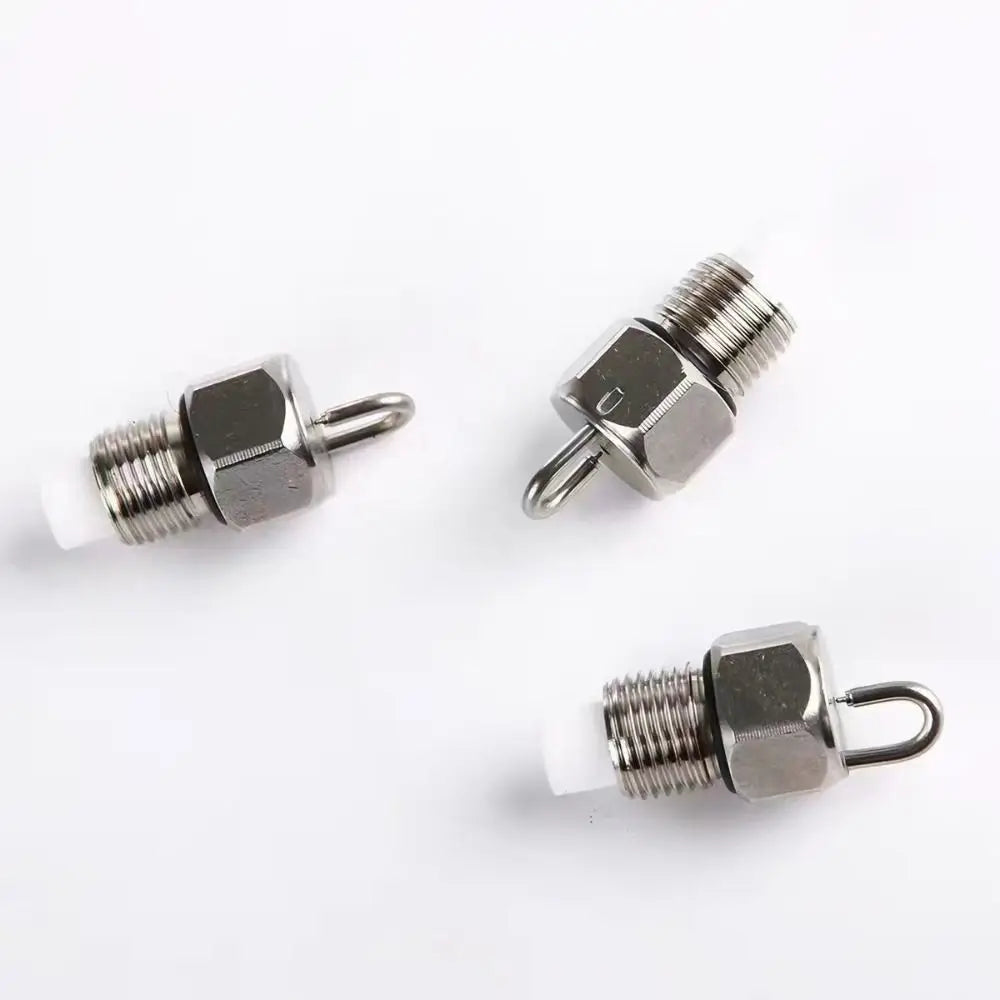

304 Stainless Steel Ruby Impact Pin Misting Nozzle – Ultra-Fine Atomization for Any Space
Achieve professional-grade misting performance with this high-pressure ruby impingement fog nozzle. Crafted from durable 304 stainless steel with a genuine ruby orifice, this nozzle delivers ultra-fine atomization that outperforms standard ceramic or zirconium alternatives. Whether you're cooling a patio, humidifying a greenhouse, or creating stunning stage effects, this nozzle gets the job done with ease.
Made in Mainland China.

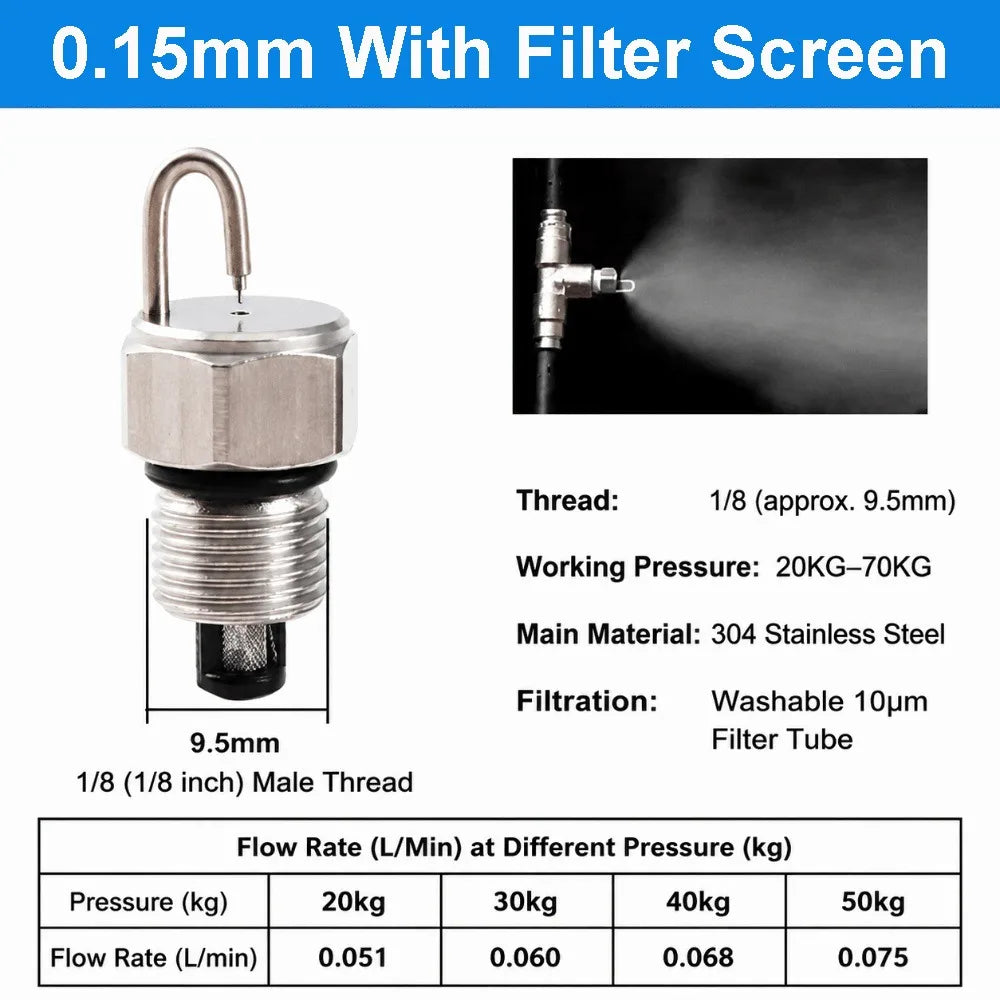

Key Specifications
- Material: 304 Stainless Steel body with Ruby orifice
- Orifice Diameters Available: 0.15 mm, 0.20 mm, 0.30 mm
- Connection: 1/8" male thread
- Working Pressure: 30–70 bar (optimum atomization at ~50 bar)
-

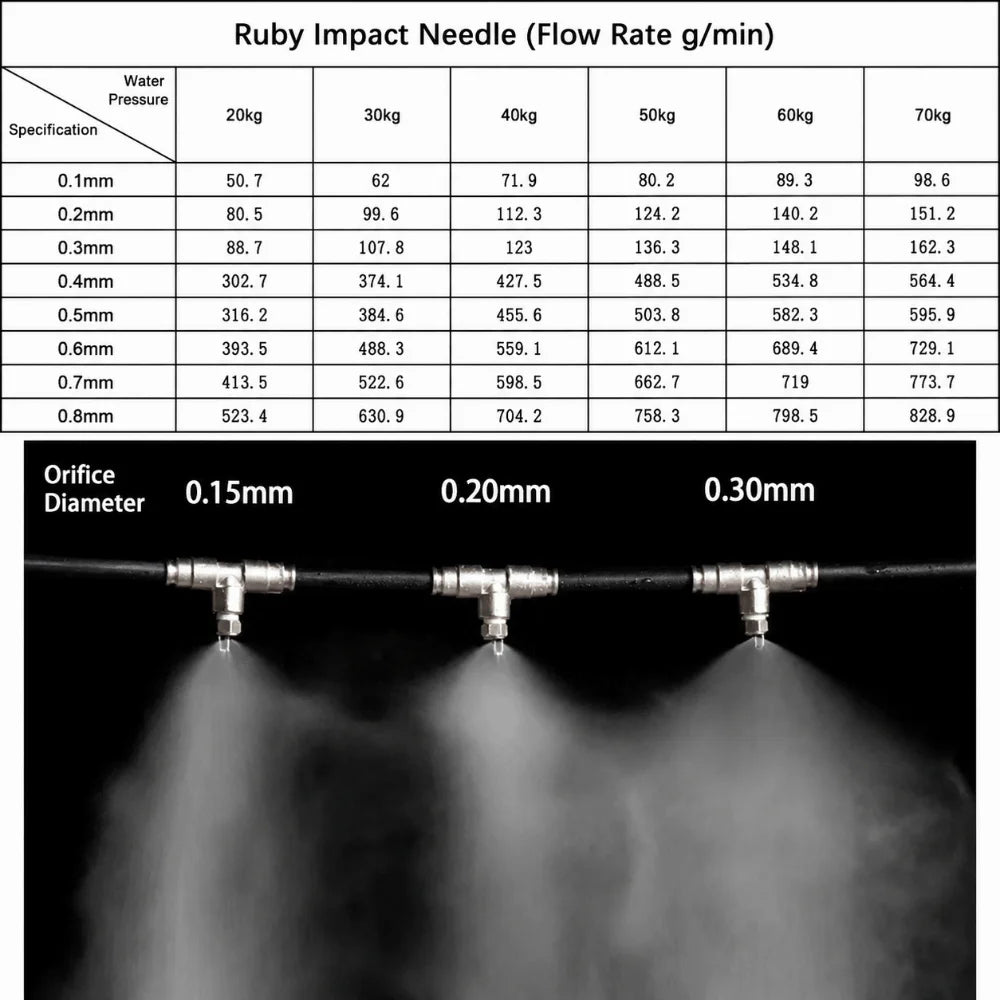

Water Flow Rates:
- 0.15 mm: 20–60 ml/min
- 0.20 mm: 50–80 ml/min
- 0.30 mm: 80–100 ml/min
- Spray Pattern: Impact fog spray
- Atomization: 70% of mist particles below 10 microns — creates a true "dry fog"
- Built-in Anti-Block Filter: Yes
Why Choose the Ruby Impact Misting Nozzle?

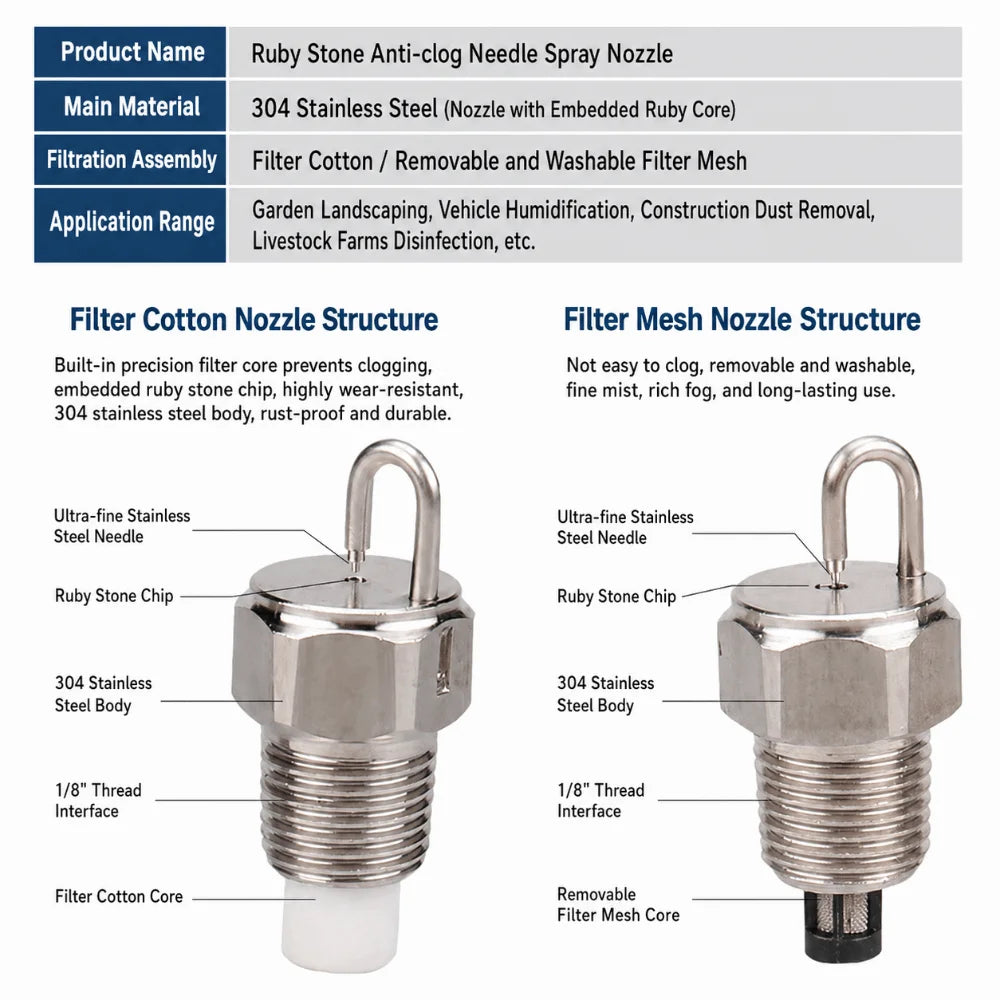

- Superior Atomization: The ruby orifice produces a finer, more consistent mist than ceramic microcrystalline zirconium nozzles — ideal for applications demanding precision.
- Anti-Block Filter Included: The integrated stainless steel filter prevents clogging and maintains steady, reliable flow over long-term use.
- Dry-Fog Experience: Mist particles are so fine that people can walk through the fog without feeling wet — perfect for entertainment venues, outdoor dining areas, and event spaces.
- Long-Lasting Durability: A robust 304 stainless steel body resists corrosion and stands up to outdoor conditions season after season.
- Versatile Sizing: Three orifice diameter options let you match the nozzle to your exact flow and atomization needs.

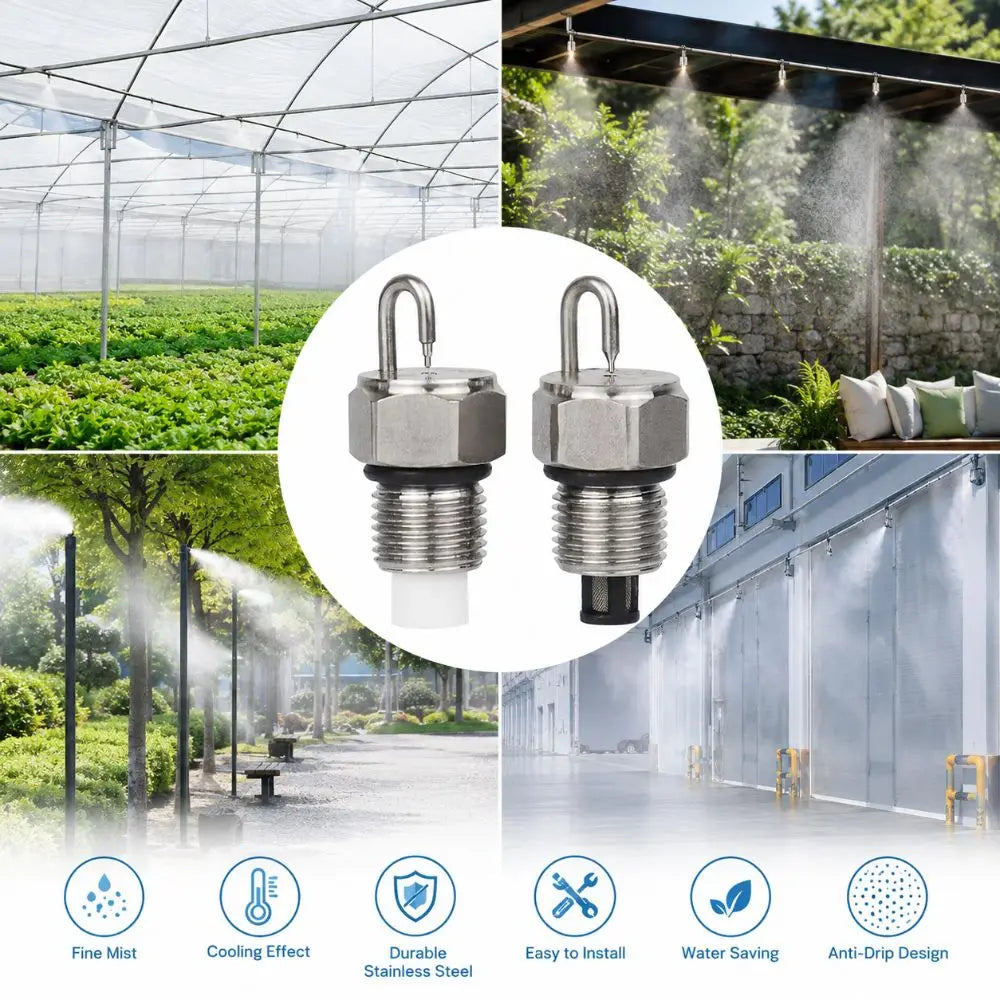

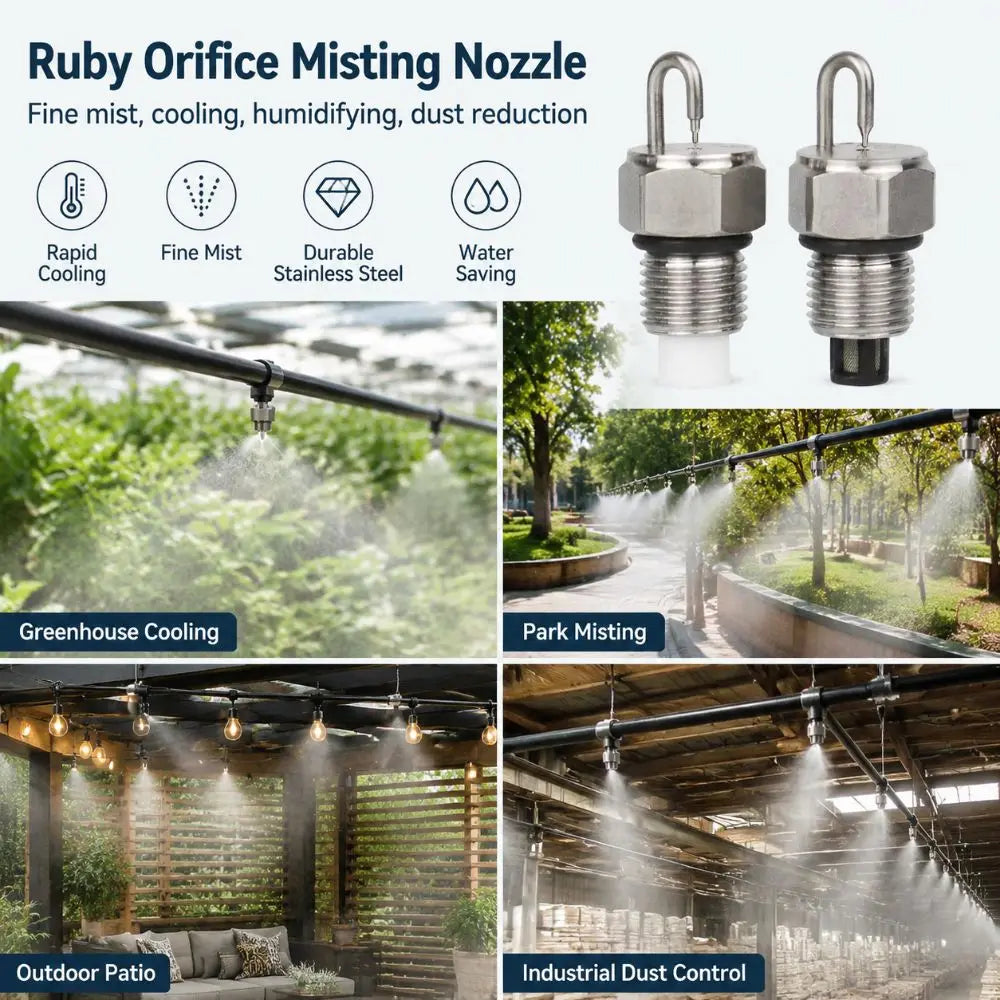

Applications
- Garden & landscape irrigation systems
- Outdoor patio and terrace cooling
- Greenhouse and barn humidification
- Dust suppression in factories and construction sites
- Stage and event fog / atmospheric effects
- Office and indoor climate management
- Disinfection misting systems
What's in the Box?
- 1 × High-Pressure Ruby Impact Fog Nozzle (with built-in filter)
Looking for other useful home and garden tools? Check out the 1PC Pipe Sealing Tape for Water & Gas Lines, the Multi-Use Faucet Bubbler Wrench Set, or the Outdoor Water Faucet Tap Replacement for your plumbing and irrigation needs.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What orifice diameter should I choose for outdoor garden cooling?
A: For outdoor garden cooling and humidification, the 0.2 mm orifice is the most popular choice — it balances a fine mist with a sufficient water flow rate (50–80 ml/min). If you need maximum atomization with the driest fog, opt for the 0.15 mm orifice. For higher-volume applications such as dust suppression or barn humidification, the 0.3 mm orifice provides the greatest output.
Q: What pressure system do I need to run this fog nozzle?
A: This ruby impact misting nozzle is designed for high-pressure systems operating between 30 and 70 bar, with optimal atomization at around 50 bar. It is not compatible with standard low-pressure garden hoses. You will need a dedicated high-pressure misting pump to achieve the ultra-fine fog effect.
Q: Is the built-in filter replaceable or cleanable?
A: The integrated anti-block stainless steel filter is designed for long-term durability. While it is built into the nozzle body, the nozzle itself can be carefully disassembled for cleaning if sediment builds up over time. Using filtered or softened water will significantly extend the service life of both the filter and the ruby orifice.
Q: Will the mist make people wet if they walk through it?
A: No — one of the standout features of this ruby impingement fog nozzle is its true "dry fog" capability. With 70% of mist particles below 10 microns in size, the droplets evaporate almost instantly upon contact with air, so people can comfortably move through the mist zone without feeling wet.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
