24V 3A Three-Phase Rectifier Bridge – Generator Filter & Rectifier Module

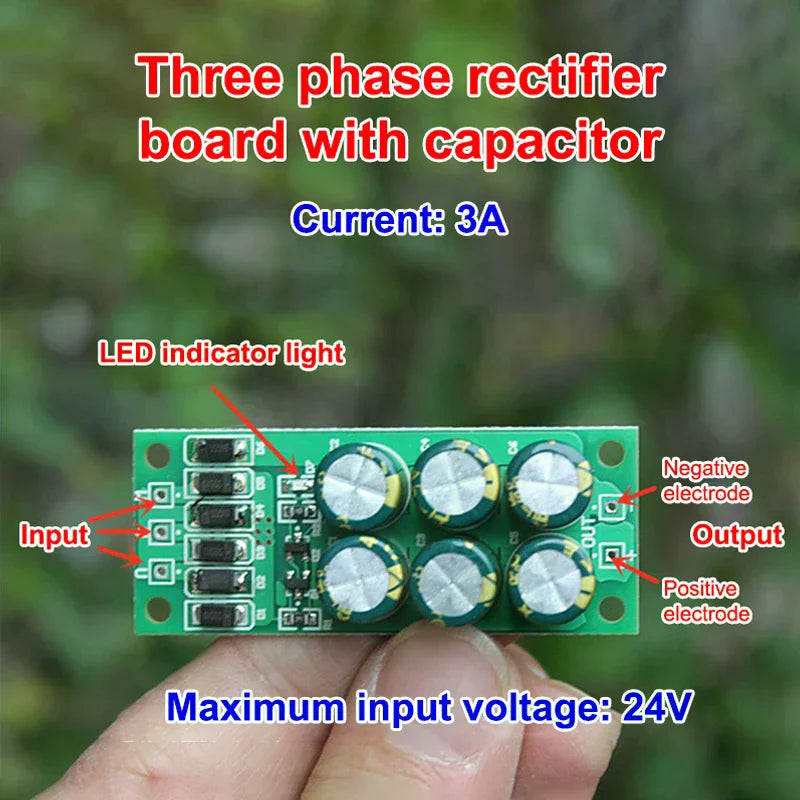

Keep your small generator running smoothly and reliably with this compact 24V 3A Three-Phase Rectifier Bridge Board. Designed for both brushless and brush DC generators, this green PCB module filters and rectifies AC output into stable DC power — protecting your connected equipment from voltage fluctuations and ensuring consistent, long-term operation.
Made in Mainland China.
Key Features
- Stable DC Output: The integrated filtering and rectifying circuit keeps voltage and current within a safe, steady range, preventing damage to downstream electrical equipment caused by erratic power fluctuations.
- Wide Compatibility: Works with a broad range of small generators — brushless and brush types alike — making it suitable for industrial, home, and outdoor applications.
- Compact & Easy to Install: The small form factor allows for straightforward installation even in tight spaces.
- Three-Phase Design: Handles three-phase AC rectification efficiently for improved output smoothness compared to single-phase alternatives.
- Durable Build: Reliable components rated for long-term continuous operation under typical generator loads.
Specifications
- Voltage: 24V
- Current Rating: 3A
- Type: Three-Phase Rectifier Bridge / Filter Board Module

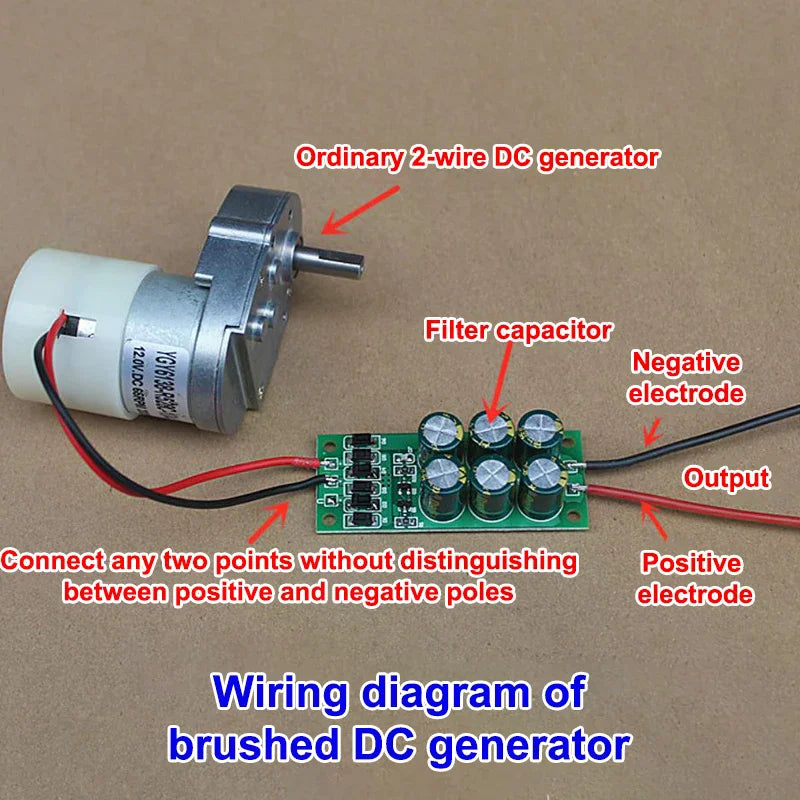

- Compatible With: Brushless & Brush DC Small Generators
- Color: Green
- Package Includes: 1 × Rectifier Board Module
Important Notes
- Please allow ±0.1–0.3 cm differences due to manual measurement.
- Actual color may vary slightly from photos due to lighting conditions and monitor display settings.
Related Products You May Like
- 1PC 10g High Grade Silicon Grease Lubricant for O-Rings & Tube Maintenance
- 3PCS Silicone Sealant Scraper Set – Multi-Functional Tools for Repair & Renovation
- 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes Repair Spanner Tool
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What types of generators is this three-phase rectifier board compatible with?
A: This 24V 3A three-phase rectifier bridge board is compatible with a wide range of small generators, including both brushless and brush DC generator types. It is suitable for industrial, residential, and outdoor generator setups.
Q: What does a rectifier bridge board do in a generator?
A: A rectifier bridge board converts the AC (alternating current) output from a generator into DC (direct current). The built-in filter function stabilizes voltage and current within a safe range, ensuring connected electrical equipment operates reliably without risk of damage from power fluctuations.
Q: Is this board easy to install in a small generator?
A: Yes. The compact PCB design is intended for straightforward installation in small generators. Its small form factor makes it easy to fit into tight spaces, and no special tools are required beyond basic electronics knowledge.
