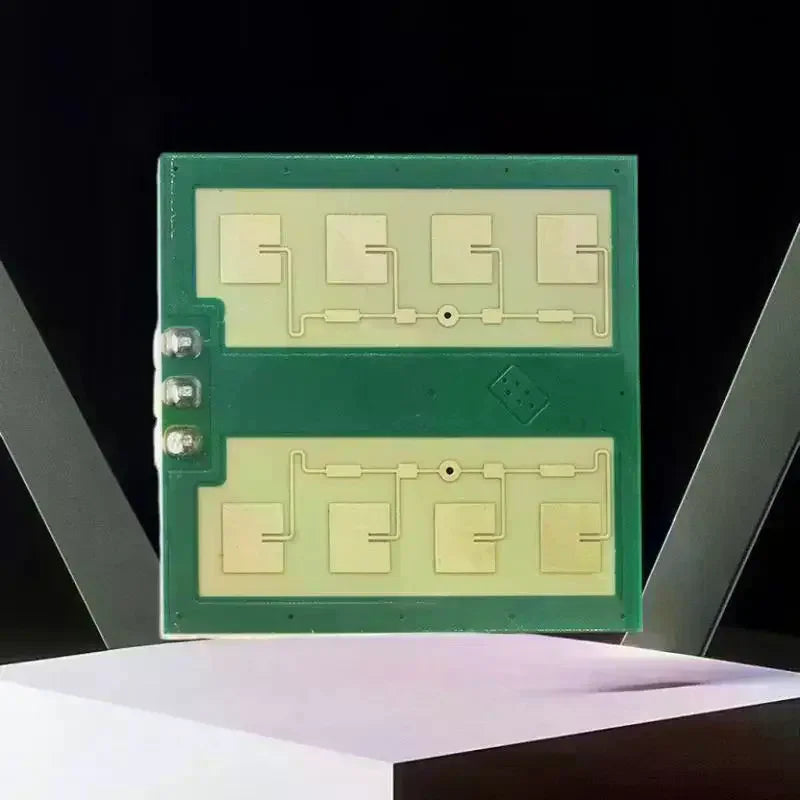

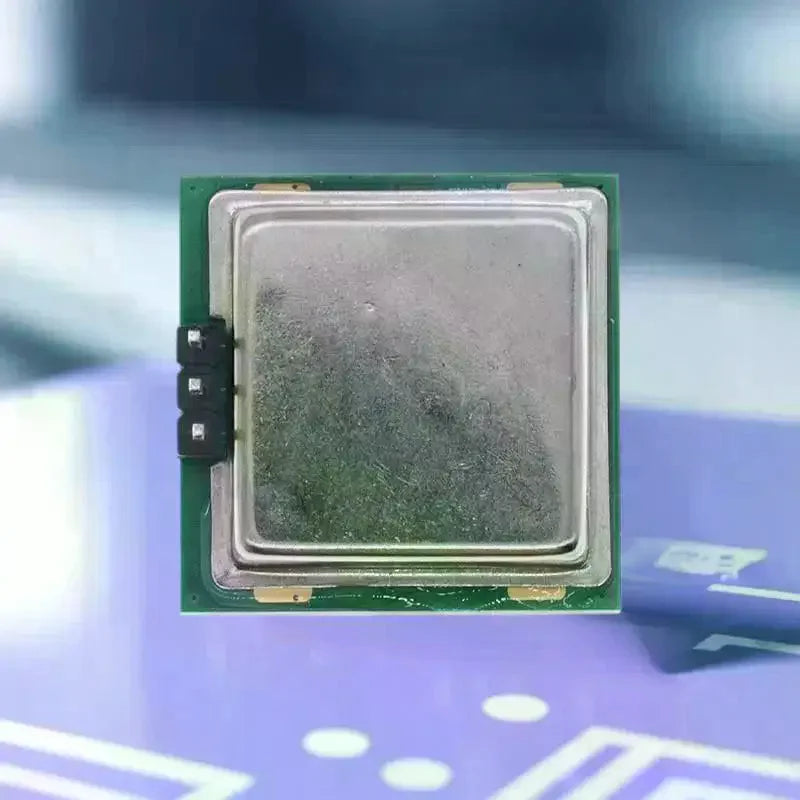

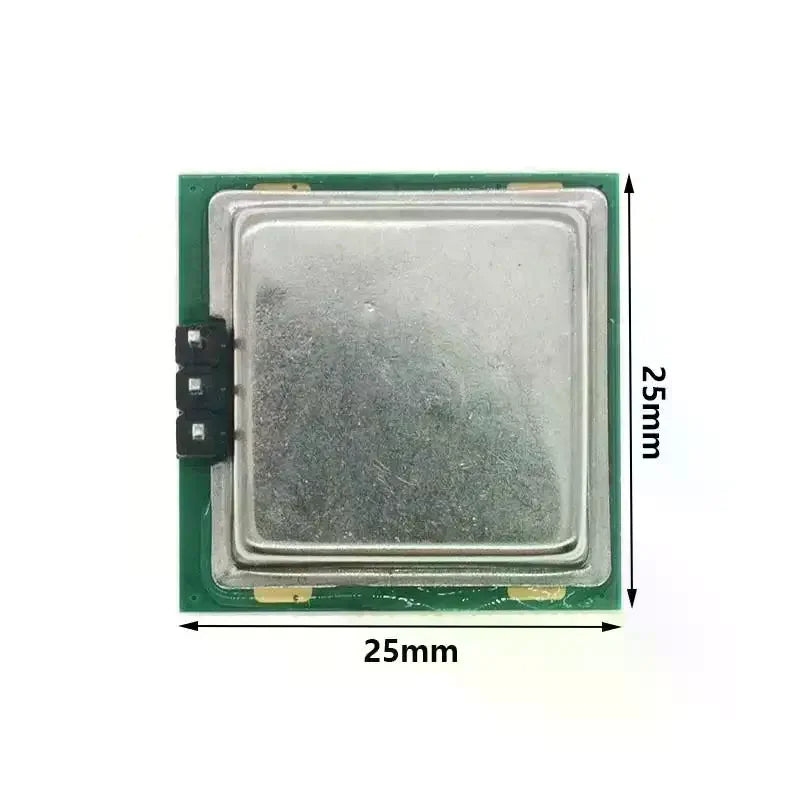

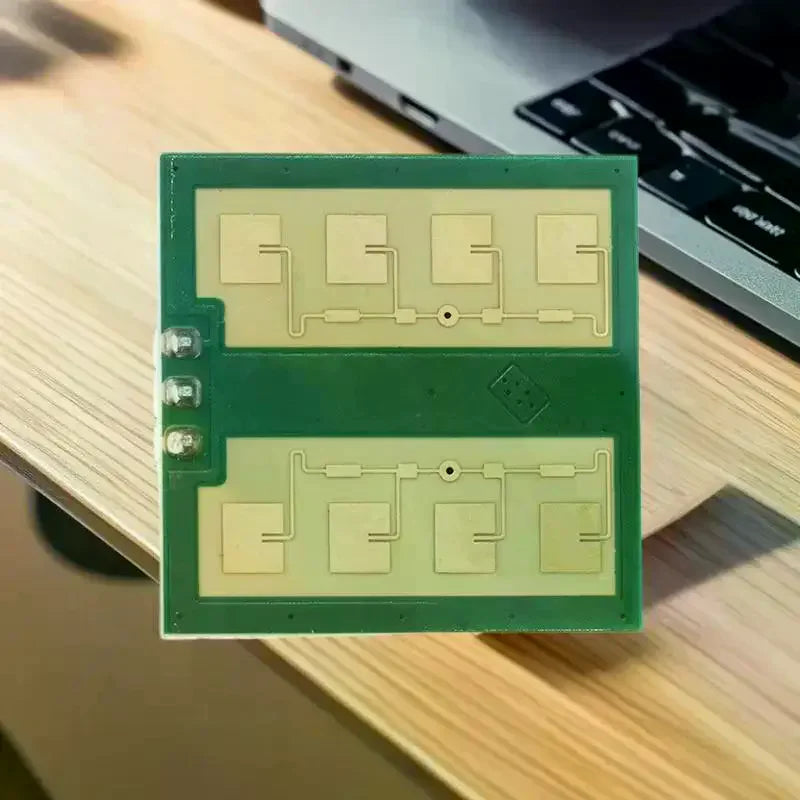

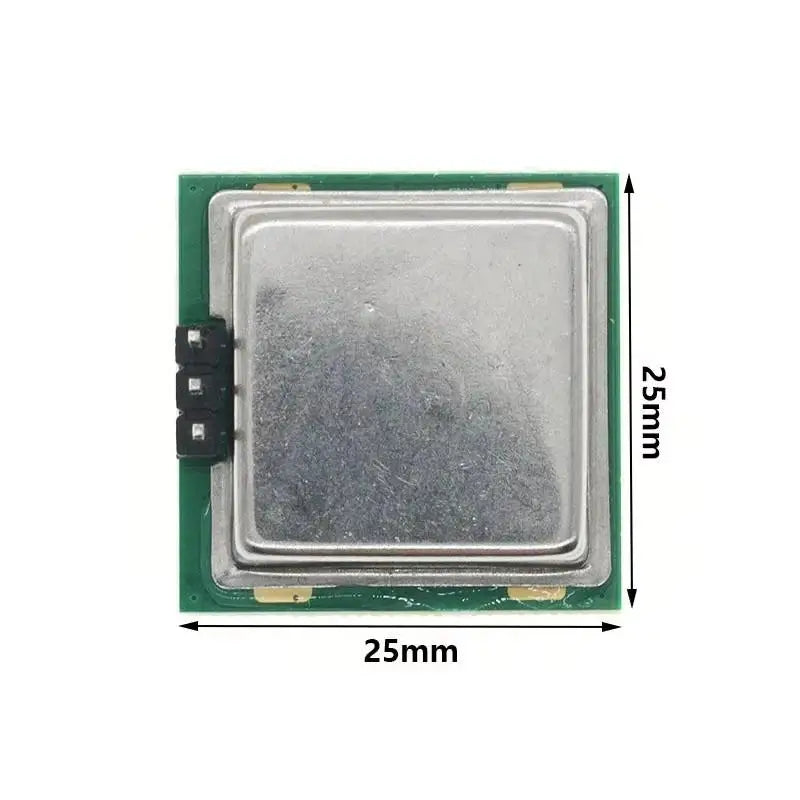

24GHz CDM324 Microwave Radar Sensor Module
The CDM324 24GHz Microwave Radar Sensor Module is a compact, high-performance body induction switch designed for a wide range of smart automation applications. Operating at a stable 24–24.25 GHz frequency, this module accurately detects motion and presence using microwave technology — no direct line-of-sight required. Whether you're building an intelligent lighting system, an automatic door trigger, or a security detection setup, the CDM324 delivers reliable, low-power performance in a small form factor.
Made in Mainland China.
Key Features
- Working Frequency: 24–24.25 GHz — stable, interference-resistant microwave detection
- Output Power: +14 dBm for consistent, wide-area sensing
- Antenna Beam Width: 80% / 32° — focused yet broad detection cone
- Low Power Consumption: +5V / 29mA — energy-efficient operation ideal for always-on applications
- CE Certified — meets European safety and electromagnetic compatibility standards
- Compact Module Design — easy to integrate into existing electronics projects and DIY builds
Applications
- 🚪 Automatic Door Sensors — trigger doors to open/close based on presence detection
- 💡 Intelligent Light Control Systems — automate lighting in hallways, offices, garages, and more
- 🔐 Anti-Intrusion Detection — integrate into security systems for motion-based alerts
- ⚡ Microwave Induction Switches — replace traditional PIR sensors with microwave-based reliability
Technical Specifications
| Model | CDM324 |
| Working Frequency | 24–24.25 GHz |
| Output Power | +14 dBm |
| Antenna Beam Width | 80% / 32° |
| Power Supply | +5V DC / 29mA |
| Certification | CE |
| Package Contents | 1 × CDM324 Radar Sensor Module |
Related Products You May Like
- 1PC 10g High Grade Silicone Grease Lubricant for O-Rings
- 1PC Large Capacity Battery Storage Organizer Box – Holds 30 AAA Batteries
- 1PC Mobile Data Cable Storage Box – Portable Winding Organizer
Note: Please allow 1–2 cm measuring deviation due to manual measurement. Colors may vary slightly from product images due to monitor settings.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the CDM324 24GHz Radar Sensor Module used for?
A: The CDM324 microwave radar sensor module is designed for body induction and motion detection applications, including automatic doors, intelligent lighting control, microwave induction switches, and anti-intrusion security systems. Its 24GHz operating frequency makes it more accurate and less susceptible to environmental interference compared to traditional PIR sensors.
Q: How does the CDM324 radar sensor module differ from a standard PIR sensor?
A: Unlike PIR (passive infrared) sensors that rely on heat signatures and require line-of-sight, the CDM324 uses active microwave radar technology (24–24.25 GHz) to detect motion through walls, glass, or other non-metallic surfaces. This makes it more versatile and reliable in varied environmental conditions.
Q: What power supply does the CDM324 radar sensor module require?
A: The CDM324 operates on a standard +5V DC power supply and consumes only 29mA, making it energy-efficient and compatible with common microcontroller platforms such as Arduino, Raspberry Pi, and other 5V-based development boards.
Q: Is the CDM324 radar sensor module CE certified?
A: Yes, the CDM324 holds CE certification, confirming that it meets European Union standards for safety and electromagnetic compatibility (EMC).
