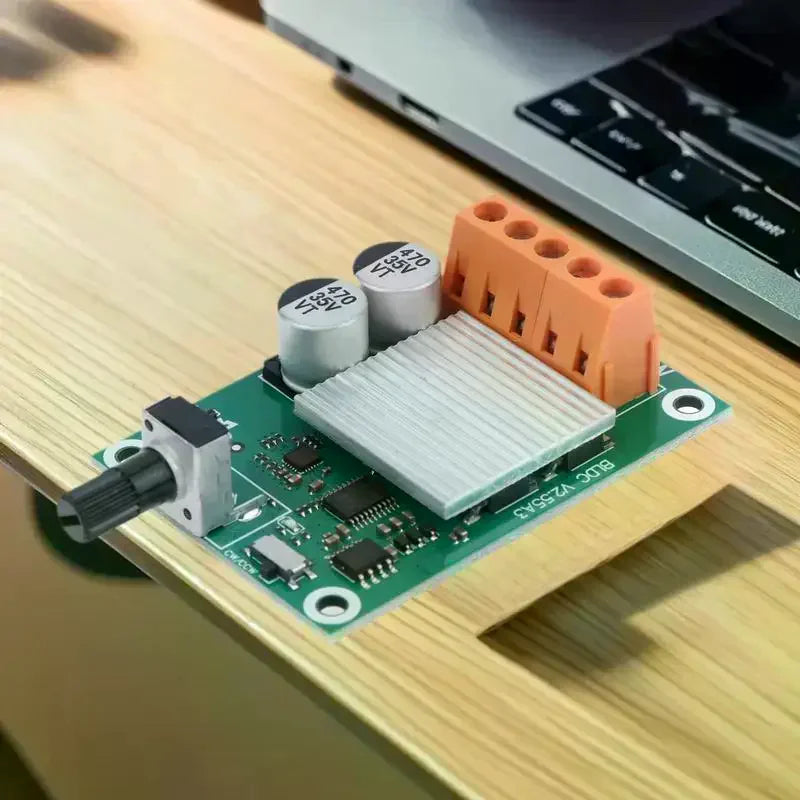

200W DC Brushless Motor Speed Controller – 6V to 24V
Take precise control of your brushless motor projects with this high-performance 200W Motor Speed Controller. Designed for makers, engineers, and DIY enthusiasts, this compact regulator board supports a wide input voltage range of 6V to 24V DC, making it compatible with a broad variety of brushless motors used in fans, optical drives, hard disk drives, and custom machines.
Key Features
- High Power Output: Rated at 120W continuous with a 200W peak, suitable for demanding brushless motor applications.
- Wide Voltage Compatibility: Operates on DC 6V, 12V, or 24V — versatile enough for most DIY and hobbyist builds.
- Intelligent Speed Control: Built-in speed regulation delivers smooth, quiet, and precise motor operation.
- Efficient Drive Circuit: High-efficiency design minimizes energy consumption and features superior heat dissipation for extended service life.
- Fast Startup & Strong Load Capacity: Optimized for optical drives, cooling fans, and similar high-demand scenarios.
- CE Certified: Meets CE certification standards for quality and safety.
- Durable Metal Construction: Solid metal build for reliable long-term performance.
Technical Specifications
| Operating Voltage | DC 6V – 24V |
| Working Current | ≤ 10A |
| Rated Power | 120W |
| Peak Power | 200W |
| Motor Type | DC Brushless Motor |
| Wiring | U / V / W → Brushless Motor; VCC (positive) / GND (negative) → DC Power Supply |
| Material | Metal |
| Certification | CE |
| Wireless | No |
| Battery Included | No |
Package Contents
- 1 × DC Brushless Motor Speed Controller Board
Made in Mainland China.
You May Also Like
- 1PC 10g High Grade Silicone Grease Lubricant for O-Rings & Tubes
- 2M Folding Telescoping Tripod Adjustable Light Stand
- 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes Spanner Tool
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What types of brushless motors is this speed controller compatible with?
A: This 200W DC brushless motor speed controller is compatible with a wide range of three-phase brushless DC motors, including those used in cooling fans, optical drives, hard disk drives, and various DIY machine builds. It supports motors requiring between 6V and 24V DC input at up to 10A working current.
Q: How do I wire this brushless motor controller board?
A: Connect the three motor phase wires (U, V, W) directly to your brushless motor. Then connect VCC (positive) and GND (negative) to your external DC power supply, ensuring the supply voltage falls within the 6V–24V operating range. No battery is included; an external DC power source is required.
Q: Is this motor controller suitable for DIY and hobby projects?
A: Absolutely. This board is purpose-built for makers and DIY enthusiasts. Its wide voltage range (6V–24V), CE certification, compact metal construction, and intelligent speed regulation make it an excellent choice for custom fan controllers, robotics, small machines, and other brushless motor projects.
