1KV Insulation Piercing Connector – No-Strip Cable Branch Clamp
Make fast, reliable cable branch connections without ever stripping insulation. This 1KV Insulation Piercing Connector (IPC) lets you tap into main lines safely and efficiently — ideal for road lighting, street lamp circuits, industrial power runs, bridge lighting, and garden illumination projects. Made in Mainland China.
Key Features
- No Peeling Required: Branch directly onto live main cables without removing insulation or shutting down the circuit — saving time and reducing risk on every installation.
- Insulated Flame-Retardant Shell: The rugged PVC outer shell is flame retardant, impact resistant, erosion-proof, aging-resistant, damp-proof, and dustproof — built for demanding outdoor and industrial environments.
- Sealed, Oil-Filled Interior: Filled with insulating thermal oil, the clamp forms a fully sealed structure once installed, maximising both insulation integrity and conductivity performance.

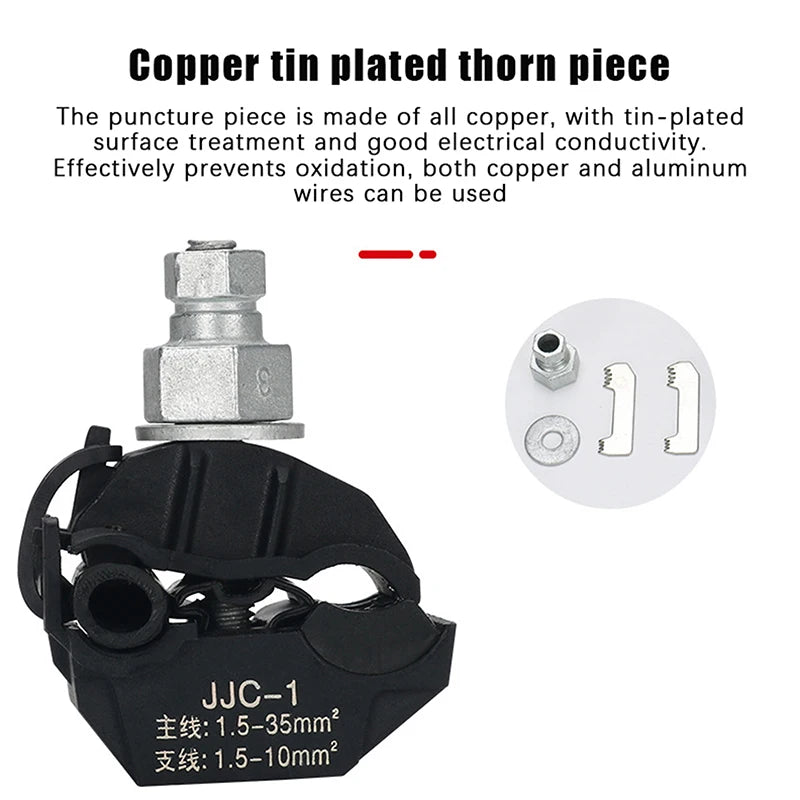

- Tin-Plated Pure Copper Piercing Plate: The copper piercing plate is tin-plated for superior conductivity and oxidation resistance, and is compatible with both copper and aluminium wiring.
- 1KV Voltage Rating: Rated for up to 1KV, suitable for high and low voltage overhead service cable branching.
- Hotspot & Loose Connection Prevention: Engineered to maintain a secure, consistent connection on overhead services, eliminating hotspots, loose terminations, and wire damage.
Specifications
| Model | Main Line | Branch Line |
|---|---|---|

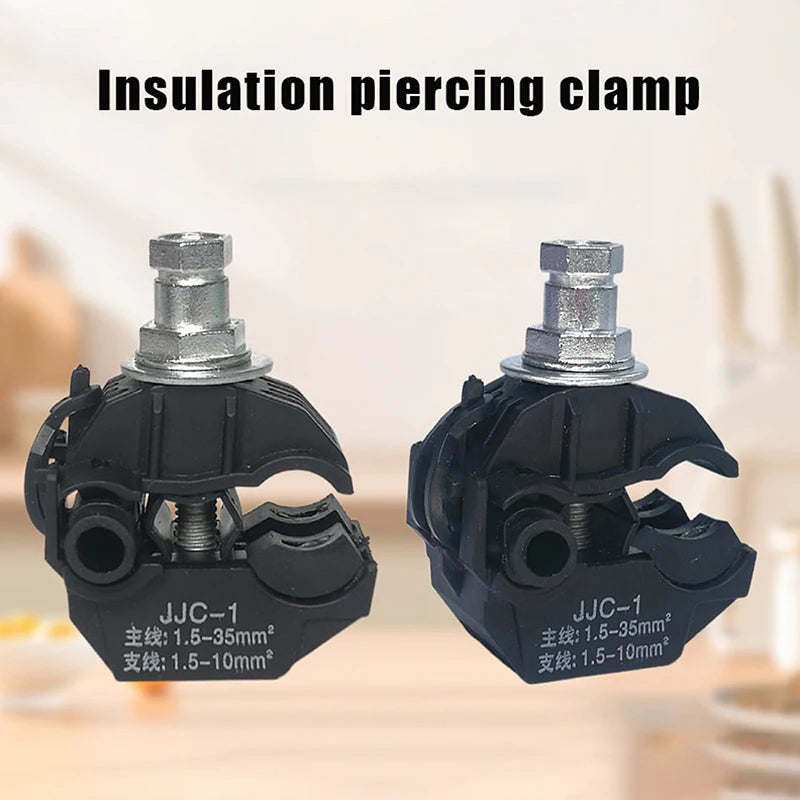

| JJC-1 | 1.5 – 35 mm² | 1.5 – 10 mm² |
| JJC-2 | 16 – 95 mm² | 1.5 – 10 mm² |

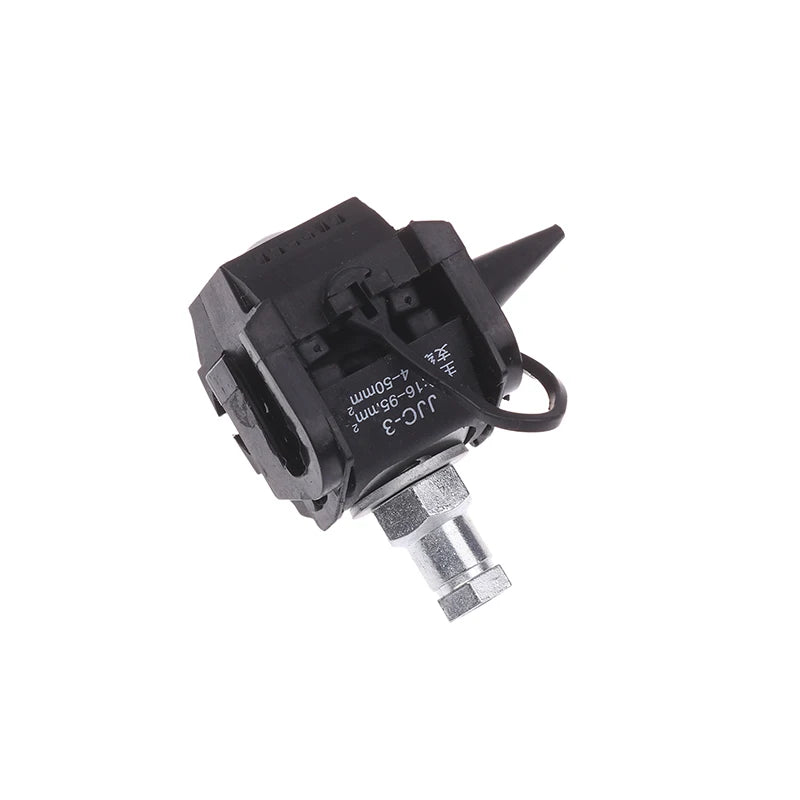

| JJC-3 | 16 – 95 mm² | 4 – 50 mm² |

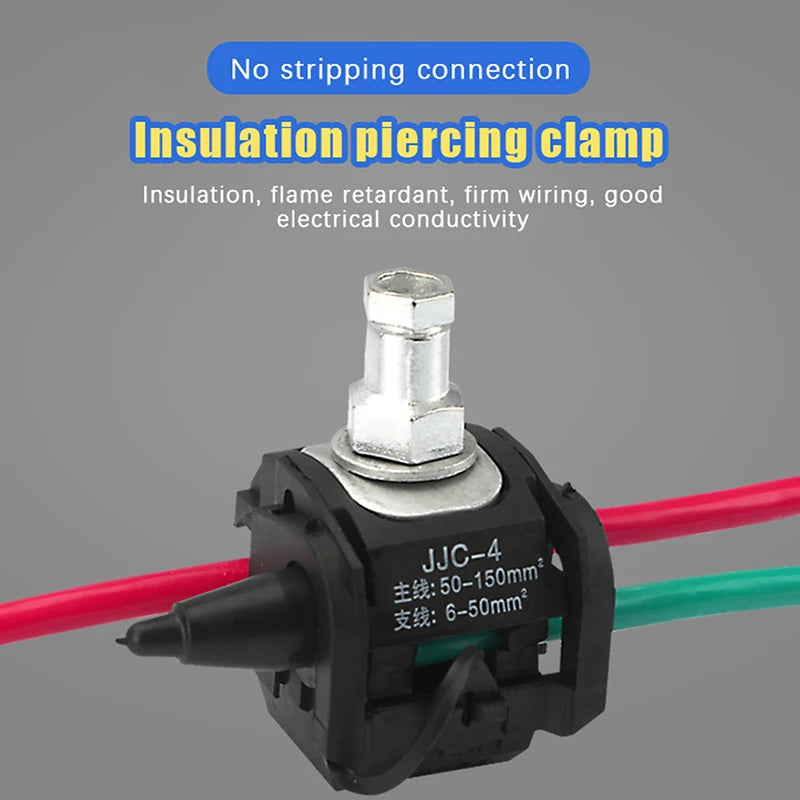

| JJC-4 | 50 – 150 mm² | 6 – 50 mm² |
- Material: PVC shell, pure copper tin-plated piercing plate
- Voltage Grade: 1KV
- Package Includes: 1 × Insulation Piercing Connector
Typical Applications
- Street and road lighting overhead cable branching
- Industrial power distribution taps
- Bridge and garden illumination wiring
- Live-circuit cable splitting without power outages
Related Products You May Find Useful
- 1PC 400cm Oil-Free Leak Proof Sealing Tape for Pipe & Gas Lines
- 1PC High Grade Silicone Grease Lubricant for O-Rings & Tubes
- 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking Tools
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Can I use this insulation piercing connector on a live circuit without cutting power?
A: Yes. The 1KV insulation piercing connector is designed for use on live overhead circuits, allowing you to create a cable branch tap without switching off power. Its sealed, insulated shell and flame-retardant PVC housing keep the connection safe and secure during installation.
Q: Is this connector compatible with both copper and aluminium cables?
A: Absolutely. The tin-plated pure copper piercing plate provides excellent conductivity and oxidation resistance, making the connector compatible with both copper and aluminium main and branch line cables across all four JJC models.
Q: Do I need any special tools to install the insulation piercing connector?

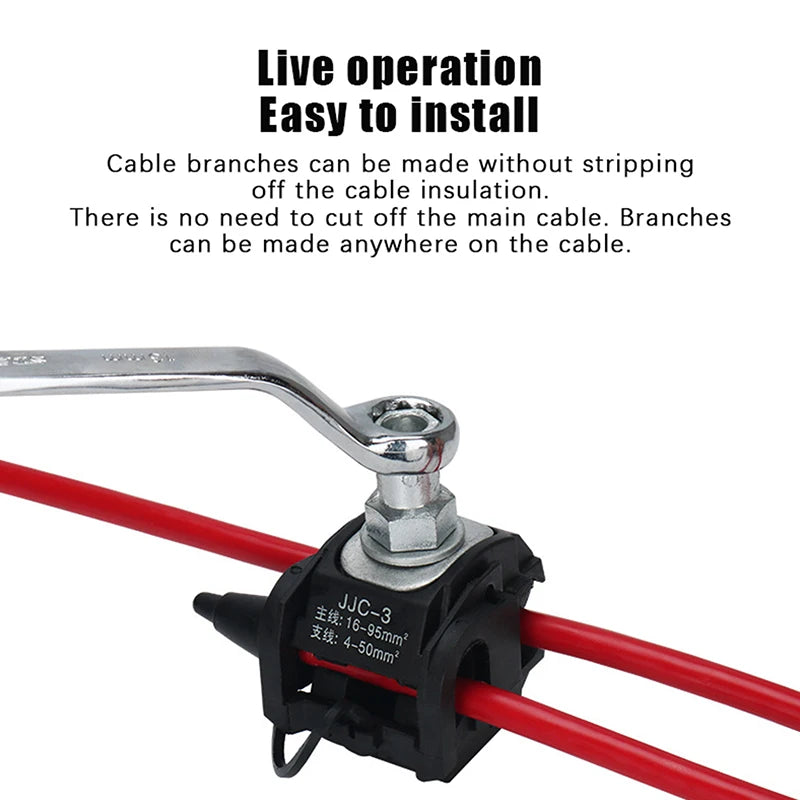

A: No cable stripping or special tools are required. The no-peel design means you simply position the clamp on the main cable and branch cable, then tighten the connector — the piercing plate penetrates the insulation automatically to form a sealed, conductive joint.
Q: Which model should I choose for my cable sizes?
A: Select the model based on your main line and branch line cross-sections: JJC-1 covers main lines 1.5–35 mm² with branches 1.5–10 mm²; JJC-2 suits main lines 16–95 mm² with branches 1.5–10 mm²; JJC-3 handles main lines 16–95 mm² with branches 4–50 mm²; and JJC-4 is rated for main lines 50–150 mm² with branches 6–50 mm².
