4PCS 18650 Battery Spot Welding Fixture Jig Clamp Set – PLA

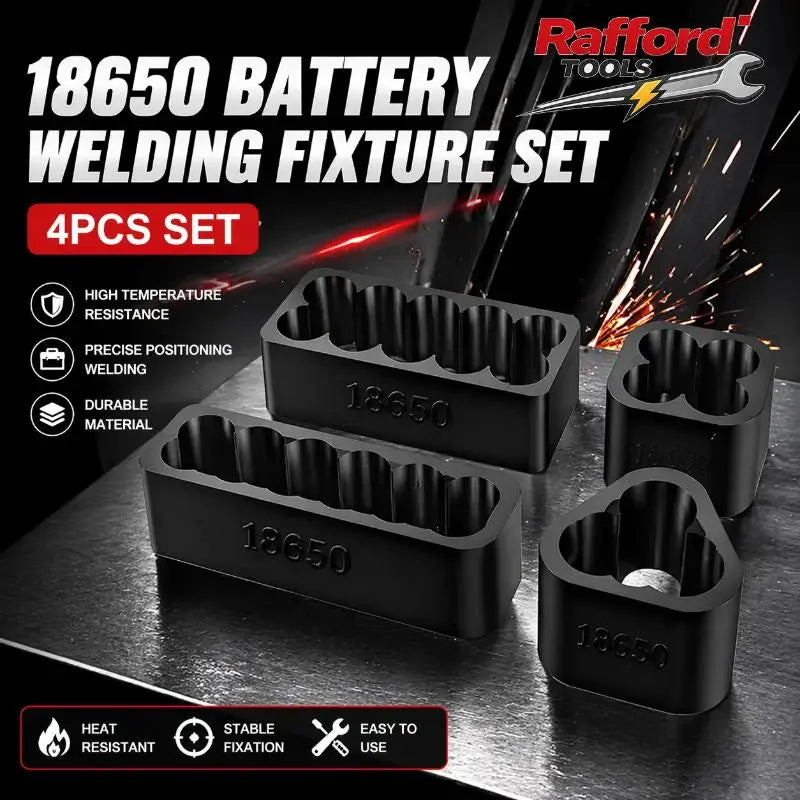

4PCS 18650 Lithium Battery Spot Welding Fixture Jig Clamp Set

Build cleaner, more reliable battery packs with this professional-grade 18650 spot welding fixture set. Crafted from reinforced hard PLA, this 4-piece jig clamp assembly bracket holds cylindrical 18650 lithium batteries firmly in place, eliminating cell movement during spot welding so every weld lands exactly where it should. Whether you're assembling a DIY power bank, modifying an e-bike battery, or building a custom lithium pack, this fixture delivers the precision and repeatability you need.

Made in Mainland China.

Key Features

• Excellent Electrical Insulation: High-quality reinforced PLA is naturally non-conductive, effectively preventing accidental short circuits during the spot welding process and keeping both the operator and the batteries safe.

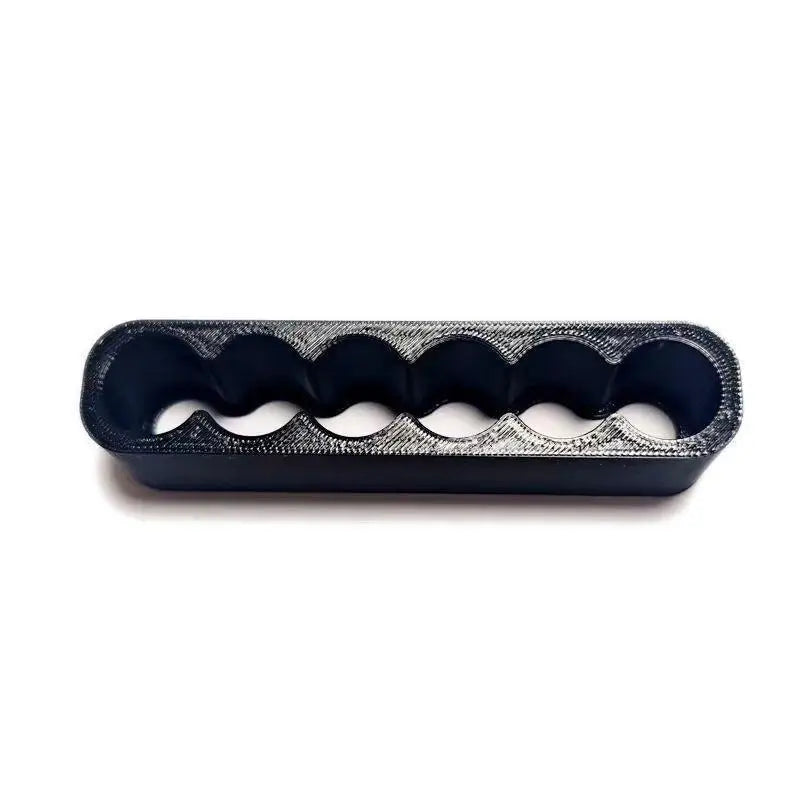

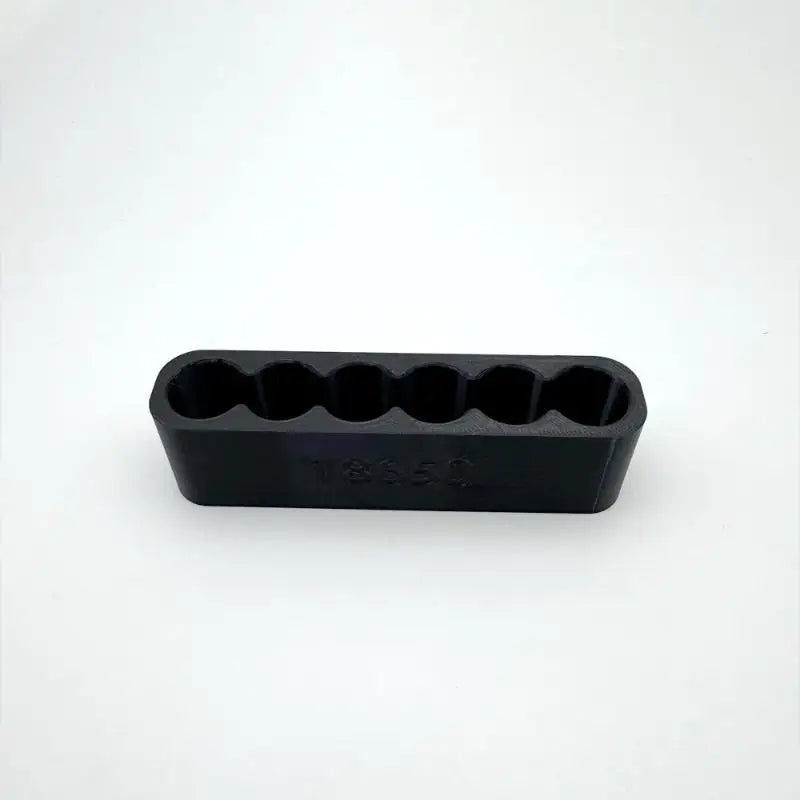

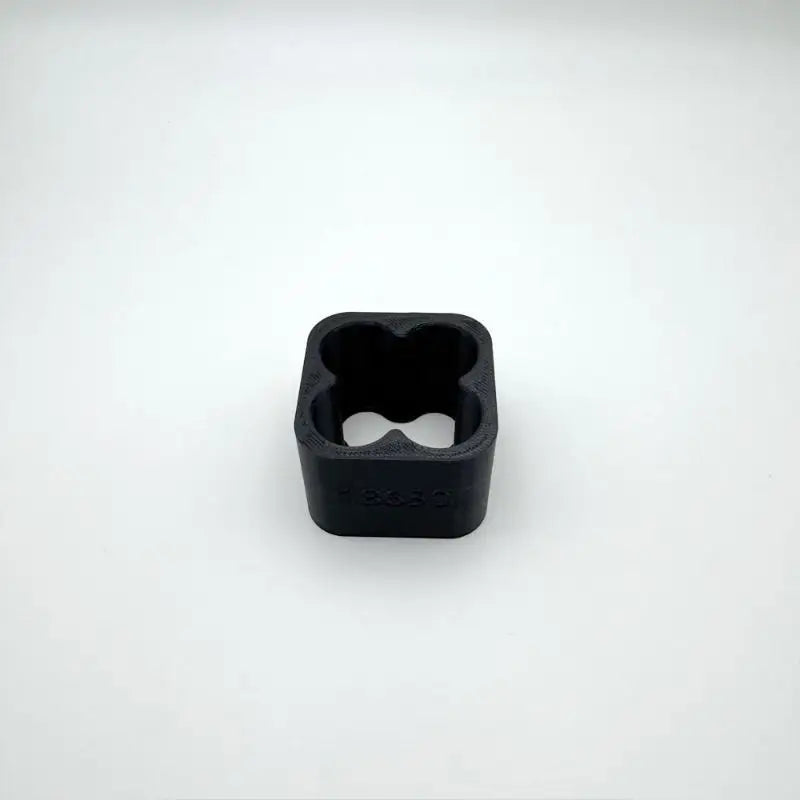

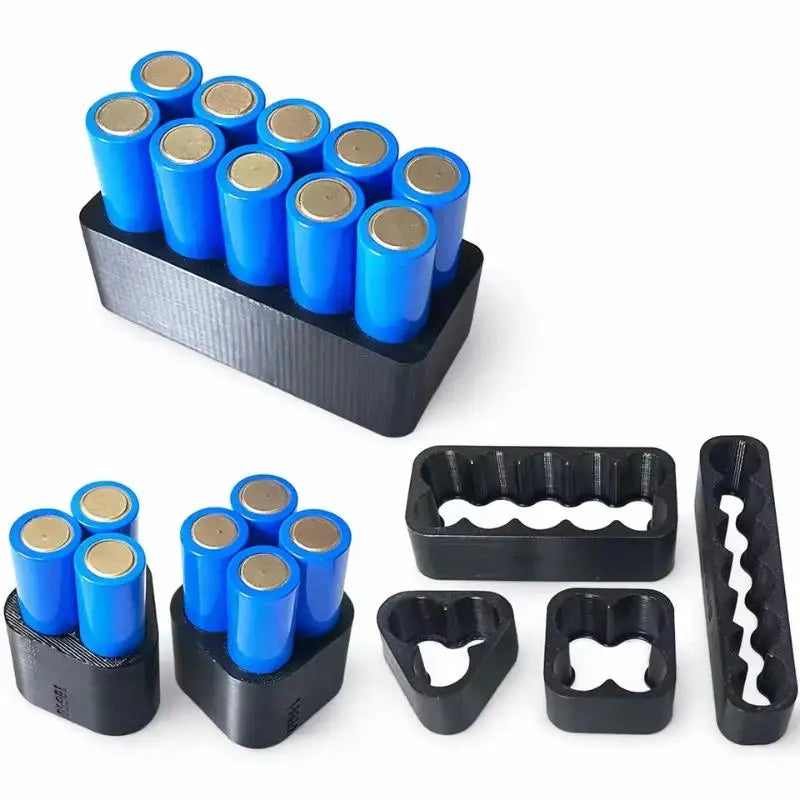

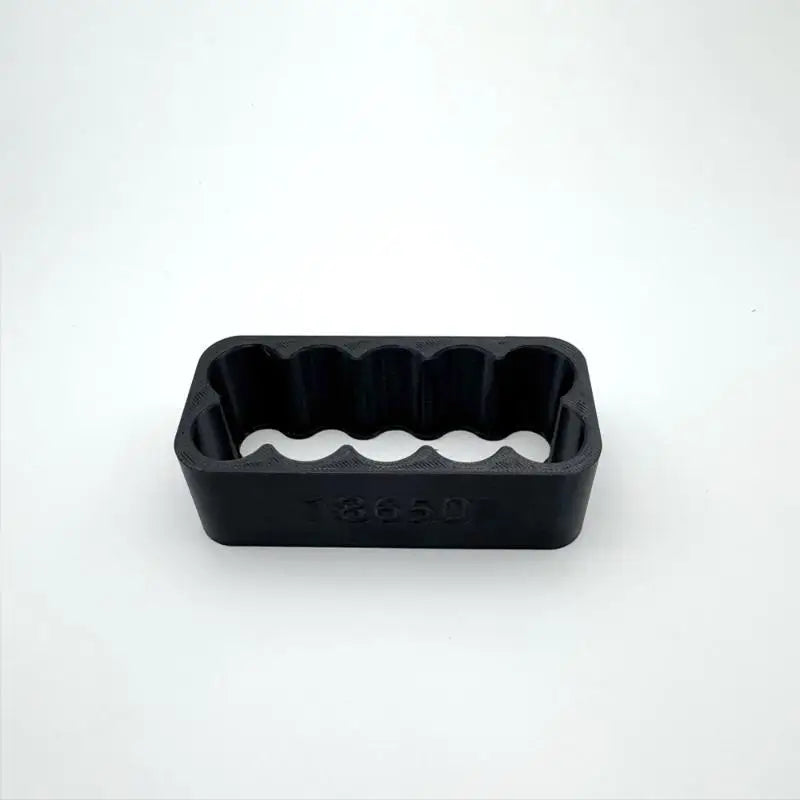

• Precision Positioning Slots: High-precision molded slots are sized to fit standard 18650 cylindrical lithium batteries perfectly, eliminating cell displacement during welding for neat, accurate, and reliable results every time.
• Long-Lasting Durability: Thickened, hardened PLA delivers strong impact resistance and structural rigidity, resisting deformation after repeated long-term use — outlasting standard plastic welding jigs.
• Lightweight & Easy to Handle: Low-density PLA keeps the entire jig set significantly lighter than metal equivalents, making it easy to carry between work sites and reducing hand fatigue during extended welding sessions.
• Scratch-Free Battery Protection: One-piece molded construction creates smooth, burr-free contact surfaces on all edges, protecting battery casings from scratches during fixing and operation.

Specifications

You May Also Like

• 1PC Large Capacity Battery Storage Organizer Box – Holds 30 AAA Batteries
• 1PC 10g High Grade Silicon Grease Lubricant for O-Rings & Tubes
• 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking Nozzle Tools

Notes

• Product photos are for illustrative purposes only; please refer to the written specifications for size details.
• Slight measurement differences may occur due to manual measuring; minor color variations may appear due to monitor differences.

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Are these 18650 spot welding fixture jigs compatible with all standard 18650 batteries?

A: Yes. The precision-molded slots are designed to fit all standard 18650 cylindrical lithium batteries, ensuring a snug, secure hold during spot welding for consistent, accurate results.

Q: Why is PLA used instead of metal for this welding fixture set?

A: Reinforced PLA offers excellent electrical insulation (preventing short circuits), is lighter than metal for easier handling, and its smooth molded surface protects battery casings from scratches — making it an ideal material for a spot welding jig fixture.

Q: How many pieces are included in this battery spot welding jig set?

A: This listing includes 4 pieces per set, giving you enough fixtures to hold multiple batteries simultaneously for efficient DIY battery pack assembly or production workflows.

Q: Can this fixture be used for power bank or e-bike battery pack building?

A: Absolutely. This jig clamp set is suitable for a wide range of applications including DIY lithium battery pack assembly, power bank production, e-bike battery building, battery maintenance, and electronic product modification involving 18650 cells.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
