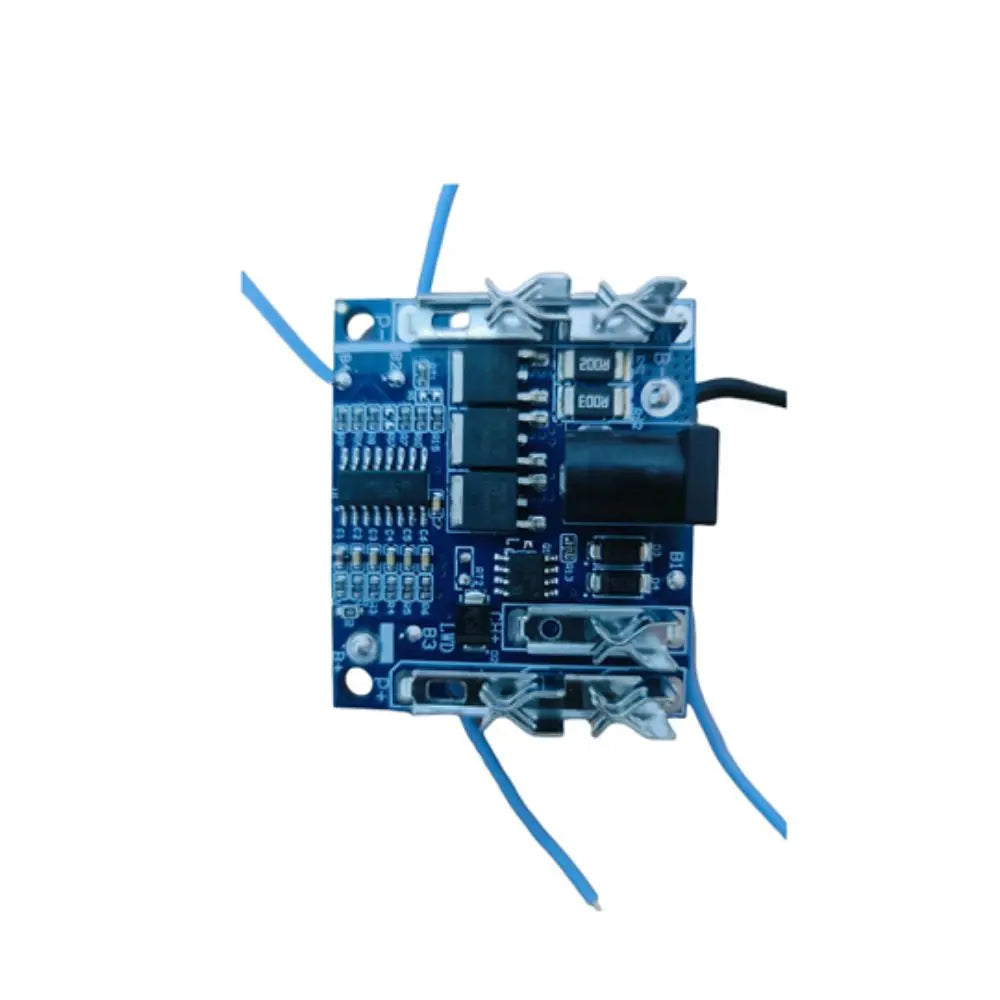

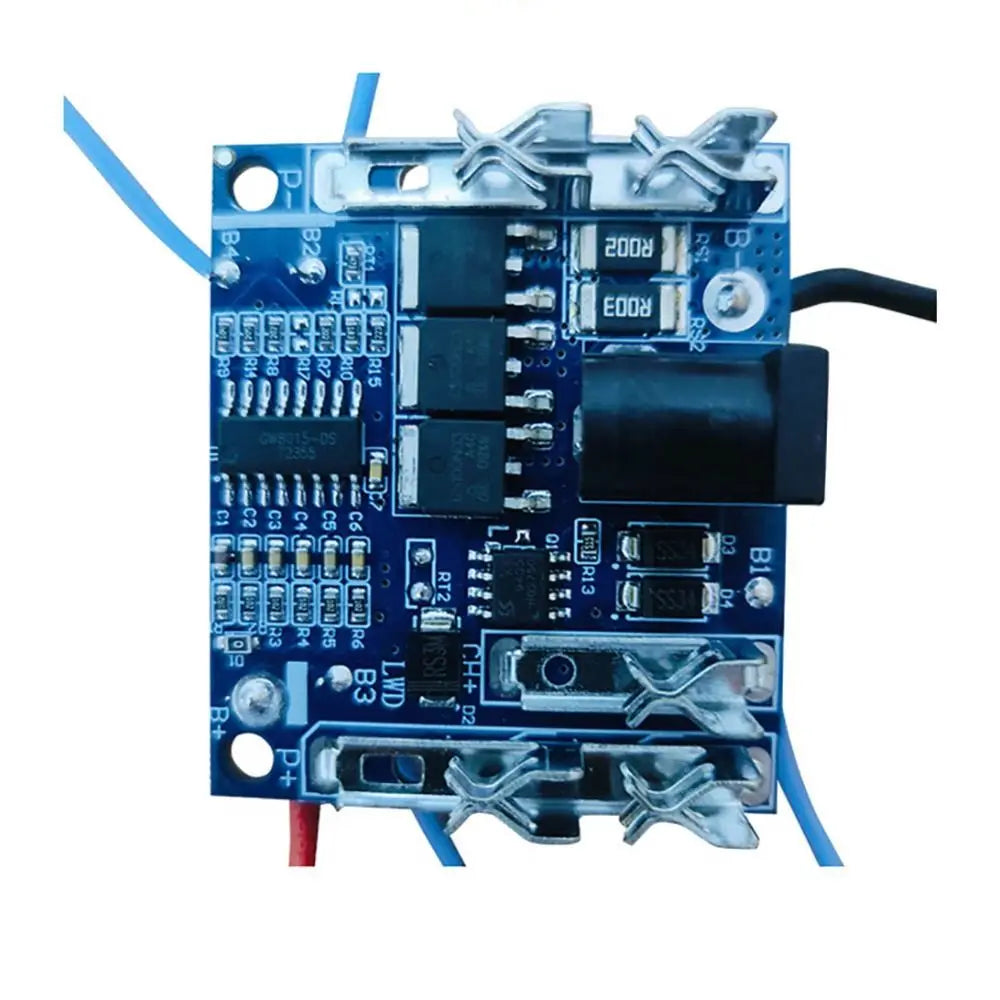

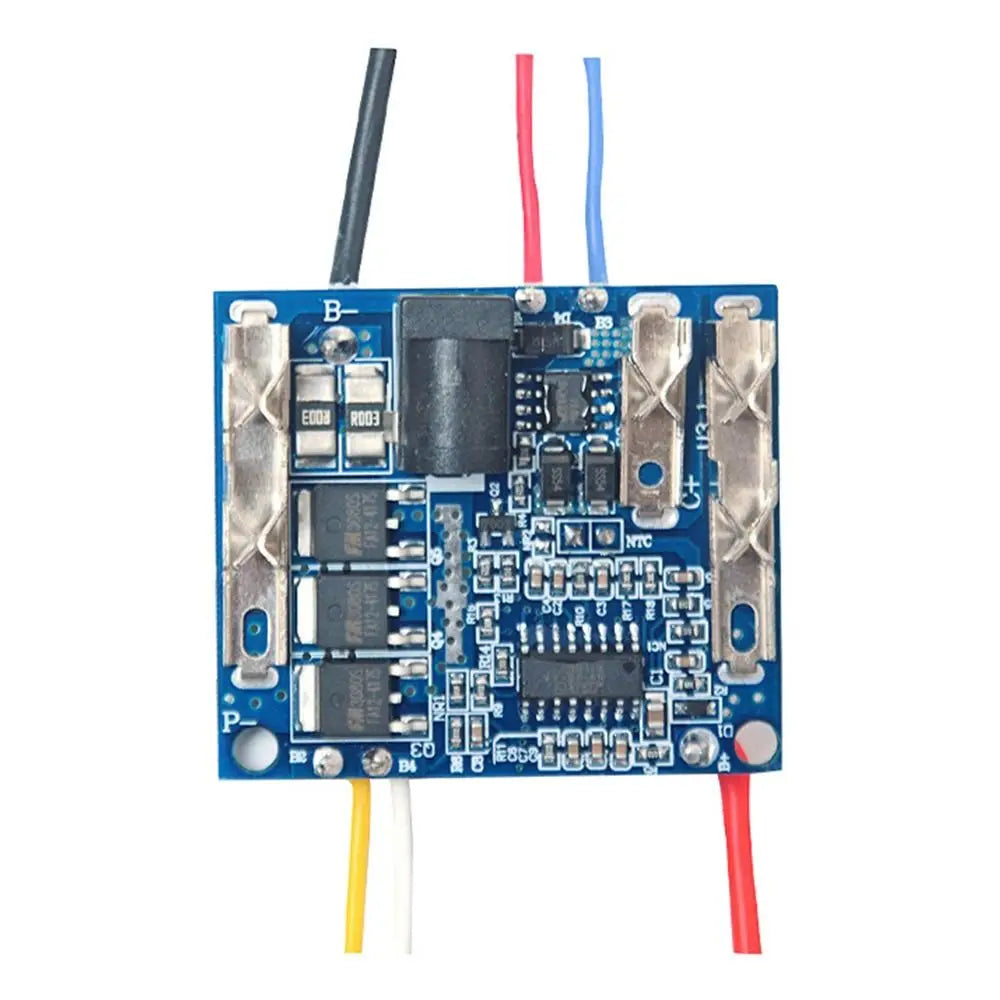

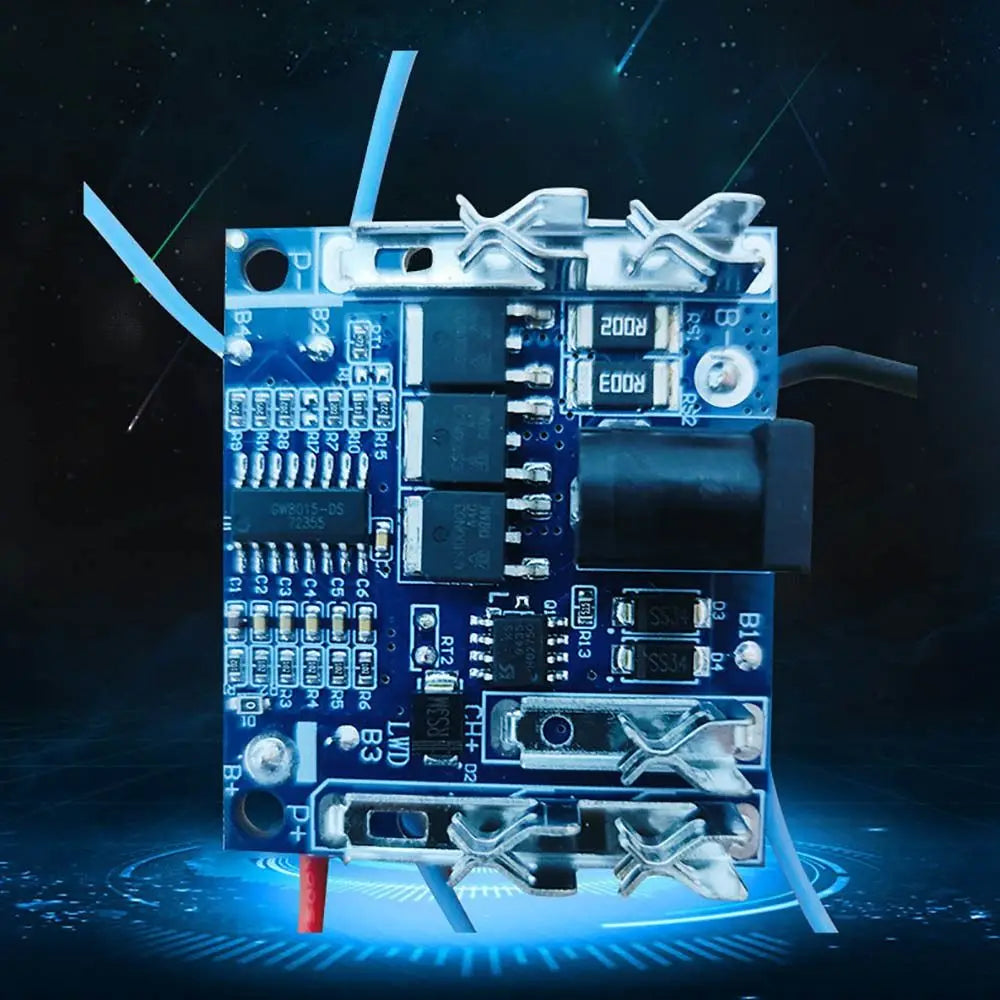

18/21V 5S Li-Ion Battery Protection Board — 20A Circuit Module
Keep your lithium battery packs running safely and efficiently with this compact 5S Li-Ion Battery Protection Board. Designed for 18V and 21V electric power tool battery packs, this 20A protection circuit module uses a dedicated 5-series lithium battery IC to provide real-time monitoring of voltage, charge/discharge current, and ambient temperature — all in a small 46×40 mm footprint.
Made in Mainland China.
Key Features
- Wide Current Support: Handles 8–20A charge/discharge current for demanding power tool applications.
- Comprehensive Protection Functions: Safeguards against overcharge, over-discharge, and short circuit conditions, with a 1-second overcharge protection delay.
- Real-Time IC Monitoring: Special-purpose 5S lithium battery IC continuously monitors each cell's voltage, current, and temperature.
- Ultra-Low Power Consumption: Working current of approximately 25µA; quiescent current as low as 6µA — minimal drain on your battery pack.
- Wide Operating Temperature Range: Rated from -55°C to 120°C (operating) and -55°C to 175°C (storage), with humidity tolerance up to RH ≤75%.
- DIY & Repair Friendly: Easy to integrate into custom or replacement battery pack builds for power tools and similar applications.
Specifications
| Compatible Battery Configuration | 5S Li-Ion (18V / 21V) |
| Charge Voltage | 25V |
| Current Range | 8–20A |
| Working Current | ~25µA at 25°C |
| Quiescent Current | ~6µA |
| Overcharge Protection Delay | 1 second |

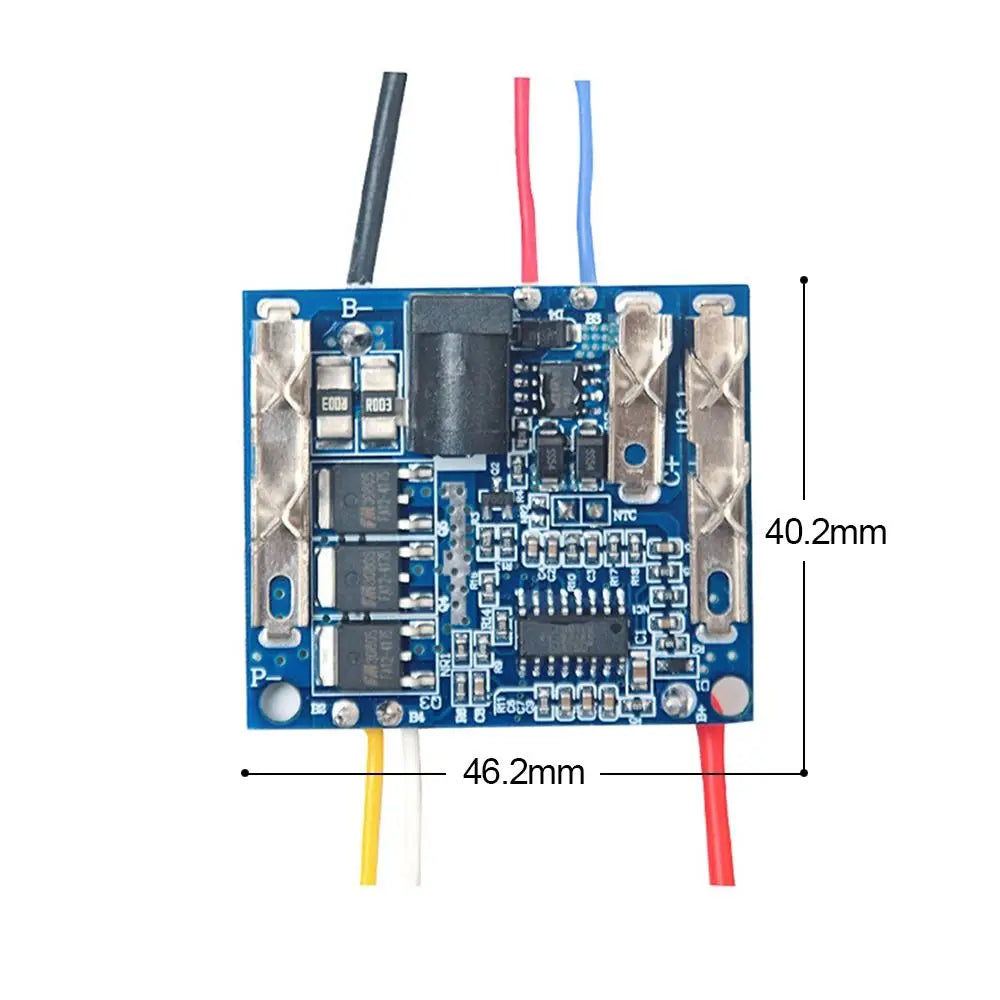

| Board Dimensions | 46 × 40 mm |
| Operating Temperature | -55°C to 120°C, RH ≤75% |
| Storage Temperature | -55°C to 175°C, RH ≤75% |
| Package Contents | 1 × Protection Board Module |

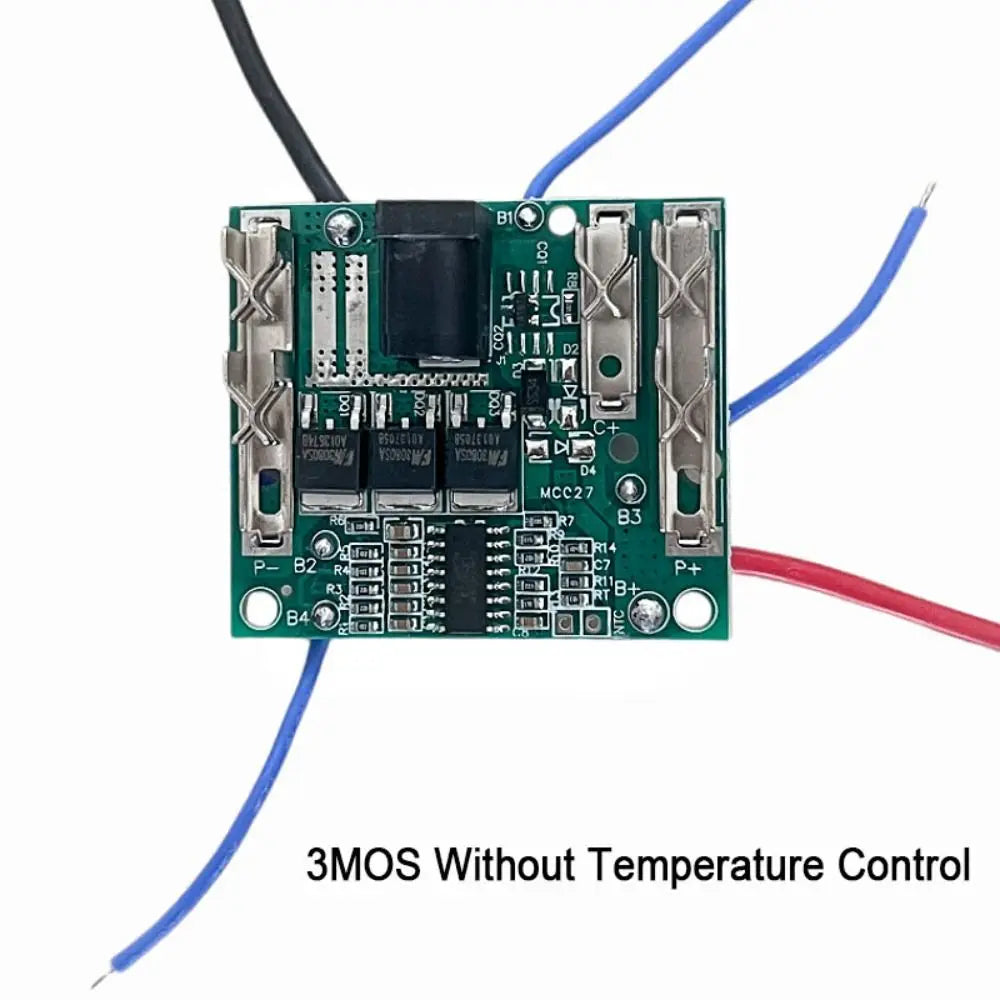

Note: Product color and chip layout may vary between production batches, but performance and functionality remain unchanged.
Related Products You May Like
- 1PC 10g High Grade Silicon Grease Lubricant for O-Rings & Tubes
- 1PC Large Capacity Battery Storage Organizer Box
- 1PC Mobile Data Cable & Charger Storage Box with Lid
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What battery configuration is this 5S protection board designed for?
A: This protection circuit board is specifically designed for 5-series (5S) Li-Ion battery packs, which operate at 18V to 21V. It is commonly used in electric power tool battery packs and similar DIY battery applications.
Q: What protection functions does this circuit board provide?
A: The board offers overcharge protection (with a 1-second delay), over-discharge protection, and short circuit protection. The built-in 5S IC monitors each cell's voltage, current, and temperature in real time to ensure stable, safe operation.
Q: Is this protection board suitable for DIY battery pack builds?
A: Yes! This module is ideal for DIY electrical projects and battery pack repairs. It is compact at 46×40 mm and supports 8–20A of current, making it a great fit for custom electric power tool battery packs. Always ensure you select the correct protection board for your specific battery configuration before installation.
Q: Will the board look exactly as pictured?
A: The board's color and chip layout may differ slightly between production batches, but these cosmetic differences do not affect the board's performance or functionality in any way.
