Take your electronics projects to the next level with this compact 15KV High Frequency Arc Ignition Generator Kit. Featuring a U-Core transformer, high-voltage inverter, and step-up boost circuit, this DIY set is ideal for science experiments, electronics research, negative ion generation, and educational demonstrations. The circuit design is straightforward and reliable, making it a go-to kit for hobbyists and makers alike.
Key Specifications

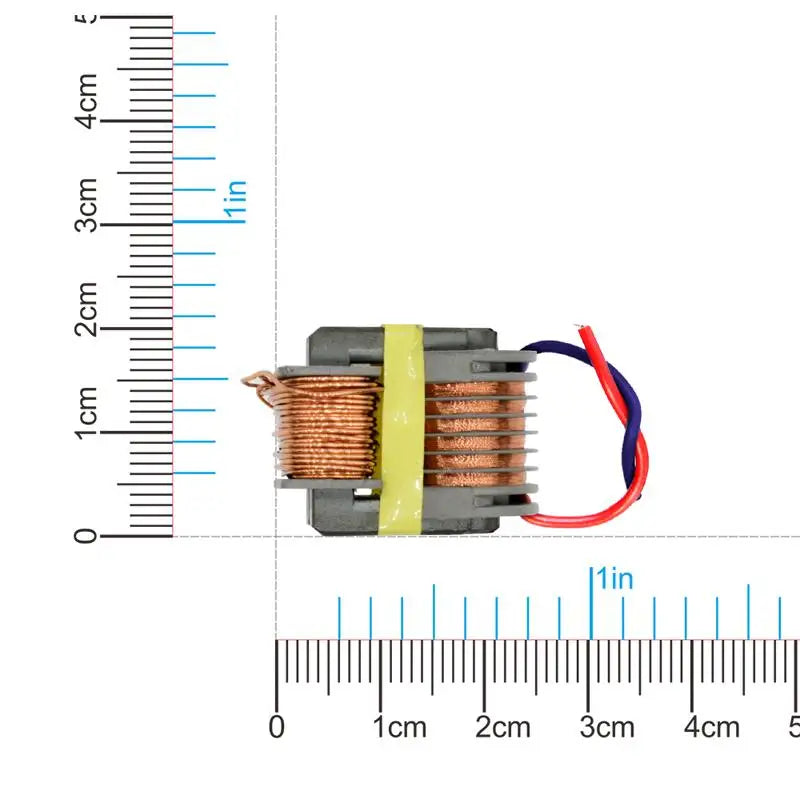

- Transformer Dimensions: Approx. 27 × 16 × 21 mm
- Input Voltage: DC 3.7V – 4.2V (compatible with 18650 Li-ion cells; max 12V with resistor adjustment)
- Input Current: <2A
- Output Voltage: Approx. 15KV (use with caution)
- Output Current: ≤0.4A
- High-Voltage Arc Distance: ≤0.5 cm (produces high-temperature purple arc up to ~1.5 cm)
- PCB Board Size: 4.2 × 3.2 × 0.16 cm
- Material: Metal components on PCB
- Package Contents: 1 × Complete DIY Kit Set
Transformer Structure
The transformer features two primary windings — one primary winding and one feedback winding — with a high-voltage secondary output. It is designed for a maximum output of 15KV. Exceeding this limit (over 1 cm arc distance) risks damaging the transformer. When supplied with 3.7V–4.2V, the secondary output generates a vivid purple high-temperature arc capable of instantly igniting paper and burning fine wire, making it perfect for high school chemistry and physics demonstrations.
Common Applications
- High school and university science experiments
- DIY electronics research and development
- Negative ion generator circuits
- Educational small production projects
- Plasma arc generation demos
⚠️ Safety Notice
This kit generates extremely high voltages (up to 15KV). Always handle with care, keep away from children, and never touch output terminals while in operation. Use only within the specified input voltage range.
Made in Mainland China.
