15BY Mini 15mm 2-Phase 4-Wire Gear Stepper Motor with Full Metal Gearbox
Upgrade your DIY electronics and precision engineering projects with the 15BY Mini Gear Stepper Motor. This compact 15mm micro stepping motor features a full metal gearbox with an approximate 1:34.75 reduction ratio, delivering smooth, precise, and repeatable motion control. Ideal for makers, engineers, and hobbyists who demand accuracy in a tiny package.
Made in Mainland China.
Key Features

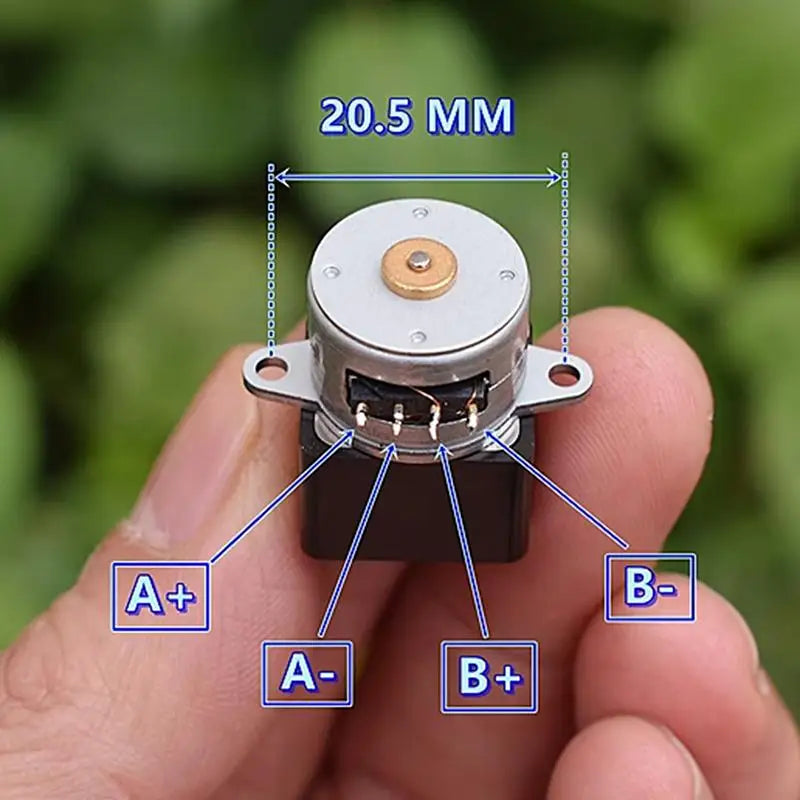

- 2-Phase, 4-Wire Design: Industry-standard wiring for easy integration with most stepper motor driver boards.

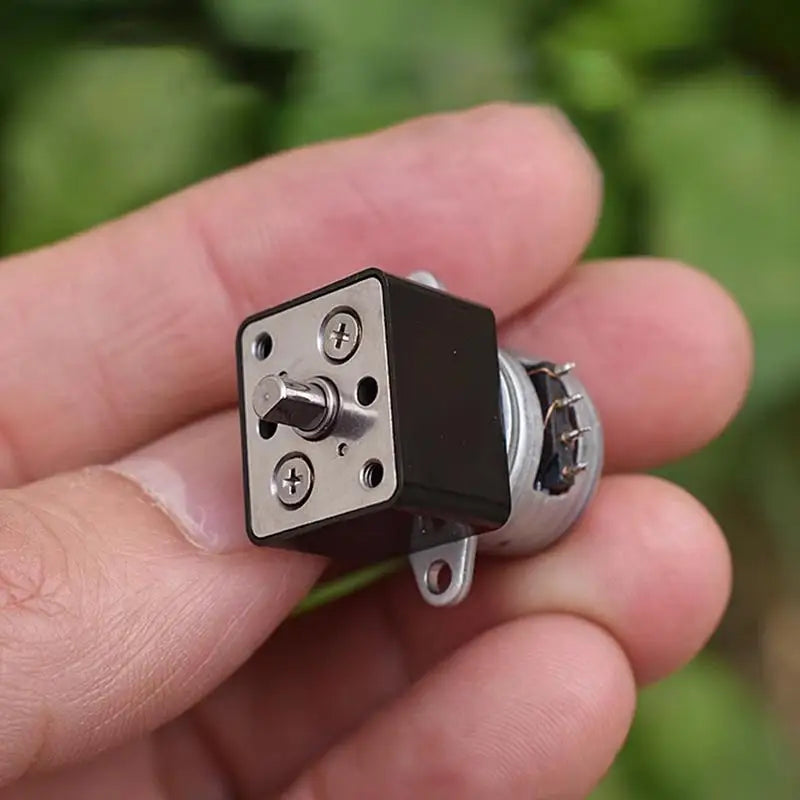

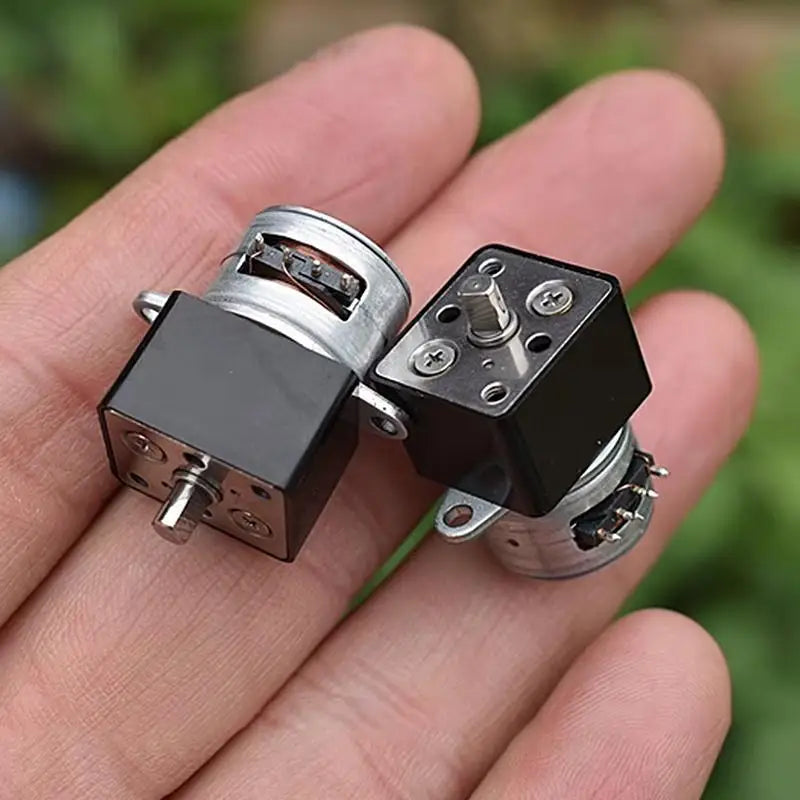

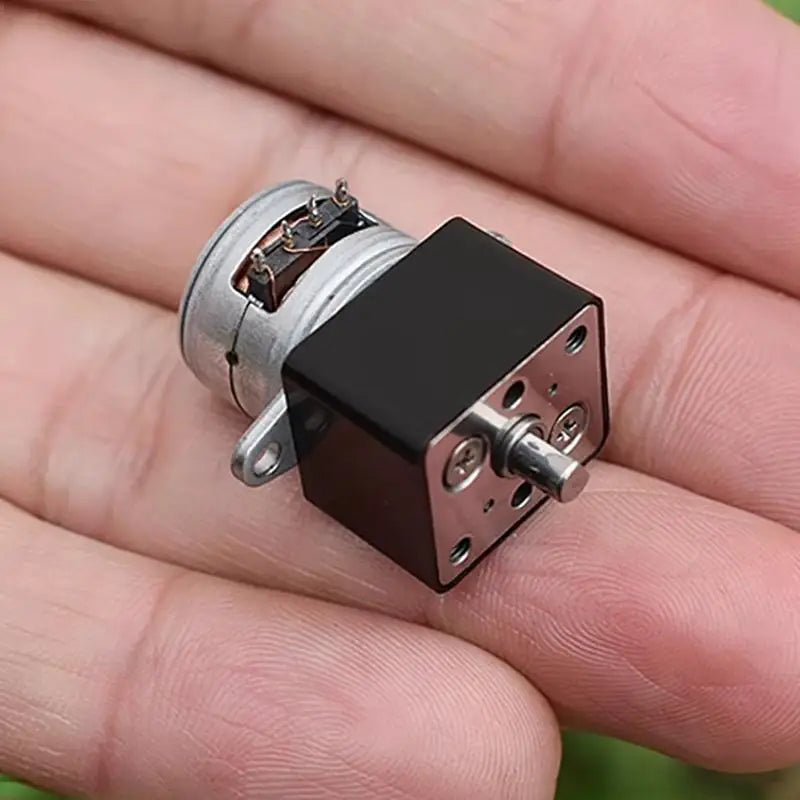

- All Metal Gearbox: Durable full metal gear reducer for long-lasting performance and consistent torque output.
- High Reduction Ratio (~1:34.75): Approximately 695 pulse signals required for one full 360° rotation of the output shaft — ideal for precise positioning tasks.
- Low Step Angle: Motor step angle of 18°; output shaft step angle of approximately 0.52° for fine-grained motion control.

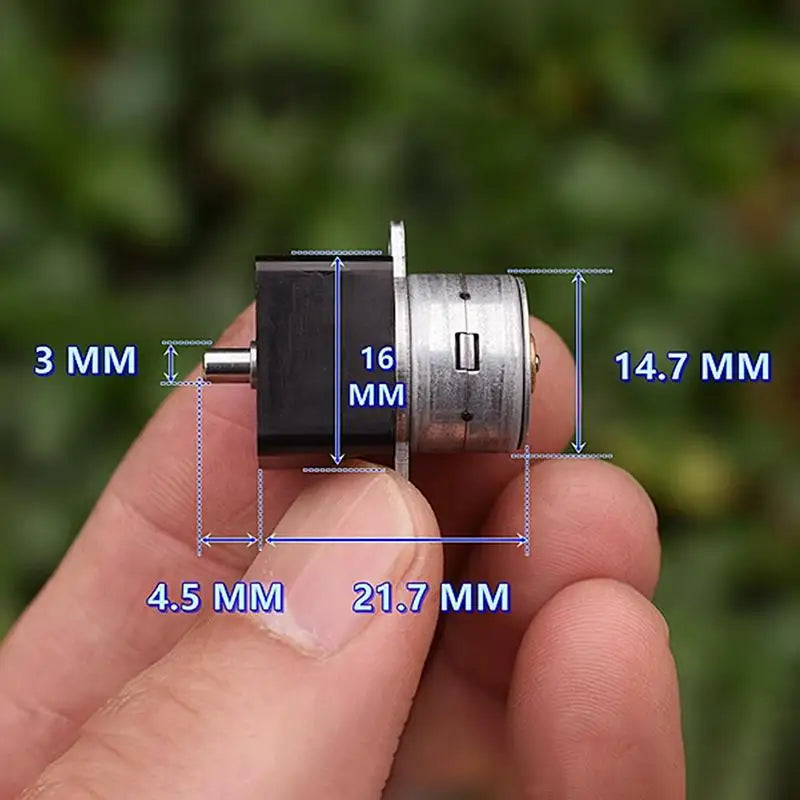

- Compact 15mm Form Factor: Fits into space-constrained builds and miniature mechanical assemblies.
- Wide Application Range: Commonly used in monitoring equipment, communication devices, precision instruments, and robotic mechanisms.
Technical Specifications
| Motor Type | 2-Phase 4-Wire Stepper Motor |
| Motor Diameter | 15mm |
| Reduction Ratio | ~1:34.75 |
| Step Angle (Motor) | 18° |
| Step Angle (Output Shaft) | ~0.52° |
| Pulses per Revolution | ~695 |
| Phase Resistance | 19.7 Ω (6V, short-circuit current: 280mA) |
| Gearbox Material | Full Metal |
| Package Contents | 1 × Gear Stepper Motor |
| Battery Included | No |
| Wireless | No |
⚠️ Important Notice
An external stepper motor driver is required to operate this motor. Direct connection to a power supply will NOT cause the motor to run. Please ensure you have a compatible 2-phase stepper motor driver before use.
Ideal For
- DIY robotics and automation projects
- Precision instrument mechanisms
- Monitoring and communication equipment
- Camera sliders and pan-tilt systems
- CNC and motion control builds
- Educational and prototyping applications
Related Products You May Like
- 1PC 10g High Grade Silicon Grease Lubricant for O-Rings & Mechanical Parts
- 1PC Exhaust Duct Interface Pipe Hose Connector
- 1PC Multi-Use Faucet Bubbler Wrenches & Repair Spanner
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Does the 15BY gear stepper motor work when connected directly to a power supply?
A: No. The 15BY 2-phase 4-wire gear stepper motor requires an external stepper motor driver to function. Direct connection to a power supply will not produce motor movement. You must use a compatible stepper driver board to send the required pulse signals.
Q: How many pulse signals are needed for one full rotation of the output shaft?
A: Approximately 695 pulse signals are required for the output shaft to complete one full 360° rotation, thanks to the ~1:34.75 metal gear reduction ratio. The output shaft step angle is approximately 0.52°, enabling very precise positional control.
Q: What types of projects is this mini stepper motor suitable for?
A: This micro gear stepper motor is well-suited for a wide range of DIY and professional applications including robotics, precision instruments, monitoring and communication equipment, camera pan-tilt rigs, CNC machines, and any project requiring compact, accurate motion control.
Q: What is the phase resistance and operating current of this motor?
A: The phase resistance is 19.7 ohms. At 6V, the short-circuit current is approximately 280mA. Please factor these values into your driver and power supply selection for optimal performance.
