12V & 24V Car Battery Tester LCD | 3-400AH CCA Analyzer

$85.15 $102.13

12V & 24V Digital Car Battery Tester with LCD Display

Take the guesswork out of battery maintenance with this professional-grade 12V & 24V Car Battery Analyzer. Whether you're a service technician or a vehicle owner who likes to stay on top of maintenance, this compact tester delivers fast, accurate readings — right at your fingertips. Made in Mainland China.

Why You'll Love This Battery Tester

Wide Voltage & Capacity Coverage: Tests 12V and 24V batteries with a capacity range of 3–400AH, making it compatible with cars, trucks, motorcycles, SUVs, and marine vehicles.
Clear 2.7-Inch LCD Display: Instantly view SOH (State of Health), SOC (State of Charge), voltage, internal resistance (IR), and CCA values — along with a plain-language battery condition status: Good, Replace, or Recharge.
Multiple CCA Standards Supported: Compatible with IEC, SAE, EN, DIN, and CA rating standards so you can test batteries from virtually any global market.
Secure Clamp Connection: Color-coded red and black battery clamps with 650mm (25.6") test leads ensure a reliable, low-resistance connection for accurate readings every time.
Simple Keypad Navigation: RESET, directional, and ENTER buttons make menu navigation intuitive — no complicated setup required.

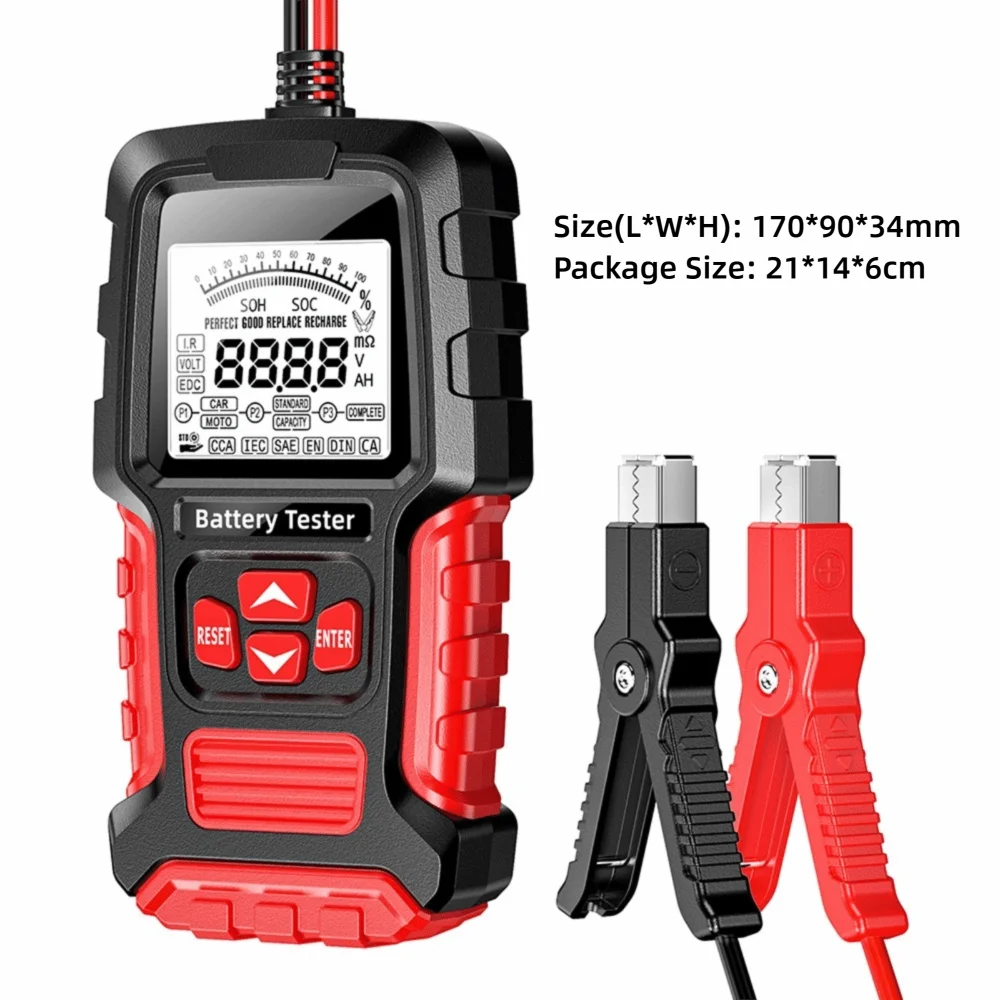

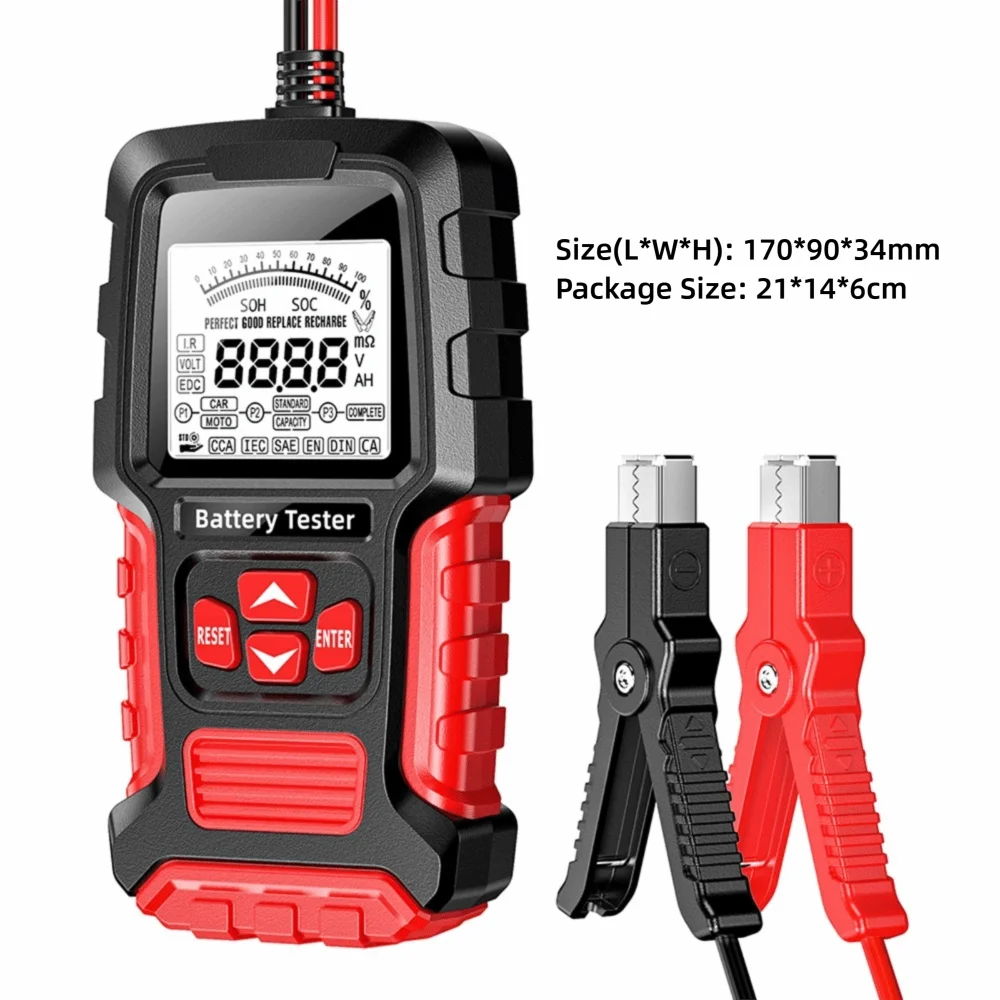

Durable ABS Housing: Lightweight yet sturdy Yellow/Red ABS body (170×90×34mm) built to handle workshop and roadside conditions.

Key Specifications

Test Voltage Range	8–30V DC
Battery Capacity Range	3AH – 400AH
Display	2.7-inch LCD
Test Results	SOH, SOC, CCA, Internal Resistance (IR)
CCA Standards	IEC, SAE, EN, DIN, CA
Cable Length	650mm (25.6 inches)
Working Temperature	-20°C to +60°C (-4°F to 140°F)
Storage Temperature	-20°C to +60°C (-4°F to 158°F)
Material	ABS Plastic
Dimensions	170 × 90 × 34mm
Color	Yellow / Red

What's in the Box?

1× Car Battery Tester (with attached clamp leads)

Compatibility

Designed for 12V and 24V lead-acid, AGM, GEL, and standard automotive batteries found in cars, trucks, motorcycles, SUVs, and marine applications. Perfect for battery health checks, internal resistance testing, capacity testing, and CCA cold cranking amp measurement.

Frequently Asked Questions

Q: What types of batteries can this 12V & 24V battery tester analyze?

A: This battery analyzer is compatible with 12V and 24V lead-acid, AGM, GEL, and standard flooded automotive batteries with a capacity range of 3AH to 400AH. It works with batteries from cars, trucks, motorcycles, SUVs, and marine vessels.

Q: What CCA standards does this battery tester support?

A: The tester supports five major Cold Cranking Amp (CCA) rating standards: IEC, SAE, EN, DIN, and CA — making it suitable for testing batteries manufactured for global markets.

Q: What information does the LCD display show?

A: The 2.7-inch LCD displays State of Health (SOH), State of Charge (SOC), battery voltage, internal resistance (IR), and CCA value. It also shows a plain-language condition result — Good, Replace, or Recharge — for quick interpretation.

Q: Do I need any special tools or a power source to use this battery tester?

A: No special tools are required. Simply connect the color-coded red and black clamps to the corresponding battery terminals and use the simple keypad to navigate the menu. The tester draws its operating power from the battery being tested (8–30V DC range).
