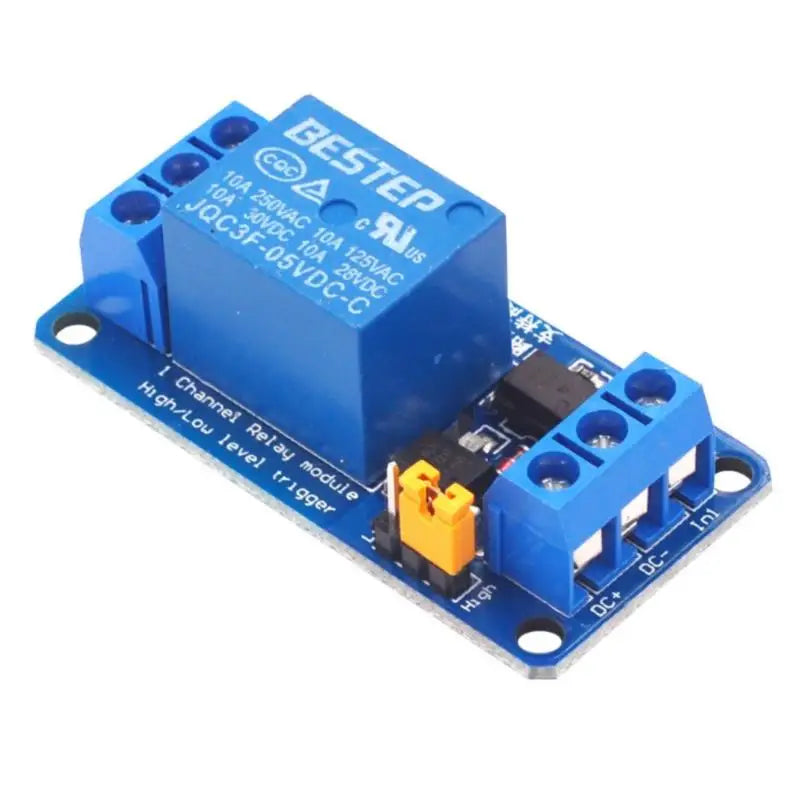

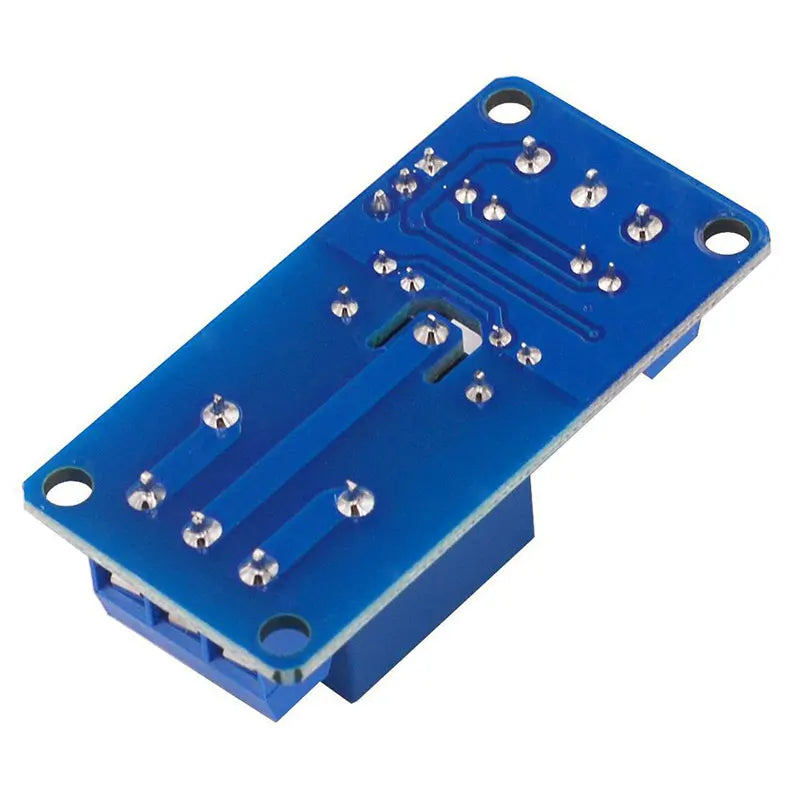

1-Channel Relay Module – Versatile Multi-Voltage Trigger Board
Take full control of your electronics projects with this compact and reliable 1-Channel Relay Module. Compatible with 3.3V, 5V, 12V, and 24V systems, this board is ideal for Arduino, Raspberry Pi, microcontrollers, and a wide range of DIY automation applications. Made in Mainland China.
Key Features
- Wide Voltage Compatibility: Supports 3.3V, 5V, 12V, and 24V input — works seamlessly with most popular microcontrollers and development boards.
- High & Low Level Trigger Selection: Each channel can be independently set for high or low level triggering via a simple jumper — maximum flexibility for any circuit design.
- Double Optocoupler Isolation: Provides strong drive capability, stable performance, and protects your control circuits. Trigger current: just 5mA.
-
Maximum Load Capacity:
- Normally Open (NO) interface: AC 250V / 10A or DC 30V / 10A
- Fault-Tolerant Design: Even if the control line is disconnected, the relay remains in its current state — no unintended switching.
- Clear Status Indicators: Green LED for power-on status; Red LED for relay activation status — instant visual feedback at a glance.
- User-Friendly Terminal Connections: All interfaces connect directly via screw terminals — no soldering required for fast, secure wiring.

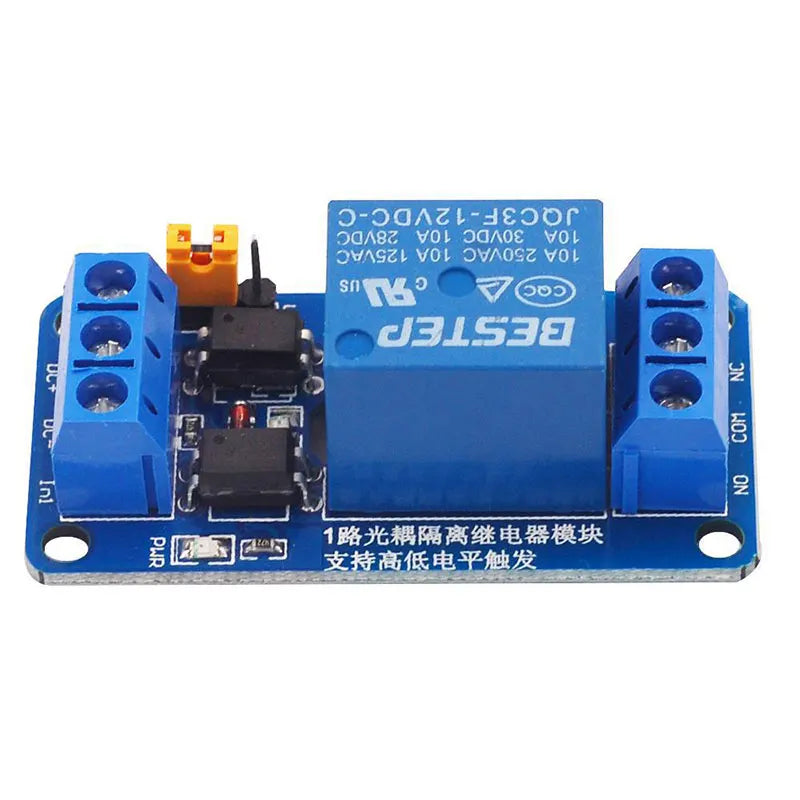

Module Interface Guide
- DC+ – Connect to positive pole of power supply
- DC– – Connect to negative pole of power supply
- IN – Signal input; controls relay via high or low level

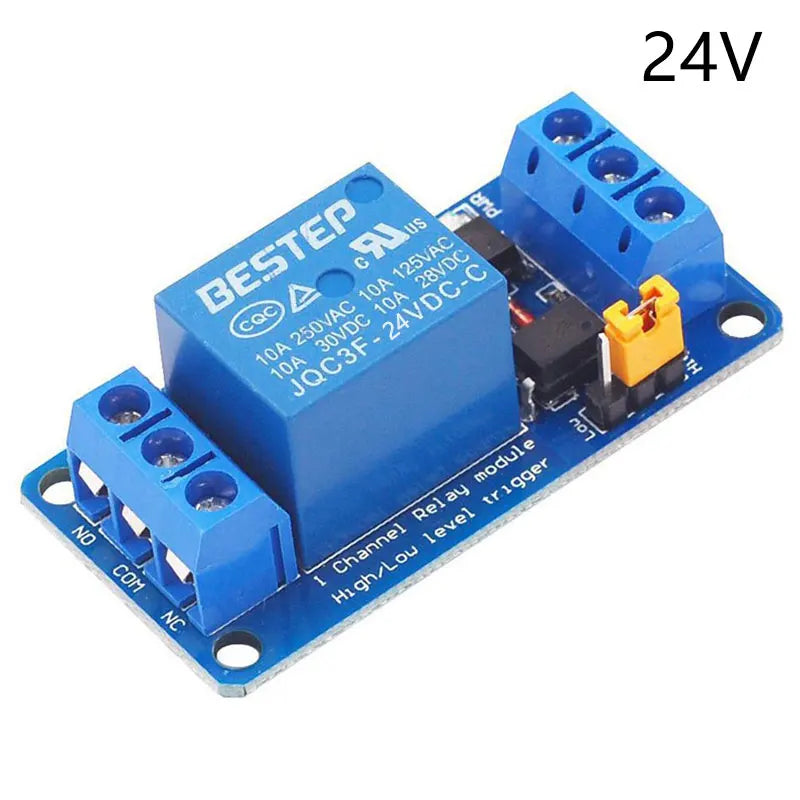

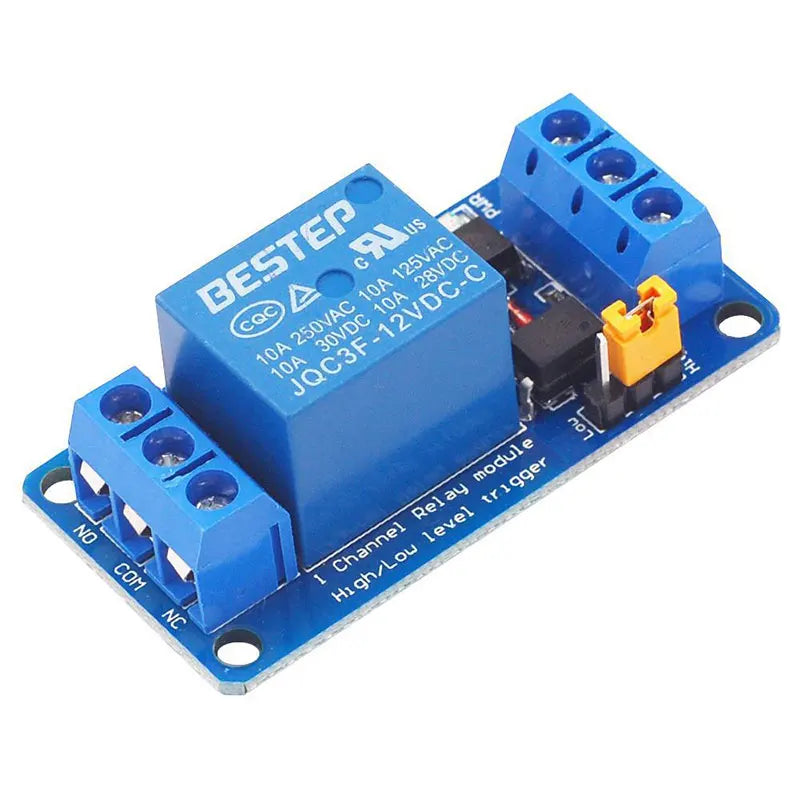

Relay Output Terminals
- NO (Normally Open): Circuit is open at rest; closes when relay is energized.
- COM (Common): Common terminal shared by NO and NC contacts.
- NC (Normally Closed): Circuit is closed at rest; opens when relay is energized.

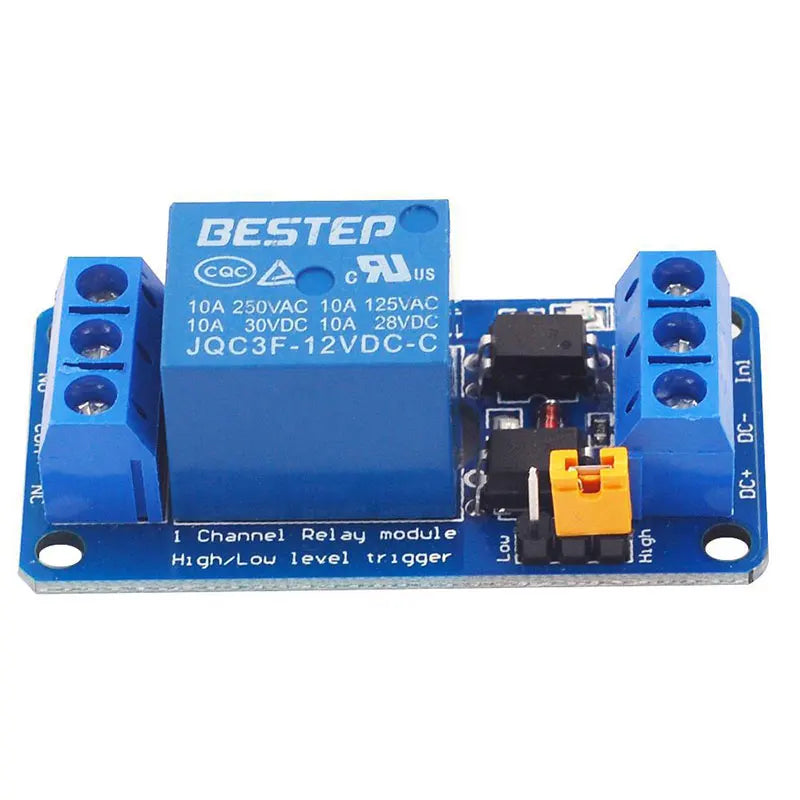

Trigger Level Selection
- S1 Jumper: Selects high or low level trigger for relay 1.
- Short COM to LOW → Low-level trigger mode
- Short COM to HIGH → High-level trigger mode
Specifications
| Channels | 1 |
| Input Voltage | 3.3V / 5V / 12V / 24V |
| Max Load (NO) | AC 250V/10A or DC 30V/10A |
| Trigger Current | 5mA |
| Isolation | Double Optocoupler |
| Indicators | Power (Green), Relay Status (Red) |
| Country of Origin | Made in Mainland China |
Related Products You May Like
- 1PC 10g High Grade Silicon Grease Lubricant for O-Rings
- 1PC Large Capacity Battery Storage Organizer Box
- 1PC Mobile Data Cable Storage Box with Lid
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What voltages does this relay module support?
A: This 1-channel relay module supports 3.3V, 5V, 12V, and 24V input voltages, making it compatible with a wide range of microcontrollers including Arduino, Raspberry Pi, and other development boards.
Q: Can I choose between high-level and low-level triggering?
A: Yes. The S1 jumper on the board lets you select either high-level or low-level triggering for the relay channel. Simply short COM to HIGH for high-level trigger mode, or to LOW for low-level trigger mode.
Q: What is the maximum load this relay can handle?
A: The normally open (NO) interface supports a maximum load of AC 250V/10A or DC 30V/10A — suitable for switching a wide variety of home automation and electronics loads.
Q: Is optocoupler isolation included for circuit protection?
A: Yes. This module uses double optocoupler isolation to protect your microcontroller or control circuit from the load side, ensuring stable and safe operation.
